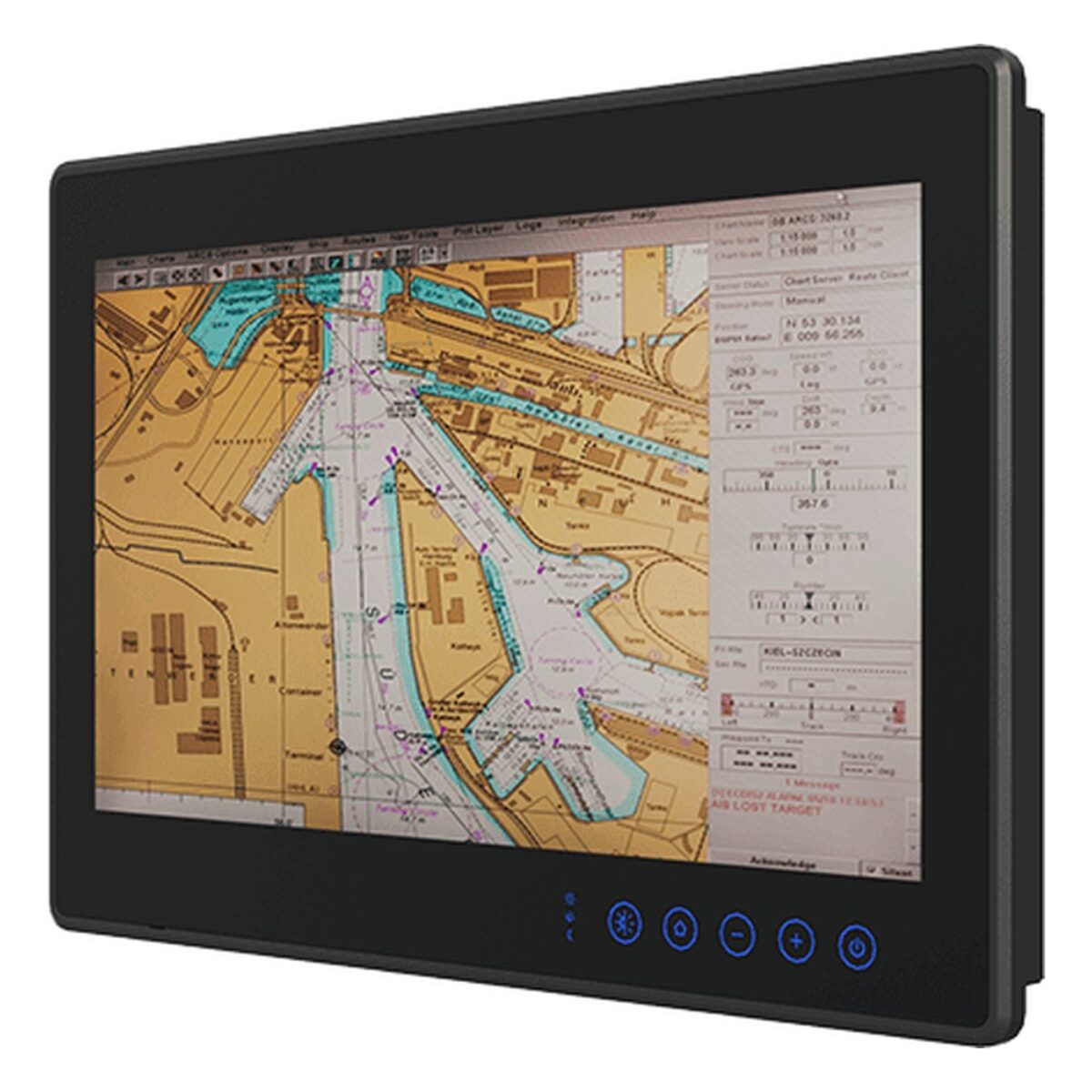

Winmate W15IAD3S-MRC3FP 15.6″ ECDIS Marine Panel PC with Intel Raptor Lake Core i5-1335U and 9 to 36V DC

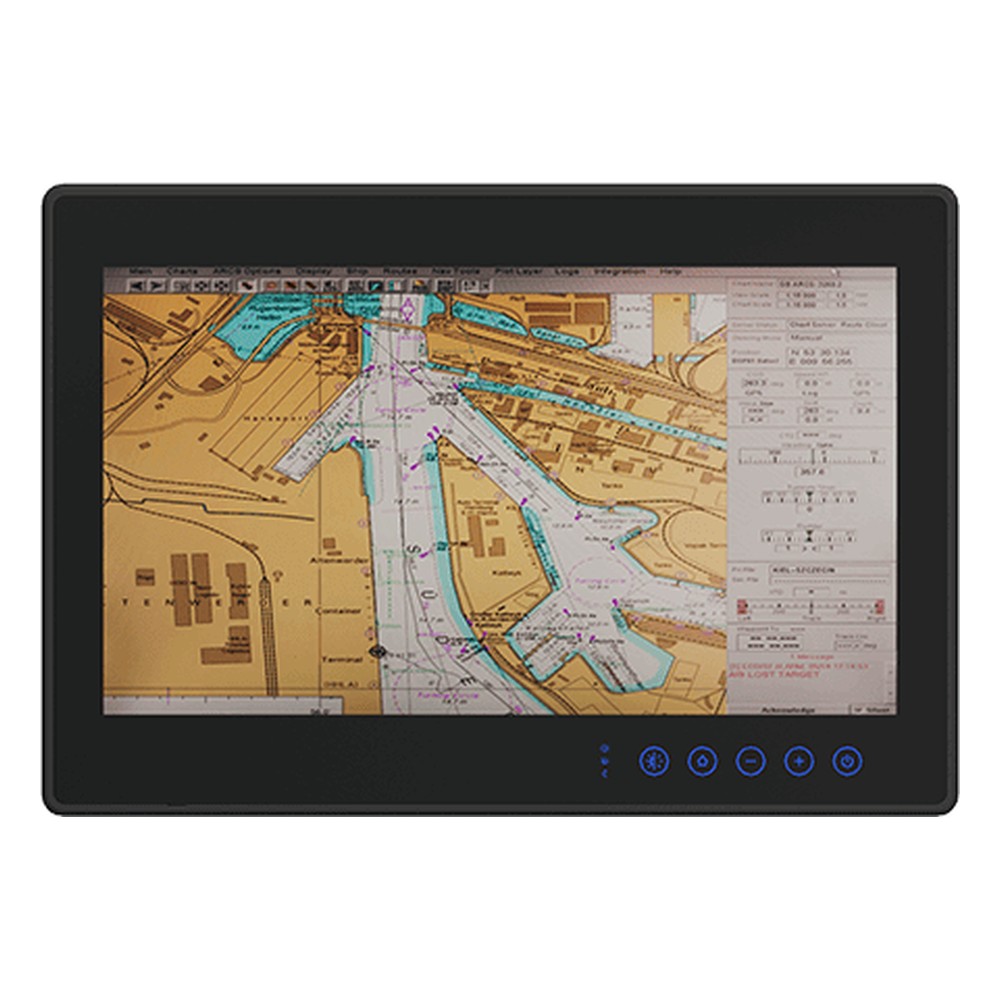

Newer bridge software is often laid out for widescreen, and a 15.6 inch full HD panel fits that layout into a console that has no room for a larger screen. The W15IAD3S-MRC3FP is Winmate’s 15.6 inch flat PCAP ECDIS marine panel PC for bridge systems, shipboard automation and offshore operations: a fanless unit with an anodised aluminum bezel, rated IP66 at the front, around a 15.6″ 1920 x 1080 display at 450 nits with 800:1 contrast.

The default processor is a 13th Gen Intel Core i5-1335U at up to 4.6 GHz, with an Intel Core 5 120U at up to 5 GHz as an option. Memory is 8 GB as standard with 16 GB or 32 GB options, and storage runs from 128 GB to 2 TB. Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 can be supplied, though Ubuntu does not support wake on touch. That leaves headroom for ECDIS and other bridge software.

I/O includes two Gigabit LAN ports on RJ45 with Intel Ethernet controllers, two USB 3.2 Gen 2×1 Type-A ports and one RS-232/422/485 port on DB9, set to RS-232 by default. HDMI, eight-channel isolated DIDO and four NMEA 0183 ports are optional. Front capacitive keys cover power, brightness, menu and a function key set to ECDIS mode, with day, dusk and night indicators. The W15IAD3S-PMA2 is a 15.6 inch panel mount PC for dry control cabinets, and the W15IAD3S-IPA2 is a 15.6 inch panel PC rated IP65 at the front, for factory use.

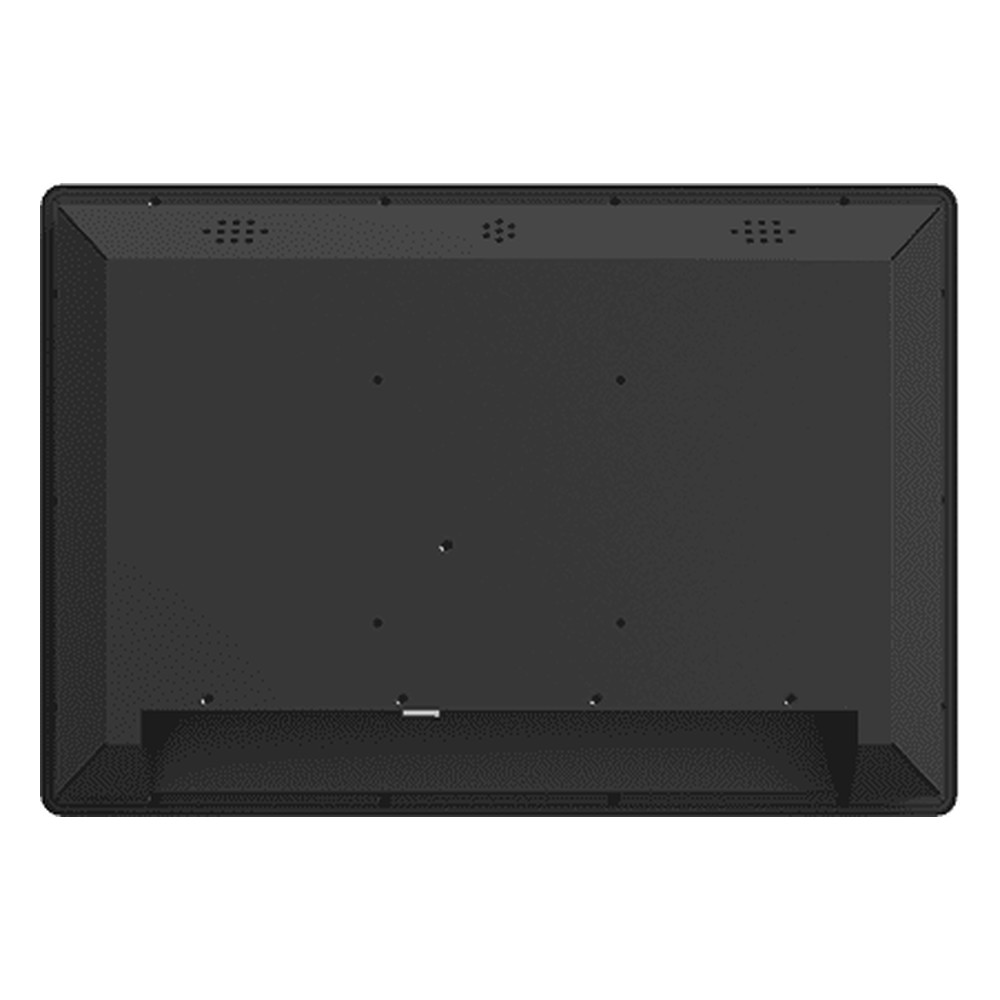

Power is 24 V DC with isolation, with 9 to 36 V DC also accepted, and an AC to DC adapter is supplied. Winmate lists DNV-CG-0339, IEC 60945 4th edition and IACS E10 under certification, and notes that only the 24 V DC input is approved under the DNV certification. Color calibration for ECDIS compliance is optional. The unit operates from -15 °C to 55 °C at 5 to 95% humidity and panel or VESA mounts. We supply the W15IAD3S-MRC3FP configured, with the OS installed, and tested before dispatch.
