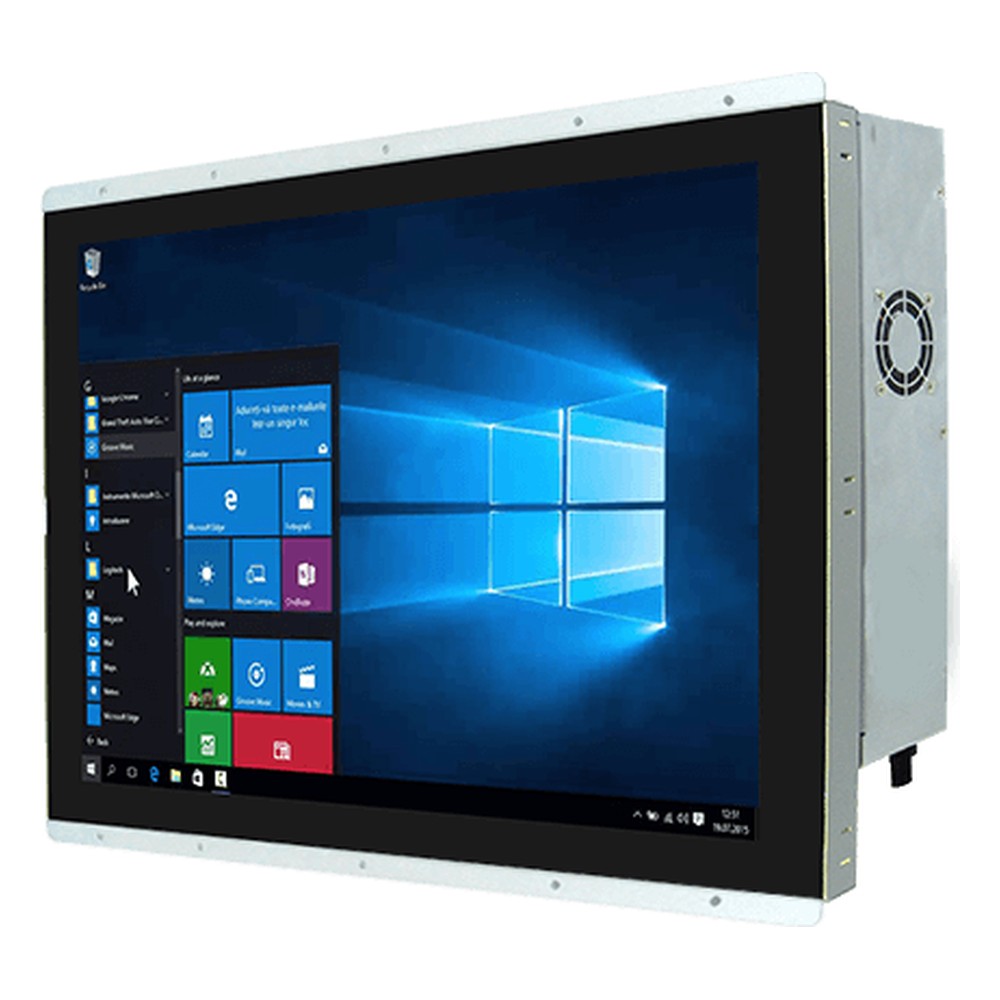

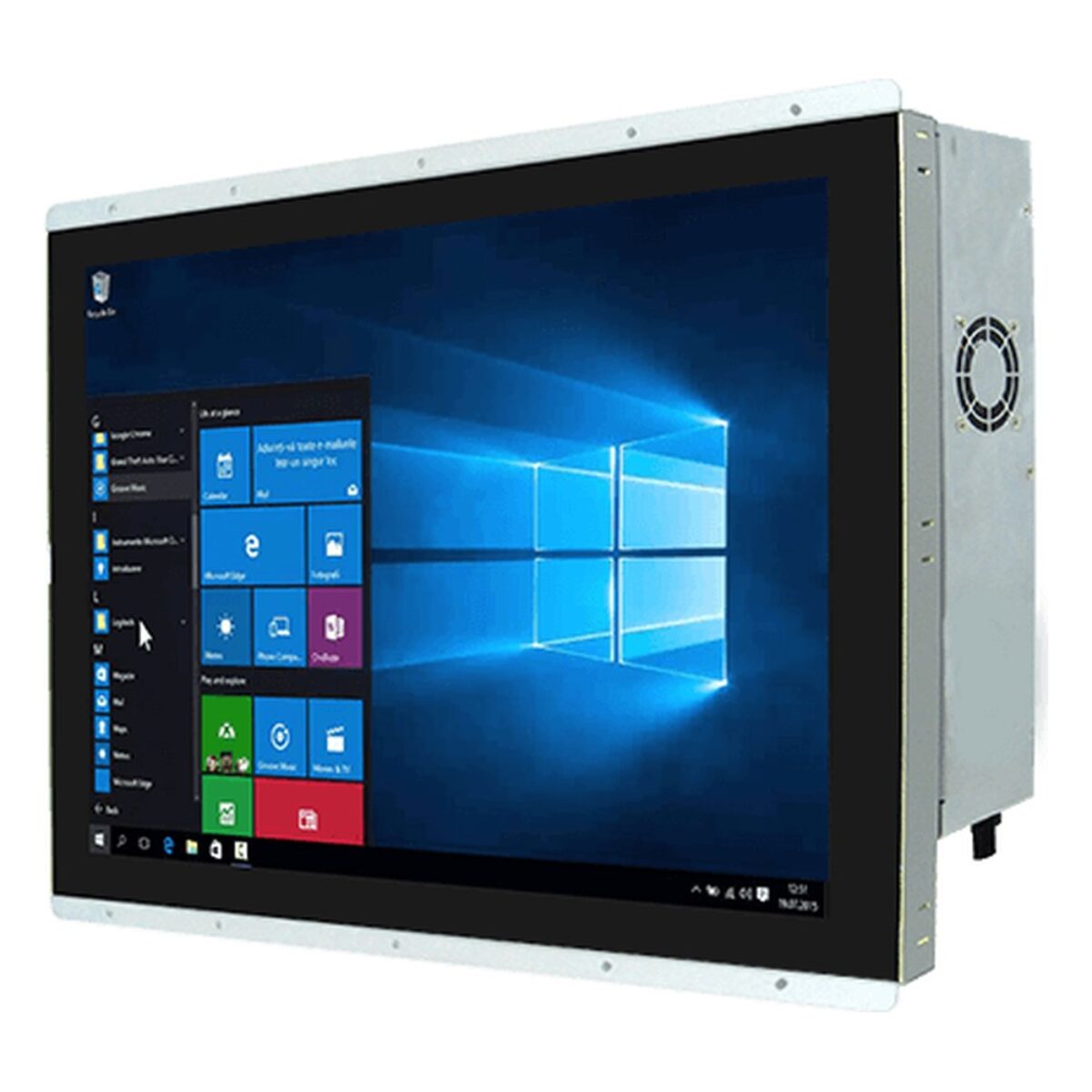

Winmate W15IF7T-POA4 15.6″ Open Frame HMI Panel PC with 9th Gen Intel Core i3/i5/i7 and PCAP Touch

Interactive kiosks and process control consoles built into the builder’s own enclosure sometimes need more processing behind the touch screen than an entry-level HMI offers. The W15IF7T-POA4 is Winmate’s 15.6 inch PO Series open frame HMI panel PC for those builds, with a 9th Gen Intel Core i7-9700TE as standard, a Core i5-9500TE or i3-9100TE as options, and a 15.6″ 1920 x 1080 projected capacitive multi-touch display at 300 nits with 800:1 contrast.

The Core i7-9700TE runs at 1.8 GHz with turbo up to 3.8 GHz on an Intel Q370 chipset, and two non-ECC SO-DIMM sockets take up to 64 GB. Storage is a 128 GB SSD as standard on an M.2 2280/2242 M-key slot for NVMe or SATA drives, with options up to 2 TB, and two optional 2.5″ SATA III bays support RAID 0 and 1. A PCIe 3.0 x16 slot takes an expansion card, TPM 2.0 is on board, and Windows IoT Enterprise or Linux Ubuntu 20.04 can be installed.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.2 with optional HDMI 1.4, and mic in, line out and two speakers. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W15IP7T-POA4 is the same open frame with a fanless Intel Pentium N4200 and a front IP65 rating, and the W15IT7T-POA4 is the 15.6 inch open frame model with an 11th Gen Intel Core i5-1135G7.

Power is 12 V DC on a lockable DIN 4-pin connector, with a 100 to 240 V AC adapter (12 V 120 W) supplied. The fan-cooled metal housing runs from 0 to 50 °C in non-condensing humidity, which suits indoor kiosks and control rooms. Open frame mounting is standard, with panel and VESA mounting as options and VESA screws supplied. It carries CE and FCC marks. We supply the W15IF7T-POA4 configured, with the OS installed, and tested before dispatch.
