Winmate W18IT7T-OFA2 18.5″ Open Frame Panel PC with 11th Gen Intel Core i5 and Resistive Touch

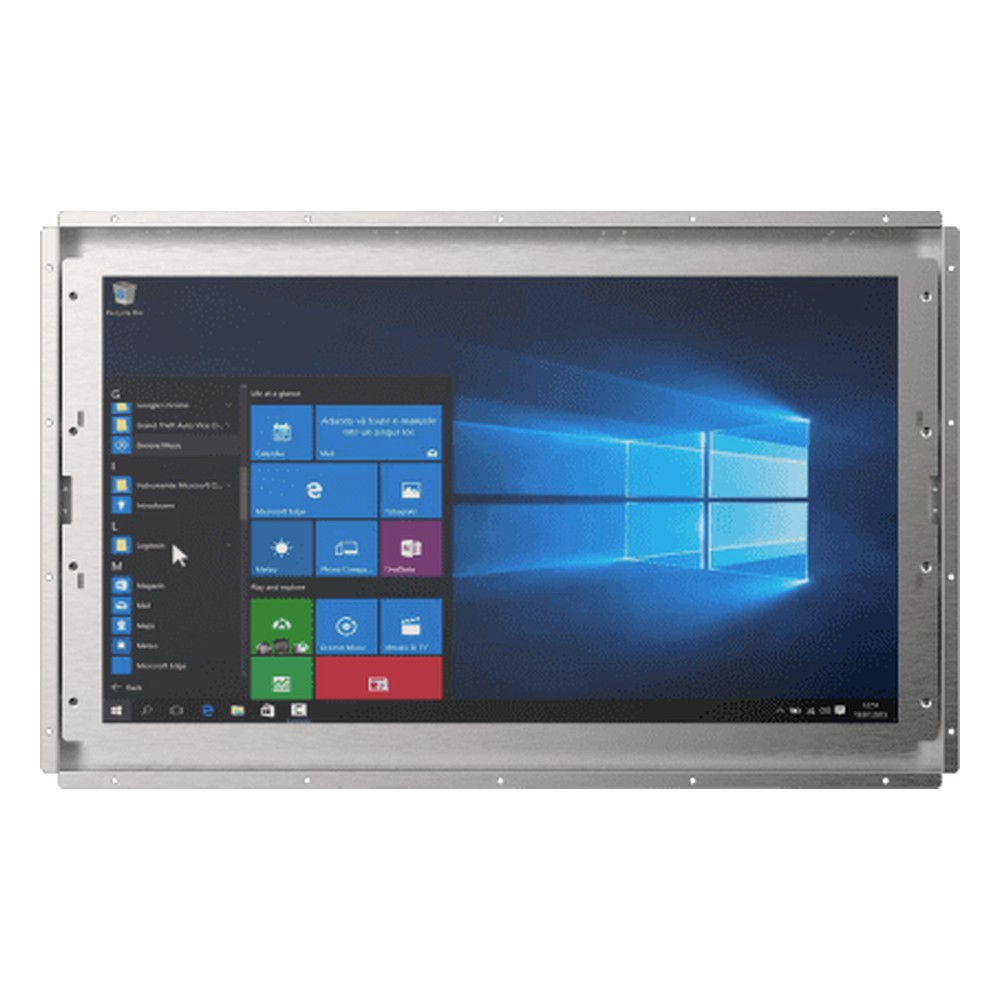

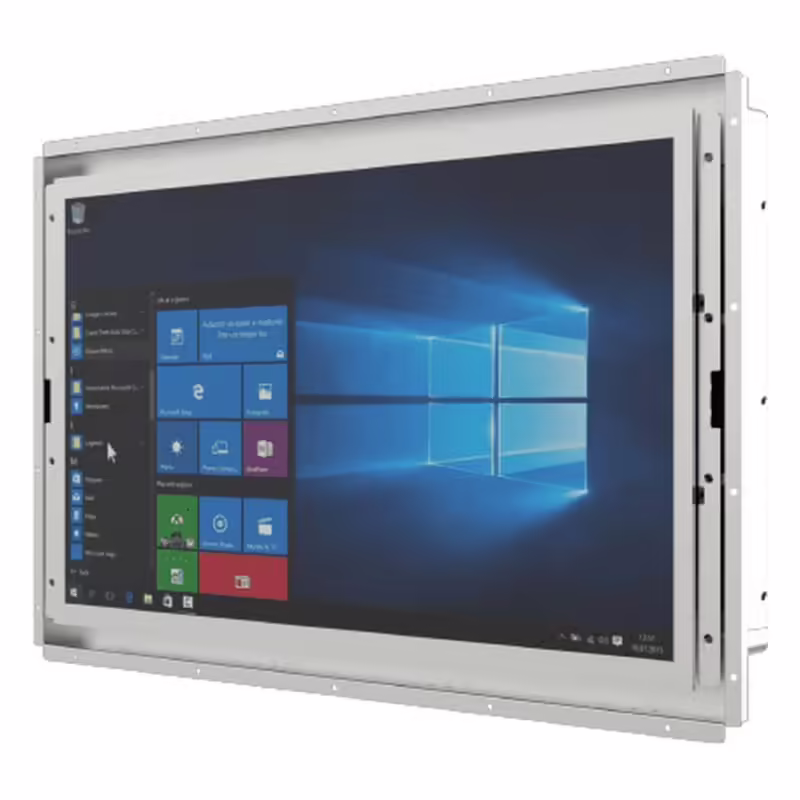

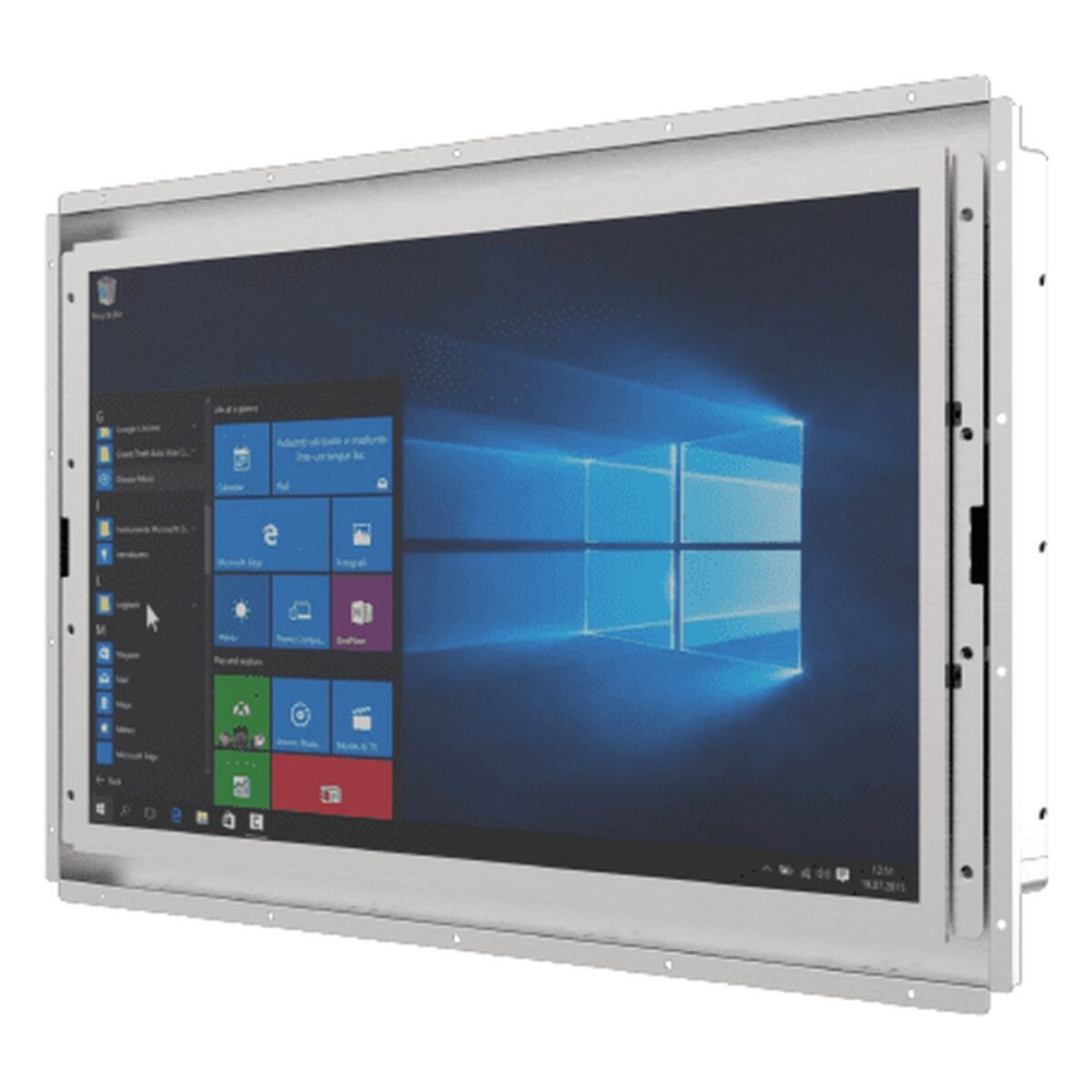

Machine and kiosk builders often want the computer and touchscreen as one part inside their own housing. The W18IT7T-OFA2 is Winmate’s 18.5 inch open frame panel PC for that job: a fanless metal unit with an Intel Core i5-1135G7 and a 18.5″ 1366 x 768 HD display at 450 nits with 1000:1 contrast. Winmate names factory automation, retail and interactive digital signage as typical uses.

The Intel Core i5-1135G7 is a quad-core, eight-thread Tiger Lake processor at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR4 SO-DIMM sockets take up to 64 GB. A 128 GB NVMe SSD is standard, with options to 4 TB, plus an optional 2.5″ SATA III bay. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

One 2.5GbE and one Gigabit LAN port run on Intel controllers. Four USB 3.2 Gen 2 Type-A ports, two DB9 serial ports (one RS-232/422/485, one RS-232), DisplayPort 1.4 with optional HDMI 2.0, and mic in and line out complete the set. A PCIe x16 slot with x4 Gen4 signals takes an add-in card, and Wi-Fi with Bluetooth is optional. The W18IT7T-IPA2 is the 18.5 inch front IP65 version for panel mounting, and the W24IT7T-OFA2 is the 23.8 inch open frame model with a full HD screen.

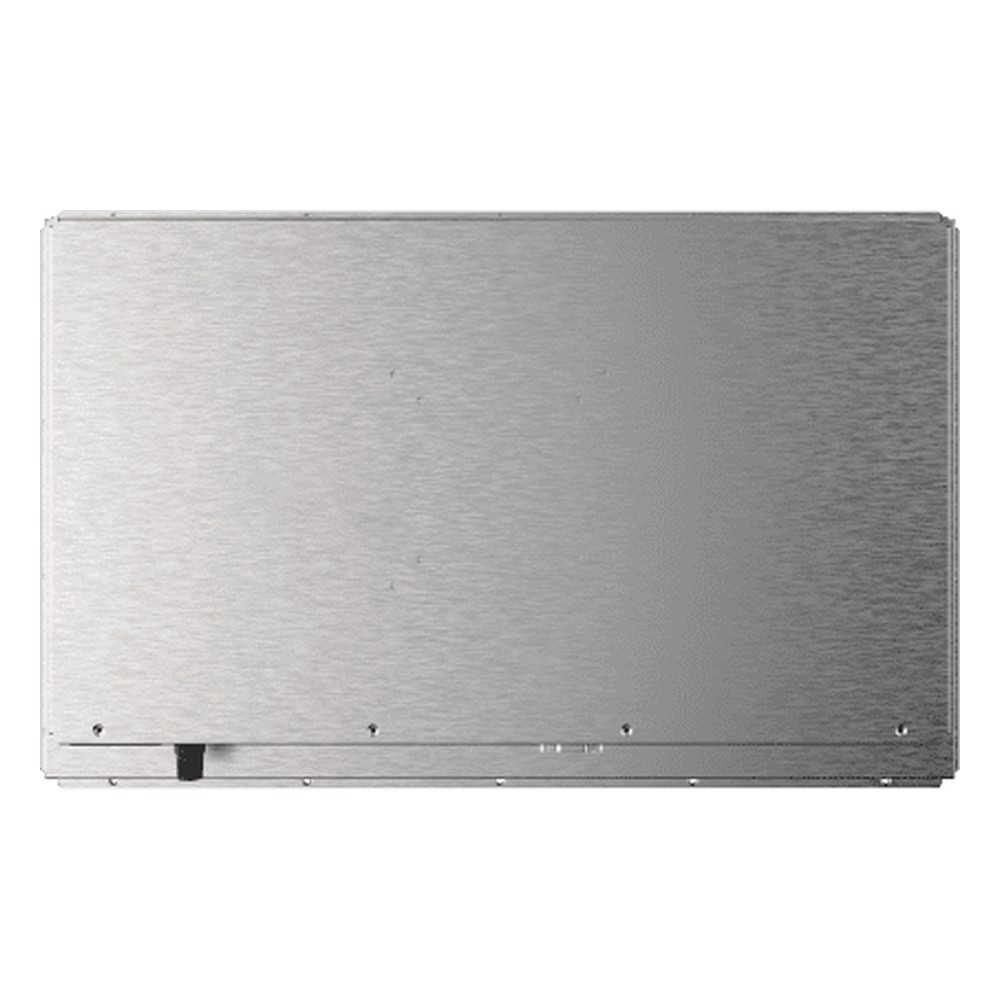

It fits as an open frame by default, with panel mounting and VESA as options, and VESA screws are supplied. Power is 12 V DC on a DIN 4-pin connector, and a 12 V 120 W AC adapter is supplied. The fanless metal housing operates from 0 °C to 50 °C, stores from -10 °C to 60 °C and works at 10 to 90% humidity, non-condensing, and carries CE and FCC marks. We supply the W18IT7T-OFA2 configured, with the OS installed, and tested before dispatch.
