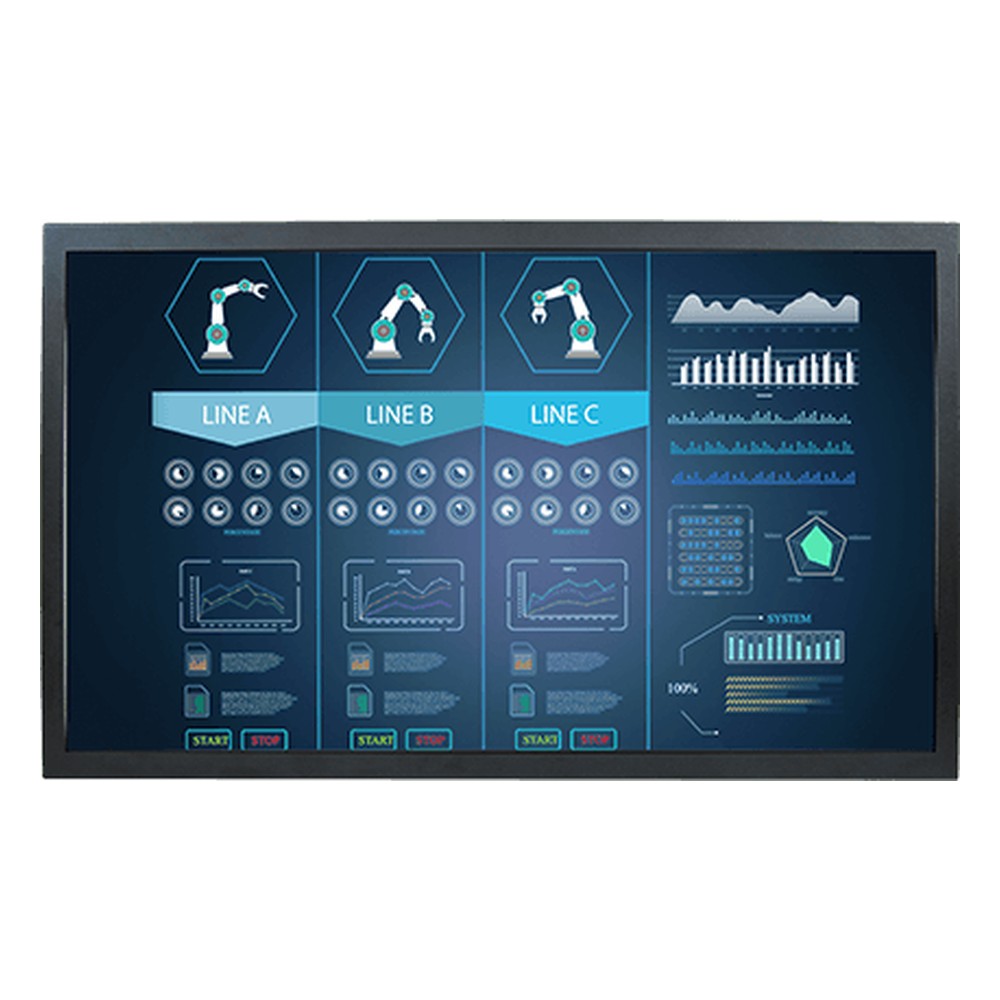

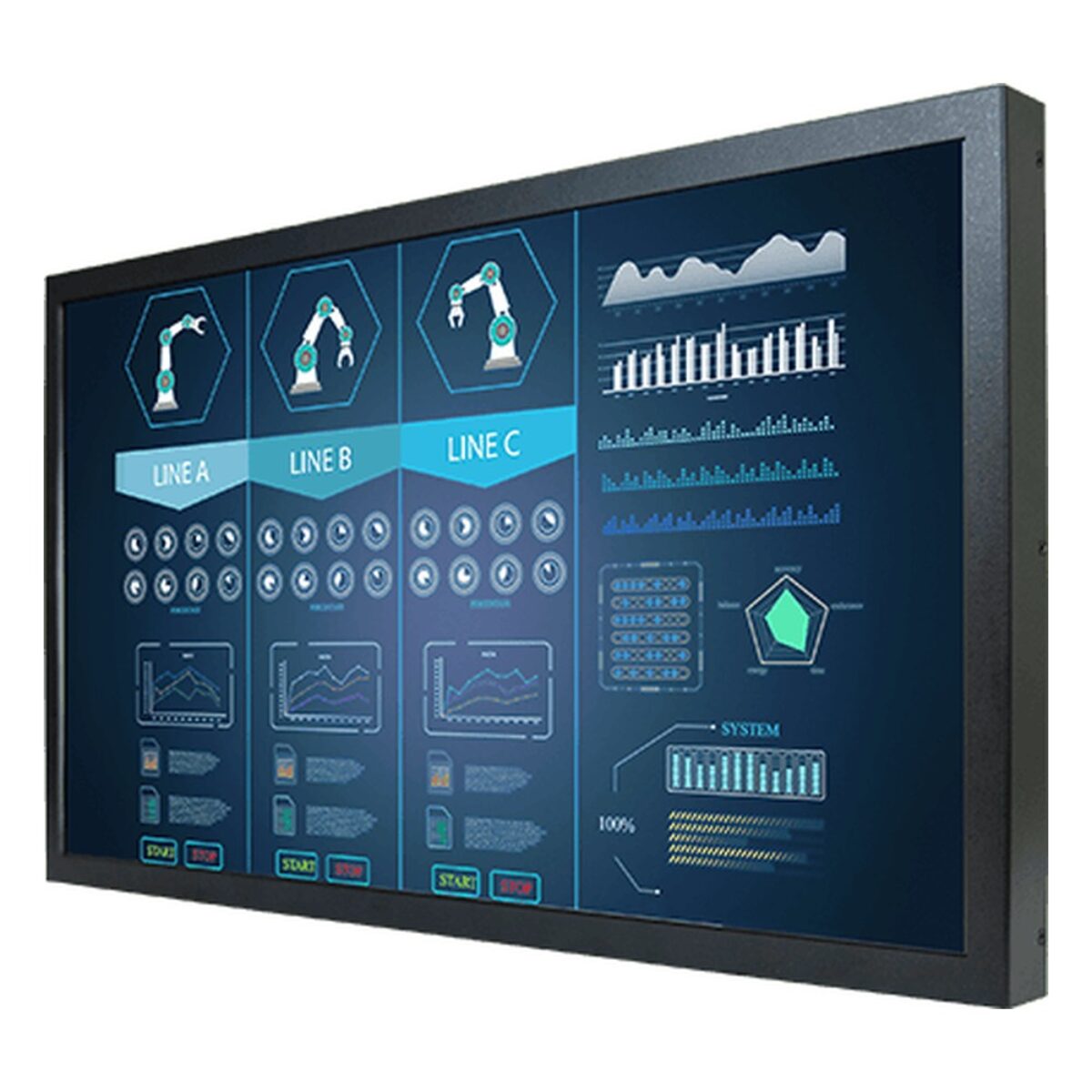

Winmate W18L100-CHA3HB 18.5″ Chassis Monitor with 1000 Nit FHD Display and Resistive Touch
Resistive
High Bright
Fanless
CE
FCCW18L100-CHA3HB Overview
Full HD dashboards in bright production halls or near glazing need more backlight than a standard panel offers. The W18L100-CHA3HB is Winmate’s 18.5 inch chassis display for this, with a 1920 x 1080 FHD panel at 1000 nits, optional resistive touch and a fanless metal housing. Winmate names control rooms, kiosks and manufacturing as its uses.
The 18.5″ LCD shows 1920 x 1080 at 1000 nits with a 1000:1 contrast ratio and 178° viewing angles. Touch is optional: resistive touch can be added for operator input, or plain protection glass fitted where the screen only needs to display. At 1000 nits the high brightness panel is sunlight readable and keeps 1920 x 1080 content legible in bright surroundings.
Video comes in over VGA as standard, with HDMI and DVI inputs as options, and a USB port carries touch data back to the host computer. An audio line-in, two speakers and a remote controller are optional. The W18L100-OFA3HB is the open frame version of this 1000 nit panel, and the W22L100-CHA3HB is the 21.5 inch, 1000 nit chassis model.
Power is 12 V DC, with 24 V DC as an option, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W18L100-CHA3HB operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing, cools without a fan, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to the computer you specify.
W18L100-CHA3HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W18L100-CHA3HB |
| Features | Fanless Industrial |
| Display | |
| Display | 18.5"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 437mm x 265mm x 50mm (17.22" x 10.41" x 1.97") |
| Mounting Options | VESA Mount |
- W18L100-CHA3HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W18L100-CHA3HB configured and tested for USA control panel, kiosk and machine projects. Within the Winmate range the W18L100-OFA3HB is the open frame version of this 1000 nit screen.
The W18L100-CHA3HB sits among our sunlight readable monitors, our chassis monitors and our resistive touch monitors. Where an 18.5 inch FHD screen needs to sit in a chassis of its own beside the host computer, this is the model to specify.
