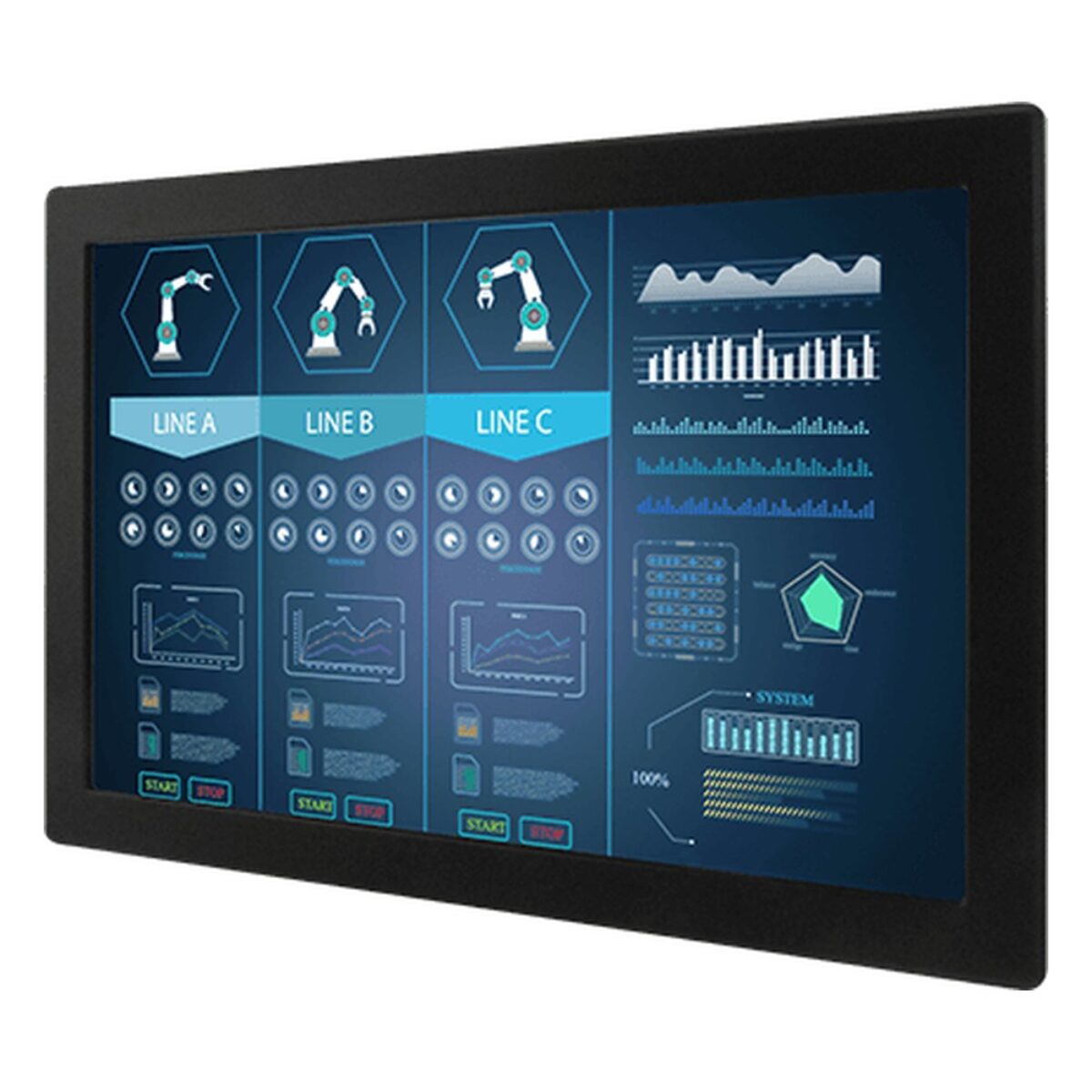

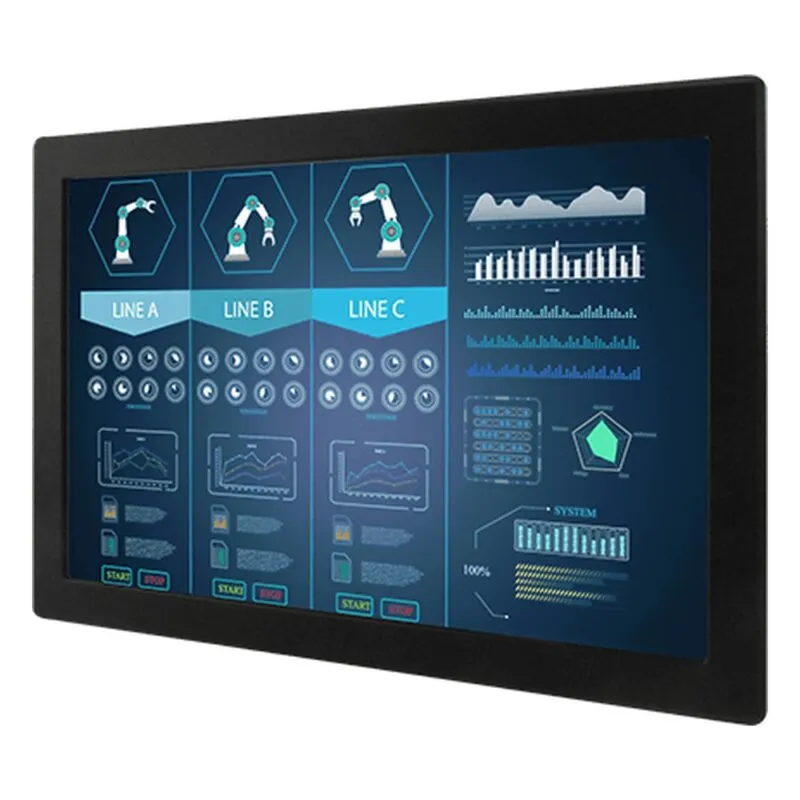

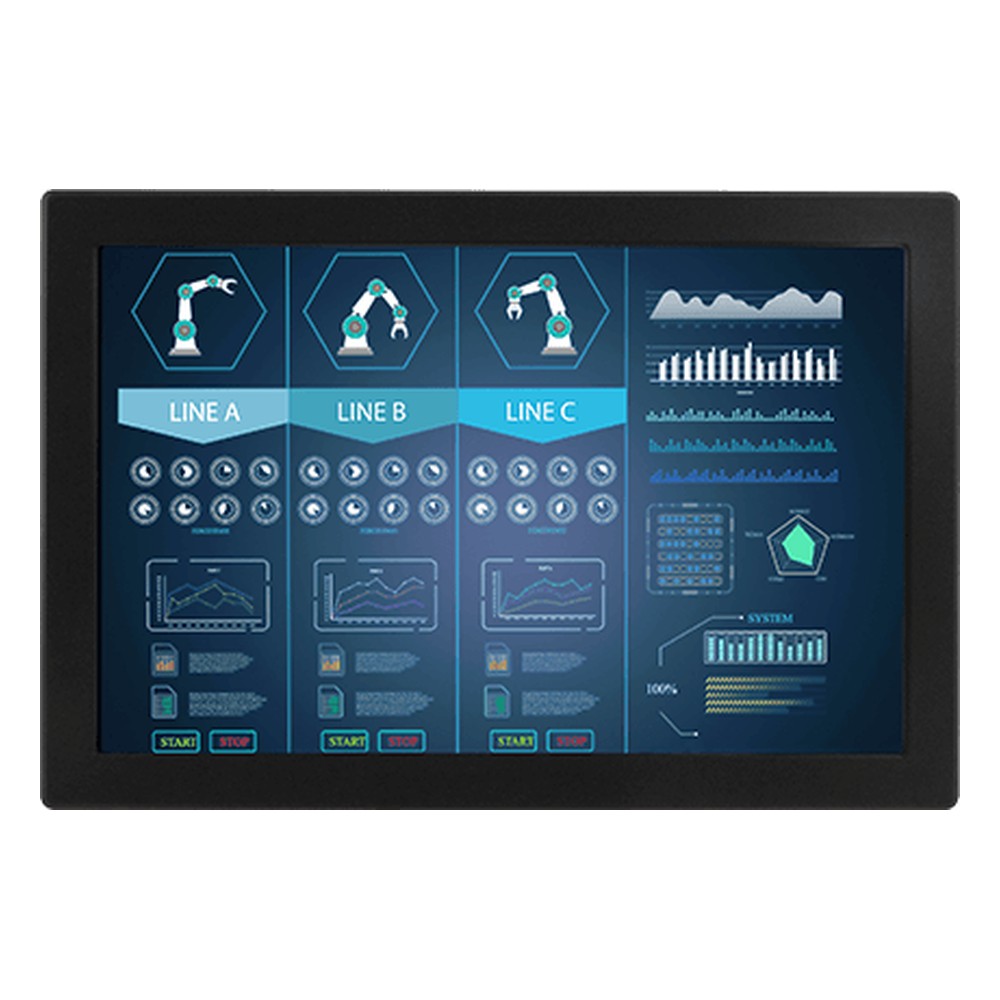

Winmate W18L100-IPA3HB 18.5″ Front IP65 Monitor with 1000 Nit FHD Display and Resistive Touch

A machine or kiosk display that faces bright light and the odd hose-down needs a sealed front and a panel that stays readable. The W18L100-IPA3HB is Winmate’s 18.5 inch industrial monitor for that job: an FHD panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 18.5″ 1920 x 1080 panel runs at 1000 nits, so it stays readable in sunlight, with 1000:1 contrast and 178 degree viewing angles. Touch is optional: resistive touch, which works with gloved fingers or a stylus, or a protection glass without touch can be specified to suit the job.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The W22L100-IPA3HB is the same 1000 nit design at 21.5 inches, with resistive touch as the default, and the W18L100-OFA3HB is the 18.5 inch open frame monitor for builders who fit their own bezel.

The 18.5 inch monitor is rated IP65 at the front and mounts on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the W18L100-IPA3HB configured and tested before dispatch, ready to pair with the computer that drives it.
