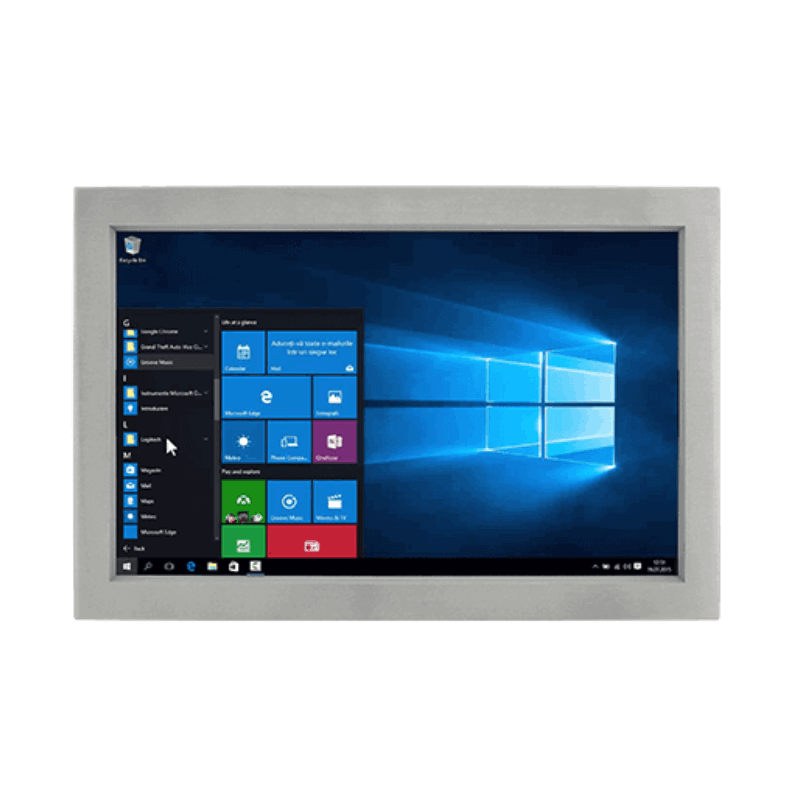

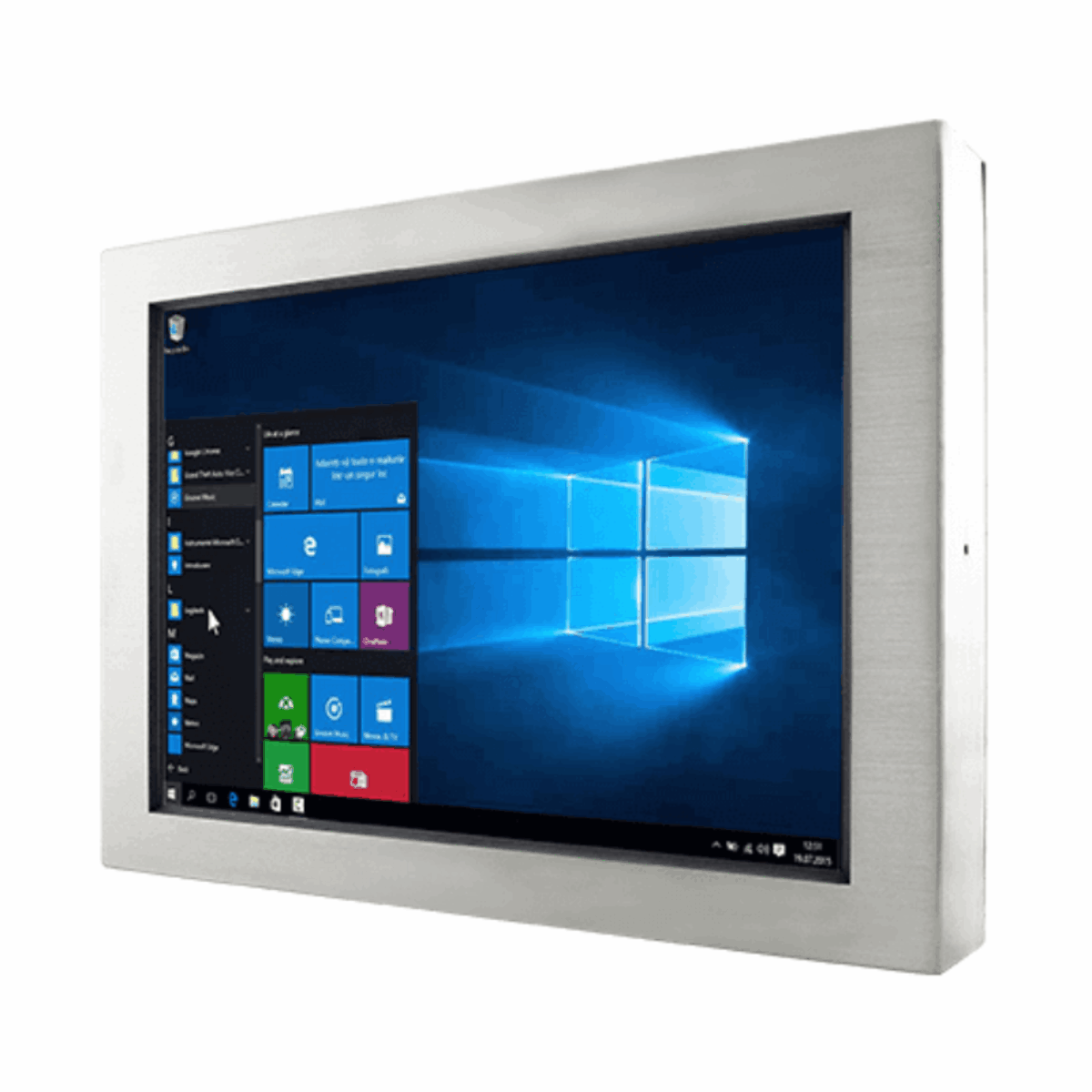

Winmate W22IE3S-65A3 21.5″ Full HD IP65 Stainless Steel Panel PC with Intel Celeron N6211 and Optional Touch

A wide stainless display on a process line often has two jobs: showing the whole process to people walking past, and taking the odd gloved press when something needs acknowledging. The W22IE3S-65A3 is Winmate’s 21.5 inch stainless steel panel PC for that brief, with a SUS 316 / AISI 316 housing sealed to full IP65, a fanless Intel Celeron N6211 and either 5-wire resistive touch or plain protection glass, as a standalone model.

The widescreen panel runs at full HD 1920 x 1080 with 250 nits, a 3000:1 contrast ratio and 178° viewing angles both ways. Resistive touch works with gloves, and optical bonding with anti-moisture treatment is an option. The Intel Celeron N6211 runs at up to 3.0 GHz (the N6210 is an option), with one DDR4-3200 SO-DIMM holding 4 GB as standard and 8 GB or 16 GB as options, a 128 GB M.2 2242 SSD that can go to 512 GB and an optional 2.5 inch SATA bay for up to 1 TB. That covers HMI software, recipe screens and data logging, with TPM 2.0 on board and Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise or Ubuntu 22.04 as options.

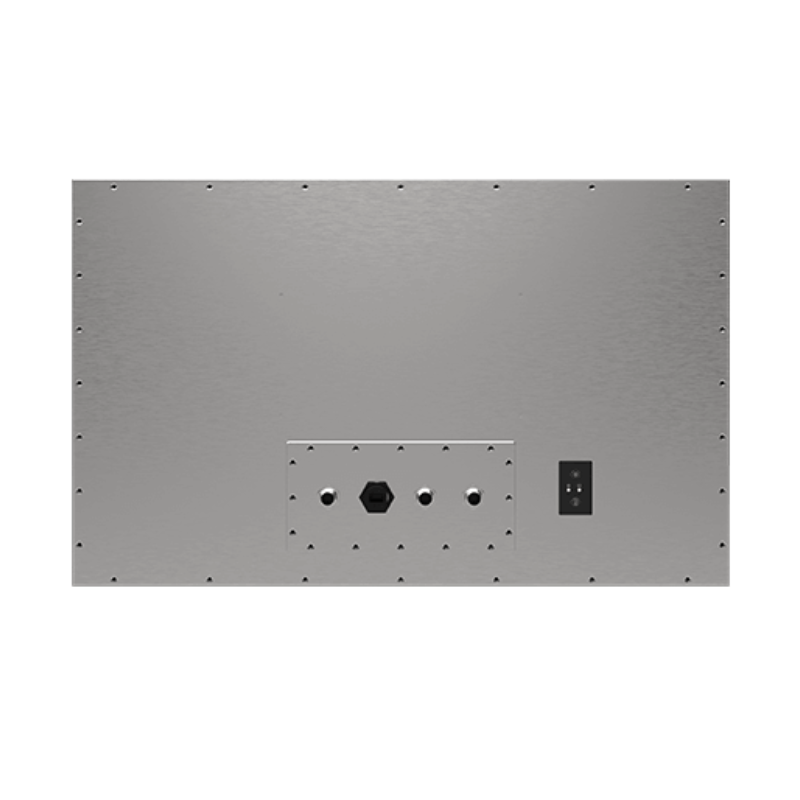

Every connection is sealed: one Gigabit LAN port on a waterproof RJ45 connector, two USB 2.0 ports on a single M12 connector and one RS-232 port on M12, with waterproof adapter cables and caps supplied. Wi-Fi and Bluetooth are optional, with antenna covers on the top edge. The W22IE3S-SPA3 is the 21.5 inch IP65 build with a flat PCAP front, and the W24IE3S-65A2 takes this design to 23.8 inches.

Power is 12 V DC on an M12 connector, with an AC adapter supplied. The W22IE3S-65A3 is fanless, operates from 0 to 45 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 550 x 340 x 58.6 mm, weighs 10.3 kg and mounts on 200 x 100 mm VESA or a yoke.
