Winmate W22L100-67B2-P(HB) 21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1000 Nit FHD Display
PCAP
High Bright
Fanless
CE
FCCW22L100-67B2-P(HB) Overview

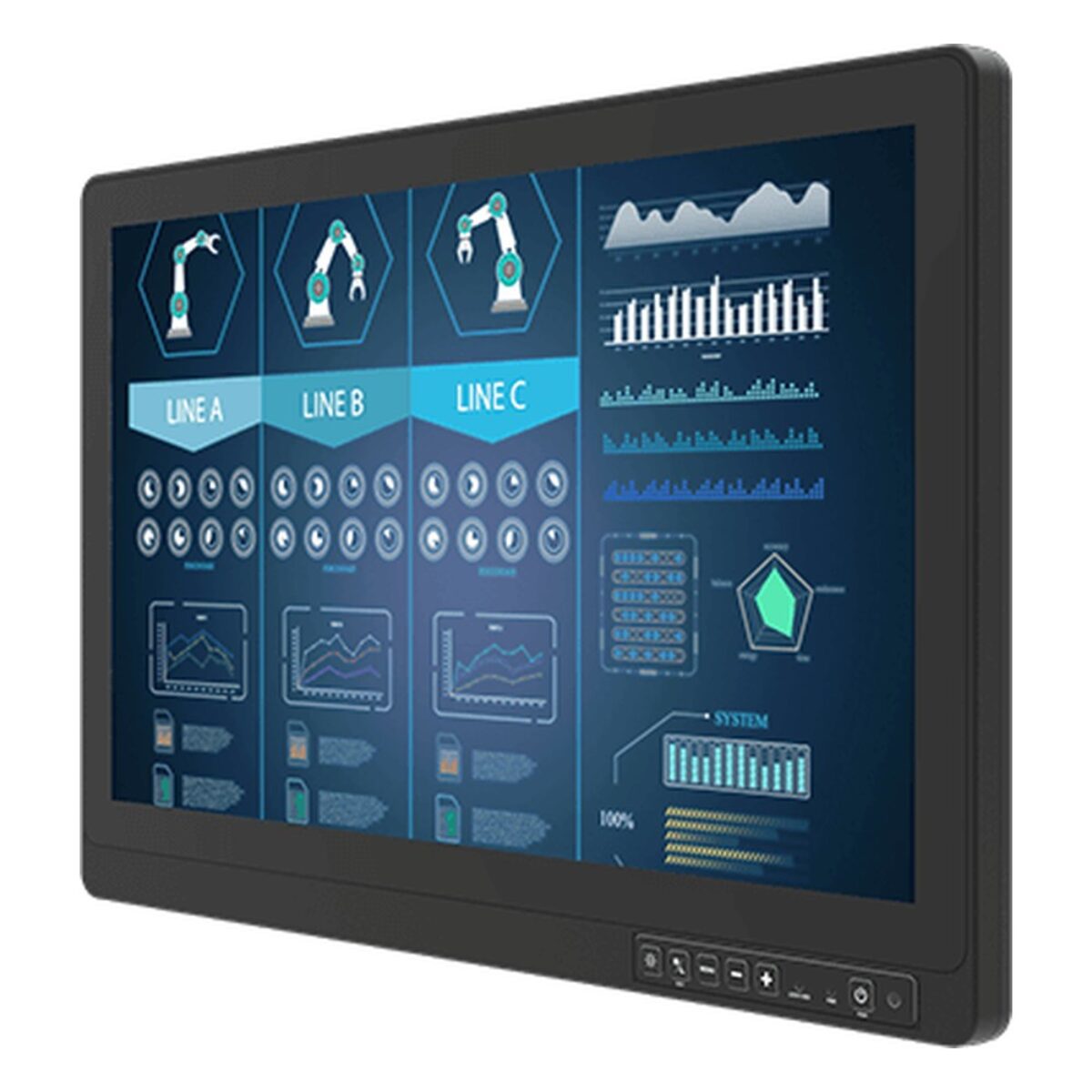

Large screens on vehicles, outdoor kiosks and wash-down lines take rain, spray, vibration and direct sun, and a front-only seal is not enough when water can reach the back. The W22L100-67B2-P(HB) is Winmate’s 21.5 inch G-WIN IP67 display: a fully sealed IP67 monitor in an aluminum die-cast housing with an anti-corrosion pre-finish and polyester powder coating. It connects to a separate rugged computer and mounts on VESA.

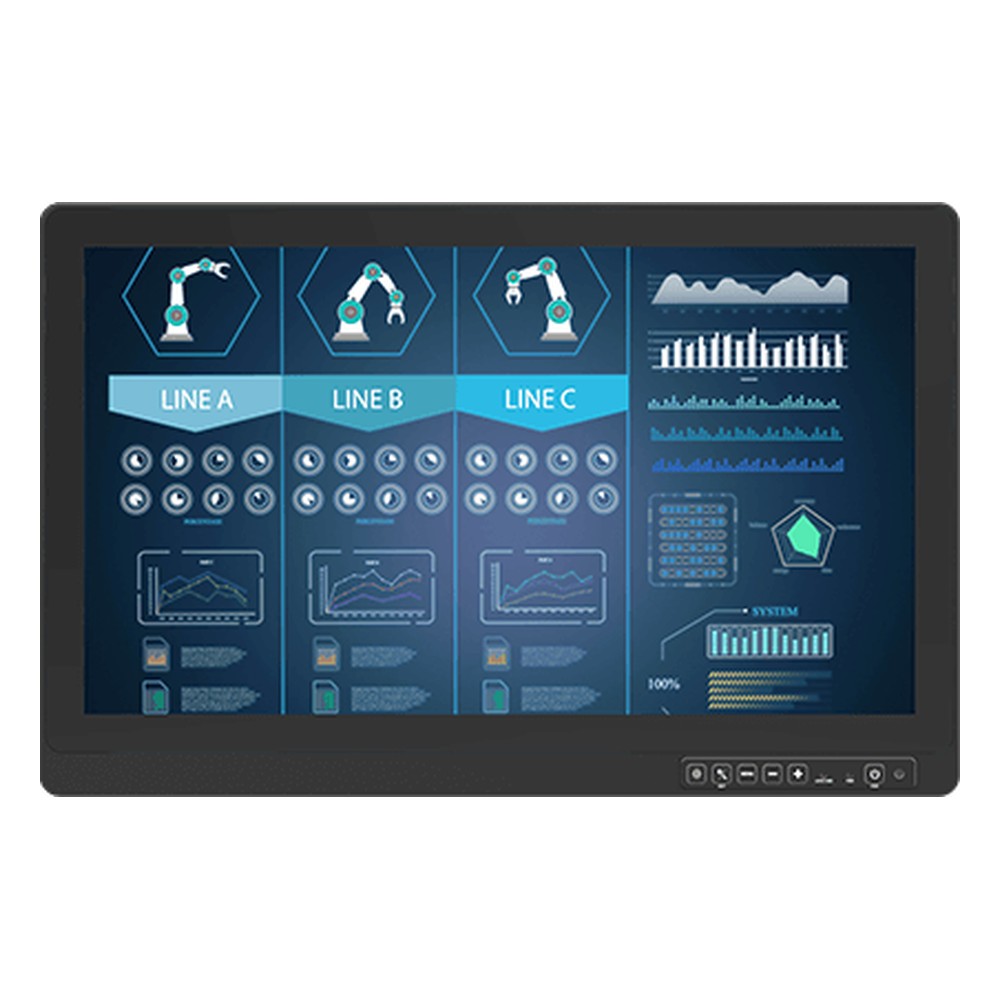

The 21.5″ 1920 x 1080 panel runs at 1000 nits with 1000:1 contrast and 178 degree viewing angles, and projected capacitive multi-touch is optically bonded to the panel for clarity in bright light. A built-in ambient light sensor and a menu key adjust brightness automatically or by hand, and a day/night mode button and an LED brightness button help at night. An anti-reflective protection glass is available under a separate order code.

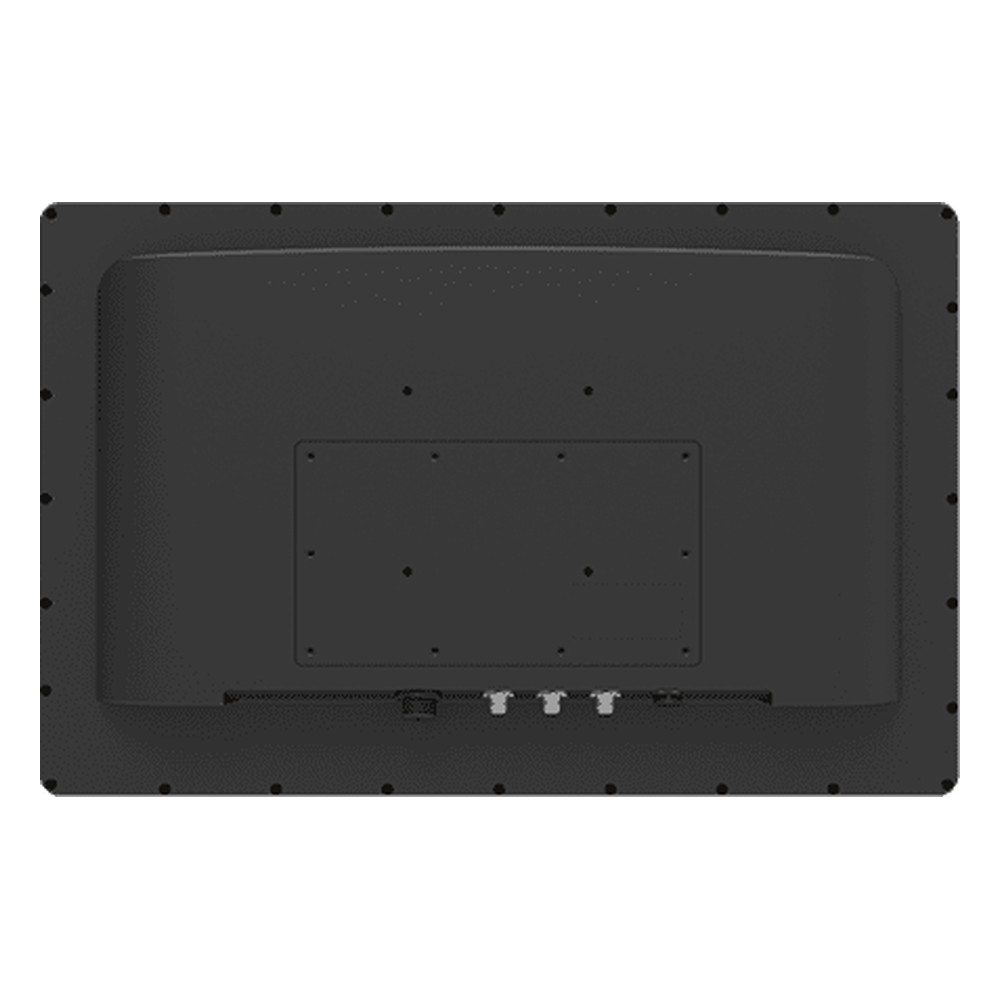

Video arrives over VGA on an M12 connector and HDMI on a waterproof connector, and touch runs over USB on an M12 connector, with an RS-232 remote control port as an option. LEDs show power and lock/unlock status. Open-wire power, USB, VGA and HDMI cables with waterproof connectors are supplied, with waterproof caps and VESA screws. The W22IAD3S-67B2-P(HB) is the panel PC on this IP67 design with a 12th Gen Intel Core i5, and the W22MG3S-67B2-P(HB) carries a MediaTek Genio 510.
Power is an isolated 9 to 36 V DC input on an M12 connector, with an AC adapter as an option. The 21.5 inch monitor runs fanless from -10 °C to 55 °C, or -40 °C to 55 °C with the intelligent heater, stores from -30 °C to 70 °C and is tested to MIL-STD-810G Methods 516.6 and 514.6. It carries CE and FCC marks. We supply the W22L100-67B2-P(HB) configured and tested before dispatch, ready to pair with the computer that drives it.
W22L100-67B2-P(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22L100-67B2-P(HB) |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Optical Bonding |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] -40°C to 55°C [-40°F to 131°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 8.7 Kg (19.1 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 530mm x 343mm x 58mm (20.85" x 13.50" x 2.28") |
- W22L100-67B2-P(HB) Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22L100-67B2-P(HB) configured and tested for USA vehicle, kiosk and wash-down projects. Within the Winmate range the W22IAD3S-67B2-P(HB) is the panel PC version of this IP67 design with a 12th Gen Intel Core i5, and the R15L100-67C3-P(HB) is the 15 inch IP67 monitor with a 4:3 panel.
The W22L100-67B2-P(HB) sits among our IP67 monitors, our rugged displays and our 21.5 inch industrial monitors. Where a large touchscreen has to be sealed all round and readable in sunlight, this is a sensible model to shortlist.
