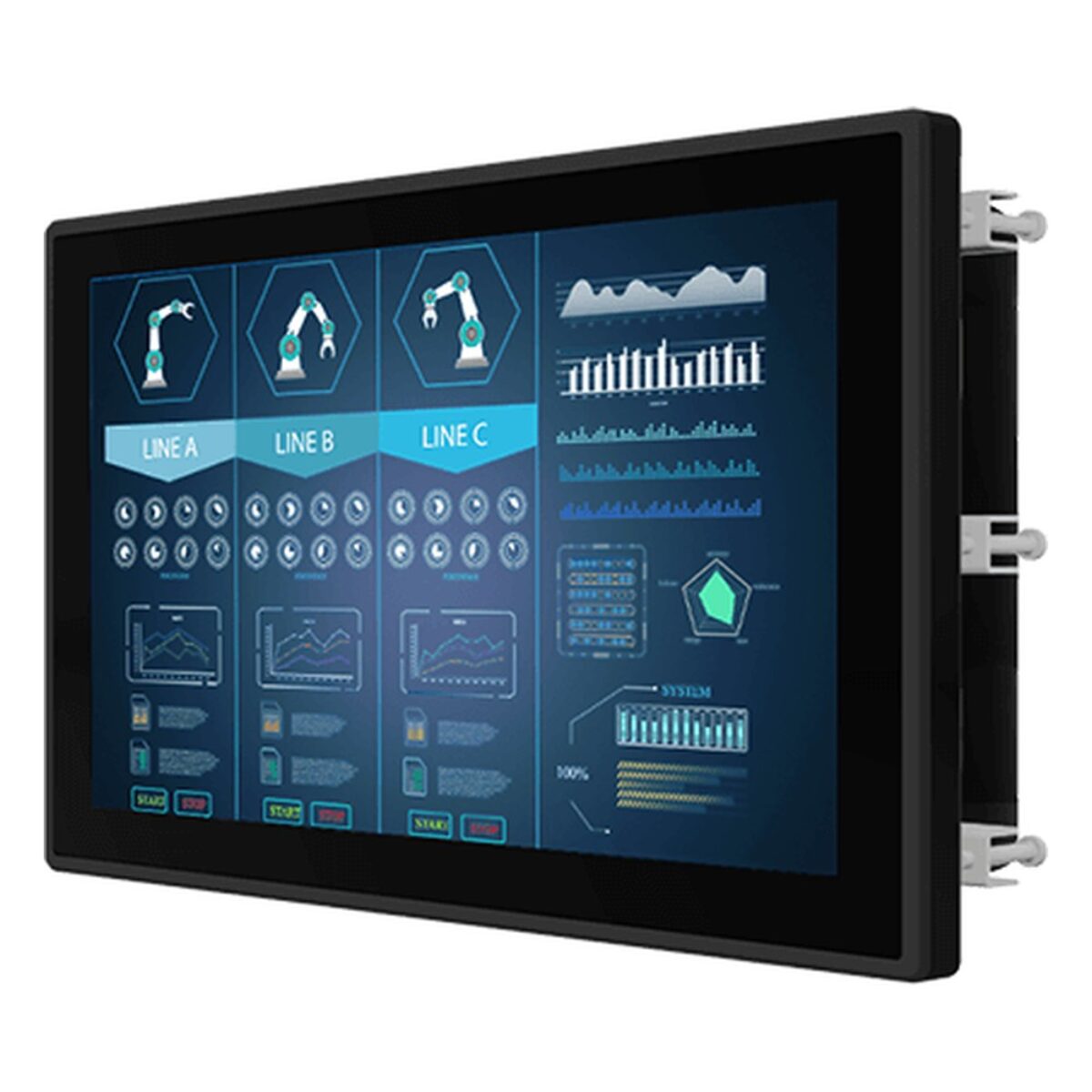

Winmate W22L100-EHA3 21.5″ PCAP Panel Mount Monitor with FHD LCD and 250 Nits

Control desks, kiosks and machine-side workstations often need a touchscreen that fits a panel and connects to a computer already in the cabinet. The W22L100-EHA3 is Winmate’s 21.5 inch slim panel mount monitor for that kind of job: a 21.5″ 1920 x 1080 FHD display with projected capacitive multi-touch in a metal housing with an aluminum bezel, sealed to IP65 at the front.

The 1920 x 1080 panel runs at 250 nits with 3000:1 contrast and 178 degree viewing angles. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass, and an anti-glare coating is optional.

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W22L100-PPA3 is the aluminium-bezel panel mount version of the same full HD panel, and the W22L100-PTA3 is the plastic chassis version for VESA mounting.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 21.5 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the W22L100-EHA3 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
