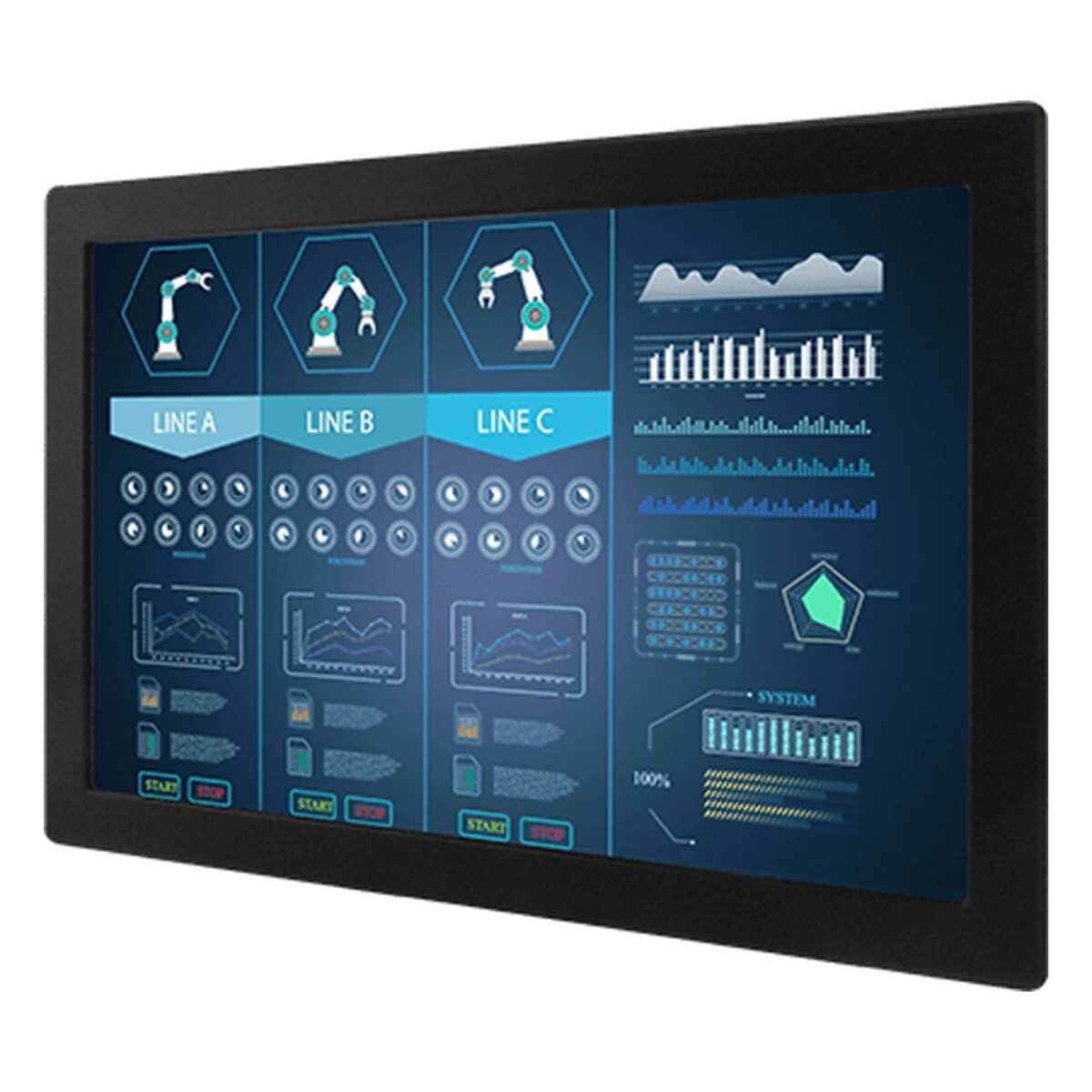

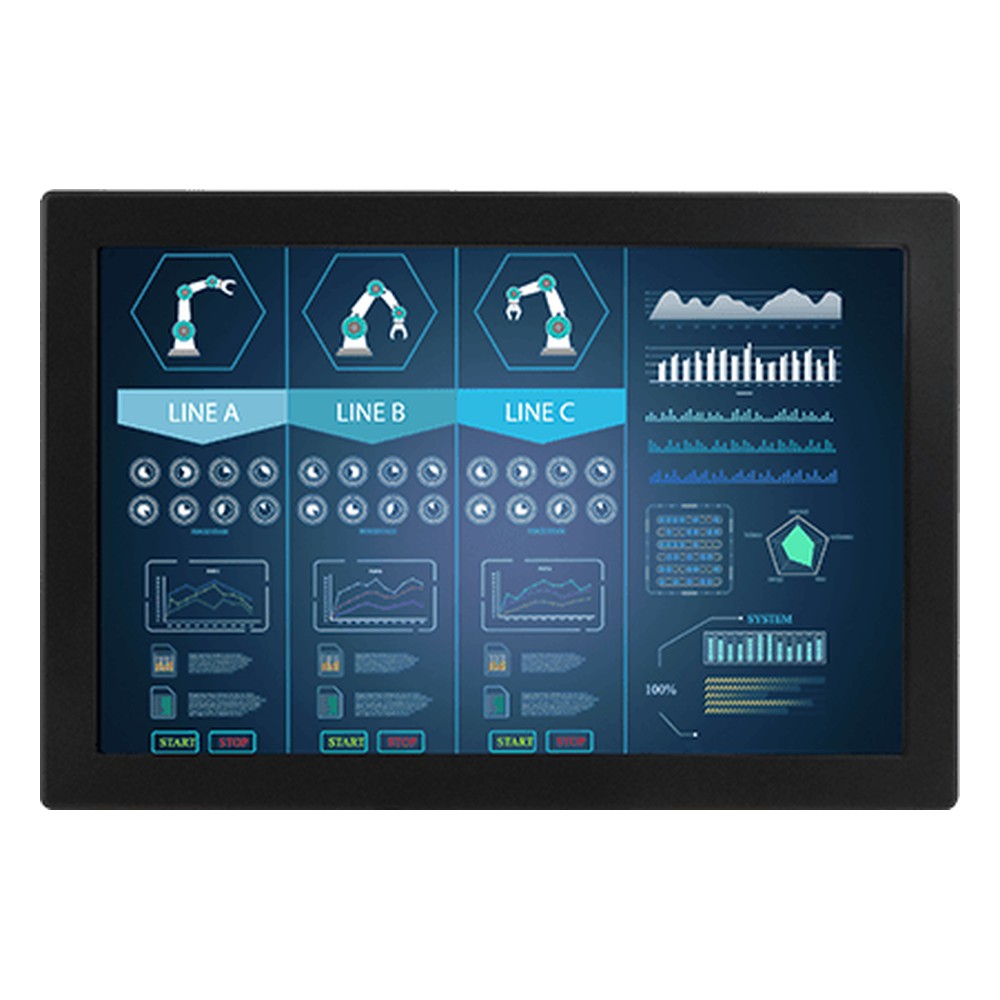

Winmate W22L100-PMA3 21.5″ Panel Mount Monitor with Resistive Touch and FHD LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The W22L100-PMA3 is Winmate’s 21.5 inch panel mount monitor for that kind of install, with a 21.5″ Full HD panel at 250 nits and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 21.5″ Full HD panel runs at 250 nits with 3000:1 contrast, 16.7 million colors and 178 degree viewing angles in both directions, which suits indoor lighting in control rooms and enclosures. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the W22L100-PMA3 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the W22IT3S-PMA3 is the panel PC version with an Intel Core i5-1135G7 built in, and the W22L100-PMA3HB is the high brightness version at 1000 nits.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the W22L100-PMA3 configured and tested before dispatch.
