Winmate W22MG3S-GCA3 21.5″ G-WIN Front IP65 Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

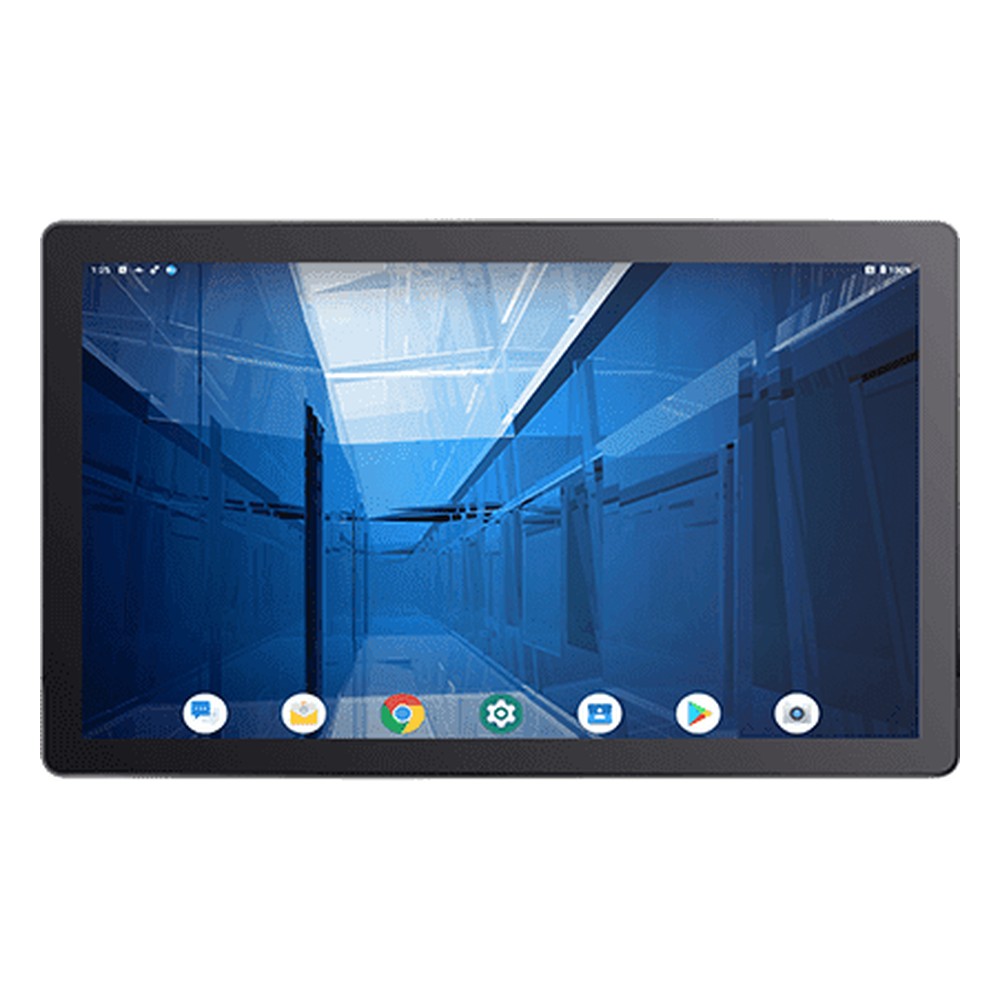

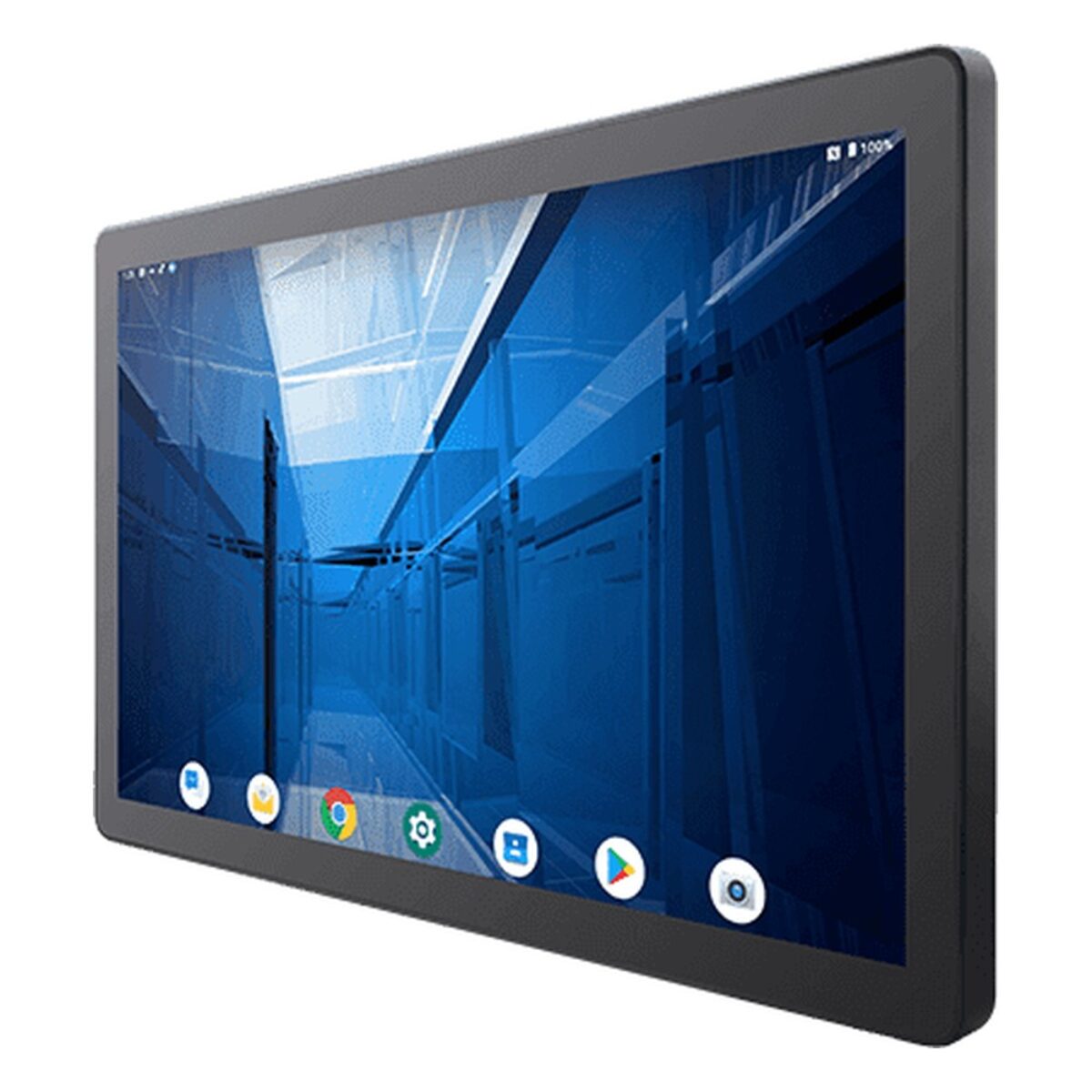

A full HD widescreen suits dashboards, work instructions and self-service screens where several panels of information sit side by side. The W22MG3S-GCA3 is Winmate’s 21.5 inch G-WIN panel PC for that job: a fanless unit in a metal housing with a plastic bezel, with an edge-to-edge true flat front rated IP65 at the front, projected capacitive multi-touch and a 21.5″ 1920 x 1080 display at 250 nits with 3000:1 contrast.

Inside is a MediaTek Genio 510, a six-core Arm processor with two Cortex-A78 and four Cortex-A55 cores at 2.0 GHz, with 4 GB of LPDDR4 and 32 GB of onboard storage plus a Micro SD slot. Android 13 is the default operating system, with Yocto Linux (kernel 5.15.47 with Qt 5.15) or Ubuntu 22.04 as options. That is usually enough for a Qt or browser-based HMI or a kiosk app, and the low power draw lets the unit run without a fan.

Connections are one Gigabit LAN port on RJ45, two USB 2.0 Type-A ports, one USB 2.0 Type-C OTG port and one RS-232/422/485 port, set to RS-232 by default, for PLCs, scanners and serial instruments. A Micro HDMI output for a second screen, Wi-Fi and Bluetooth, and two speakers are optional. The W22MG3S-67B2-P(HB) is the 21.5 inch full IP67 model with a 1000 nit bonded display and M12 connectors, and the W22IAN3S-GCA3 takes the same G-WIN housing with an Intel N150 for x86 software.

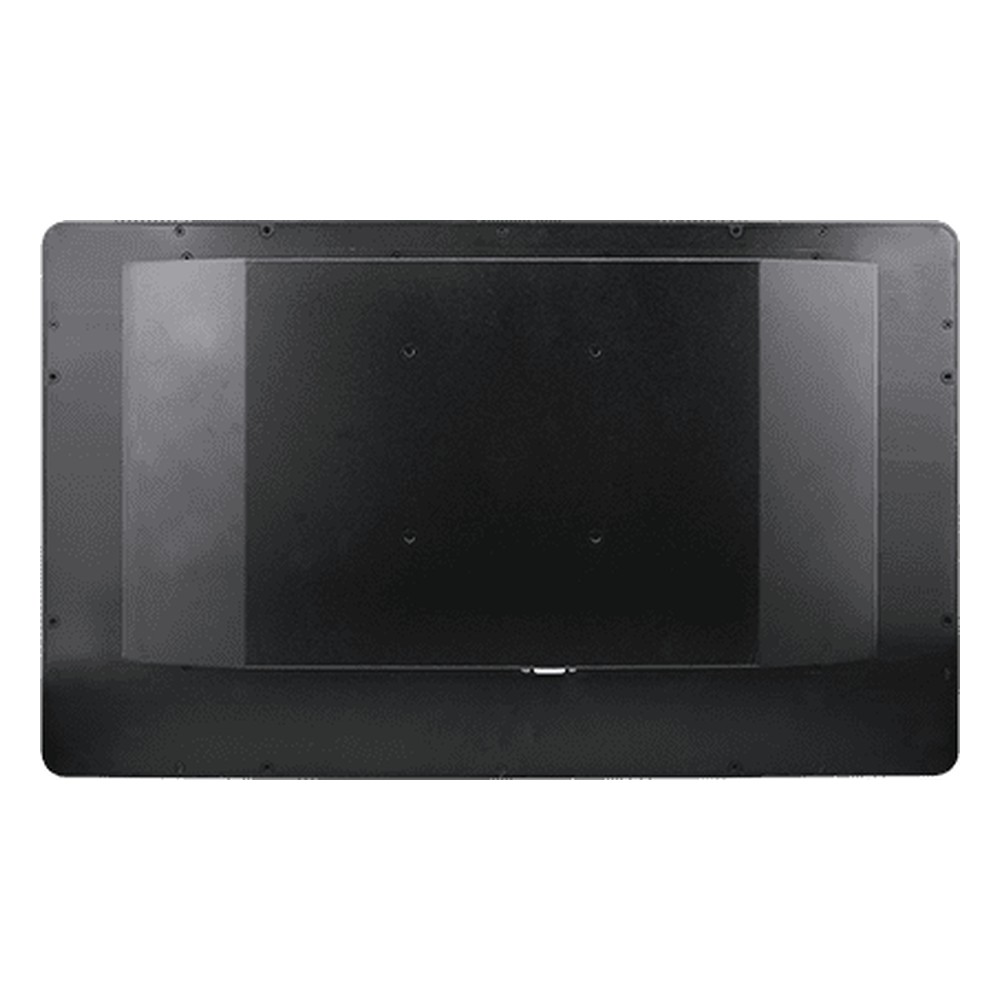

Power is 12 V DC on a terminal block as standard, with a 9 to 36 V DC input as an option, and the unit comes with an AC adapter. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C and is tested to MIL-STD-810H Method 516.8 for shock and Method 514.8 for vibration. It mounts in a panel cut-out or on VESA and carries CE and FCC marks. We supply the W22MG3S-GCA3 configured, with the OS installed, and tested before dispatch.
