Winmate W24IT3S-IPA2 23.8″ FHD Front IP65 Panel PC with Intel Core i5-1135G7

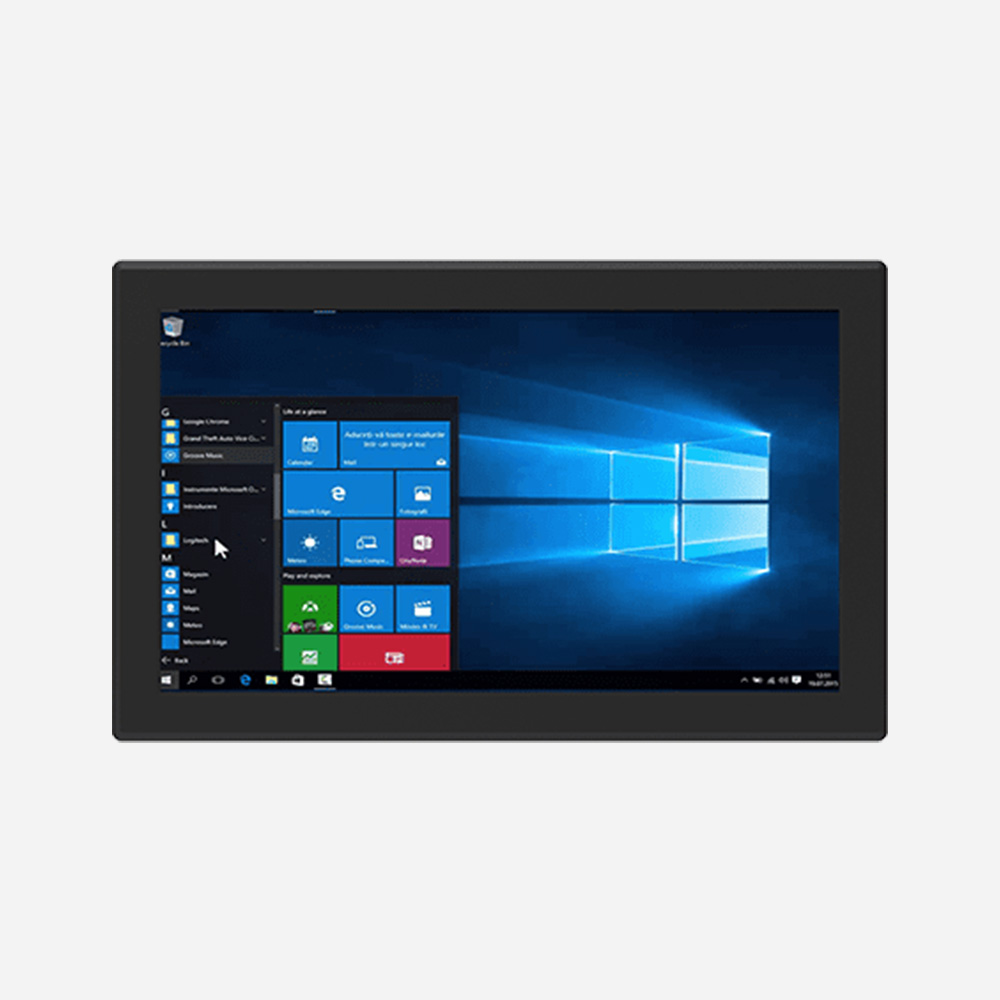

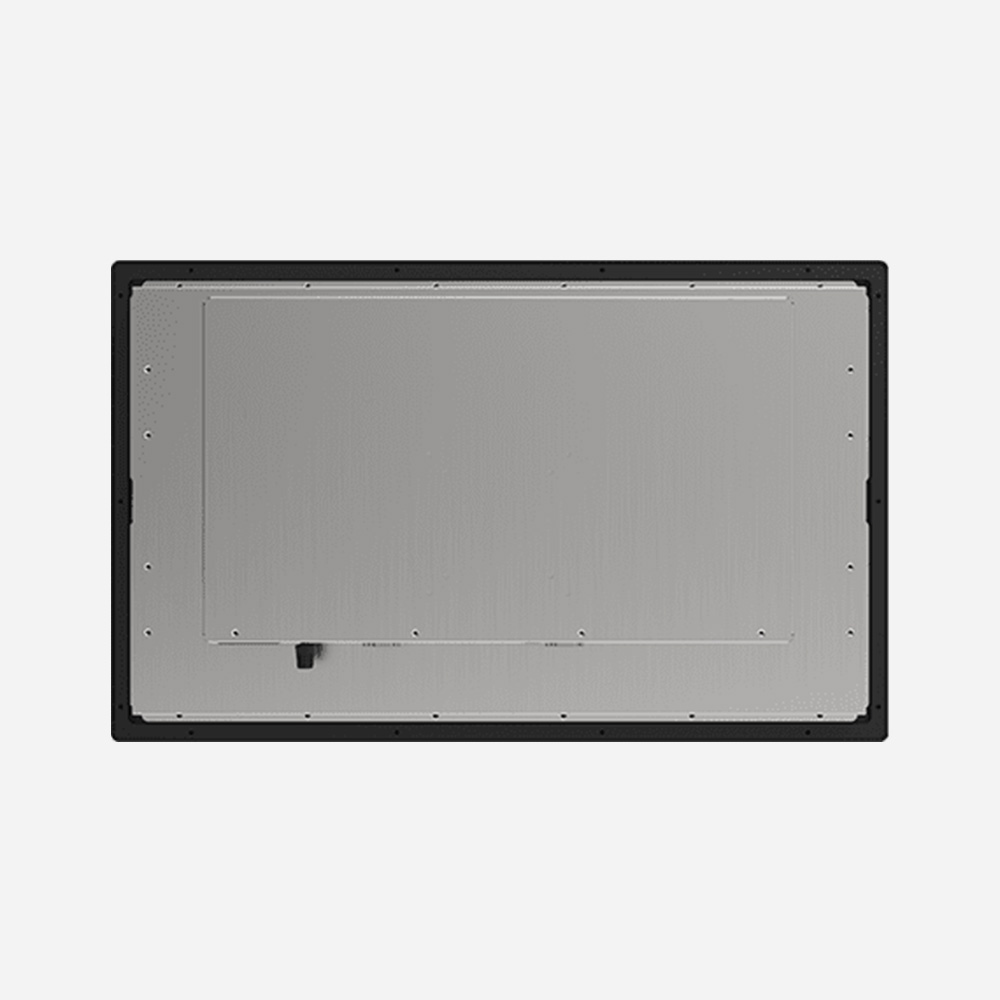

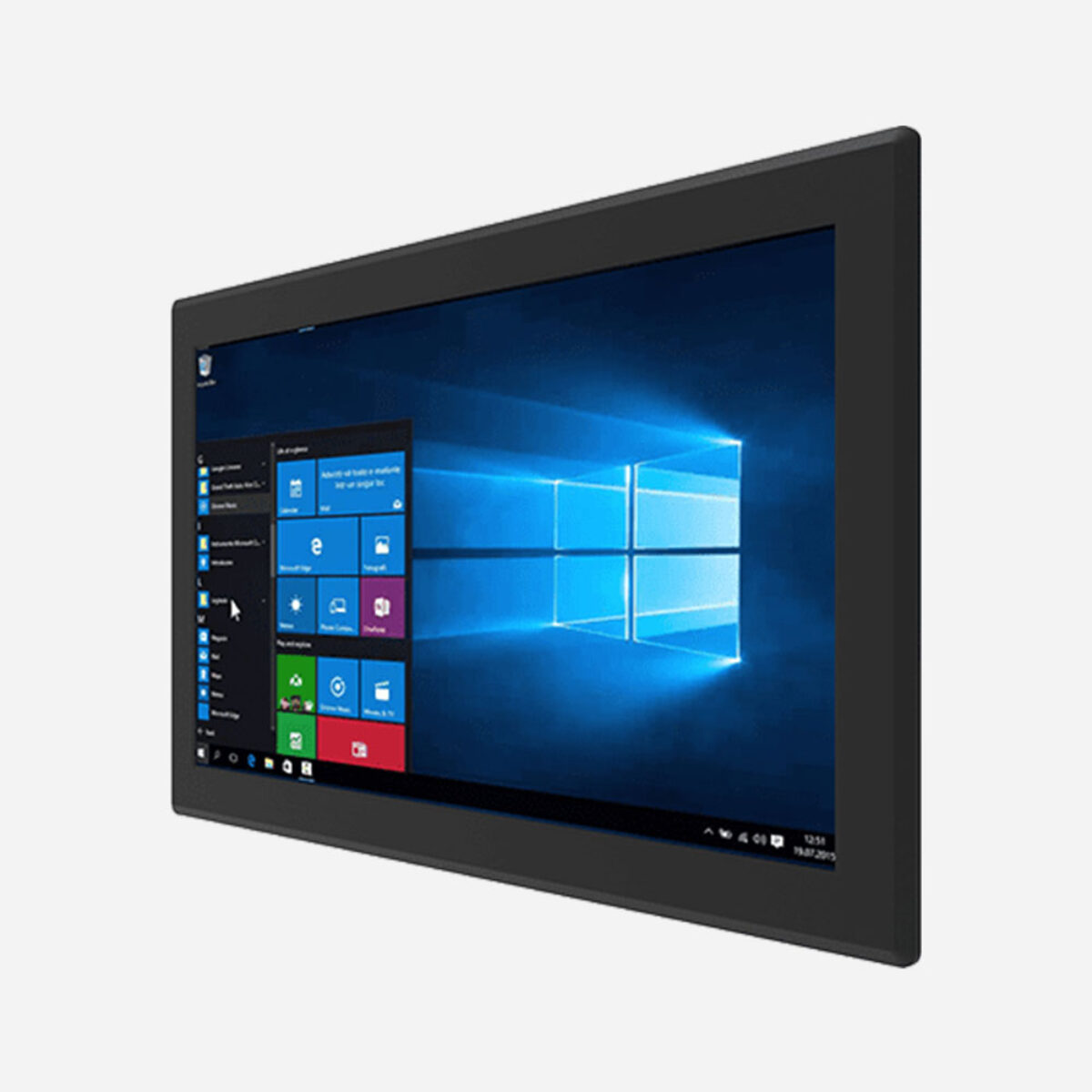

A supervisory console or line display that several people read at once benefits from the largest screen the panel will take, and on a wet or dusty floor its face has to be sealed. The W24IT3S-IPA2 is Winmate’s 23.8 inch front IP65 panel PC: a fanless metal-housed computer with a 16:9 display that fits a 560.4 x 327.6 mm cut-out, with open frame and VESA mounting also supported.

It runs an Intel Core i5-1135G7 at 2.4 GHz up to 4.2 GHz, with the Intel Core i5-1145G7 at up to 4.4 GHz as an option. One DDR4-3200 SO-DIMM holds 4 GB as standard with 8, 16 or 32 GB options, and storage is one M.2 slot for a 2242 SATA or 2280 NVMe SSD from 128 GB, with NVMe options to 4 TB and an optional SATA III drive up to 2 TB. The 1920 x 1080 display is rated at 250 nits with a 3000:1 contrast ratio and 178° viewing angles in both planes, so it stays readable from the side. Resistive touch or plain protection glass can be specified. Windows 11 IoT Enterprise SAC, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied.

The I/O comprises two USB 3.2 Type-A ports, one RS-232/422/485 and one RS-232 port, two Gigabit Ethernet ports on Intel controllers and an optional HDMI 2.0 output, with two speakers built in. An M.2 E-key slot takes an optional Wi-Fi module, and TPM 2.0 is on board. The W24IT3S-PMA2 is the same computer and cut-out without the IP65 front, and the W22IT3S-IPA3 is the 21.5 inch front IP65 model.

Power is 12 V DC on a 2.5 mm DC jack, with a 100 to 240 V AC adapter rated at 120 W supplied. The W24IT3S-IPA2 operates from 0 to 50 °C at 10 to 90% humidity non-condensing, stores from -10 to 60 °C and carries CE and FCC marks. It measures 606 x 376 x 77 mm, weighs 8.7 kg and ships with mounting clips and VESA screws.
