Winmate W24IT3S-SPA2 23.8″ Stainless Steel Panel PC with Intel Tiger Lake Core i5-1135G7 and M12 Connectors

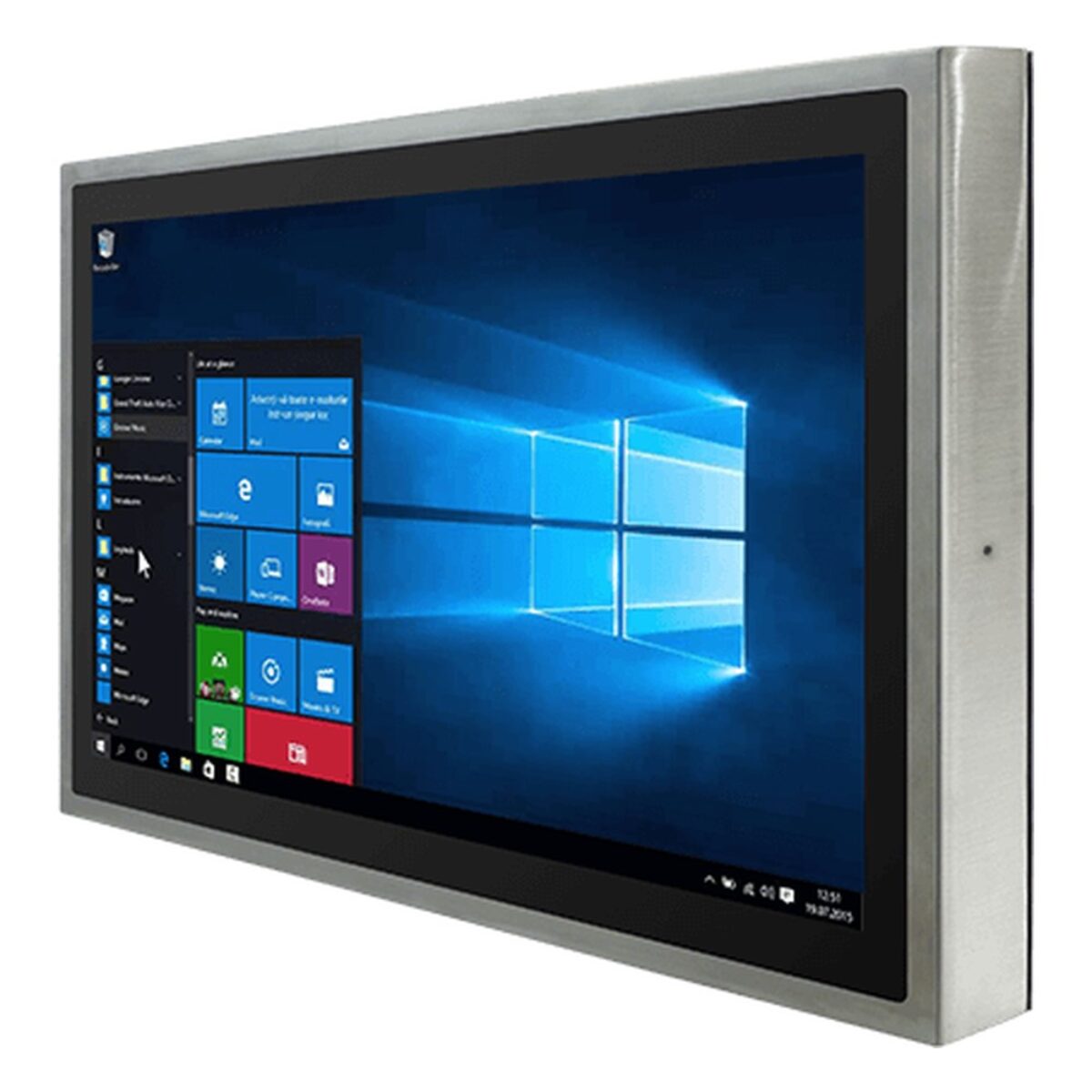

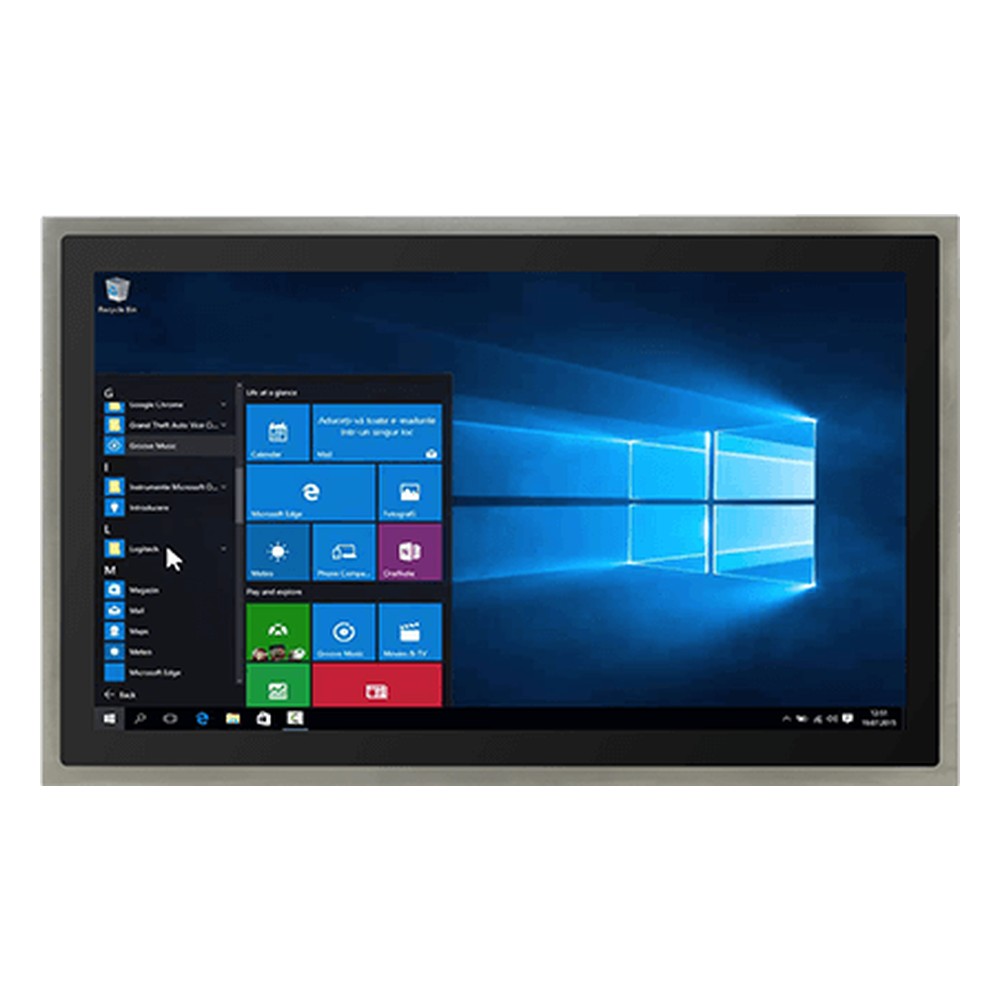

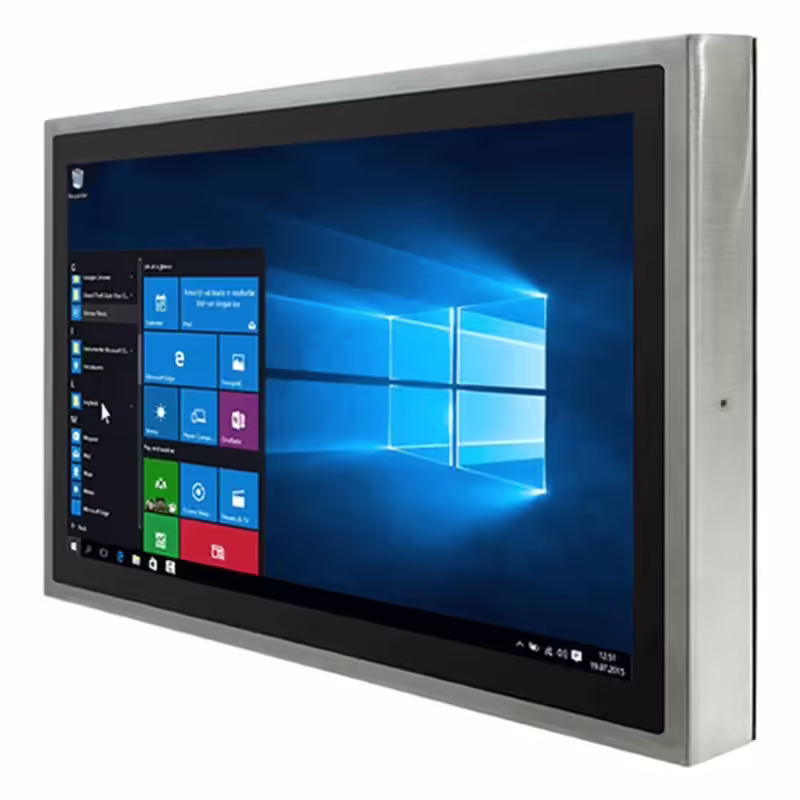

Food and chemical production areas are washed down often, and every gap on a screen collects residue. The W24IT3S-SPA2 is Winmate’s 23.8 inch stainless steel panel PC for those lines: a SUS 316 / AISI 316 housing sealed to IP65, a true flat, edge-to-edge front that is easy to clean and a 23.8″ 1920 x 1080 full HD projected capacitive multi-touch display at 250 nits with 3000:1 contrast. Glove and rain modes keep the touchscreen usable with gloved or wet hands, and optical bonding is an option.

Inside is an Intel Core i5-1135G7, a quad-core, eight-thread Tiger Lake processor at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics, which typically handles HMI and line data screens without a fan. One DDR4 SO-DIMM holds 4 GB as standard, with options of 8, 16 or 32 GB. A 128 GB SSD is standard with options to 4 TB, plus an optional 2.5″ SATA III drive up to 2 TB. TPM 2.0 is on board and Wi-Fi with Bluetooth is optional, running Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

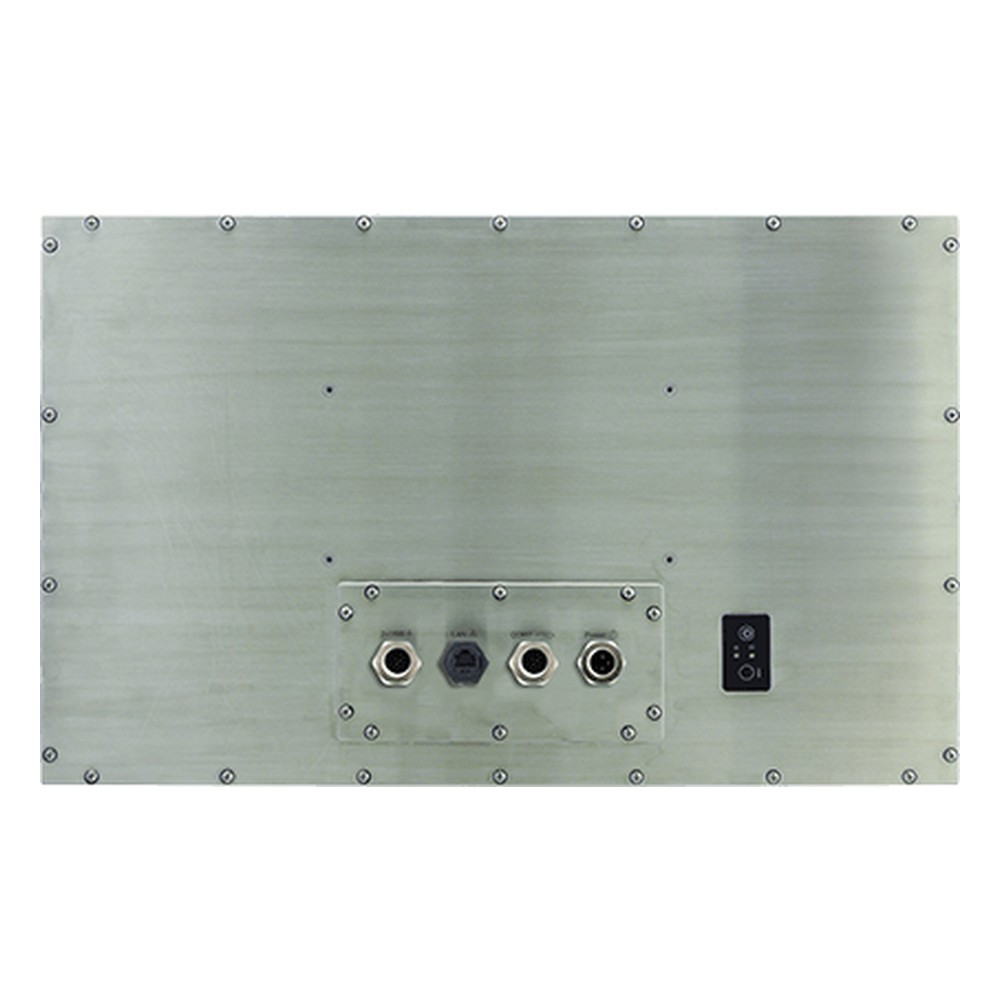

The connections are sealed for wash-down: one M12 connector carries two USB 2.0 ports, a second M12 connector carries RS-232, and Gigabit LAN uses a waterproof RJ45 connector on an Intel controller. Waterproof external cables and caps are supplied. The W24IT3S-SPA2-R adds a junction box and an optional arm mount to the same PCAP design, and the W24IT3S-65A2 is the full IP65 stainless model with optional anti-reflection glass.

The housing is sealed to IP65 against dust and water jets from any direction. It mounts on VESA as standard, with a yoke mount as an option. Power is 12 V DC on an M12 connector, and a 100 to 240 V AC adapter with a waterproof connector is supplied. It operates from 0 °C to 45 °C, stores from -20 °C to 60 °C and works at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W24IT3S-SPA2 configured, with the OS installed, and tested before dispatch.
