Winmate W24IT7T-GCA2 23.8″ G-WIN Front IP65 Panel PC with 11th Gen Intel Core i5 and MIL-STD-810G
PCAP
Intel
Linux
Windows
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
Fanless
Front IP65
CE
FCCW24IT7T-GCA2 Overview

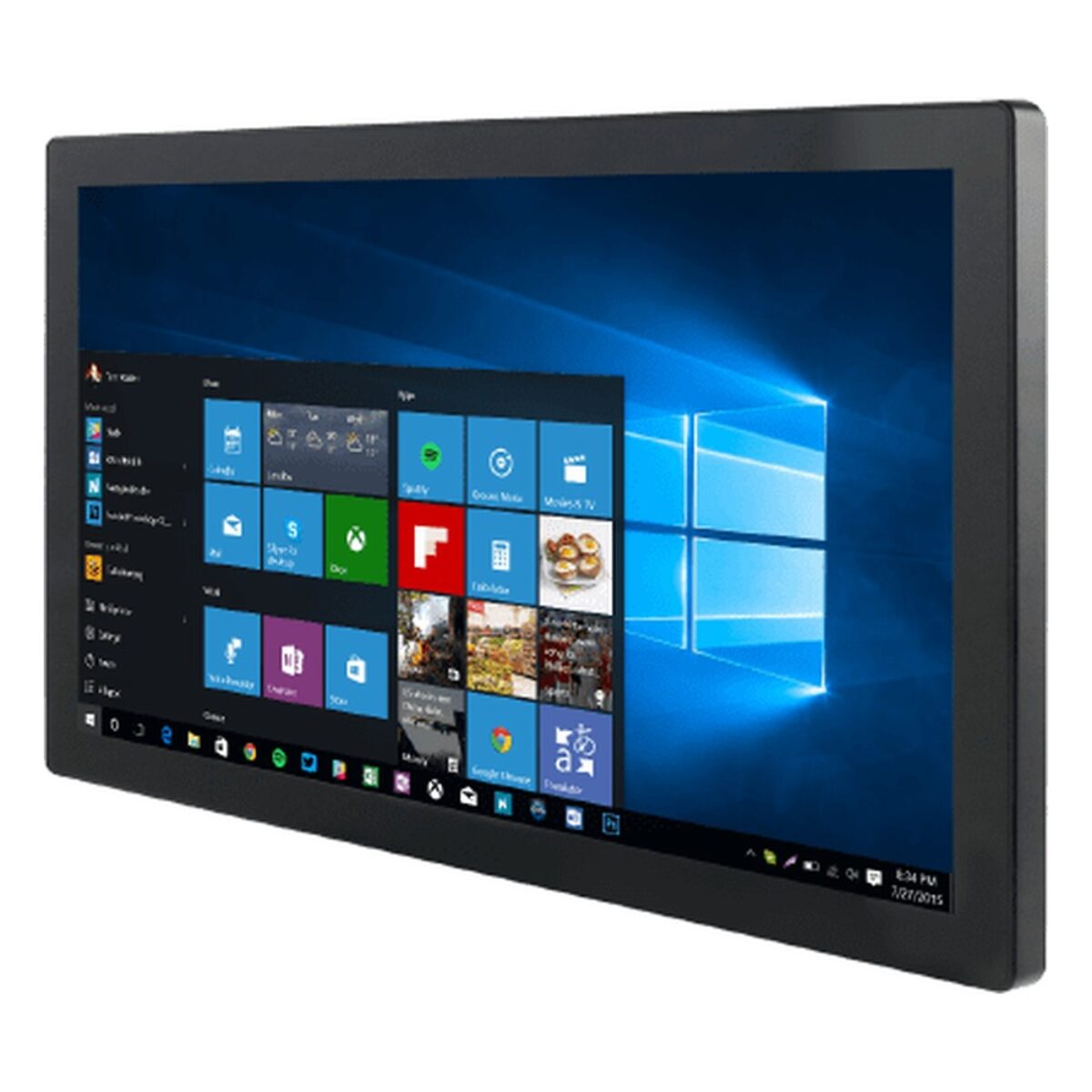

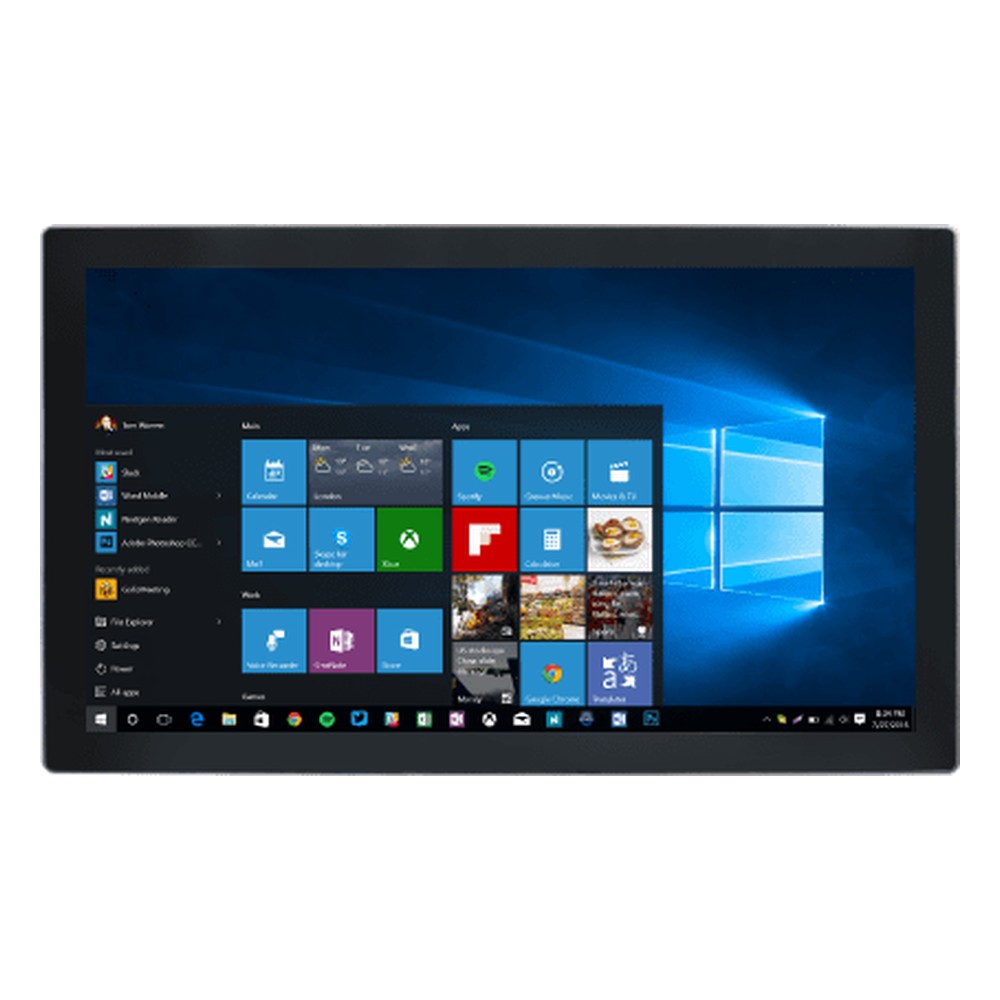

Large touch screens in public areas and on production floors get leaned on, knocked and cleaned often. The W24IT7T-GCA2 is Winmate’s 23.8 inch G-WIN front IP65 panel PC for those places, with a 23.8″ 1920 x 1080 PCAP multi-touch screen at 250 nits and 3000:1 contrast, a true flat edge-to-edge front and an 11th Gen Intel Core i5-1135G7.
The Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz and Intel Iris Xe graphics. Two non-ECC SO-DIMM sockets take up to 64 GB, and storage is a 128 GB SSD as standard with options to 4 TB on an M.2 2242/2280 M-key slot that takes SATA or NVMe drives, plus an optional 2.5″ SATA III drive. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04, which typically covers HMI, SCADA and kiosk software on the W24IT7T-GCA2.
Connections include one 2.5GbE and one Gigabit LAN port on Intel controllers, four USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port (RS-232 by default) and one RS-232 port, DisplayPort 1.4 with optional HDMI 2.0, and mic in and line out. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W24IAD7T-GCA2 is the same 23.8 inch G-WIN design with LGA1700 Intel Core processors, and the W24IT7T-PPA2 puts this processor in an aluminum panel mount housing with a PCIe slot.
Power is 12 V DC on a DIN 4-pin connector, with an AC adapter, power cable and quick start guide supplied. The fanless metal housing with a plastic bezel runs from 0 to 50 °C, stores from -20 to 60 °C and is rated IP65 at the front. Winmate lists MIL-STD-810G Method 516.6 Procedure I for shock and Method 514.6 Procedure I for vibration. It mounts on VESA or in a panel. It carries CE and FCC marks. We supply the W24IT7T-GCA2 configured, with the OS installed, and tested before dispatch.
W24IT7T-GCA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24IT7T-GCA2 |
| Features | Fanless Industrial Waterproof |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Performance | |
| Processor Series | Intel Core 11th Gen Tiger Lake |
| Processor Models | Intel Core i5-1135G7: 2.4~4.2GHz, 4 Cores, 8 Threads, 8MB Cache, 15W |
| Performance Cores | 4 Cores |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe/SATA] [2242/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 588mm x 358mm x 66mm (23.15" x 14.09" x 2.60") |
| Mounting Options | VESA Mount |
- W24IT7T-GCA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24IT7T-GCA2 configured, with the OS installed, and tested for USA industrial automation and control projects. Within the Winmate range the W24IAD7T-GCA2 is the same 23.8 inch G-WIN design with newer LGA1700 Intel Core processors, and the W24IF7T-GCA2 uses 9th Gen Intel Core i3, i5 or i7 processors.
The W24IT7T-GCA2 sits among our 24 inch panel PCs, our chassis and VESA mount panel PCs and our front IP65 panel PCs. Where a 23.8 inch HMI needs a sealed flat front and MIL-STD-810G shock and vibration test methods, this is a sensible model to specify.
