Winmate W24L100-MLA2FP 23.8″ PCAP Rack Mount Defense Monitor with FHD Display and MIL-STD 461E
PCAP
CE
FCCW24L100-MLA2FP Overview
A larger screen lets an operator keep a map, a track list and a status panel open together, but in a defense console it still has to meet the programme’s EMC and environmental limits. The W24L100-MLA2FP is Winmate’s 23.8 inch PCAP rack mount defense monitor, compliant with MIL-STD 810G and MIL-STD 461E. It is a good fit for fixed command consoles where the operator works from a seat.
The 1920 x 1080 panel offers 250 nits, a 3000:1 contrast ratio and 178° viewing angles, with projected capacitive multi-touch over USB. Winmate lists MIL-STD 461E/F/G tests including RE102, CE102, CS114 and RS103, with EMI glass or touch as an option, and MIL-STD 810G methods covering vibration, humidity and transit drop.

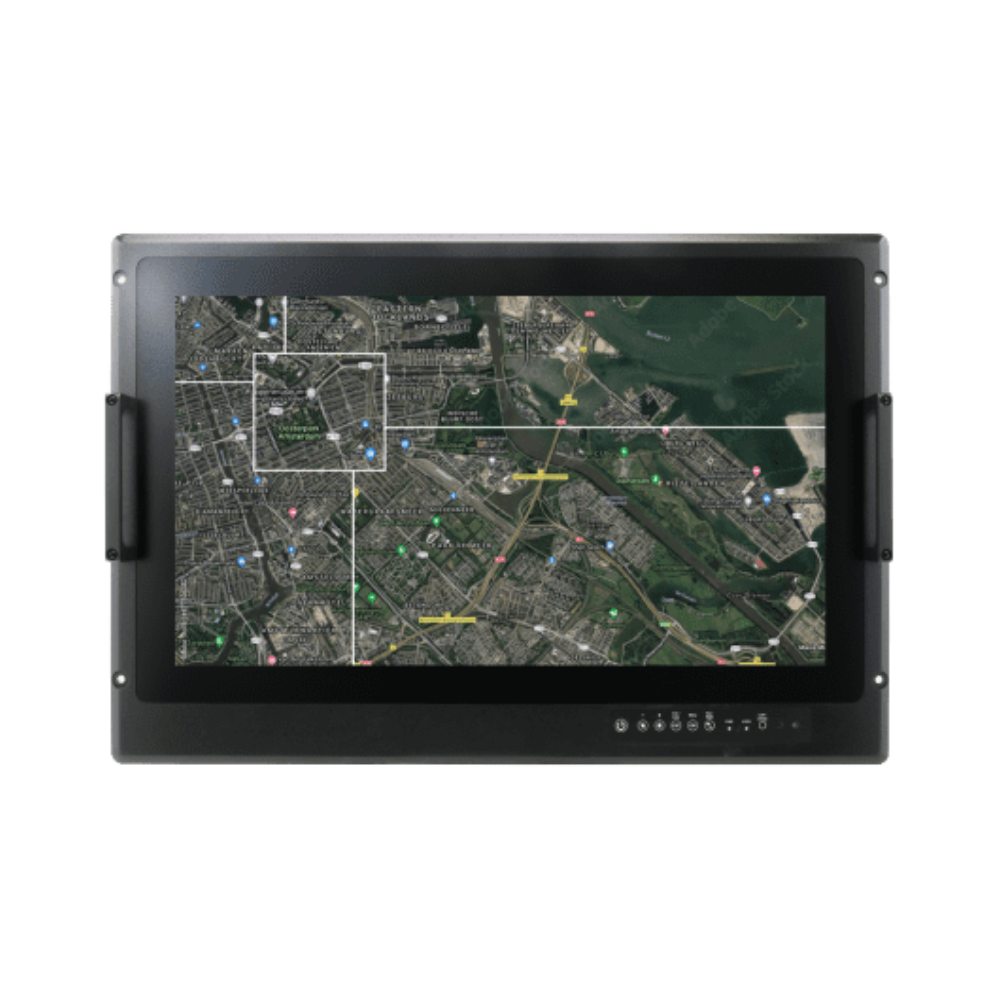

Video enters over VGA, five BNC connectors for R, G, B, H and V, or DVI-D, so one monitor can serve older RGB sources and current computers. The seven-key front panel includes Day/Night and Lock/Unlock keys. The W22L100-MLA3FP is the 21.5 inch version of this monitor, and the W24L100-MLL1FP is the same size with a 3840 x 2160 panel and DisplayPort input. The kit includes the MIL-DTL-38999/1 power cord and a VGA to five-BNC shielded cable.

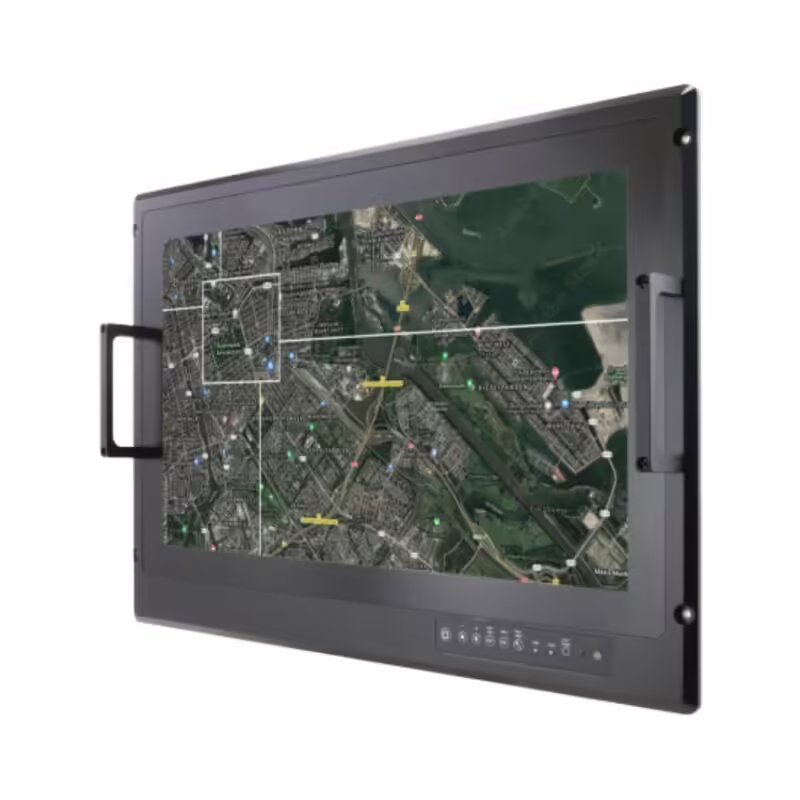

Power is 100 to 240 V AC universal as standard, with 9 to 36 V DC as an option, on a MIL-DTL-38999/1 defence-grade connector. The fanless unit measures 635.2 x 430.9 x 66 mm in a metal housing with an aluminum bezel, with carry handles on the rack front and M6 VESA holes at 100 and 200 mm spacing. It operates from 0 °C to 50 °C at up to 95% humidity and carries CE and FCC marks.
W24L100-MLA2FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-MLA2FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 635mm x 430mm x 66mm (25" x 16.93" x 2.6") |
- W24L100-MLA2FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-MLA2FP configured for USA defense and security projects. Within the Winmate range the W22L100-MLA3FP is the 21.5 inch version, and the W24L100-MLL1FP moves to a 4K UHD panel.
With MIL-STD compliance the W24L100-MLA2FP sits among our military monitors, our rugged displays and our 24 inch industrial monitors. Where a console needs a larger touch screen for RGB and DVI sources, this is the model to specify.
