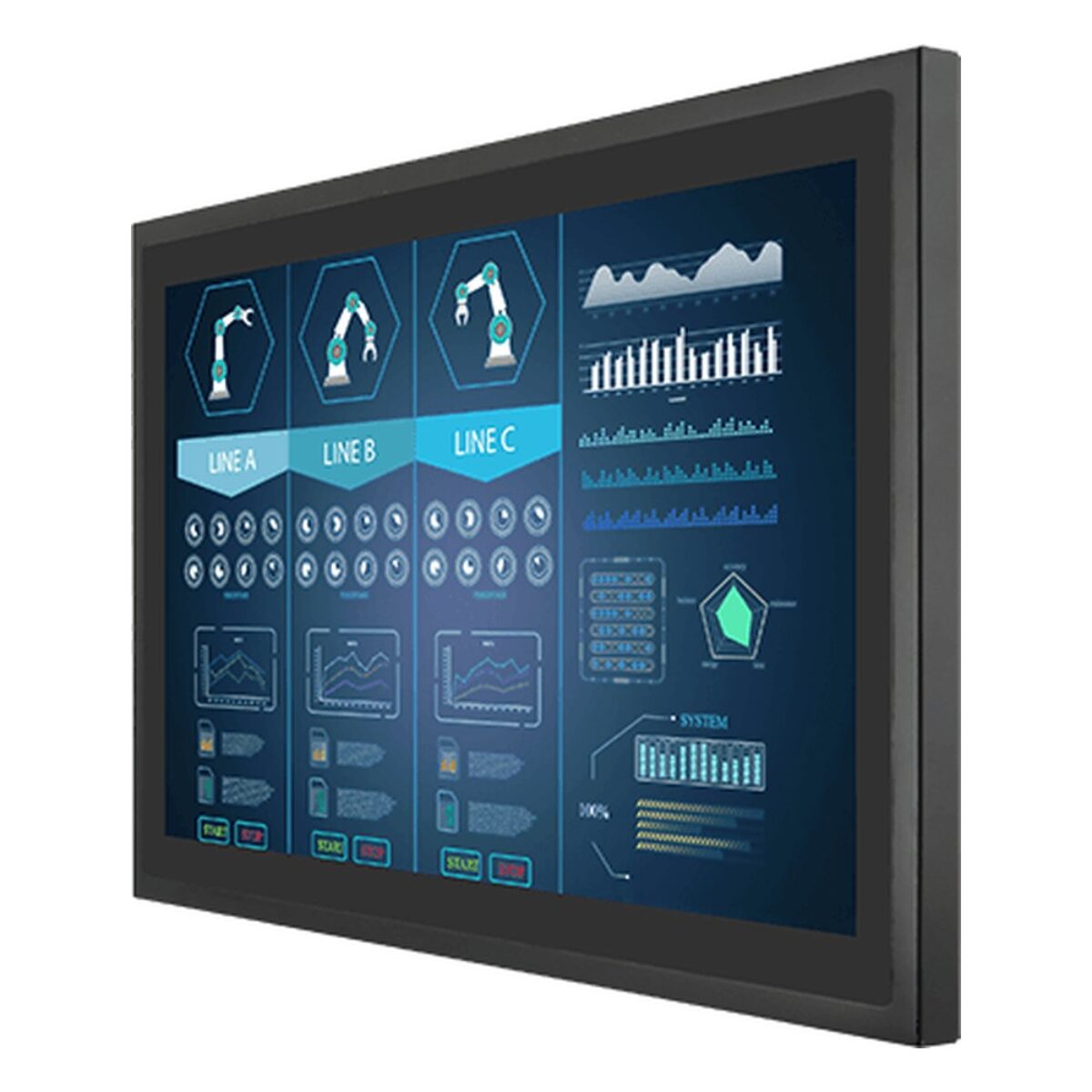

Winmate W24L100-PCA2 23.8″ PCAP Touch Monitor with FHD LCD and 250 Nits
PCAP
Fanless
CE
FCCW24L100-PCA2 Overview
Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The W24L100-PCA2 is Winmate’s 23.8 inch chassis touch monitor for that set-up: a 23.8″ 1920 x 1080 FHD projected capacitive display in a metal housing.
The 1920 x 1080 panel runs at 250 nits with 3000:1 contrast and 178 degree viewing angles. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.
Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W24L100-PTA2 is the plastic chassis version with IP65 at the front, and the W24L100-EHA2 is the slim panel mount version.
Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 23.8 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the W24L100-PCA2 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
W24L100-PCA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-PCA2 |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 616mm x 386mm x 44mm (24.25" x 15.18" x 1.73") |
- W24L100-PCA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-PCA2 configured and tested for USA industrial and commercial display projects. Within the Winmate range the W24L100-PTA2 is the plastic chassis version with IP65 at the front, and the W24L100-EHA2 is the slim panel mount version.
The W24L100-PCA2 sits among our 24 inch industrial monitors, our chassis monitors and our PCAP touch monitors. Where the computer lives elsewhere and you need a 23.8 inch touchscreen on a VESA arm or bracket, it is a sensible model to shortlist.
