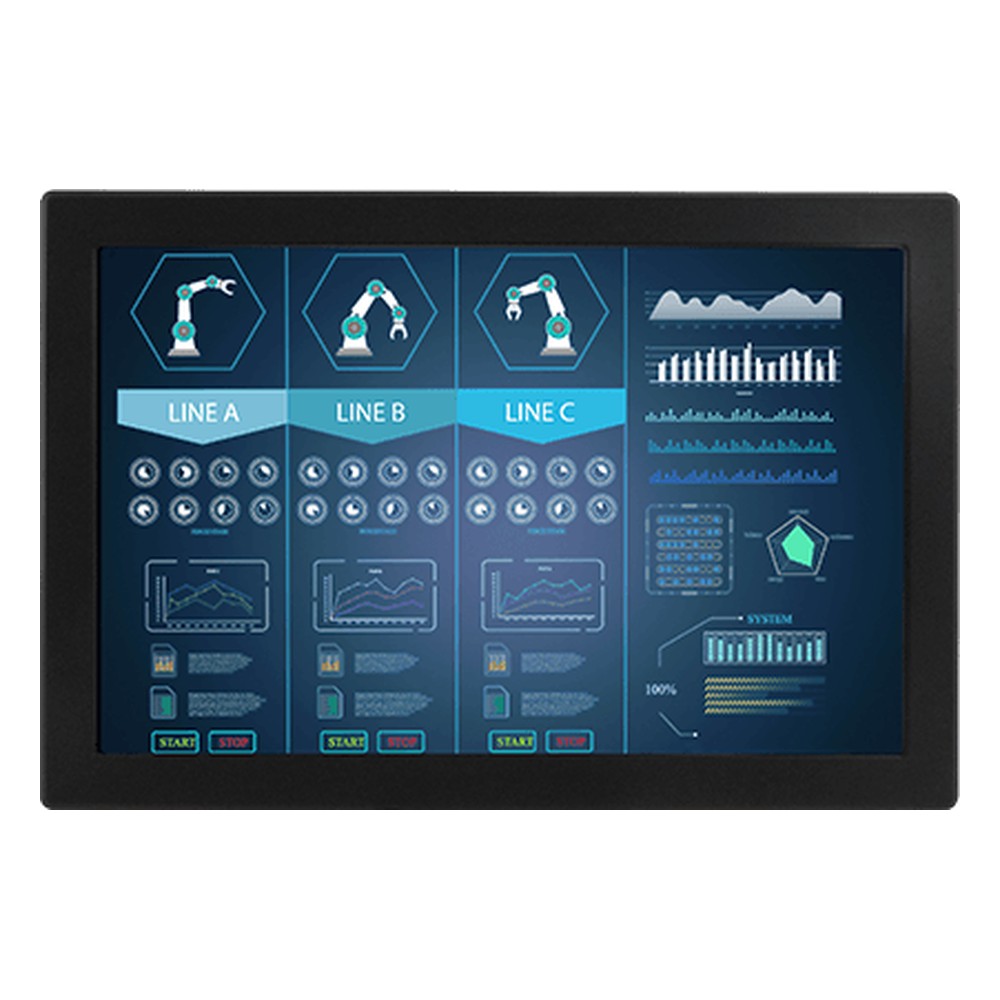

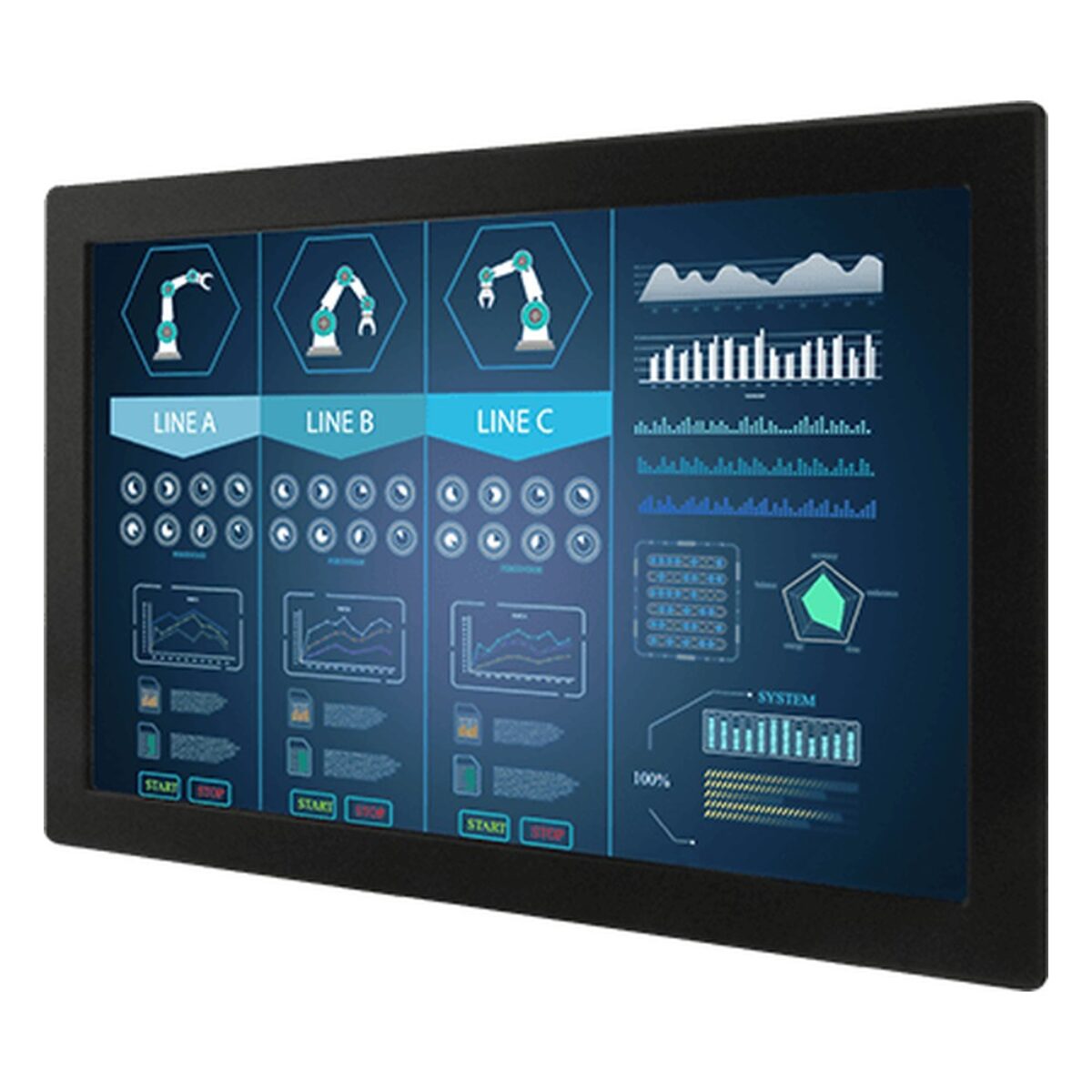

Winmate W24L100-PMS1 24″ Panel Mount Monitor with Resistive Touch and WUXGA LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The W24L100-PMS1 is Winmate’s 24 inch panel mount monitor for that kind of install, with a 24″ WUXGA panel at 300 nits and optional resistive touch. It connects to the host computer over VGA, with HDMI or DVI as options.

The 24″ WUXGA panel runs at 300 nits with 1000:1 contrast, 16.7 million colors and 178 degree viewing angles in both directions, which suits indoor lighting in control rooms and enclosures. Resistive touch is optional, as is protection glass without touch, and one USB port carries the touch signal where touch is fitted.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the W24L100-PMS1 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the W24L100-PMA2 is the 23.8 inch Full HD model with resistive touch as standard, and the W24L100-PMC1OD is the 23.8 inch sunlight readable model rated from -10 °C to 60 °C.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the W24L100-PMS1 configured and tested before dispatch.
