Winmate W24L100-PPA2 23.8″ PCAP Panel Mount Monitor with FHD LCD and 3000:1 Contrast

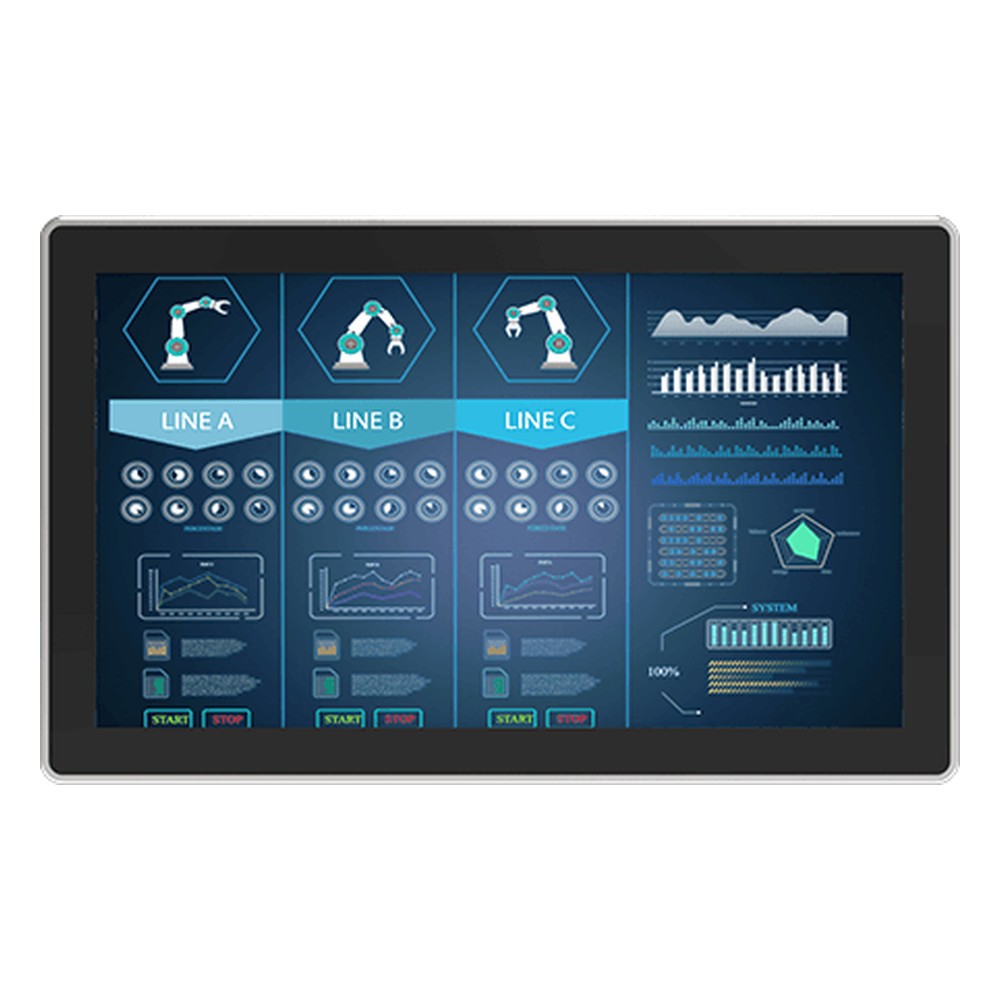

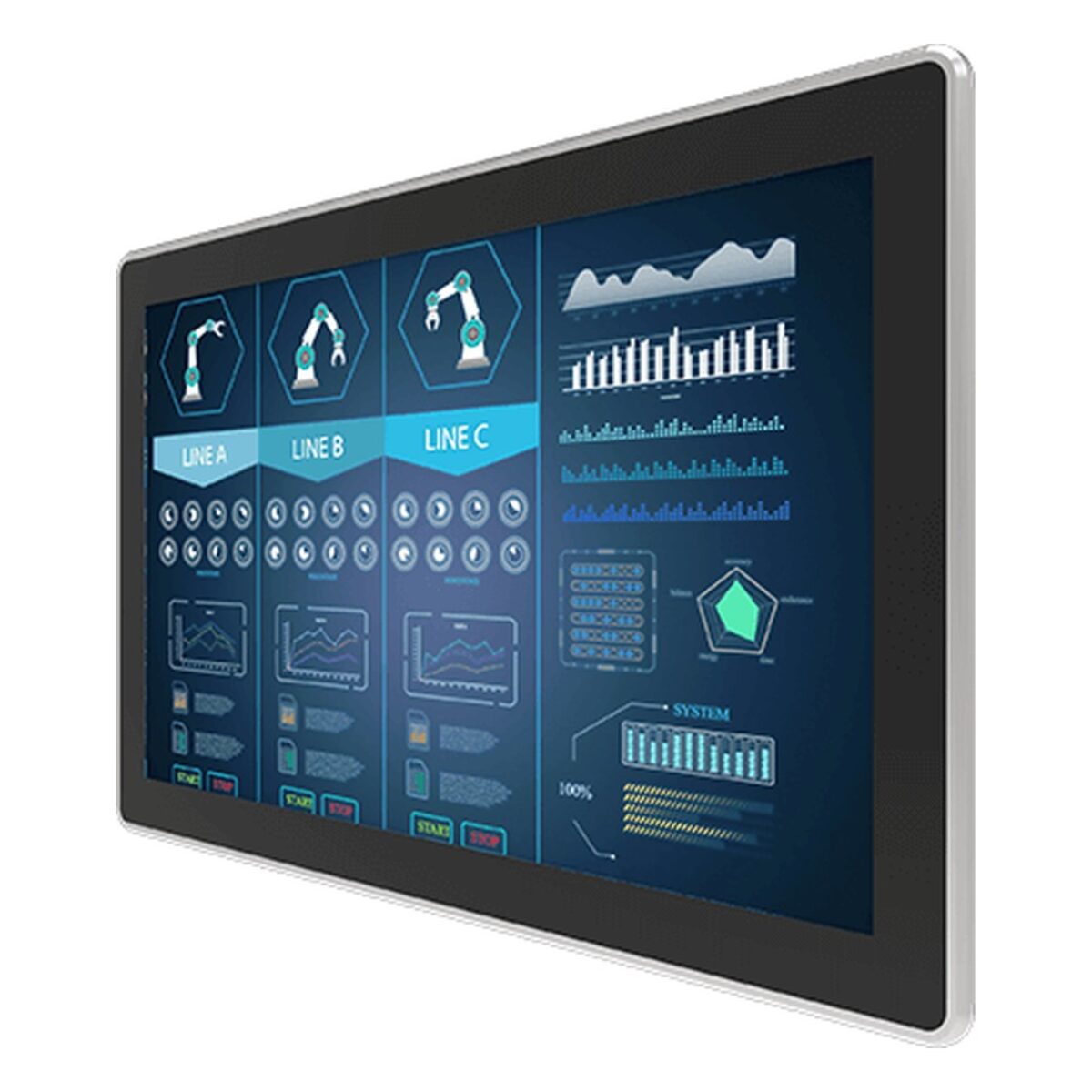

On an automation panel or a kiosk front, the display usually has to fit a cut-out, cope with splashes at the front and connect to a separate industrial PC or controller. The W24L100-PPA2 is Winmate’s 23.8 inch panel mount touch monitor for that installation: a 23.8″ 1920 x 1080 FHD projected capacitive touchscreen in a metal housing with an aluminum bezel, sealed to IP65 at the front.

The 1920 x 1080 panel runs at 250 nits with 3000:1 contrast and 178 degree viewing angles. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

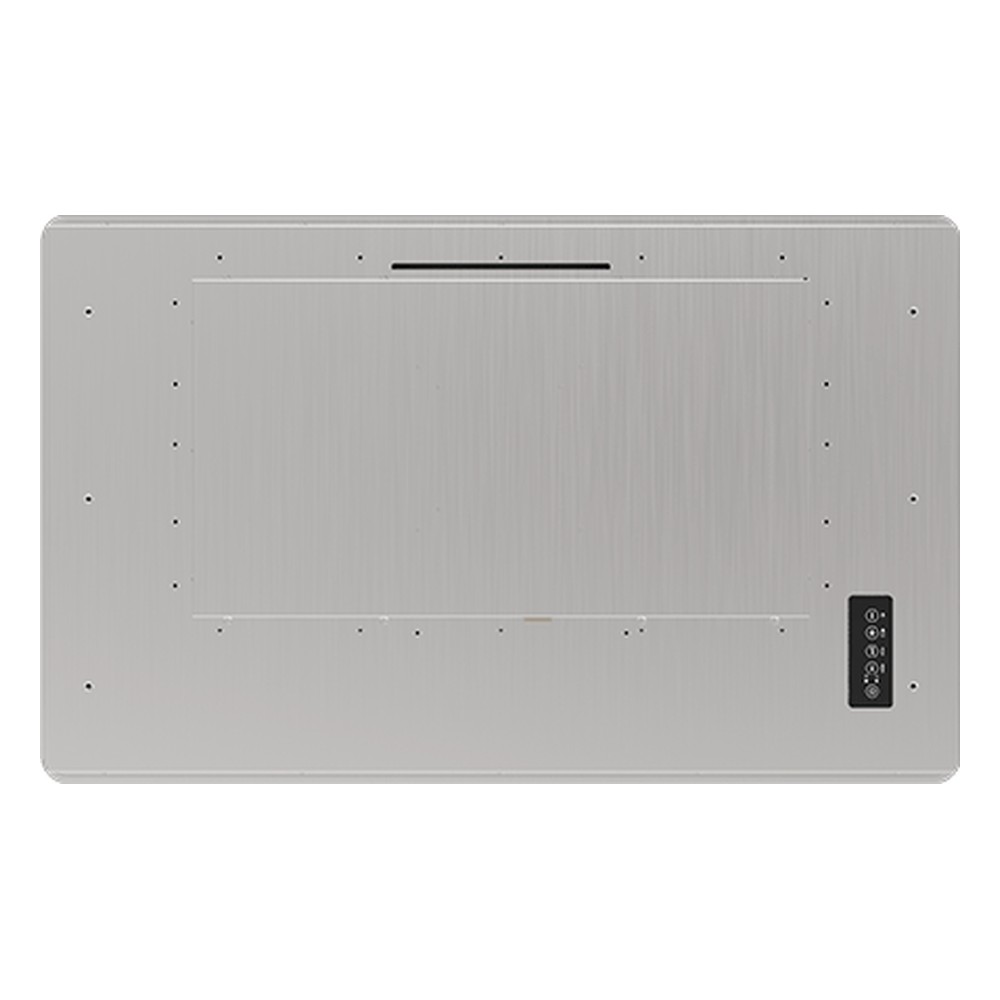

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W24IT3S-PPA2 is the panel PC version of this housing with an Intel Core i5-1135G7, and the W24L100-EHA2 is the slim panel mount version.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 23.8 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a VESA mount as standard, with panel mounting as an option. We supply the W24L100-PPA2 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
