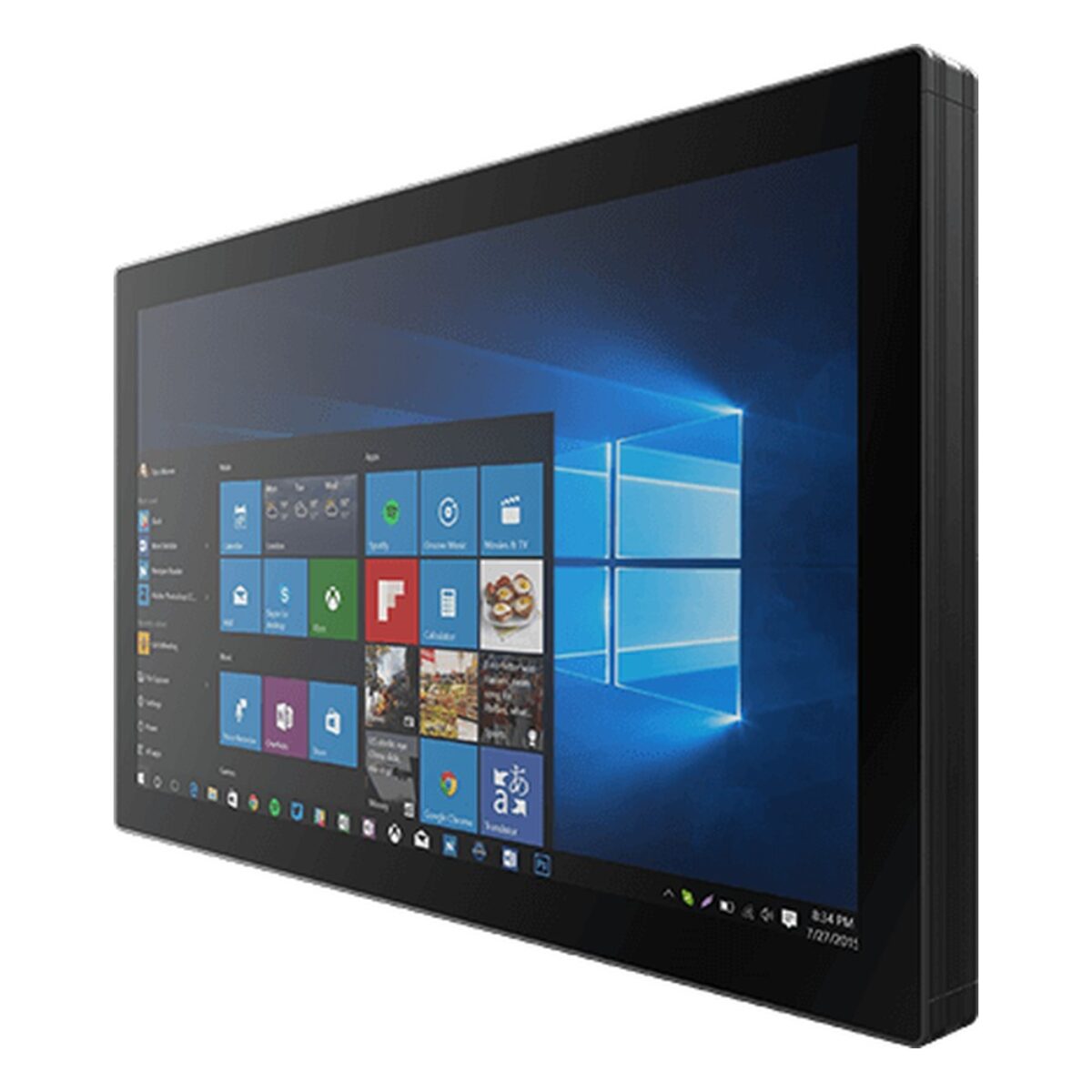

Winmate W32IF7T-PCA3 32″ PCAP Touch Panel PC with Intel Coffee Lake Core i3 to i7 and FHD Display

Large touch screens on a factory floor, in a visitor area or on a kiosk often double as the computer that runs them. The W32IF7T-PCA3 is Winmate’s 32 inch PCAP touch panel PC for those installs, with a 32″ 1920 x 1080 projected capacitive multi-touch screen at 400 nits and 4000:1 contrast, an edge-to-edge front rated IP65 at the front and a choice of 9th Gen Intel Core processors.

The standard processor is an Intel Core i7-9700TE at 1.8 GHz with turbo up to 3.8 GHz, with a Core i5-9500TE or Core i3-9100TE as options, on the Intel Q370 chipset. Two non-ECC SO-DIMM sockets take up to 64 GB. Storage is a 128 GB SSD as standard with options to 2 TB on an M.2 2280/2242 M-key slot that takes NVMe or SATA drives, and two optional 2.5″ SATA III bays support RAID 0 or 1 where a mirrored drive matters. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1×1 Type-A ports, one RS-232/422/485 port (RS-232 by default), DisplayPort 1.2 with optional HDMI 1.4, mic in, line out and two speakers. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W32IT7T-PCA3 is the 32 inch model with an 11th Gen Core i5-1135G7, and the W43IF7T-PCA3 is the 43 inch version of this design.

Power is 24 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter and a power cord supplied. The metal housing is fan-cooled and runs from 0 to 50 °C at 10 to 90% humidity, non-condensing; the IP65 rating applies at the front, so it suits indoor sites. It mounts on VESA, with VESA screws in the box, and carries CE and FCC marks. We supply the W32IF7T-PCA3 configured, with the OS installed, and tested before dispatch.
