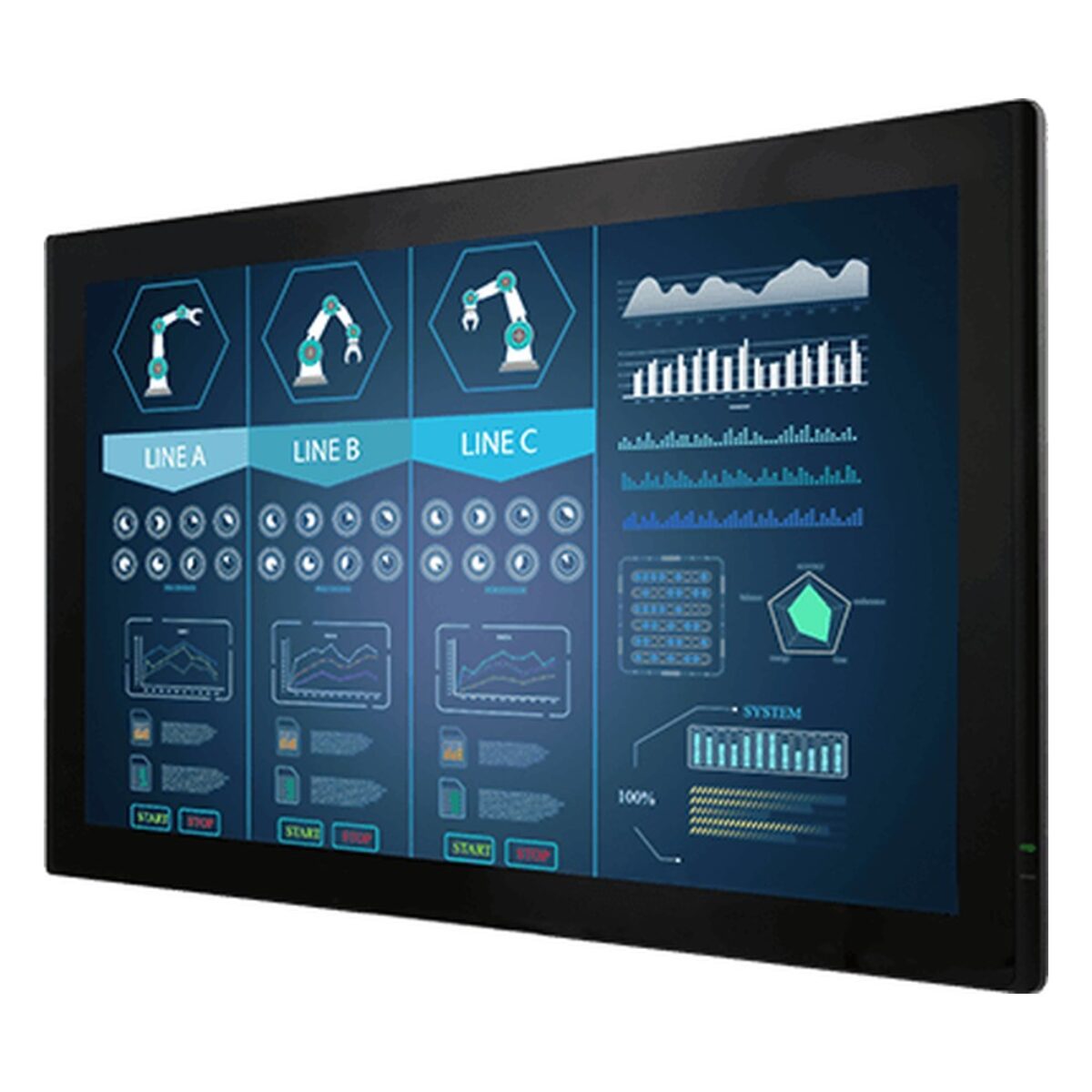

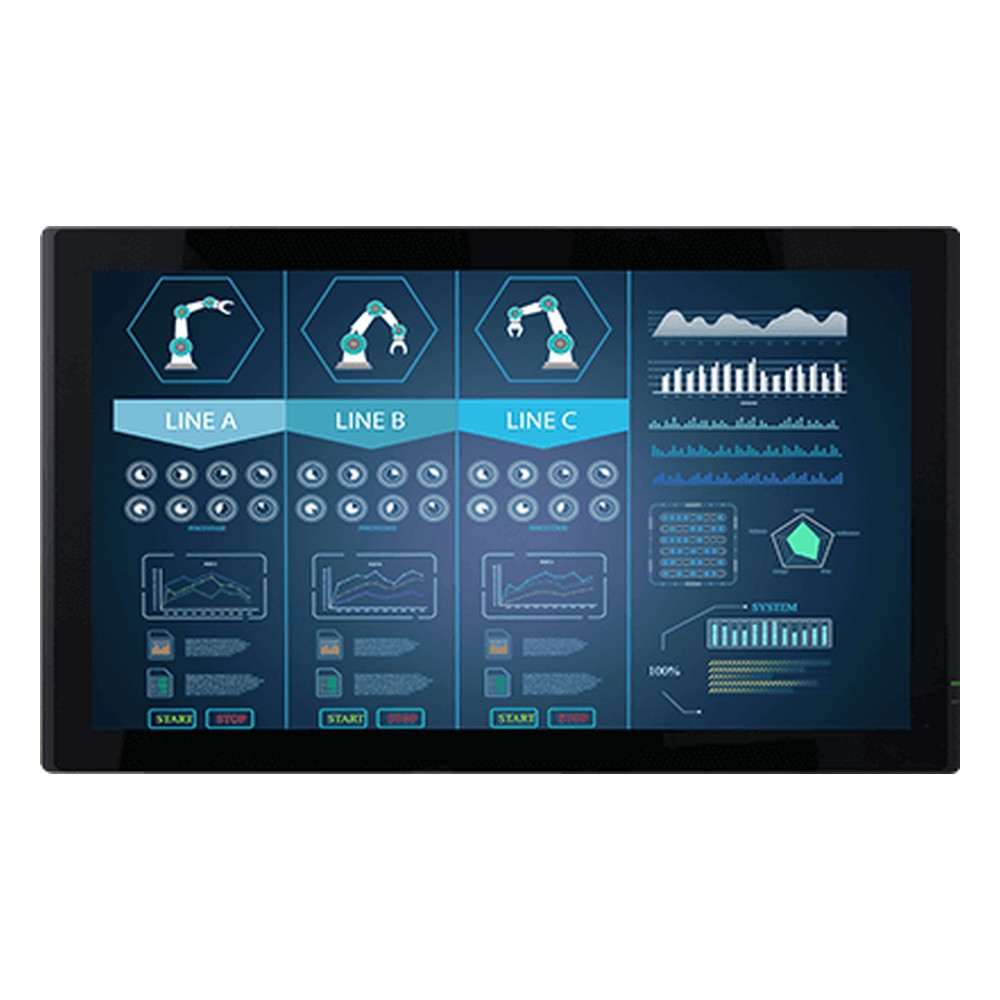

Winmate W32L100-PTA1-4K 32″ PCAP Touch Monitor with 4K UHD LCD and 350 Nits

Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The W32L100-PTA1-4K is Winmate’s 32 inch chassis touch monitor for that set-up: a 32″ 3840 x 2160 4K UHD projected capacitive display in a plastic housing, sealed to IP65 at the front.

The 3840 x 2160 panel runs at 350 nits with 1000:1 contrast and 178 degree viewing angles. Four times the pixels of full HD gives room for dense dashboards, drawings and multi-window layouts. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

Video comes in over DisplayPort 1.2 as standard, with HDMI 1.4 and HDMI 2.0 as options, and a single USB port carries touch back to the computer. Two speakers are built in. Five keys on the bottom edge run the on-screen menu, and the fanless, ventless housing is easy to wipe down. Within the Winmate range, the W32L100-PTA3 is the full HD version with a VGA input, and the W43L100-PCA3 is the 43 inch full HD chassis monitor.

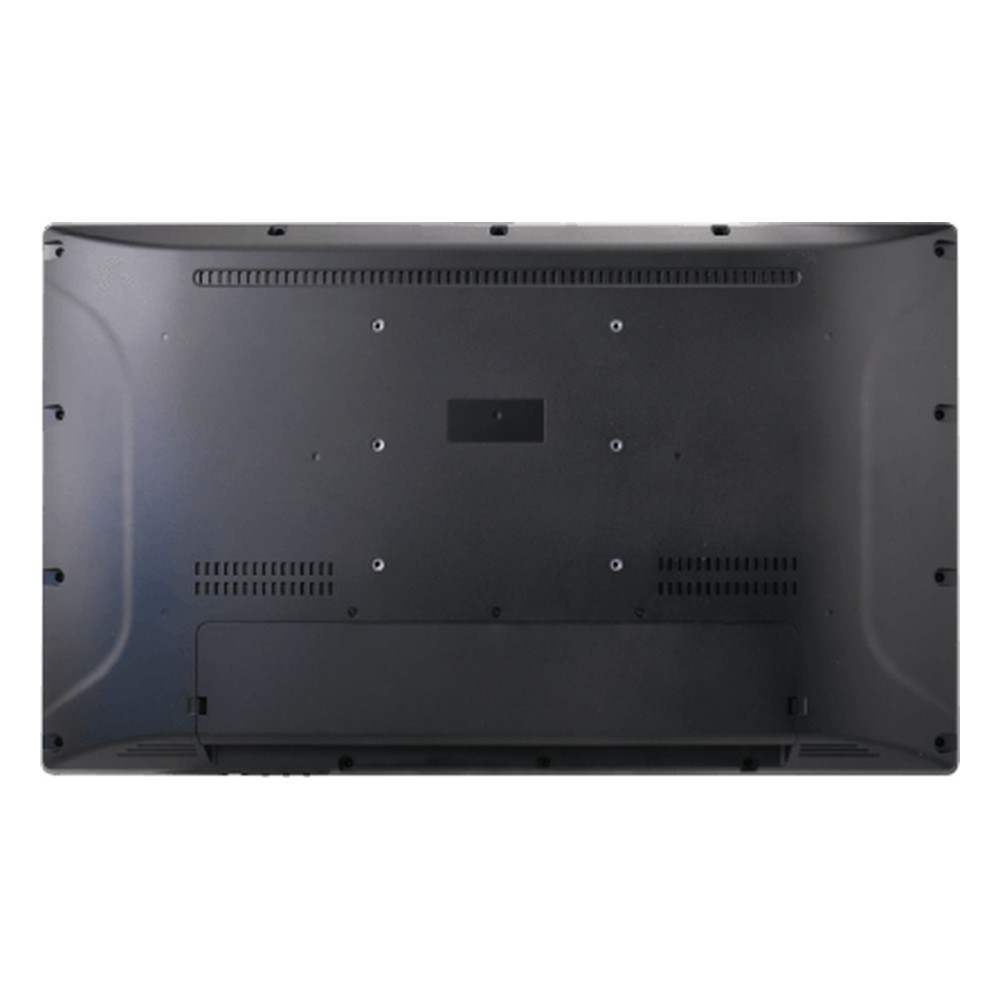

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with a DP cable, two HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 32 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the W32L100-PTA1-4K configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
