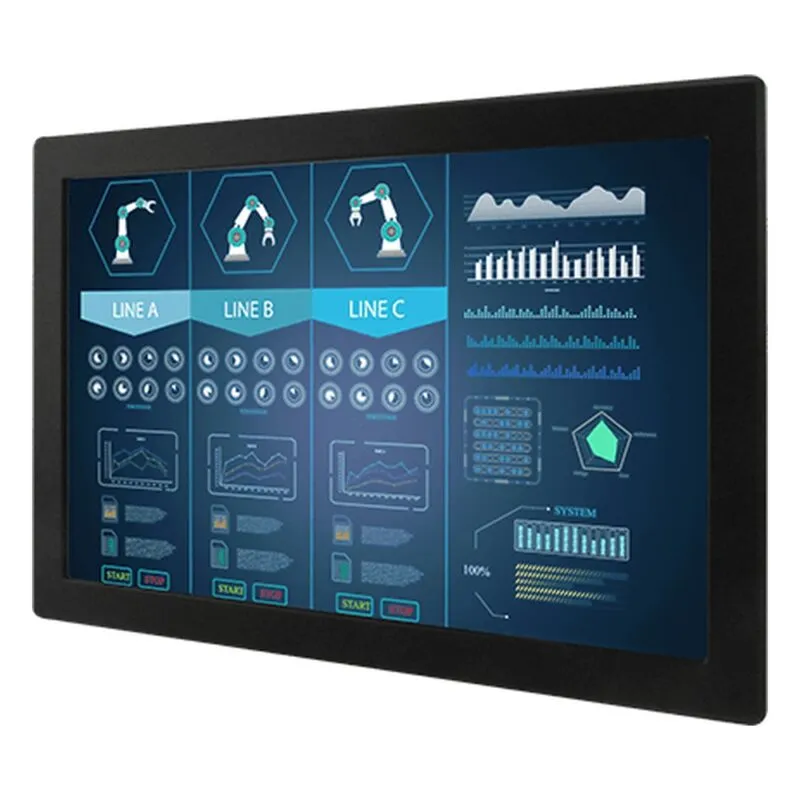

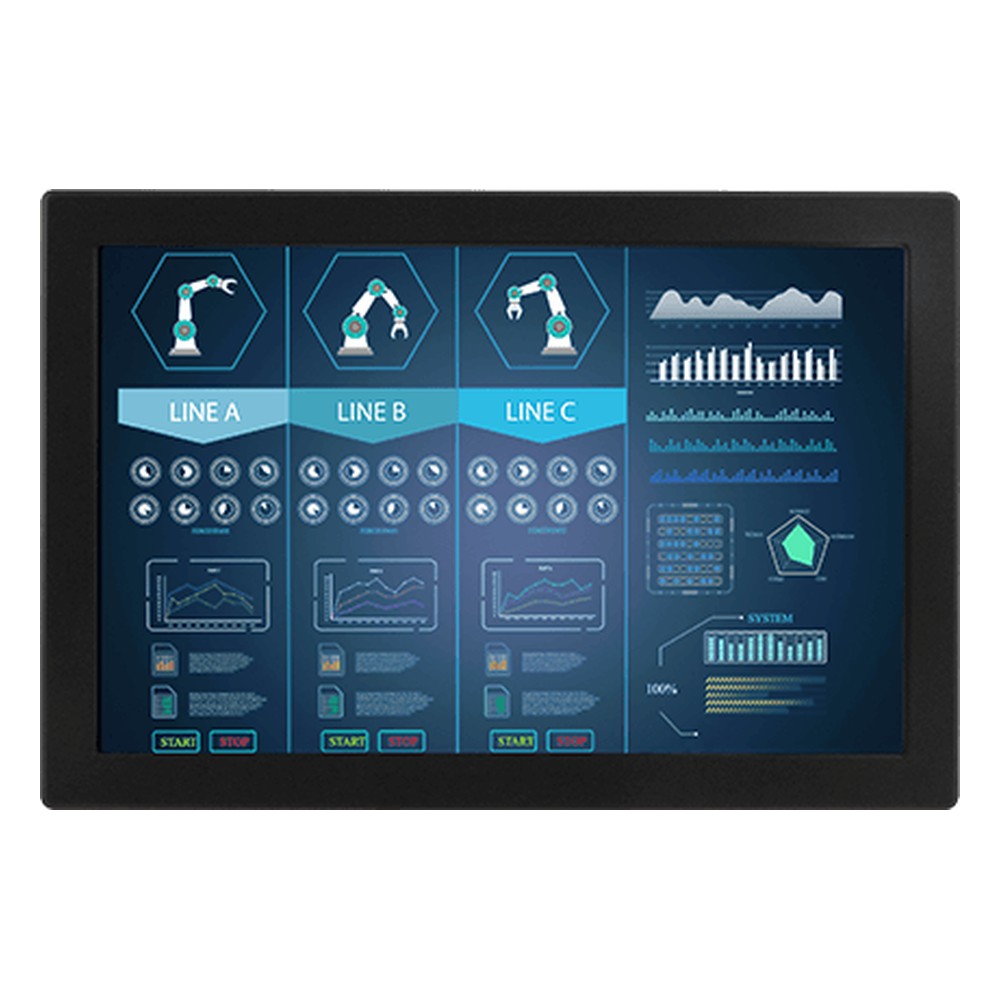

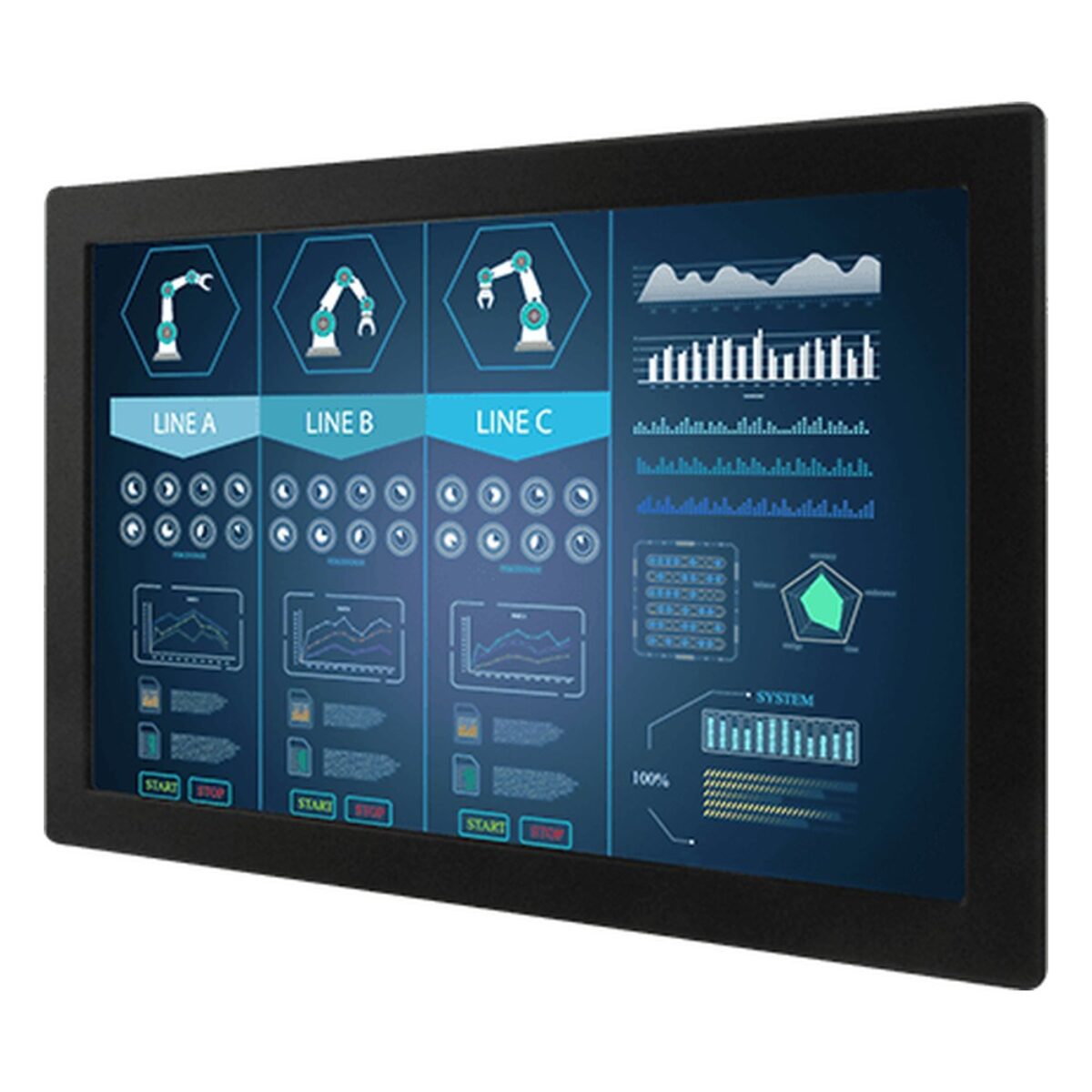

Winmate W32L300-IPA3TR 32″ Front IP65 Monitor with Transflective FHD LCD

Large information screens in loading areas, transport halls and production floors often sit where daylight reaches them, and they have to cope with dust and cleaning at the front. The W32L300-IPA3TR is Winmate’s 32 inch transflective industrial monitor for that job: an FHD panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 32″ 1920 x 1080 transflective panel runs at 400 nits with 4000:1 contrast and 178 degree viewing angles, and a transflective panel uses ambient light as well as its backlight, which helps where daylight reaches the screen. The panel sits behind a protection glass rather than a touchscreen, so the monitor suits view-only roles where operators read rather than press.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The W32L300-OFA3TR is the 32 inch open frame transflective monitor for builders who supply their own bezel, and the W27L100-IPA1 is the 27 inch front IP65 model.

The 32 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. It runs from 24 V DC, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the W32L300-IPA3TR configured and tested before dispatch, ready to pair with the computer that drives it.
