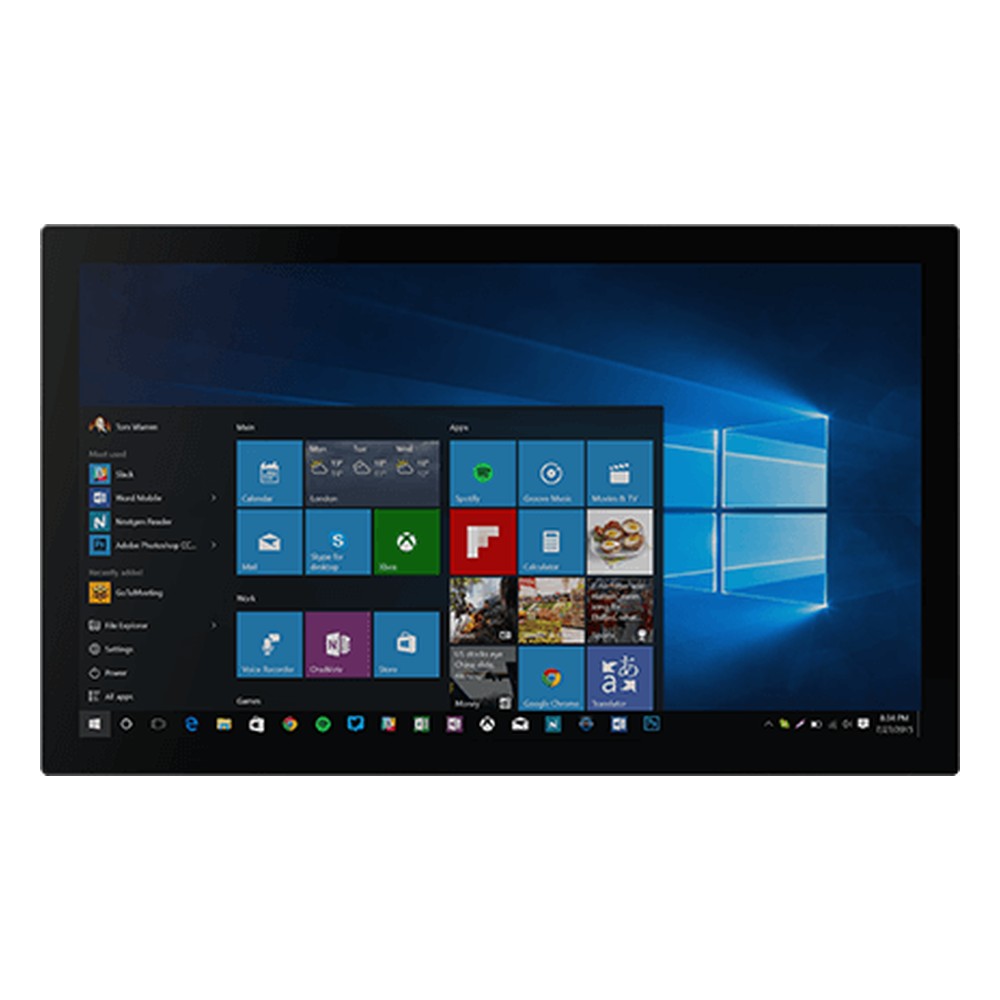

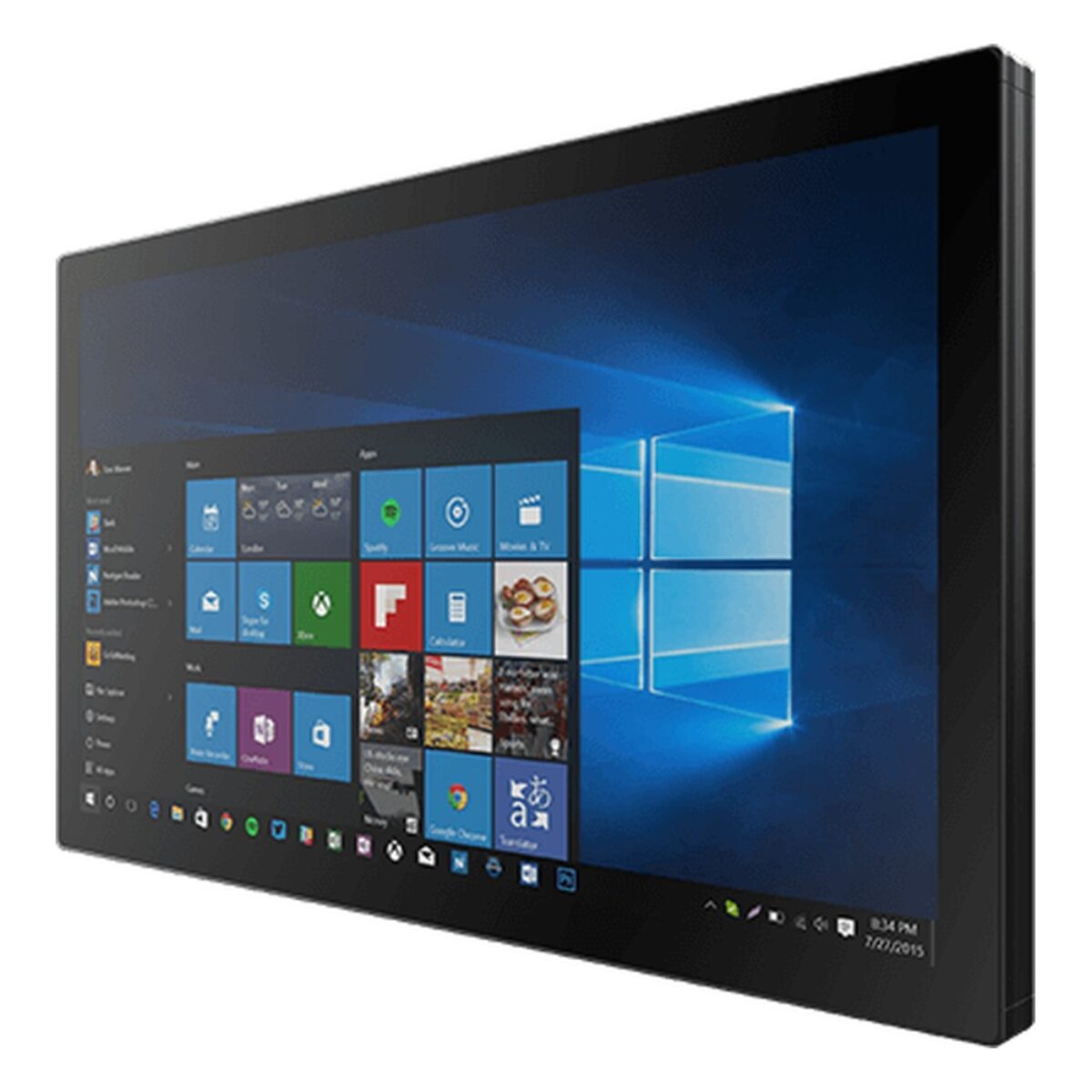

Winmate W43IT7T-PCA3 43″ PCAP Touch Panel PC with Intel Core i5-1135G7 and FHD Display

A 43 inch touch screen turns a wall or a stand into a shared control point, a wayfinding kiosk or a production board people can interact with. The W43IT7T-PCA3 is Winmate’s 43 inch PCAP touch panel PC for those installs, with a 43″ 1920 x 1080 projected capacitive multi-touch screen at 400 nits and 3000:1 contrast, and an 11th Gen Intel Core i5-1135G7.

The Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz and Intel Iris Xe graphics, which is usually plenty for HMI software, a kiosk application or a full HD dashboard. Two non-ECC SO-DIMM sockets take up to 64 GB. Storage is a 128 GB SSD as standard with options to 2 TB on an M.2 2280/2242 M-key slot that takes NVMe or SATA drives. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 available for the W43IT7T-PCA3.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1×1 Type-A ports, one RS-232/422/485 port (RS-232 by default) for a PLC, reader or serial device, and DisplayPort 1.2 with optional HDMI 1.4, mic in, line out and two speakers. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W43IF7T-PCA3 is the 43 inch model with 9th Gen Intel Core i3 to i7 processors, and the W32IT7T-PCA3 is the 32 inch version with this processor.

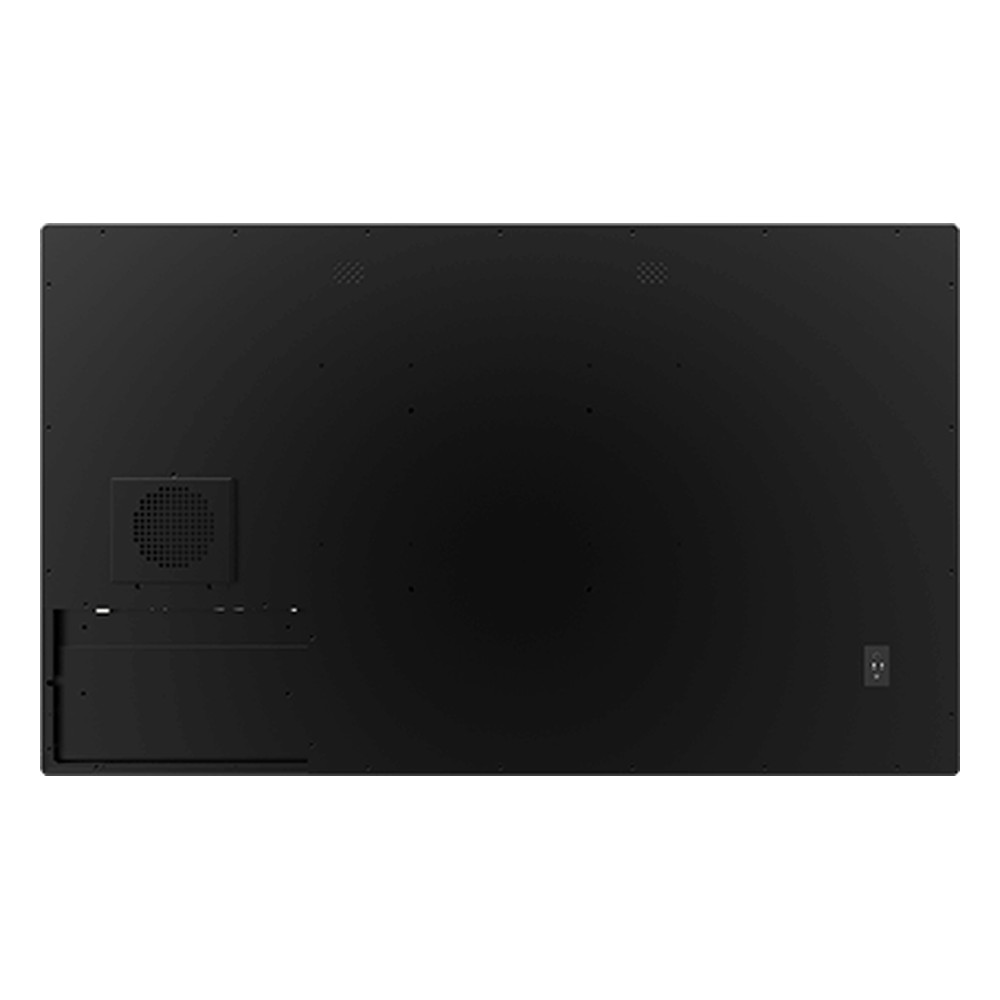

Power is 24 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter and a power cord supplied. The metal housing is fan-cooled and runs from 0 to 50 °C at 10 to 90% humidity, non-condensing. The IP65 rating applies at the front, so it suits indoor production areas, retail and public spaces. It mounts on VESA, with VESA screws in the box, and carries CE and FCC marks. We supply the W43IT7T-PCA3 configured, with the OS installed, and tested before dispatch.
