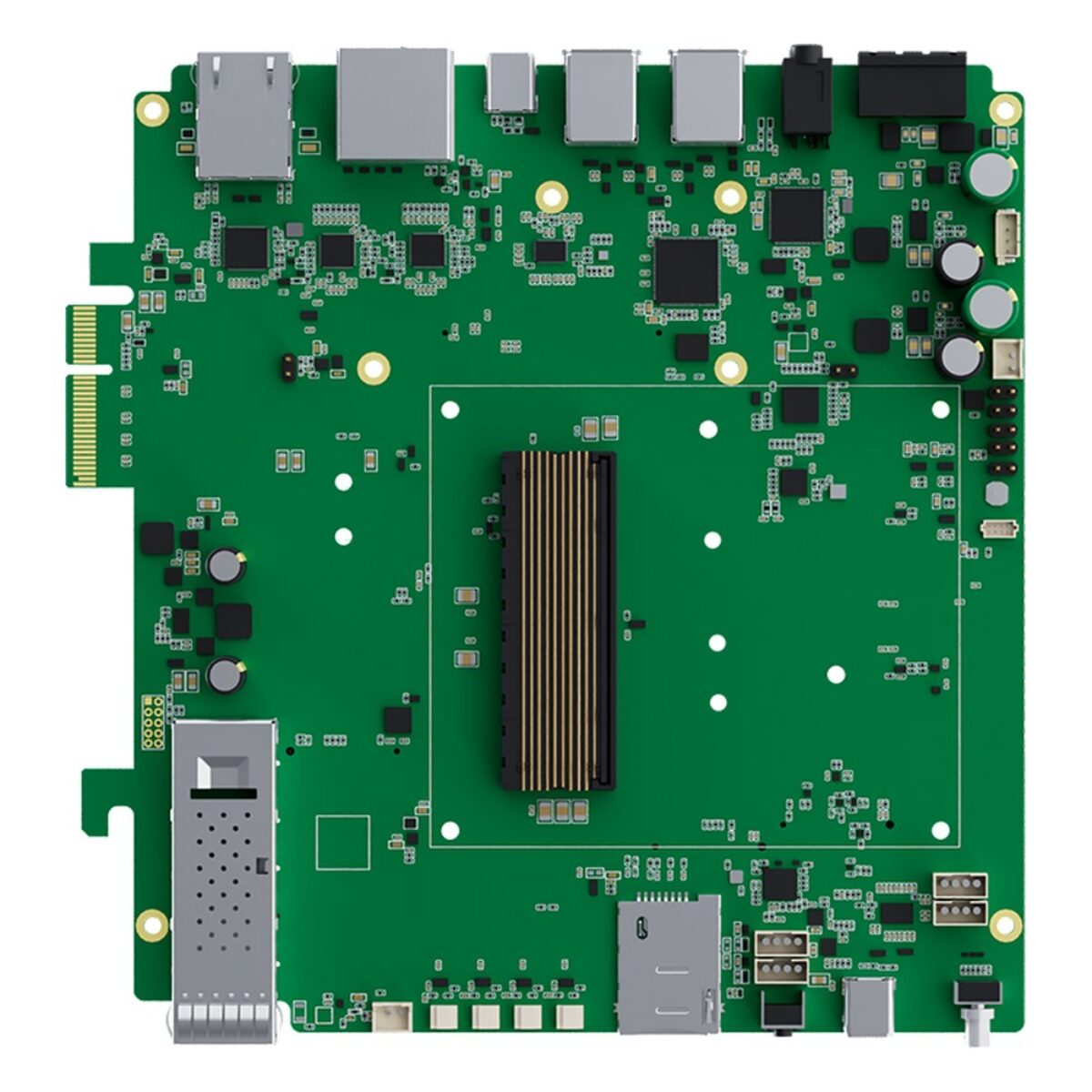

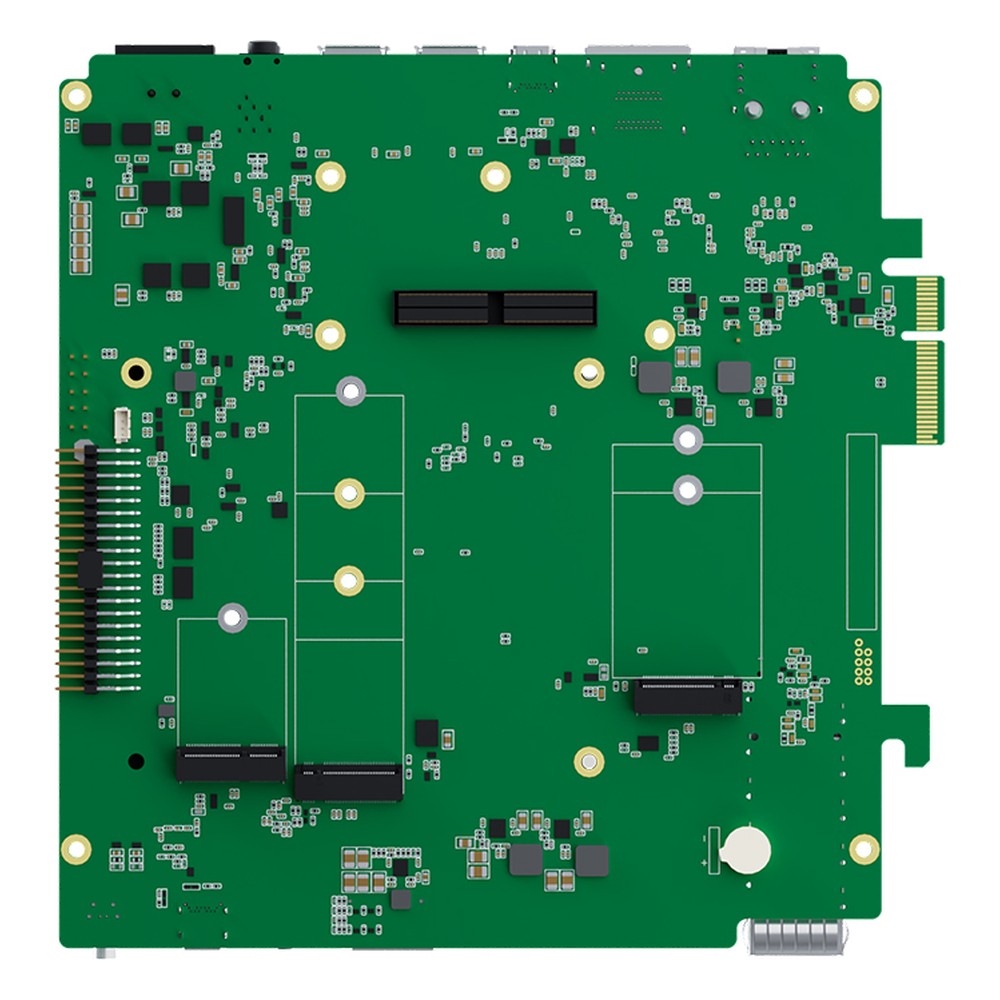

Yuan EDG6N0-S T5X MB NVIDIA Jetson Thor T5000/T4000 Carrier Board with QSFP28, 5GbE, HDMI and DisplayPort

The EDG6N0-S T5X MB is Yuan's Jetson carrier board from the EDG6N0-S box, taking the NVIDIA Jetson Thor T5000 or T4000 with QSFP28, 5GbE, HDMI 2.0, DisplayPort 1.4 and 16 MIPI lanes. It suits builders fitting Thor into their own enclosure who need high-bandwidth networking and two 4K60 displays.

  • QSFP28 and 5GbE: One QSFP28 cage at 100Gbps on T5000 or 75Gbps on T4000, plus one 5GbE RJ45 port.
  • Jetson Thor T5000 or T4000: Up to 2070 FP4 TFLOPS with 128GB LPDDR5X on T5000, or 1200 FP4 TFLOPS with 64GB on T4000.
  • Two 4K60 Display Outputs: One HDMI 2.0 and one DisplayPort 1.4 output, each at up to 4K60, for operator or review screens.
  • 16 MIPI Lanes and 40-Pin Header: MIPI CSI-2 lanes for cameras or capture cards, plus UART, GPIO, I2C, I2S, SPI and PWM on the header.
  • Expansion and 20 to 32V DC: PCIe Gen5 x4 gold finger, M.2 M, E and B key slots, four fan connectors and a 20 to 32V DC input.
Operating Software: LinuxLinux
Multi Display Support: Dual Display SupportDual Display Support
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 33x M.2
NVMe: NVMe SSD SupportNVMe SSD
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

EDG6N0-S T5X MB Overview

Where a project needs Thor compute inside its own enclosure, with fast networking for sensor data or storage, the board is usually the right starting point. The EDG6N0-S T5X MB from Yuan is the Jetson carrier board used in the EDG6N0-S box, sold as a board for the NVIDIA Jetson Thor T5000 or T4000 module.

The T5000 gives up to 2070 FP4 TFLOPS from a 14-core Neoverse-V3AE CPU and 2560-core Blackwell GPU with 128GB LPDDR5X; the T4000 gives 1200 FP4 TFLOPS with 64GB. Networking is one QSFP28 cage, at 100Gbps on T5000 or 75Gbps on T4000, plus one 5GbE port. Display is one HDMI 2.0 and one DisplayPort 1.4 output, each at up to 4K60, and 16 MIPI CSI-2 lanes take cameras or capture cards. Audio is line in and line out.

Four USB 3.2 Gen2 Type-A and two Type-C ports, a PCIe Gen5 x4 gold finger and M.2 E, M and B key slots handle peripherals and expansion. A 40-pin header carries UART, GPIO, I2C, I2S, SPI and PWM, and there are four fan connectors; T5000 builds add CAN bus. If you would rather have the board already enclosed, the EDG6N0-S T5X is the boxed version, and the EDG6N0-S T5X NVR adds eight PoE camera ports and two SATA drive bays.

The EDG6N0-S T5X MB runs Ubuntu 24.04.2 with JetPack 7.0.0, takes 20 to 32V DC, operates from -25 to 45°C with airflow and carries CE and FCC marks. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.

EDG6N0-S T5X MB Specifications

Overview
Brand & ModelYuan EDG6N0-S T5X MB
FeaturesEmbedded
Expandable
Performance
AI Performance1,200–2,070 TOPS
Memory128GB Soldered On-board
64GB Soldered On-board
System-on-ModuleNVIDIA Jetson T4000: 1200 TFLOPS (FP4, sparse), 1536-core Blackwell GPU with 64 fifth-gen Tensor Cores, 12-core Arm Neoverse-V3AE 2.6GHz, 64GB 256-bit LPDDR5X, 40-70W
NVIDIA Jetson T5000: 2070 TFLOPS (FP4, sparse), 2560-core Blackwell GPU with 96 fifth-gen Tensor Cores, 14-core Arm Neoverse-V3AE 2.6GHz, 128GB 256-bit LPDDR5X, 40-130W
PCIe Gen SupportPCIe 5.0
Operating SystemLinux Ubuntu 24.04
Linux
Jetpack VersionJetPack 7
Graphics
Display StandardsDisplay Port 1.4a
HDMI 2.0
Multi Display SupportDual Display Support
Display Outputs1x Display Port
1x HDMI
Audio
InterfaceLine-In
Line-Out
I/O
Ethernet2x Ethernet Ports
1x 100GbE LAN [QSFP28]
1x 5 GbE LAN [RJ45]
USB6x USB Ports
2x USB 3.2 Gen 2 [Type C]
4x USB 3.2 Gen 2 [Type A]
CANbus4
4x CANbus [Board]
GPIOGPIO [2-lines]
MIPI Interface4x 4 Lane MIPI CSI-2
Expansion
M.23x M.2 Expansion Slots
1x M.2 B-Key [USB] [2242/3042/3052]
1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230]
1x M.2 M-Key [PCIe x2 Gen5] [2280]
Storage
NVMeNVMe SSD Support
Power
Power Input20-32V DC Input
Environmental Conditions
Operating Temperature-25°C to 45°C [-13°F to 113°F]
Storage Temperature-25°C to 80°C [-13°F to 176°F]
CertificationCE
FCC
Mechanical Properties
Dimensions180mm x 182mm (7.08" x 7.15")

Official Yuan USA Distributor

Things Embedded is an official Yuan USA distributor, and we supply the EDG6N0-S T5X MB as part of a complete tested system, with the Jetson module, storage and JetPack image fitted. Within the Yuan range, the EDG6N0-S T5X is this board fitted in its enclosure with a 20 to 57V input, and the ARC6N0 T5X is a smaller Thor carrier stack with an IMU but no QSFP28.
