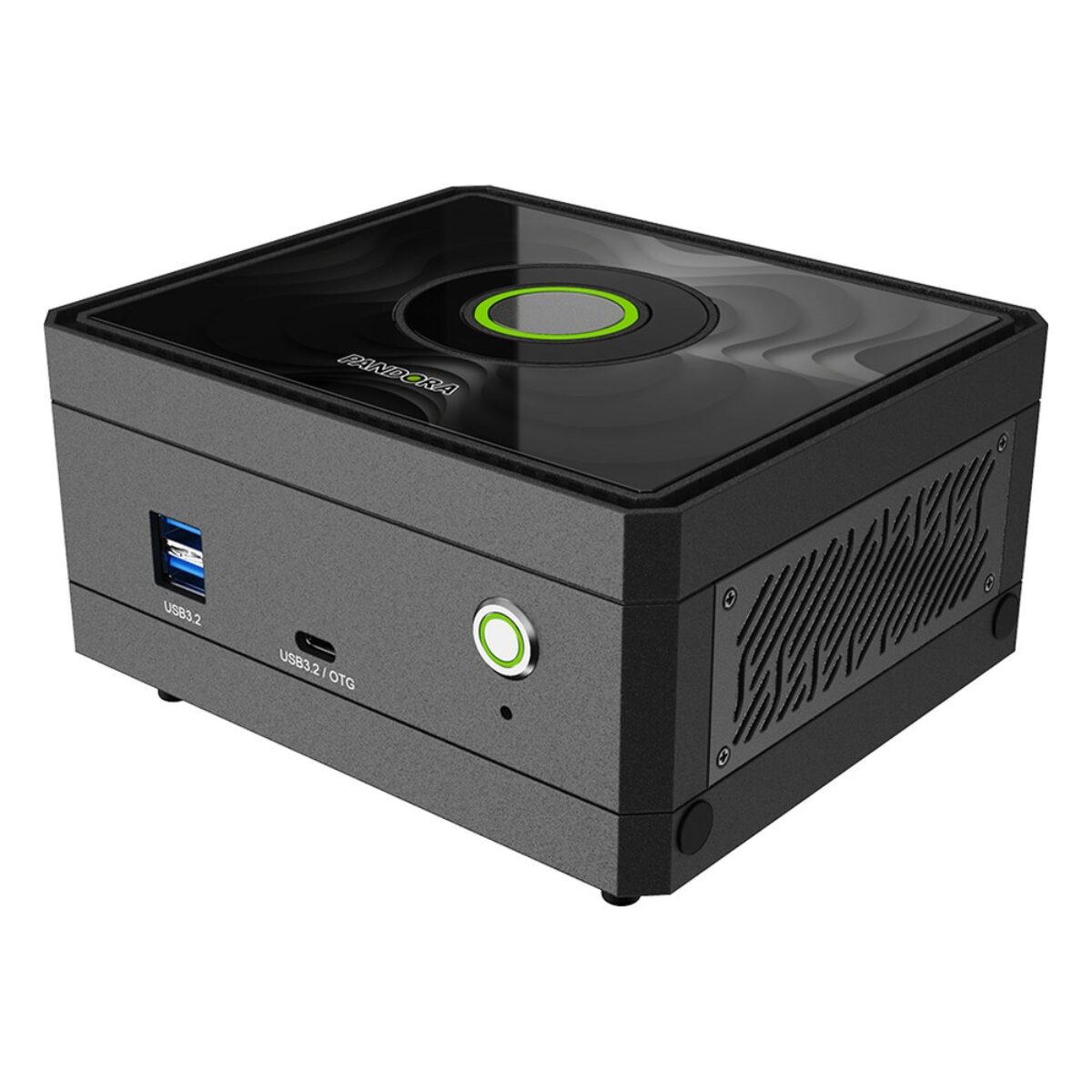

Yuan Pandora Nano 4GB Super NVIDIA Jetson Orin Nano 4GB Super Edge AI Computer with Dual GbE and 4G/5G Option

Entry-level edge AI, such as a single camera, a small vision model or a connected kiosk, rarely needs a large module but often needs wireless or cellular links. The Pandora Nano 4GB Super from Yuan is an edge AI computer built on the NVIDIA Jetson Orin Nano 4GB Super module, with dual GbE, a pre-installed 128GB SSD and slots for WiFi and 5G or 4G. Yuan aims the Pandora range at AI developers and professional uses such as smart retail.

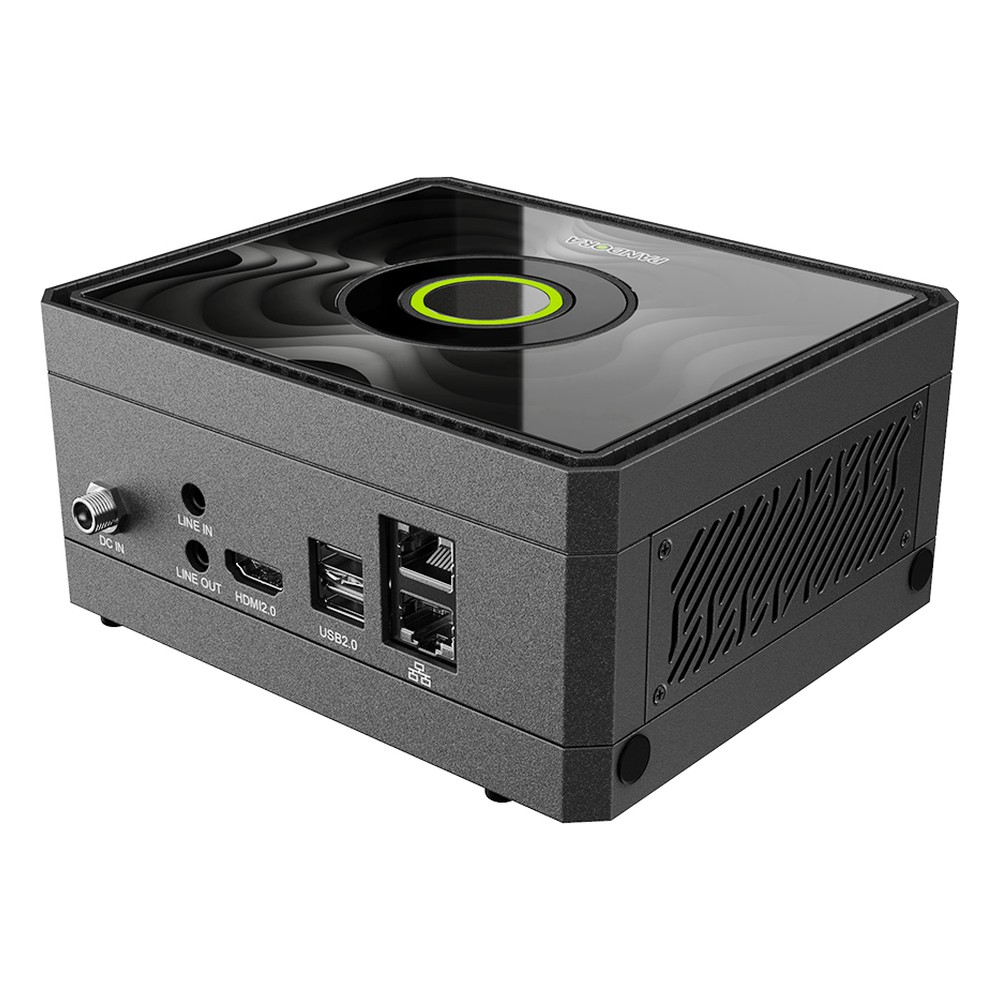

The Jetson Orin Nano 4GB Super gives up to 34 TOPS from a six-core Cortex-A78AE CPU and a 512-core Ampere GPU with 4GB LPDDR5. Eight MIPI CSI-2 lanes, as two 4-lane and four 2-lane ports, take MIPI cameras or capture cards. Display is one HDMI 1.4 output, networking is two GbE ports, and USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 Type-A ports, with line in and line out for audio.

Storage starts with a pre-installed 128GB SSD in an M key slot at PCIe Gen3 x2, and a second M key slot at PCIe Gen3 x4 takes another SSD or a video capture card. An E key slot is there for WiFi and a B key slot with nano SIM for 5G or 4G. A 40-pin header carries I2S, I2C, SPI, UART and GPIO, a 14-pin header adds CAN and UART, and a TPM is optional. Yuan rates maximum power at 37W on a 9 to 36V DC input. If your models need more memory, the Pandora Nano 8GB Super uses the 8GB module at 67 TOPS. For Orin NX performance, see the Pandora NX 16GB Super.

The Pandora Nano 4GB Super supports JetPack 6.2 and operates from 0 to 60°C with airflow. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
