Yuan SC400N1-L HDMI PCIe HDMI Video Capture Card with 1080p60 Input
PCI ExpressSC400N1-L HDMI Overview

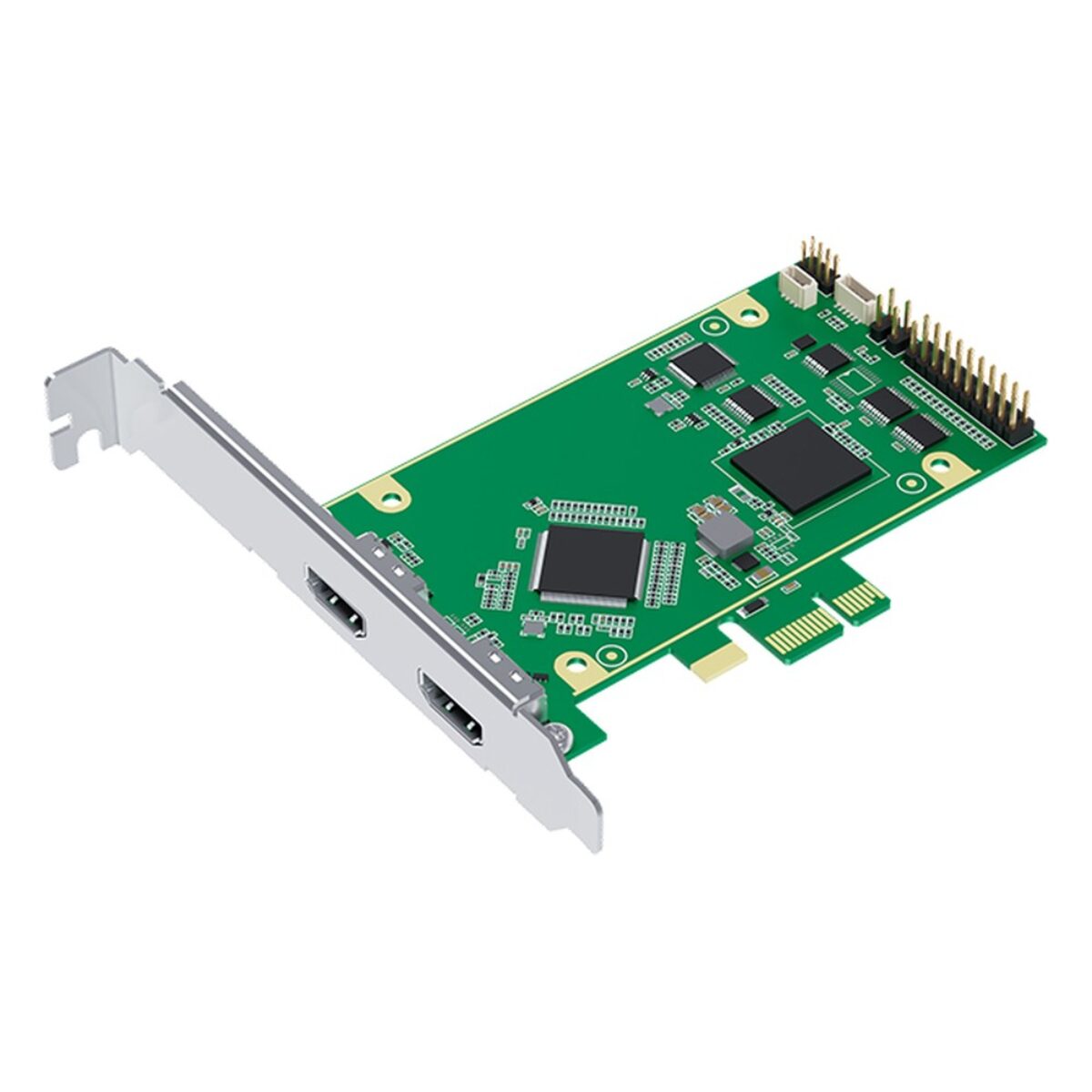

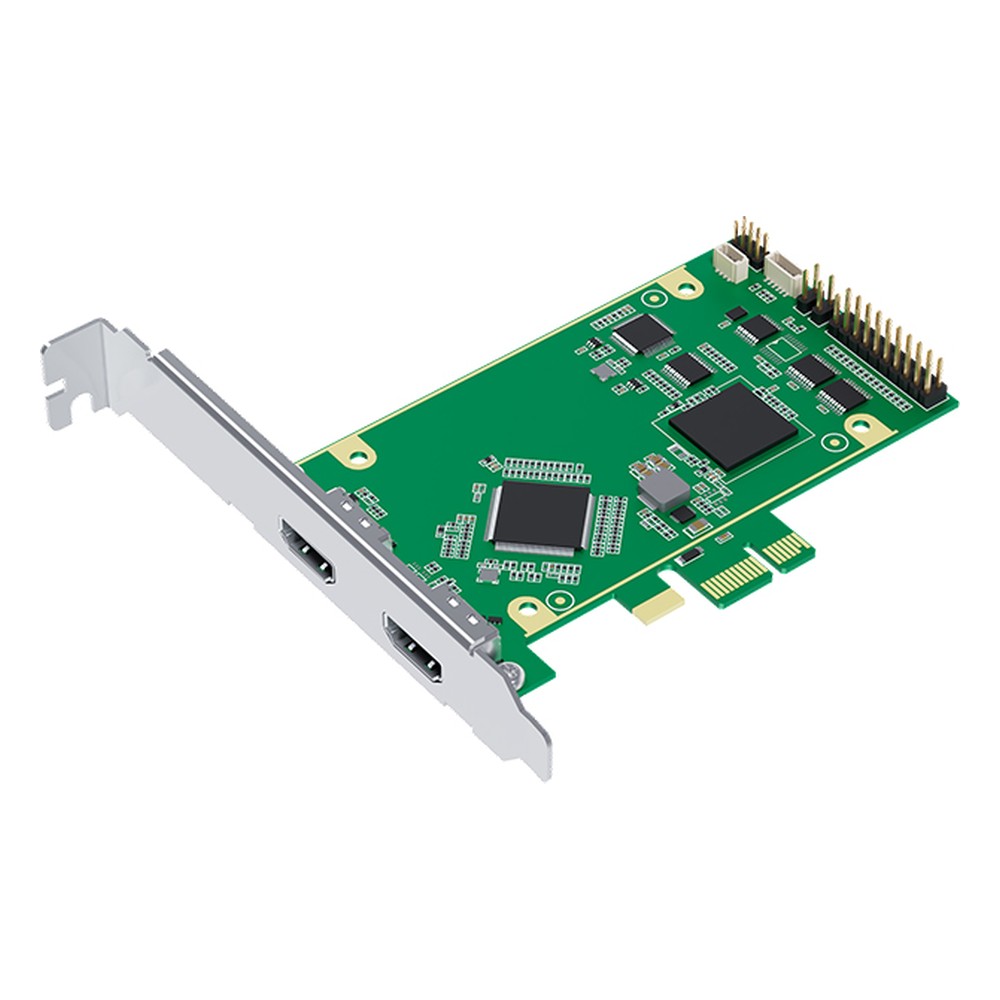

Capturing an HDMI camera, instrument or presenter’s laptop often means the original screen still has to show the picture. The SC400N1-L HDMI is Yuan’s low profile PCIe HDMI video capture card with one HDMI input at up to 1920 x 1080 at 60/50 fps and an HDMI loop-through output that passes the signal on. It is a good fit for compact recorders, streaming PCs and test benches handling a single HDMI source.
The input covers 1080p at 60/50 and 30/25/24 fps, 1080i, 720p and PC resolutions from 1280 x 1024 down to 640 x 480, plus 480p, 576p, 480i and 576i, with more resolutions available through the SDK. Capture formats are 8-bit RGB24, RGB32, YUY2, YV12 and NV12, and HDMI embedded audio is captured as stereo at 16-bit, 32 to 48 kHz.
It connects over PCIe x1 Gen2. Hardware cropping and scaling, auto signal detection and a deinterlace engine run on the card, which also carries 16 GPIO and a watchdog and supports multiple instances and multiple cards. YUAN provides a Windows and Linux SDK, and vMix, OBS and other DirectShow or V4L2 software is supported. The SC400N1-L SDI / HDMI adds an SDI input next to HDMI, and the SC400N2-L HDMI takes two HDMI inputs at 1080p60.
Driver support covers Windows and Linux 2.6.14 or higher, 32-bit and 64-bit, plus Linux ARM on NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. We supply the SC400N1-L HDMI fitted and tested in the host system it goes into, with drivers installed and the loop-through output checked before delivery.
SC400N1-L HDMI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC400N1-L HDMI |
| Video Capture | |
| Host Interface | PCIe [x1, Gen2] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Color Format | NV12 4:2:0 8Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 1x HDMI Embedded Audio Input |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SC400N1-L HDMI tested in the host system it goes into, with drivers installed. Within the Yuan range, the SC400N1-L HDAV is another single-input HDMI card at 1080p60, and the SC400N1 M2 HDMI brings 1080p60 HDMI capture to an M.2 socket.
Across our range, the SC400N1-L HDMI sits with our HDMI video capture cards, our PCIe video capture cards and our video capture cards.
