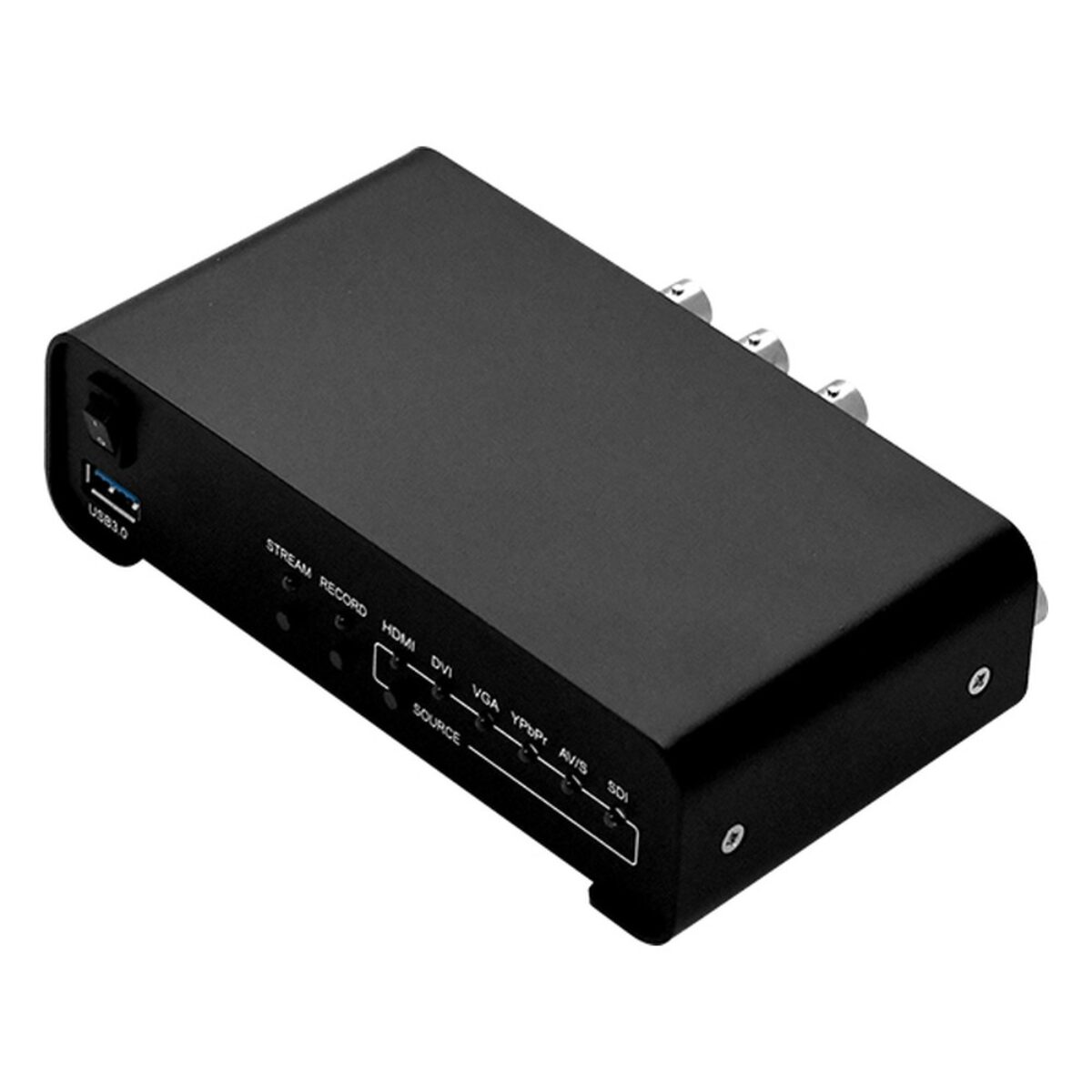

Yuan SC6E0N1 AIO Multi-Input Hardware Video Encoder with SDI, HDMI, DVI and Analog at 1080p60

Sites that mix older analog cameras and VGA sources with SDI and HDMI kit often need one encoder that accepts all of them. The Yuan SC6E0N1 AIO is a single-channel hardware video encoder and decoder built for that mix, bringing legacy and digital sources onto the same network as a standard stream.

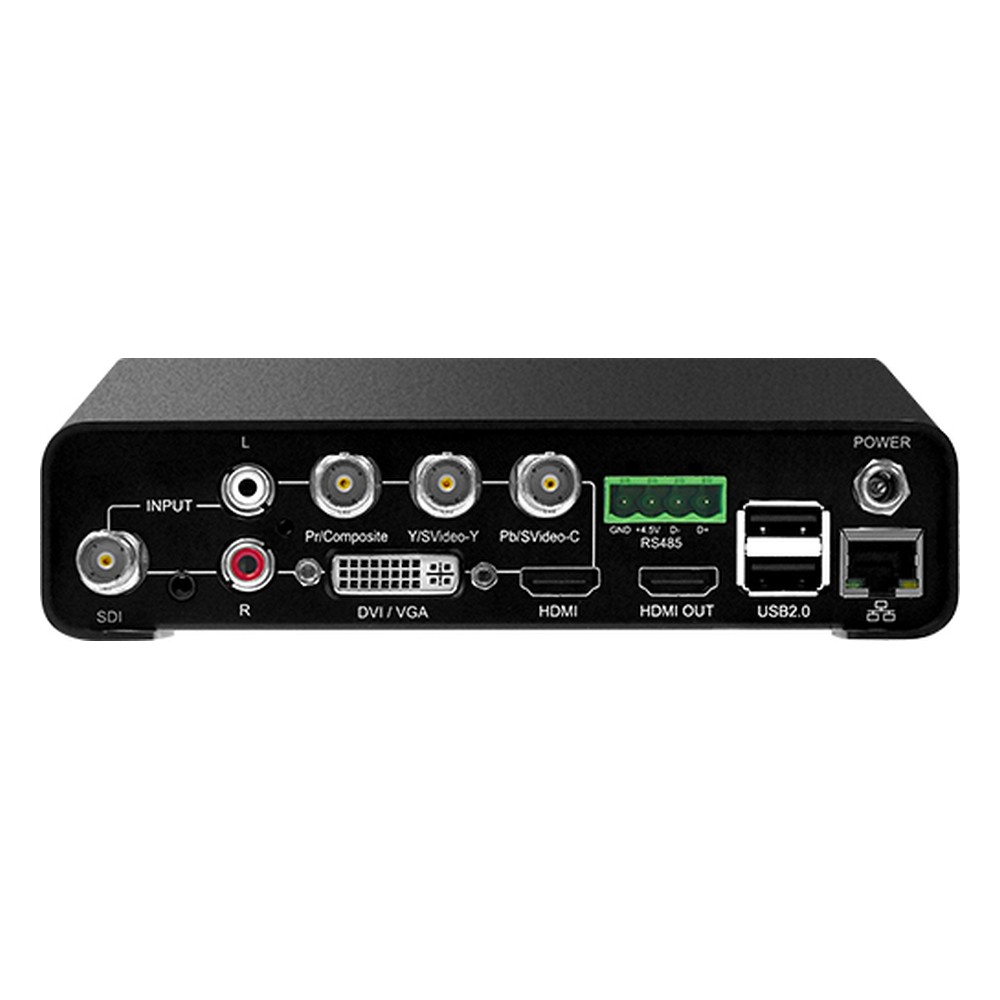

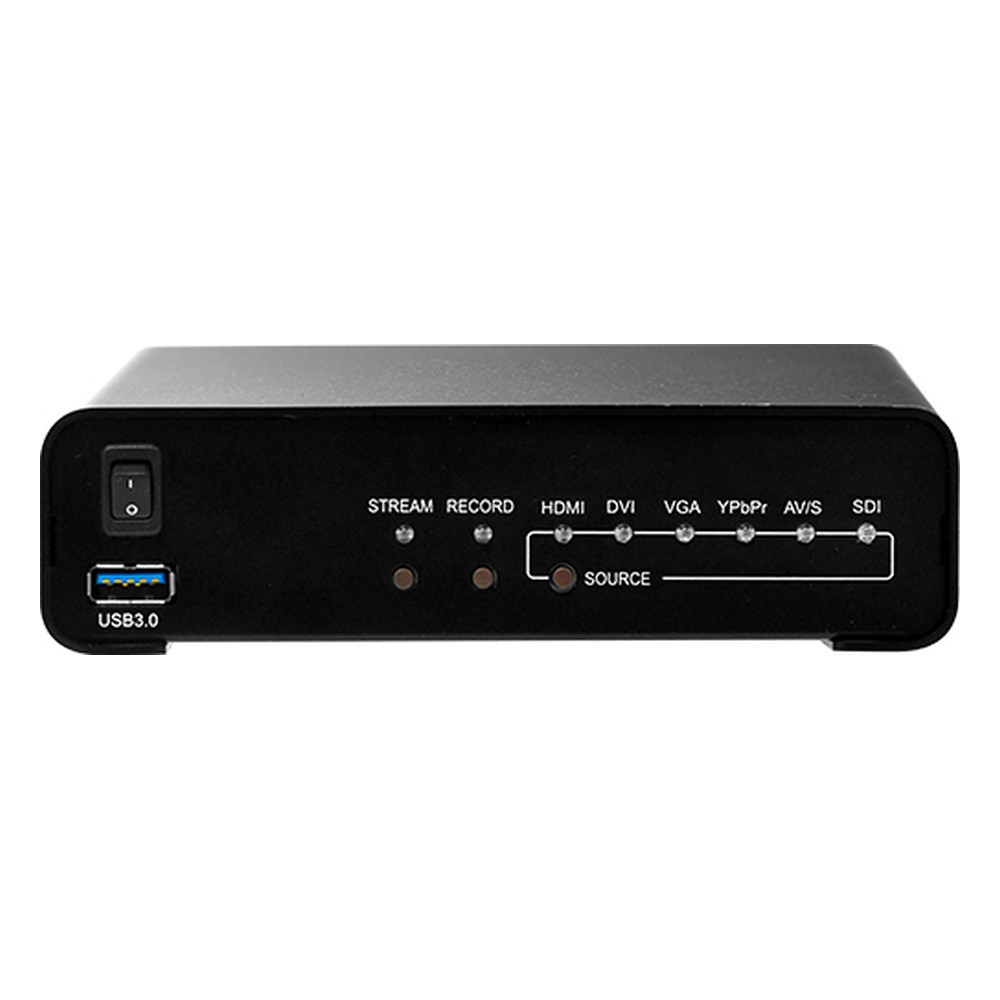

Inputs are one BNC for 3G, HD or SD-SDI, three BNC for YPbPr, composite or S-Video, one DVI-I for DVI-D, HDMI or VGA, and one HDMI. Audio comes embedded from SDI, HDMI or DVI-D, from two RCA analog inputs or an analog jack. The SC6E0N1 AIO handles 1080p60 down to 480i and 576i, encodes H.264 at Baseline, Main or High profile with AAC audio, decodes to one HDMI output, and streams RTSP, RTMP, HLS, TS over UDP and SRT, with NDI HX and Dante AV-H as optional licensed protocols.

Recording goes to USB storage as MP4, TS or MOV, and two USB 2.0 ports take a keyboard and mouse for local control alongside the web interface and RS485. Power is a 12V DC input. The SC6E0N1 AIO Lite trims the inputs to SDI and HDMI and adds loop-through outputs, while the SC6T0N4 HDMI AI+ handles four HDMI sources with multiview.

Mixed inputs mean older analog cameras and VGA sources can stay in service while the rest of the system moves to IP, which can spread the cost of an upgrade. List every source format before ordering, since input type decides the cabling at the rack. We supply the SC6E0N1 AIO configured and tested with the sources, displays and network it will connect to.
