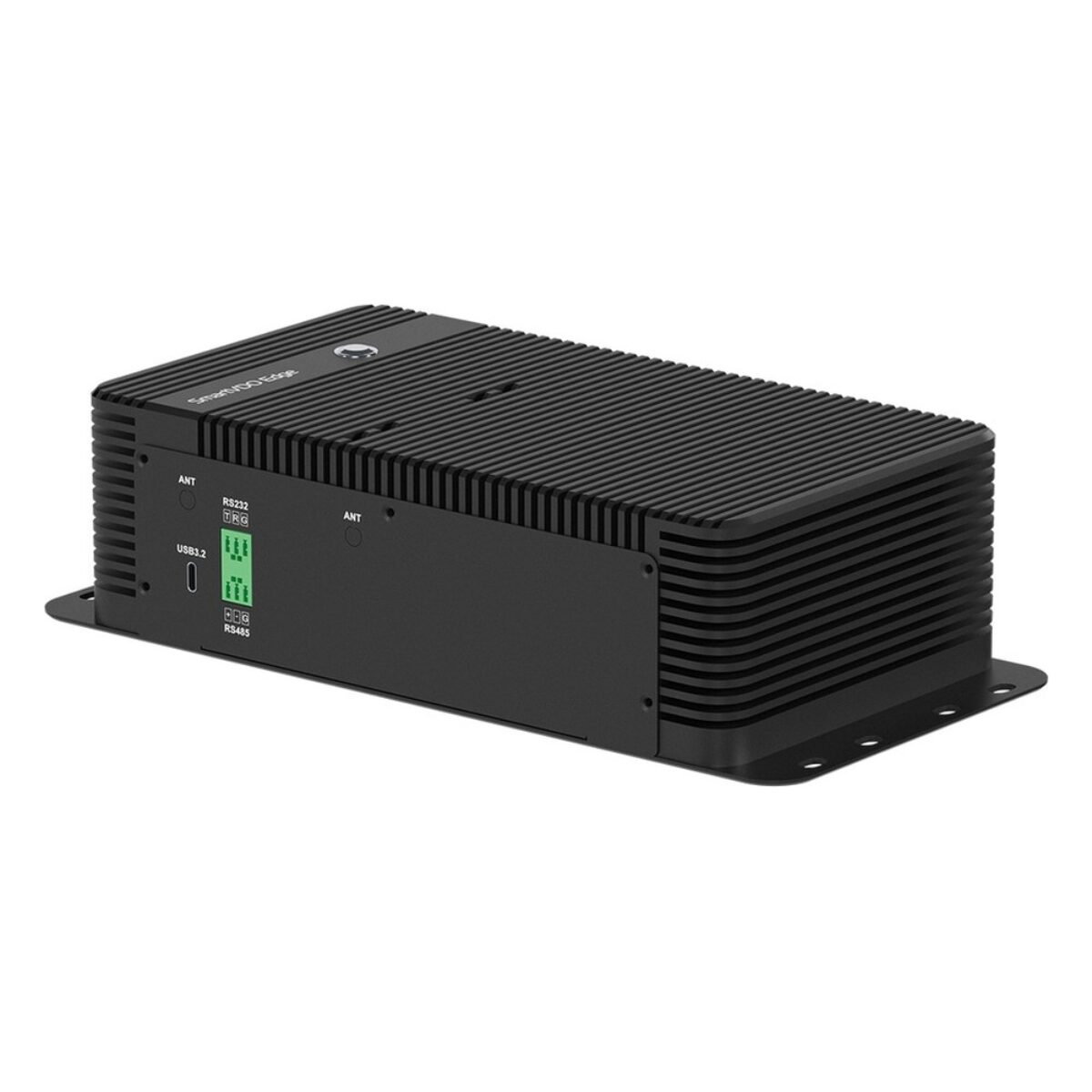

Yuan VPP6N0-S NANO NVIDIA Jetson Orin Nano Compact Edge AI Box PC with Dual HDMI

Many video and vision jobs need dependable inference on one or two streams rather than the largest module available. The VPP6N0-S NANO covers that ground as the entry edge AI box PC in the Yuan VPP6N0-S family, pairing an NVIDIA Jetson Orin Nano with two HDMI outputs and three M.2 slots in a fanless enclosure.

Two Orin Nano modules are offered. Both use a 6-core Arm Cortex-A78AE CPU; the 4GB module has a 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores for 20 TOPS, and the 8GB module a 1024-core GPU with 32 Tensor Cores for 40 TOPS, on 4GB or 8GB of LPDDR5. Yuan lists decode up to one 4K60 stream in AV1, H.265 or VP9, while encode runs at 1080p30 on one or two CPU cores. The VPP6N0-S NANO runs Ubuntu 20.04 with JetPack 5.1.1 and above, with Yuan’s QCAP and QDEEP SDKs for capture, streaming and AI functions.

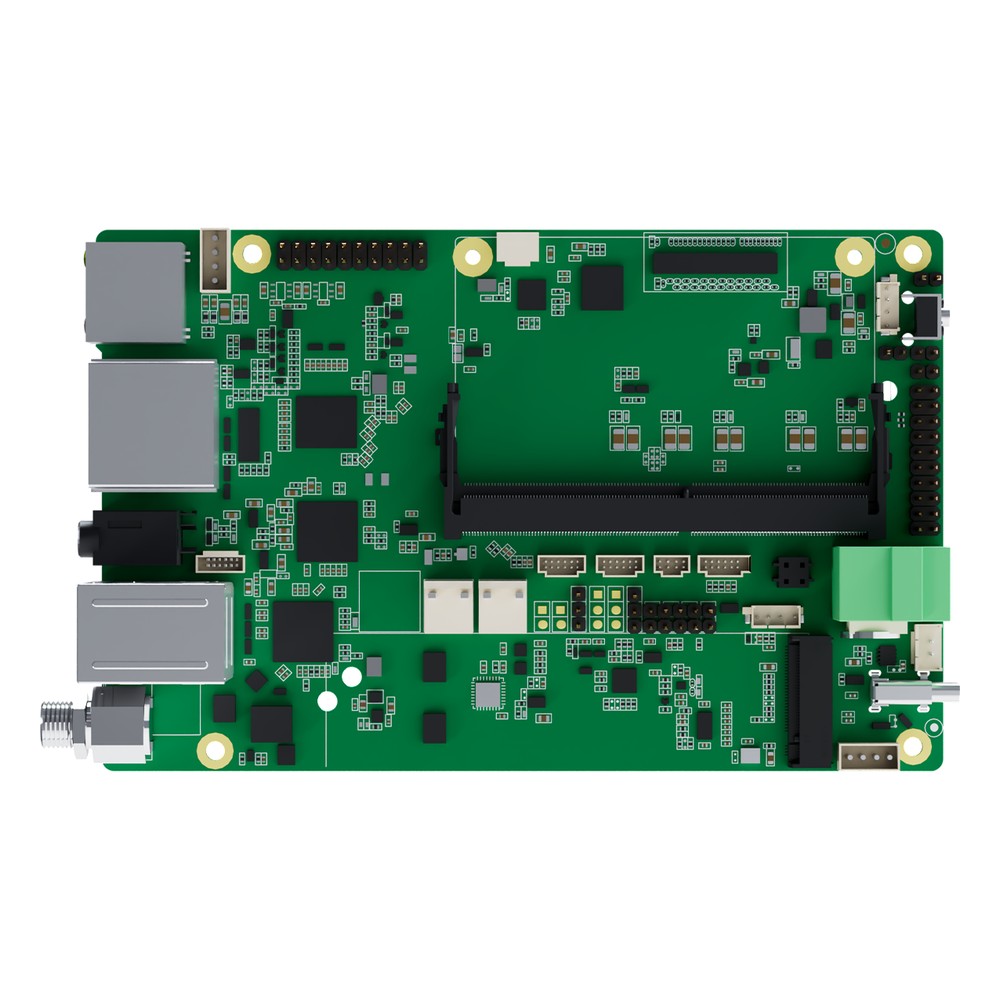

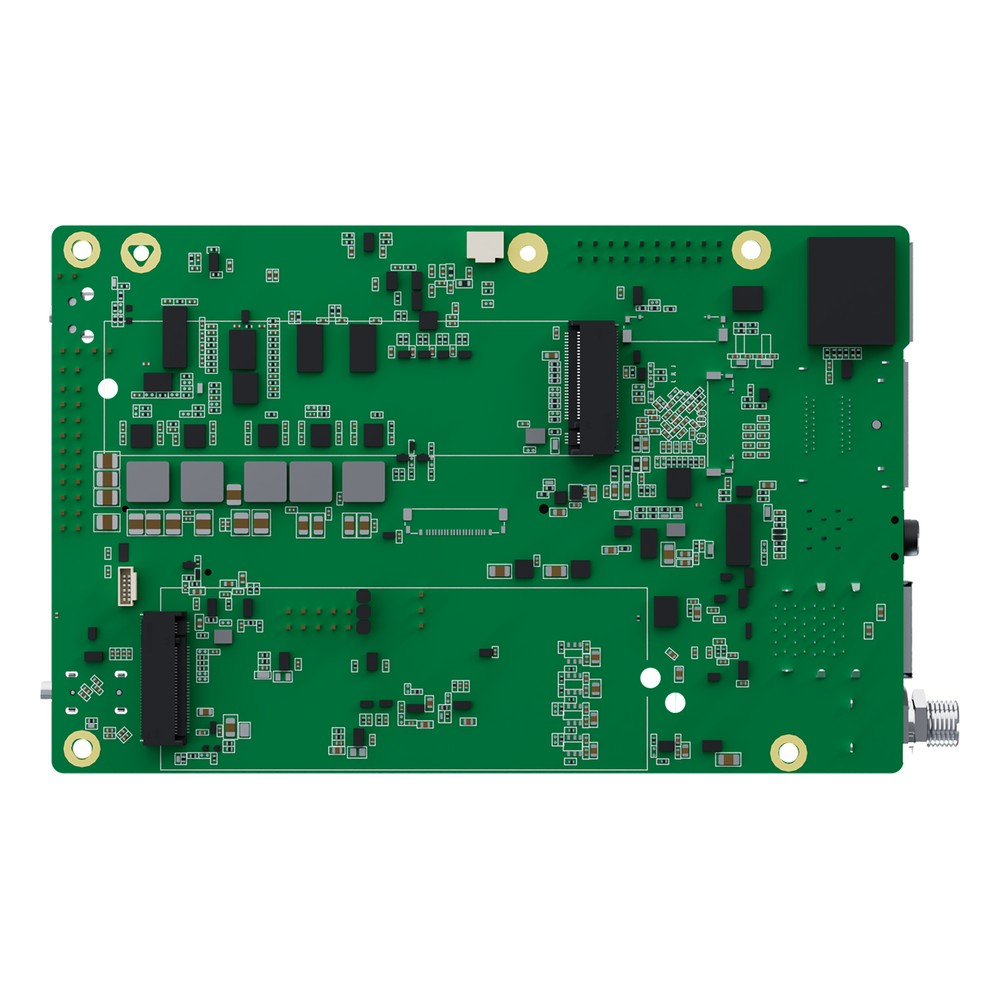

The three M.2 M Key slots run at PCIe Gen3 x4, x2 and x1, and the x4 slot takes 2280 or 3080 cards. One Gigabit RJ45 port, four USB 3.2 Gen 2 Type-A ports and two internal USB 3.2 Gen 1 headers, line in and line out, RS-232 and RS-485 on a Phoenix connector, four GPIO and three I2C complete the I/O, and eight MIPI CSI-2 lanes take MIPI cameras. The two HDMI outputs drive one 4K30 or two 1080p60 screens.

Power is 19 V DC, and the fanless 144 x 98 x 80.6 mm enclosure is rated from 0 to 60 °C with airflow, with a wide temperature version rated from 0 to 75 °C. For more AI headroom and dual HDMI 2.0 at 4K60, the VPP6N0-S-W NX uses the same enclosure with an Orin NX.
