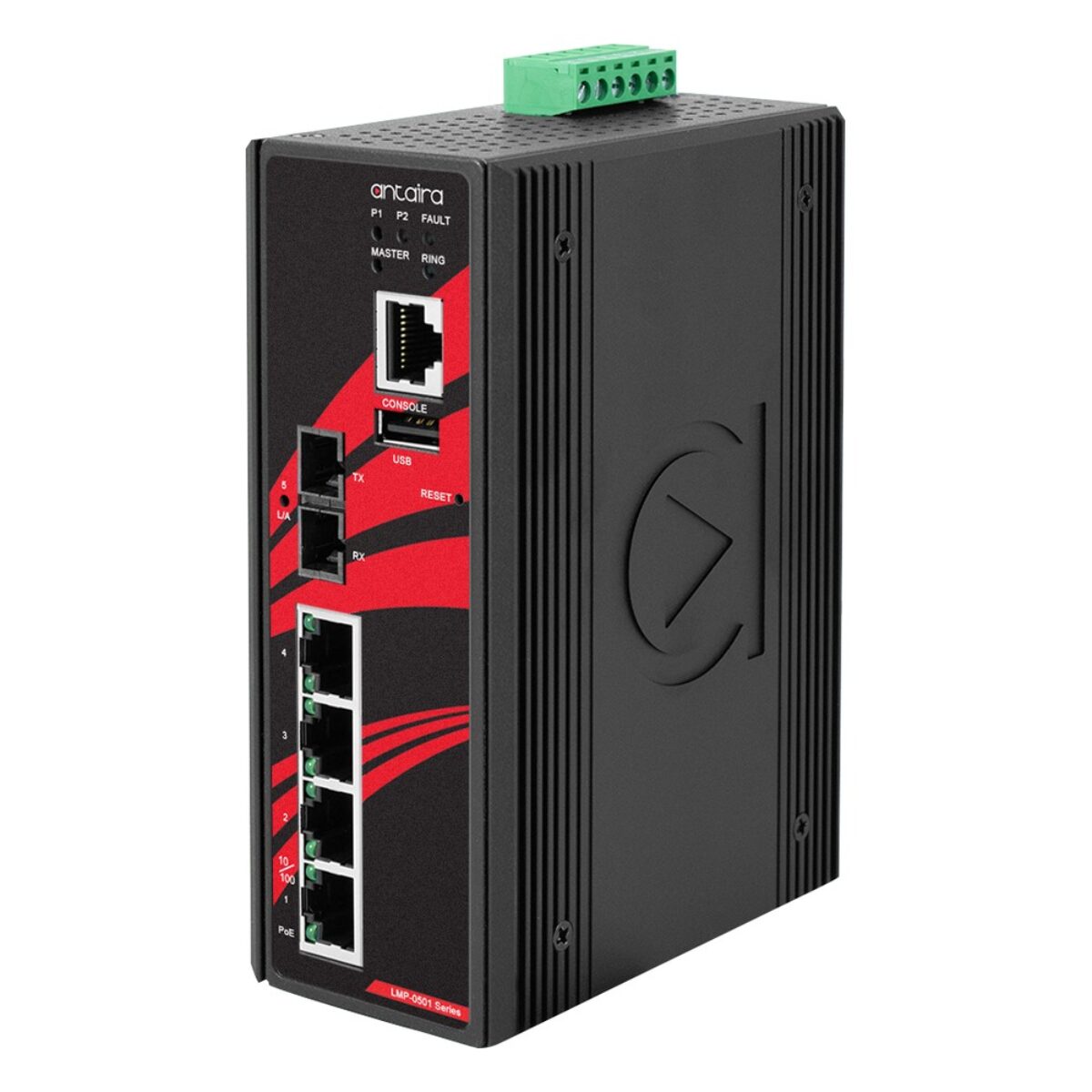

Antaira LMP-0501-24-V2 5-Port Fast Ethernet Managed Industrial Ethernet Switches with 4x PoE+ (120W), 1x 100FX SC Multi-mode Fiber, 12-55V DC Input and Extended Temperature Options

PoE cameras and wireless links at remote sites often sit in cabinets fed from a 12 or 24 V DC supply, below the voltage PoE+ normally needs, and the uplink back to the control room is often too long for copper. The Antaira LMP-0501-24-V2 series answers both: Layer 2 managed industrial PoE switches with a voltage booster on a 12 to 55 V DC input and a 100Base-FX fiber port for the uplink, built for remote SCADA systems and control networks.

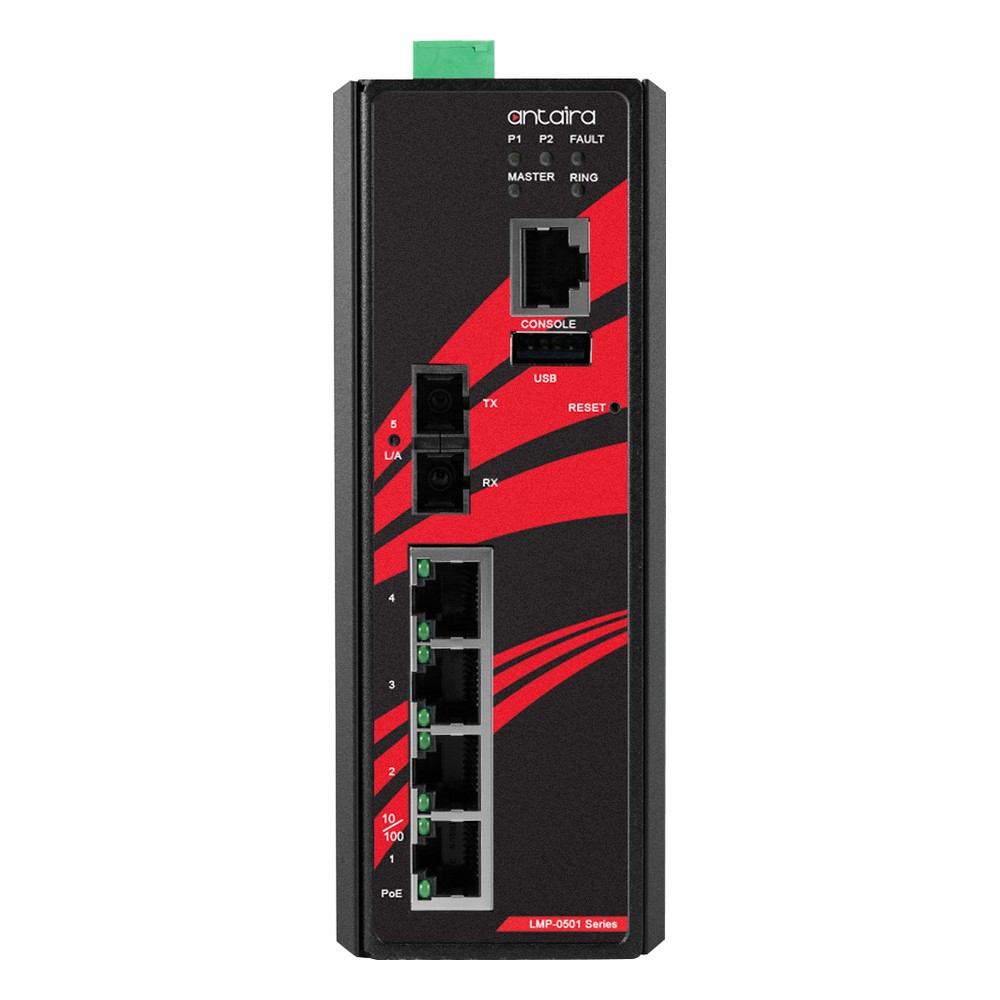

Every LMP-0501-24-V2 model has four 10/100Base-TX RJ45 ports supporting IEEE 802.3af/at at up to 30 W per port, from a PoE budget of 120 W from 24 to 55 V DC and 90 W at 12 V DC. The management set covers IEEE 802.1Q VLANs, QoS with 802.1p, CoS/ToS and DSCP, IGMP v1/v2/v3 for up to 1024 groups, LACP, SNMP v1/v2c/v3, RMON and Modbus TCP, with static routes and DHCP Option 82 on top of Layer 2 switching. ITU-T G.8032 ERPS recovers a ring in under 50 ms, and STP, RSTP and MSTP are supported. Redundant 12 to 55 V DC inputs on a 6-contact terminal block, a 1 A relay contact, a PoE ping alarm that can power-recycle a port, USB configuration backup and dual image firmware complete the design.

The variants differ by fiber and temperature. Multi-mode SC fiber to 2 km is on the LMP-0501-M-24-V2 and the extended temperature LMP-0501-M-24-T-V2. Single-mode SC fiber to 30 km is on the LMP-0501-S3-24-V2 and LMP-0501-S3-24-T-V2, and single-mode ST fiber to 30 km is on the LMP-0501-ST-S3-24-V2 and LMP-0501-ST-S3-24-T-V2. In each pair the first model is rated -10 °C to 70 °C and the -T build -40 °C to 75 °C. Where the cabinet supply is already 48 V DC, the LMP-0501-V2 series series offers the same switch on a 48 to 55 V DC input.

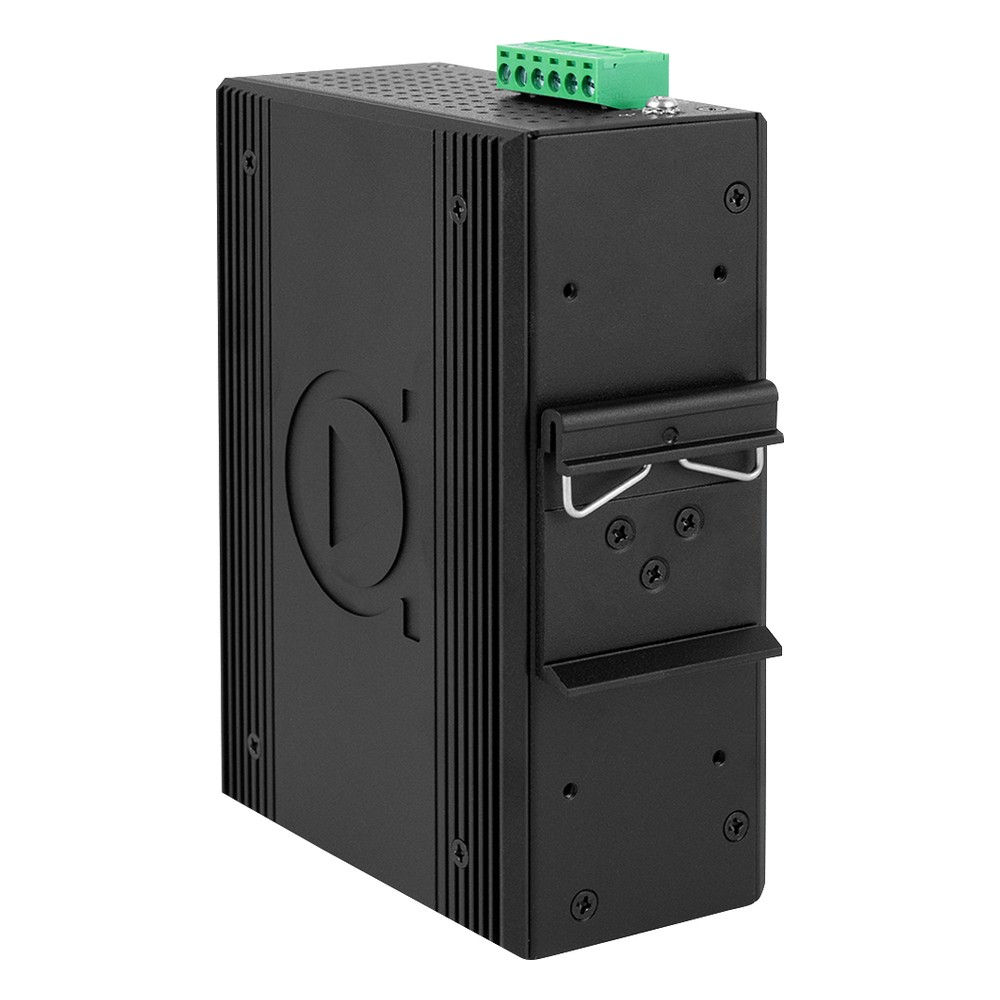

Antaira names power and utility, water and wastewater, oil, gas and mining, factory automation, security surveillance and ITS among the applications for the LMP-0501-24-V2 series. Every model sits in an IP30 metal housing for DIN rail, with optional wall mounting, and is tested for shock, vibration and free fall to IEC 60068-2-27, -2-6 and -2-32. The series carries FCC and CE marks, is RoHS compliant and comes with Antaira’s 5-year warranty. We supply the LMP-0501-24-V2 across the USA and can pre-configure IP addressing, VLANs and ring settings before each switch ships.
