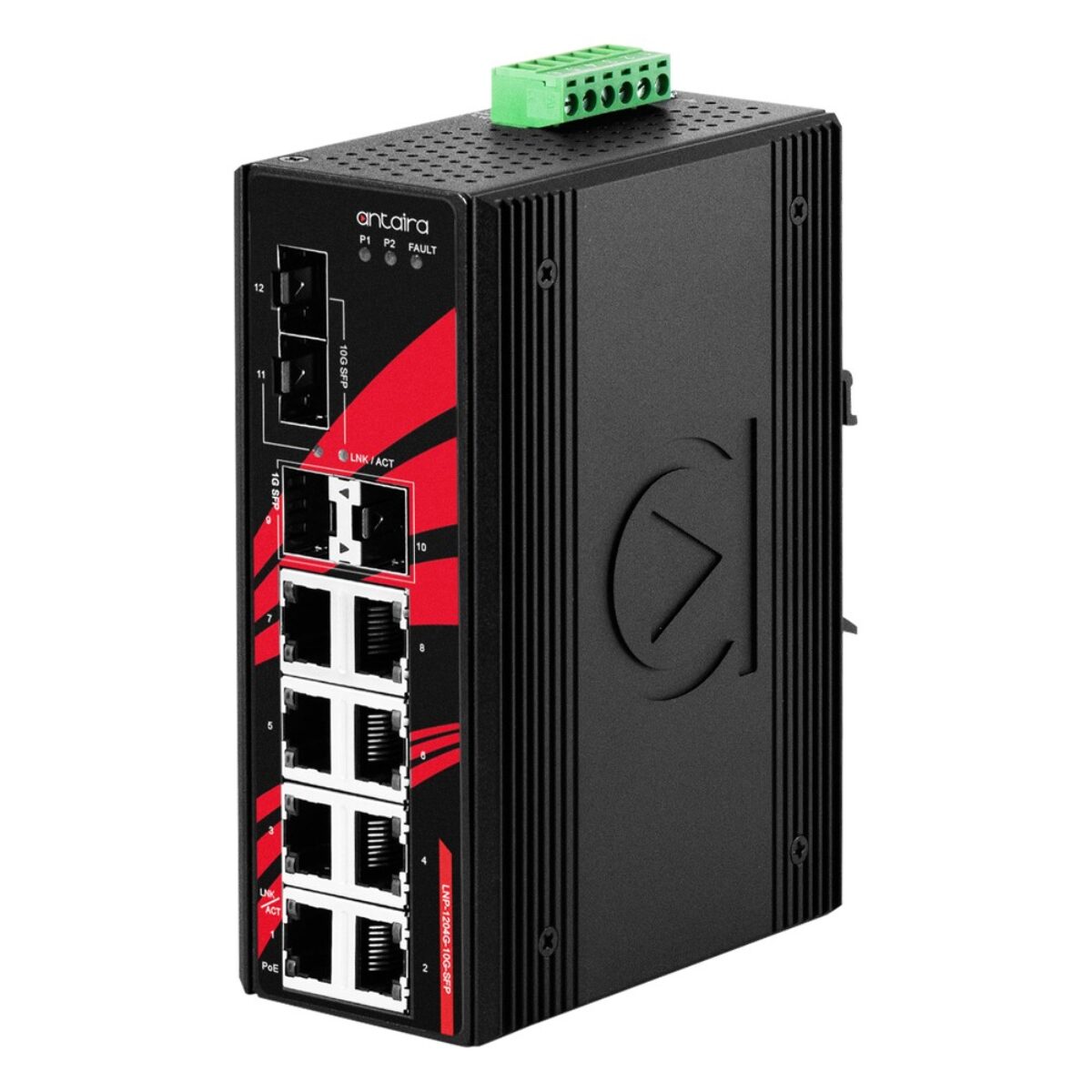

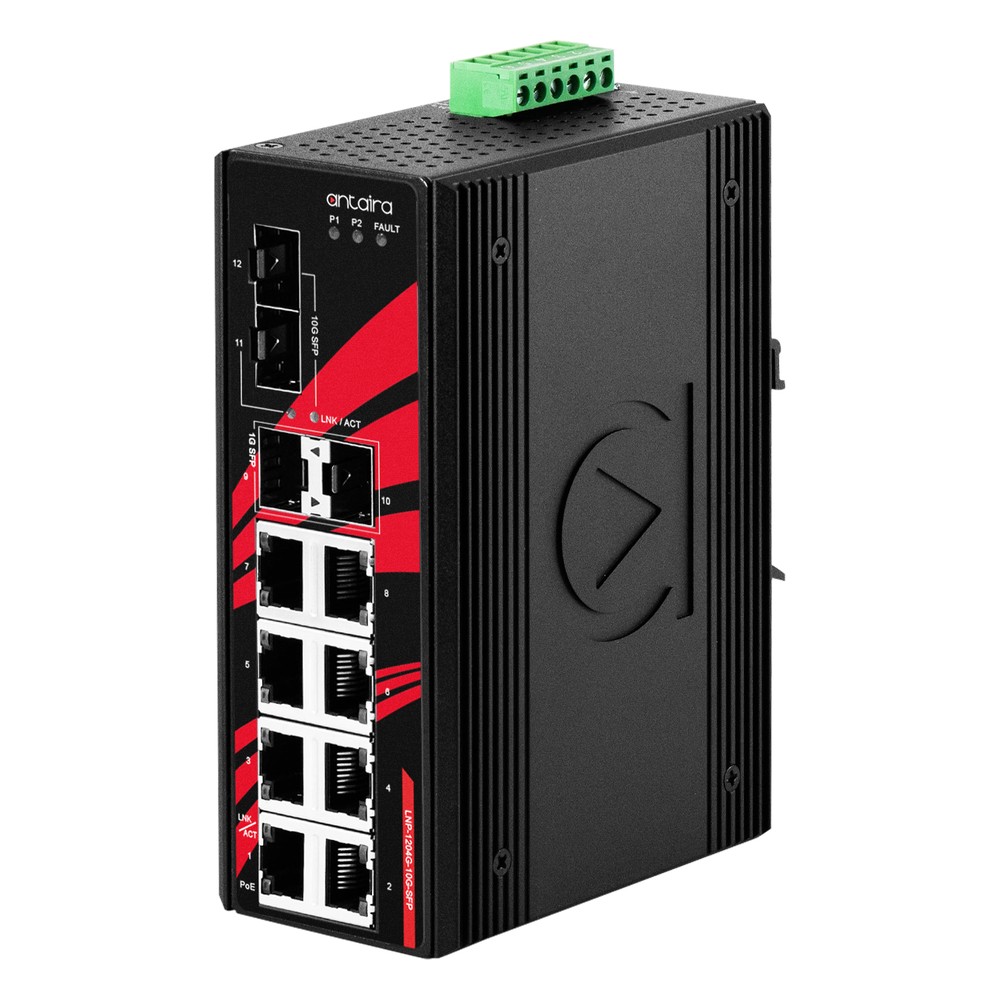

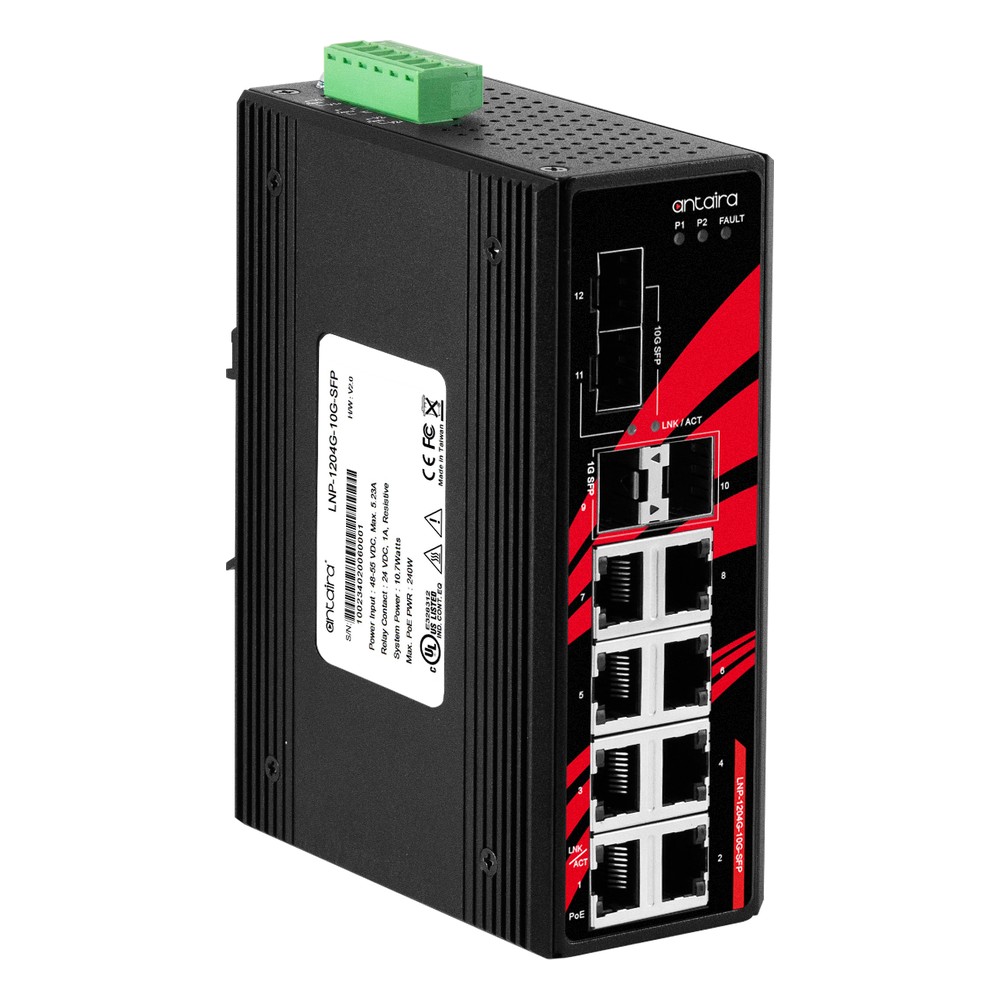

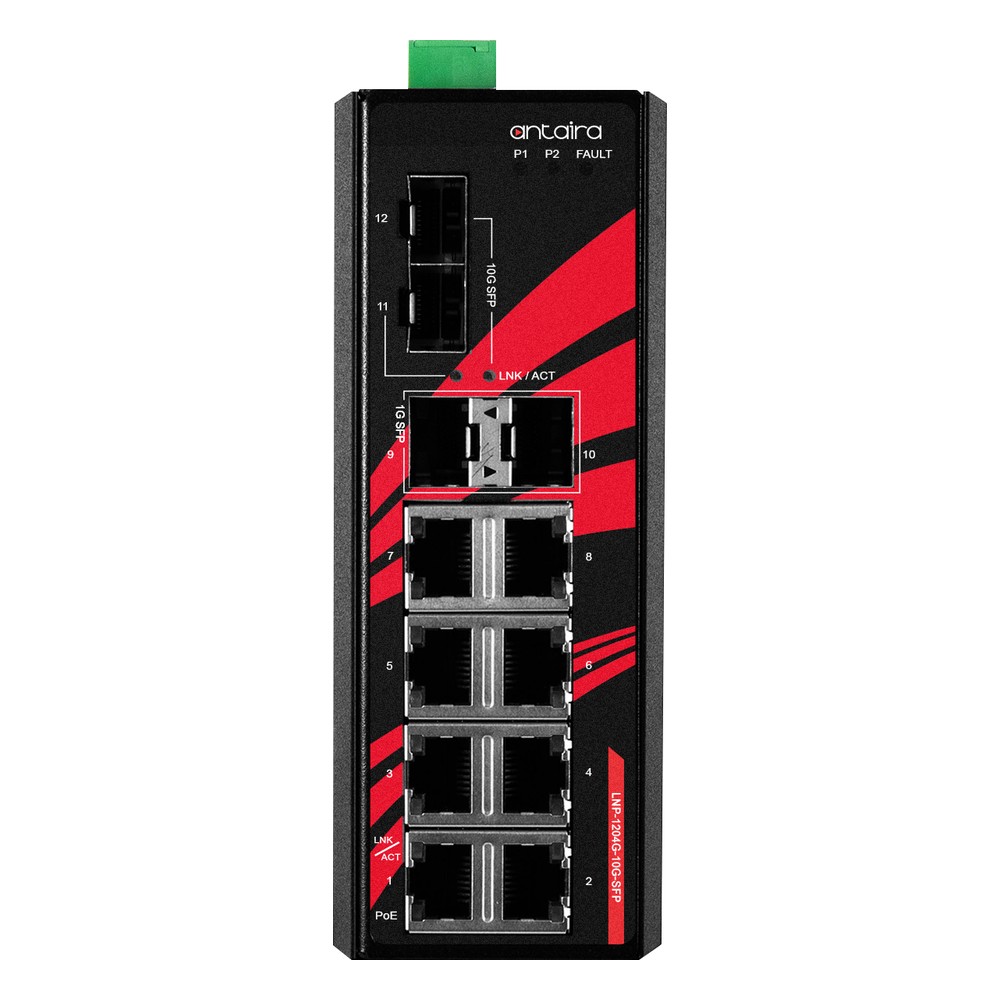

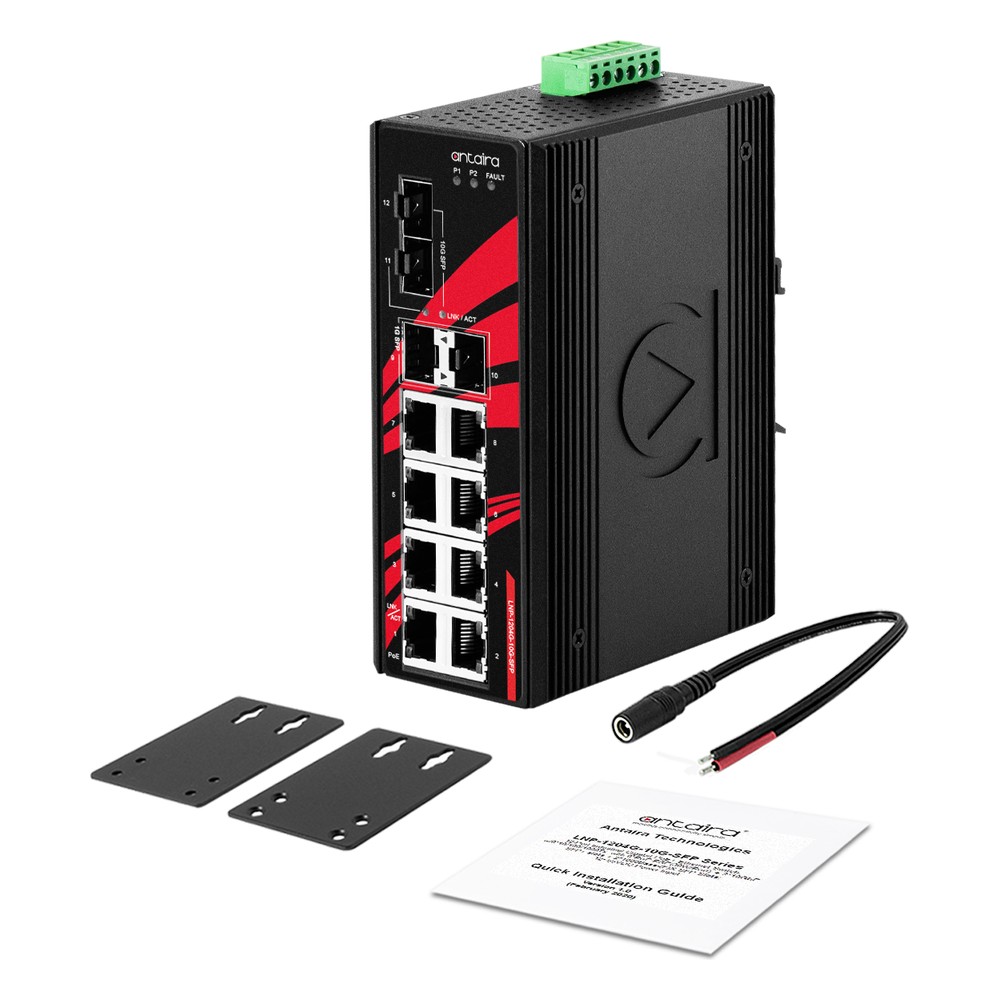

Antaira LNP-1204G-10G-SFP 12-Port 10G Unmanaged PoE Switch with 8x PoE+ (240W), 2x SFP, 2x 10G SFP+ and Extended Temperature

A cabinet full of high-resolution cameras can saturate a Gigabit uplink long before the PoE ports run out. The LNP-1204G-10G-SFP answers that with 10G fibre: an Antaira unmanaged industrial PoE switch with eight PoE+ ports for the devices and two 10G SFP+ slots for the backbone, rated -40 °C to 65 °C for outdoor and harsh industrial enclosures.

Eight 10/100/1000Base-T(X) RJ45 ports follow IEEE 802.3af/at at up to 30 W per port, two 1G SFP slots take further fiber runs and two 10G SFP+ slots carry traffic to a recorder or core switch, so each link’s reach follows the transceiver chosen. Switching is store-and-forward on a 60 Gbps fabric with a 16K MAC address table, 9.6 KB jumbo frames, an 8 Mbit packet buffer and IEEE 802.3x flow control, with no set-up needed.

Power arrives on redundant 48 to 55 V DC inputs on a removable 6-pin terminal block, with reverse polarity and overload current protection, and Antaira designs in high EFT and ESD protection. The PoE budget is 240 W, enough for all eight ports at the full 30 W, and the LNP-1204G-10G-SFP itself draws 10.7 W. A relay output rated 1 A at 24 V DC signals a power failure to a PLC or alarm panel.

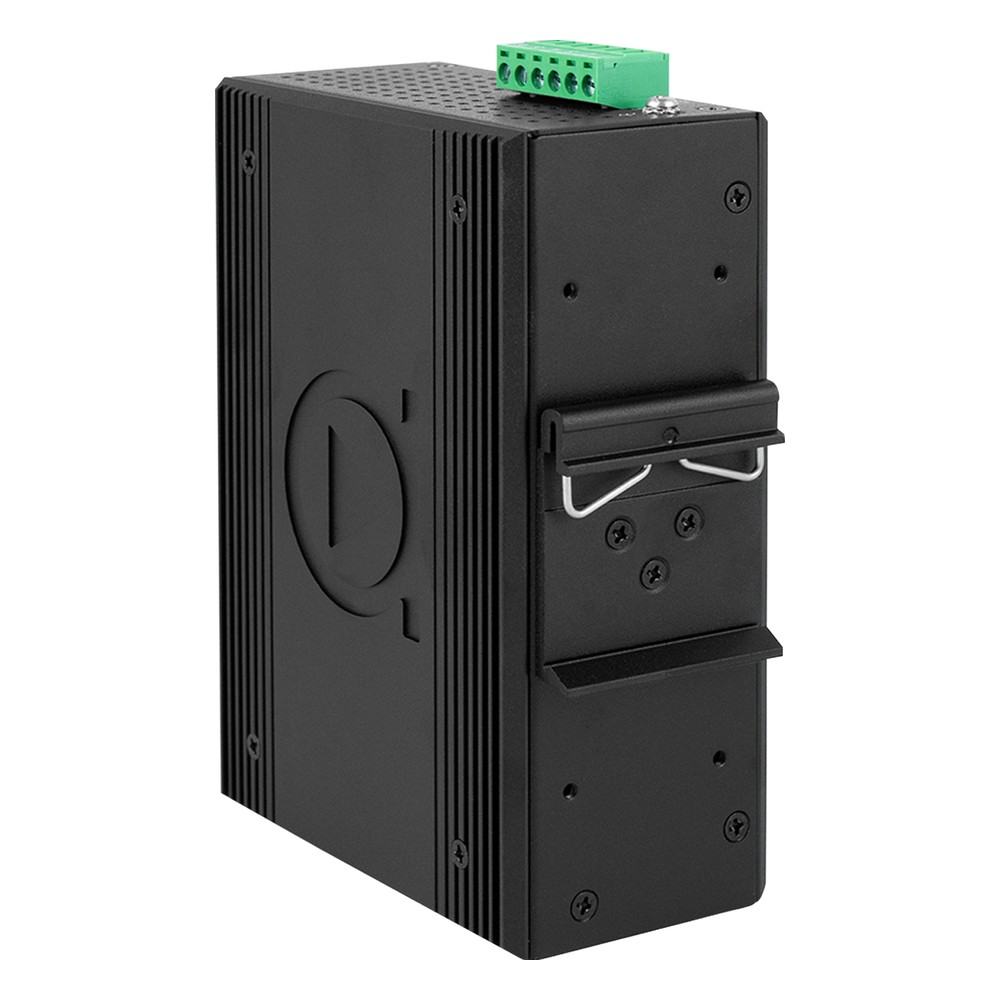

The LNP-1204G-10G-SFP runs from -40 °C to 65 °C in an IP30 metal case for DIN rail or wall mounting, with shock and vibration ratings to IEC 60068-2-27 and IEC 60068-2-6. Antaira names security surveillance, ITS traffic monitoring, oil and gas, mining, power and utility, water and wastewater treatment and factory automation as its applications, lists UL 61010-1 certification with FCC, CE and RoHS marks, and covers it with Antaira’s 5-year warranty. The LNP-1204G-10G-SFP-24 runs from 12 to 55 V DC, the LNX-1204G-10G-SFP keeps the fiber layout without PoE, and the LNP-1002G-10G-SFP drops the two 1G SFP slots.
