Antaira LNP-C800G 8-Port Compact Gigabit Unmanaged Industrial PoE Switches with 8x PoE+ (240W) and Extended Temperature Options

Eight powered ports is the size many camera and wireless cabinets settle on, but a full-width switch can crowd a panel that already holds supplies, breakers and termination. The Antaira LNP-C800G series fits eight PoE+ ports into a space-saving unmanaged industrial PoE switch for a DIN rail or wall, with the full budget to run every port at 30 W. Because the budget covers every port at full load, there is no need to work out which devices can share power, and any port can serve as the uplink.

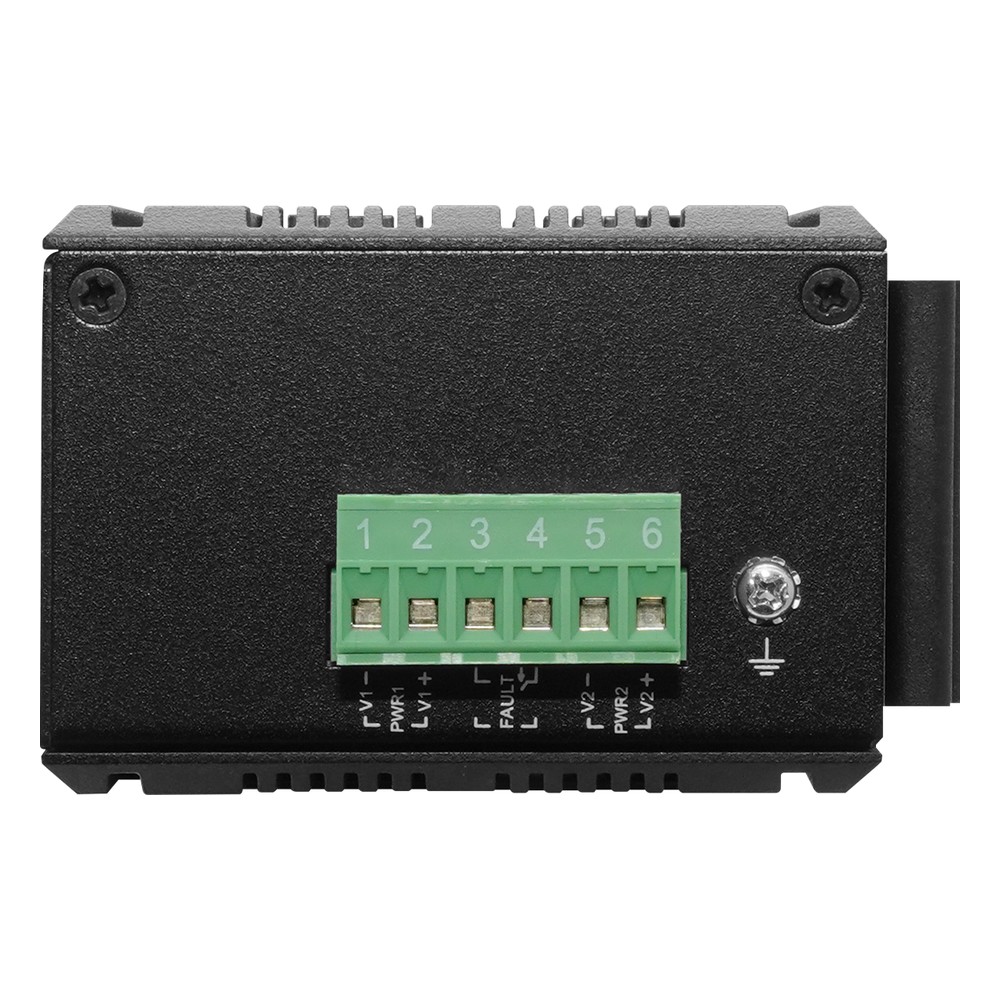

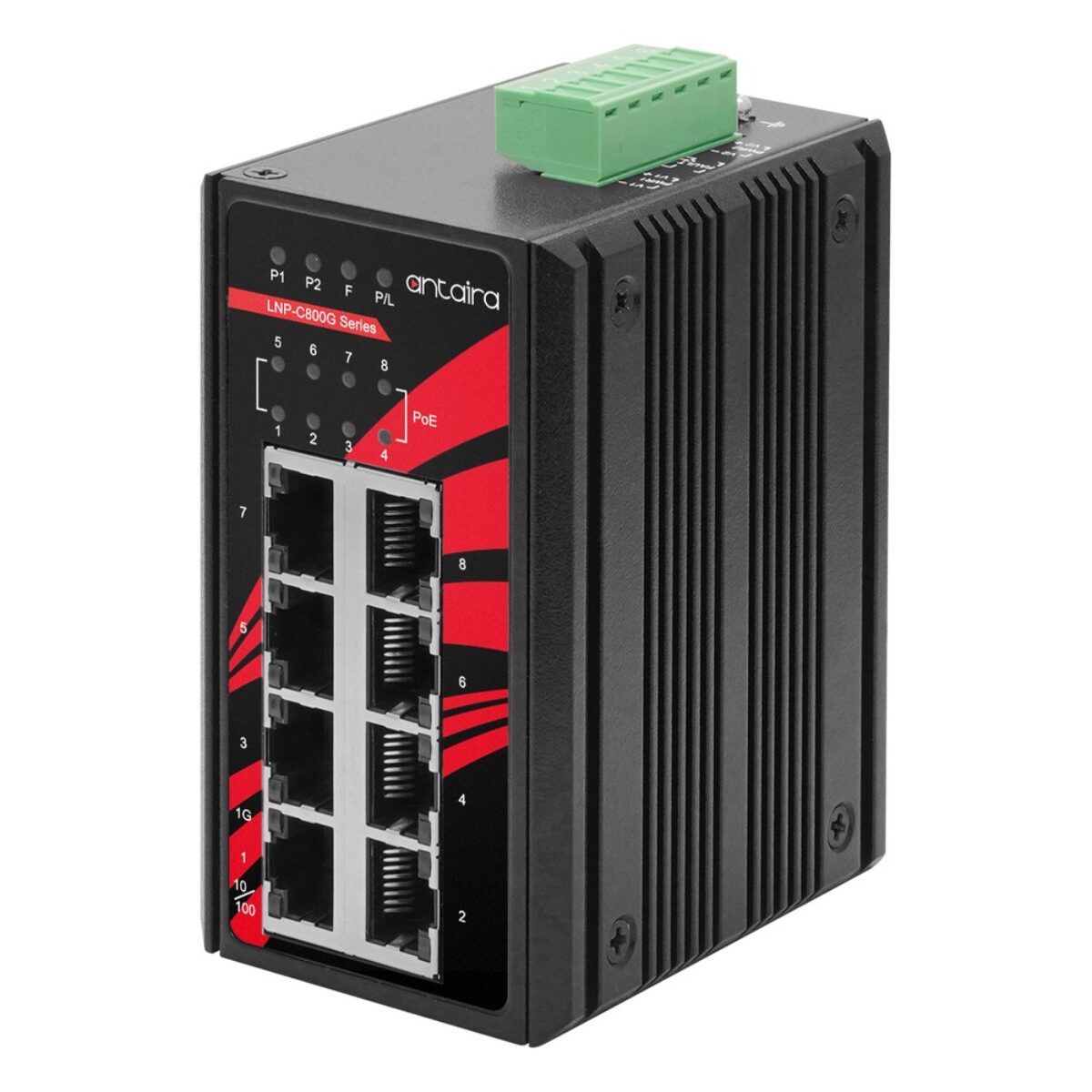

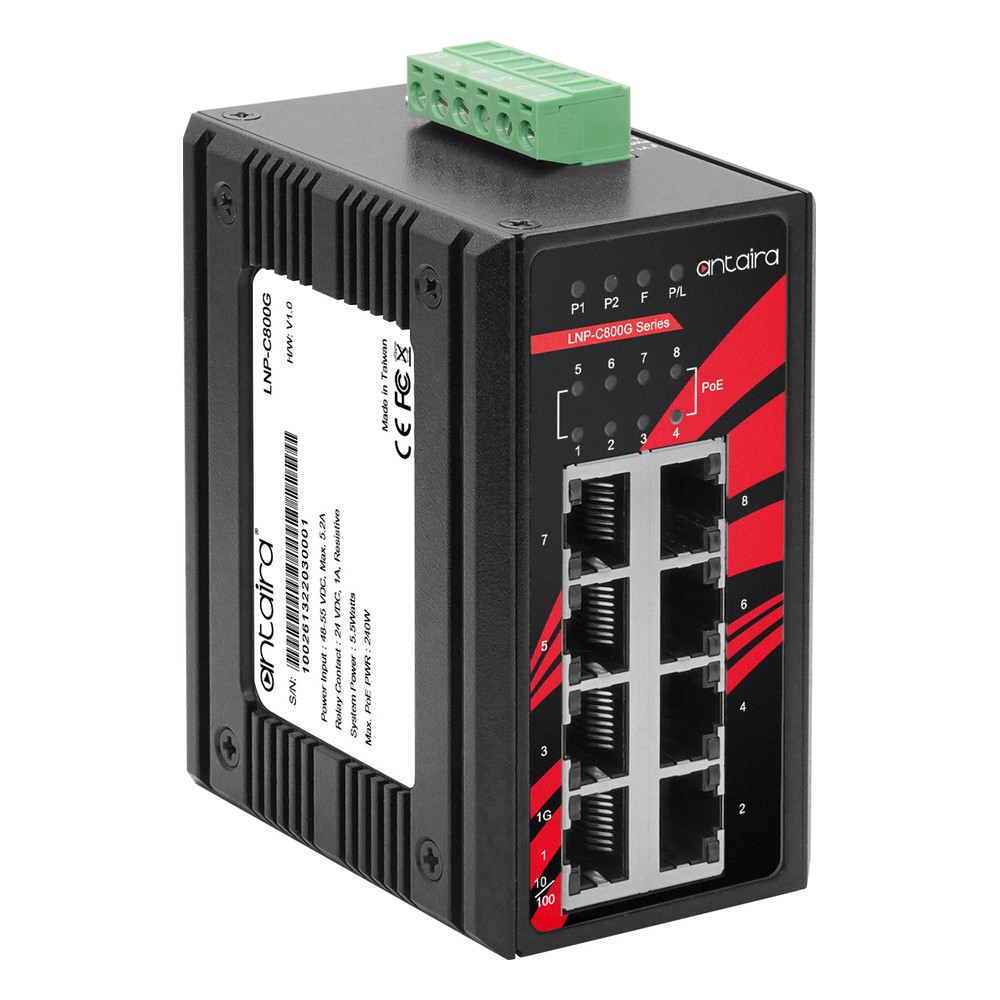

Every LNP-C800G shares the same design. All eight 10/100/1000Base-T(X) RJ45 ports follow IEEE 802.3af/at at up to 30 W per port, with auto-negotiation and auto MDI/MDI-X, and the 240 W budget covers all eight at full load. Switching is store-and-forward on a 16 Gbps fabric with a 4K MAC table and 9.2 KB jumbo frames, and there is nothing to configure. Power arrives on redundant 48 to 55 V DC inputs on a 6-pin terminal block, with a relay output that warns when a supply fails, a slow-blow fuse, reverse polarity protection and high EFT and ESD protection. The switch itself draws up to 5.5 W.

The series comes in two temperature grades. The LNP-C800G is the standard build, rated -10 °C to 65 °C for heated or indoor panels. The LNP-C800G-T is the extended temperature build, rated -40 °C to 75 °C for unheated enclosures exposed to outdoor temperatures. Where four powered ports are enough, the LNP-C500G series offers four PoE+ ports and an uplink, and the LNX-C800G series keeps eight Gigabit ports without PoE for devices that have their own supplies.

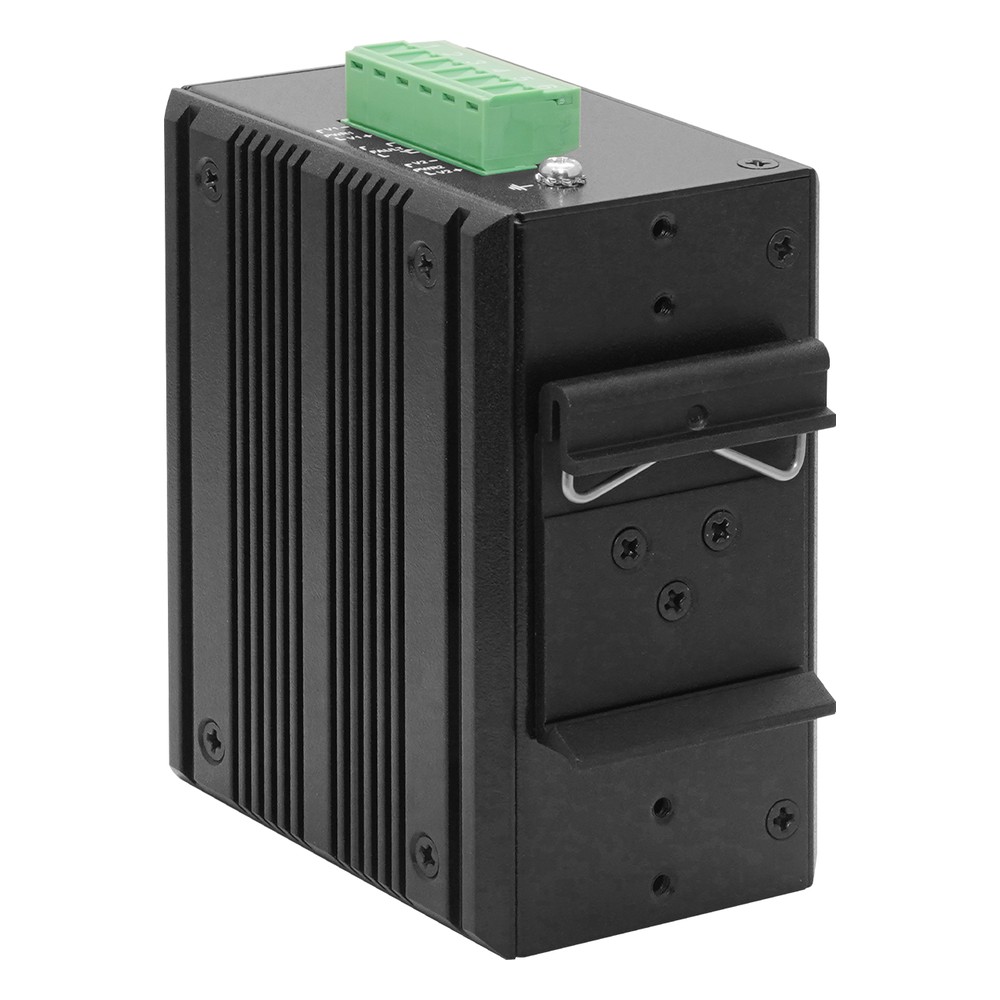

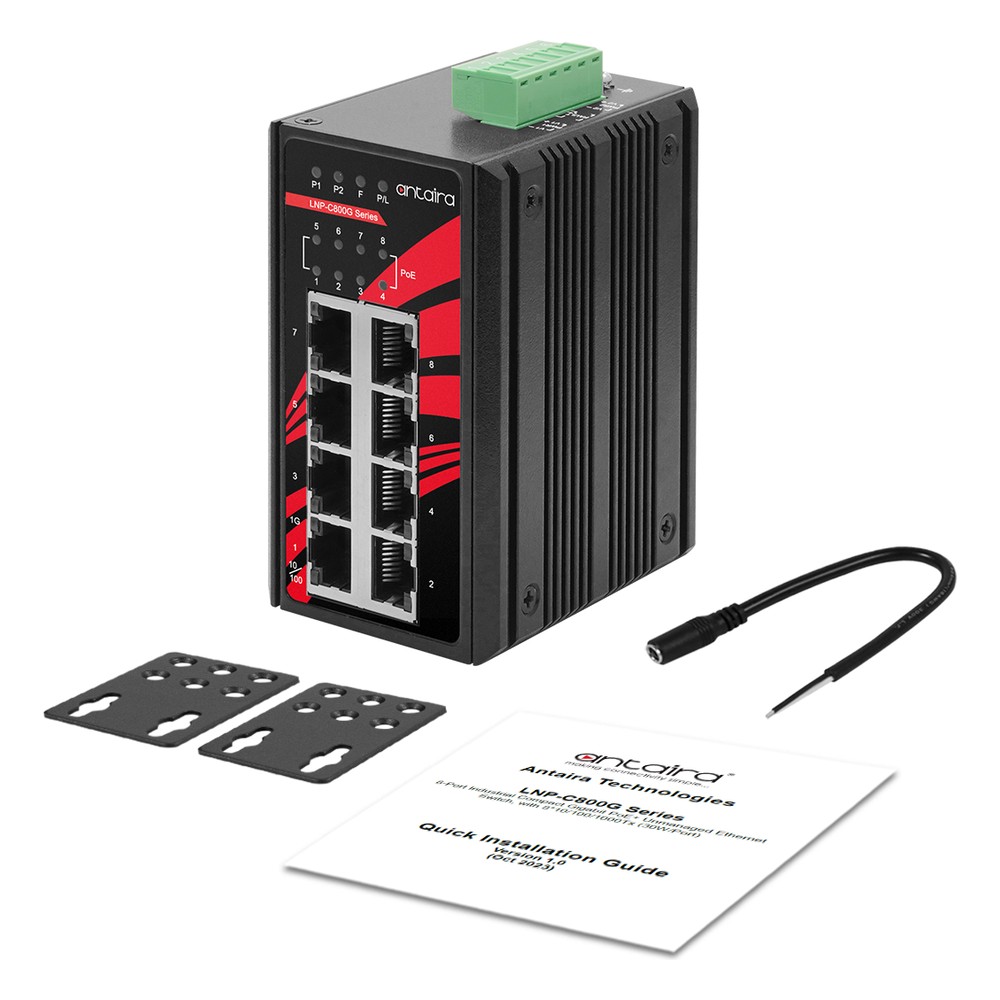

Antaira names factory automation, ITS including on-vehicle use, solar and security as applications for the LNP-C800G series, and designs it for rugged and harsh deployments. The space-saving case leaves room for supplies, breakers and termination in the same enclosure. Both builds sit in an IP30 metal case with DIN rail and wall mounting hardware included, shock and vibration ratings to IEC 60068-2-27 and IEC 60068-2-6, and FCC, CE and RoHS marks. Antaira covers both with its 5-year warranty, and our team can help confirm the PoE load and supply before the switch is ordered.
