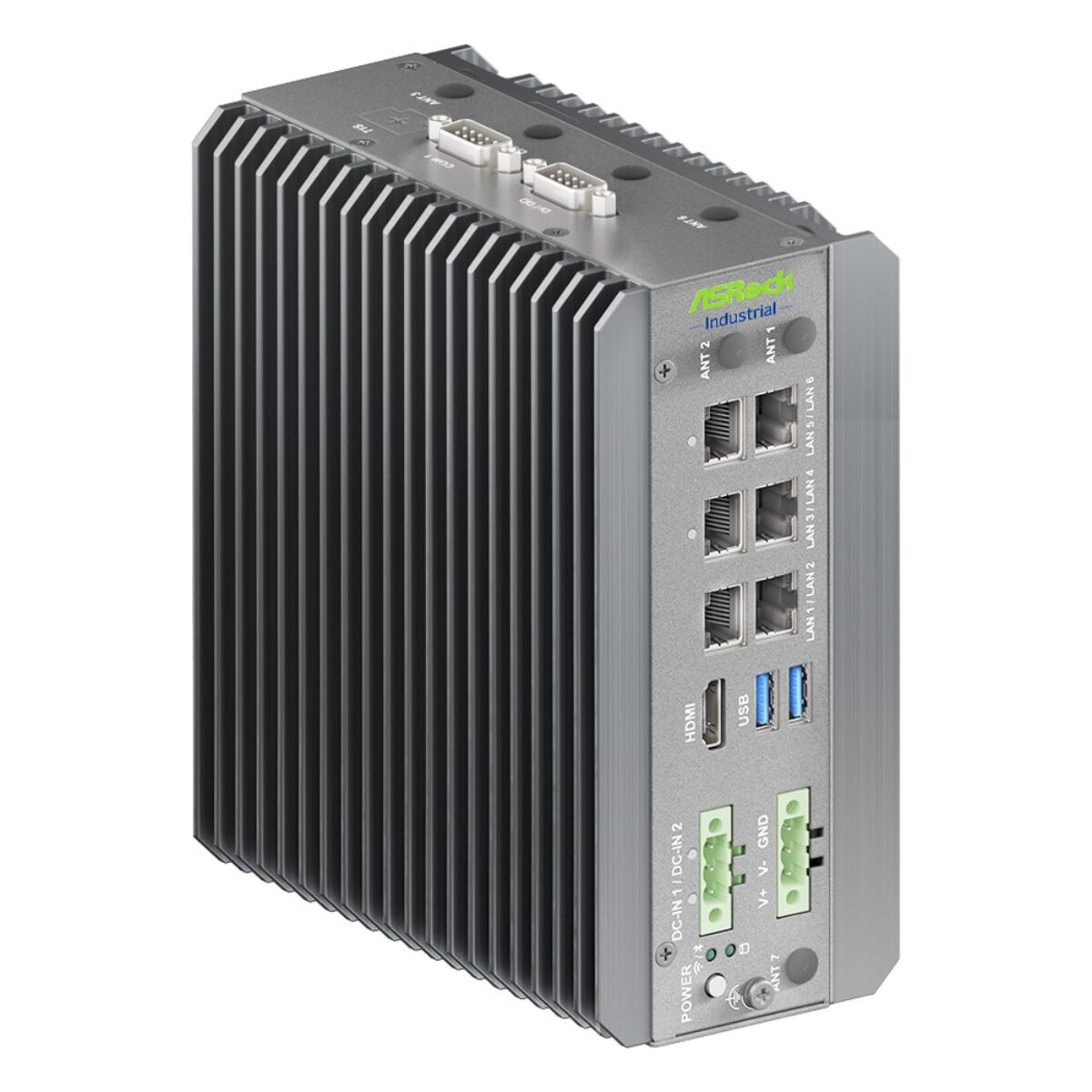

ASRock Industrial iEP-7050E-022 Intel Core Ultra X7 358H Fanless DIN-Rail PC with 5G and Wi-Fi Options

Remote cabinets and outlying buildings often have no wired uplink, so the edge computer has to carry its own backhaul. The ASRock Industrial iEP-7050E-022 is the 5G-WIFI build of the iEP-7050E series, adding an M.2 Key B socket and Nano SIM slot for an optional 4G LTE or 5G module, so this fanless DIN-rail PC can act as an industrial IoT gateway as well as a local controller.

The Intel Core Ultra X7 358H is a 16-core Panther Lake-H processor rated at 25 W, with integrated Intel graphics and an NPU for dedicated AI acceleration, so the iEP-7050E-022 can run edge AI inference next to control and data-collection software. Two DDR5 7200 SO-DIMM sockets take up to 128 GB with Intel In-Band ECC, and an M.2 2280 Key M socket on PCIe Gen5 takes NVMe storage Intel TCC and TSN support suit time-sensitive workloads, and Windows 11 and Ubuntu 26.04 LTS are supported.

The M.2 3042/3052 Key B socket runs PCIe Gen3 or USB 3.2 for the cellular module, and an M.2 Key E socket takes an optional Wi-Fi and Bluetooth module. Wired networking is three Intel I226-IT 2.5GbE ports and three Intel I210-IT Gigabit ports. The front also has one HDMI 2.1b output and two USB 3.2 Gen 2 Type-A ports, and the top carries one RS-232/422/485 port and 4DI/4DO on a D-sub connector. We fit the module, SIM and antennas you specify.

Power is 9 to 36 V DC on two three-pin terminal blocks for redundant feeds, with over-voltage, under-voltage and over-current protection plus 80 V surge protection, and an optional 120 W adapter. The iEP-7050E-022 runs fanless from -25 °C to 60 °C with airflow, is tested to 5 Grms vibration and 100 G shock with SSD, and carries CE and FCC Class A marks. Mounting is wall or DIN rail. We supply it configured and tested, with memory, NVMe storage and the OS image fitted. The iEP-7050E-020 leaves out the cellular option, and the iEP-7040E-024 pairs 5G and Wi-Fi options with an Arrow Lake-H Core Ultra 7.
