ASRock Industrial iEP-7050E Intel Core Ultra Series 3 Fanless DIN-Rail PCs with PoE, 5G, Isolated DIO and CAN Options

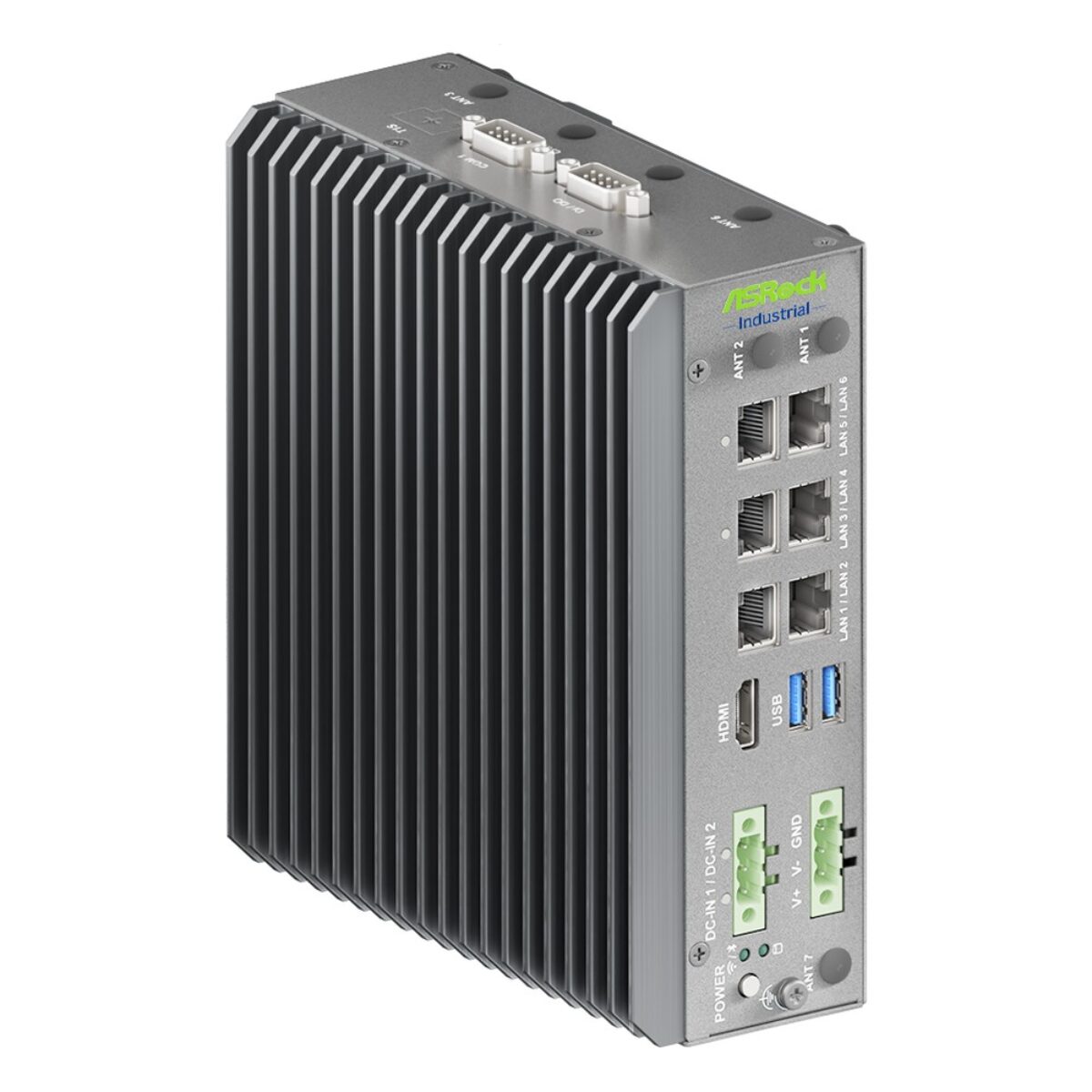

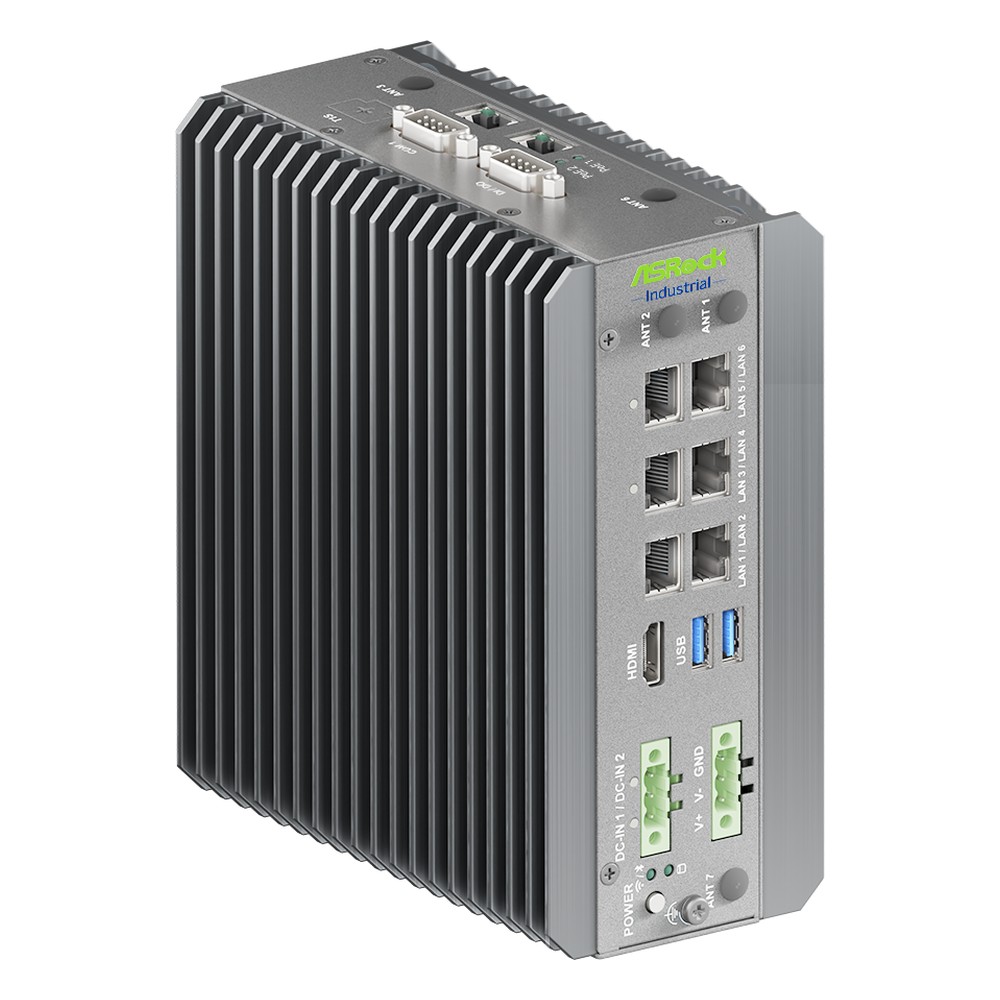

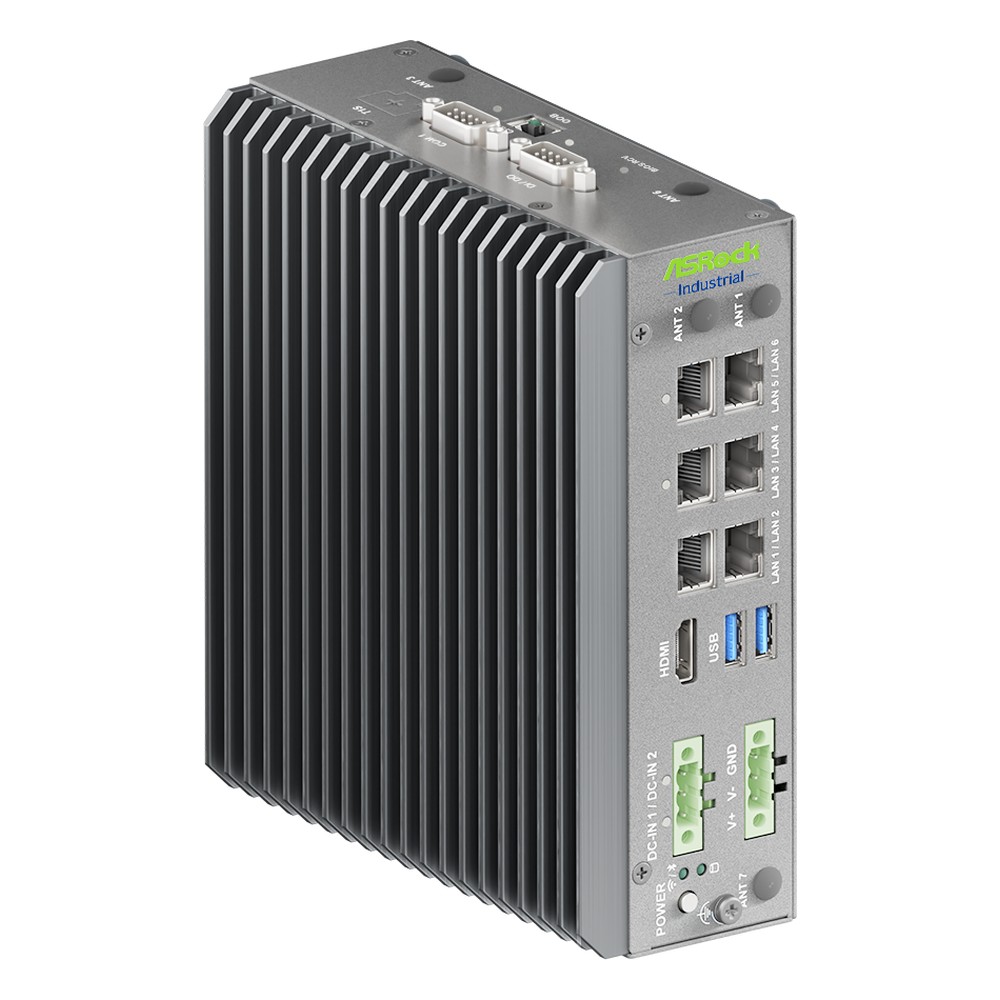

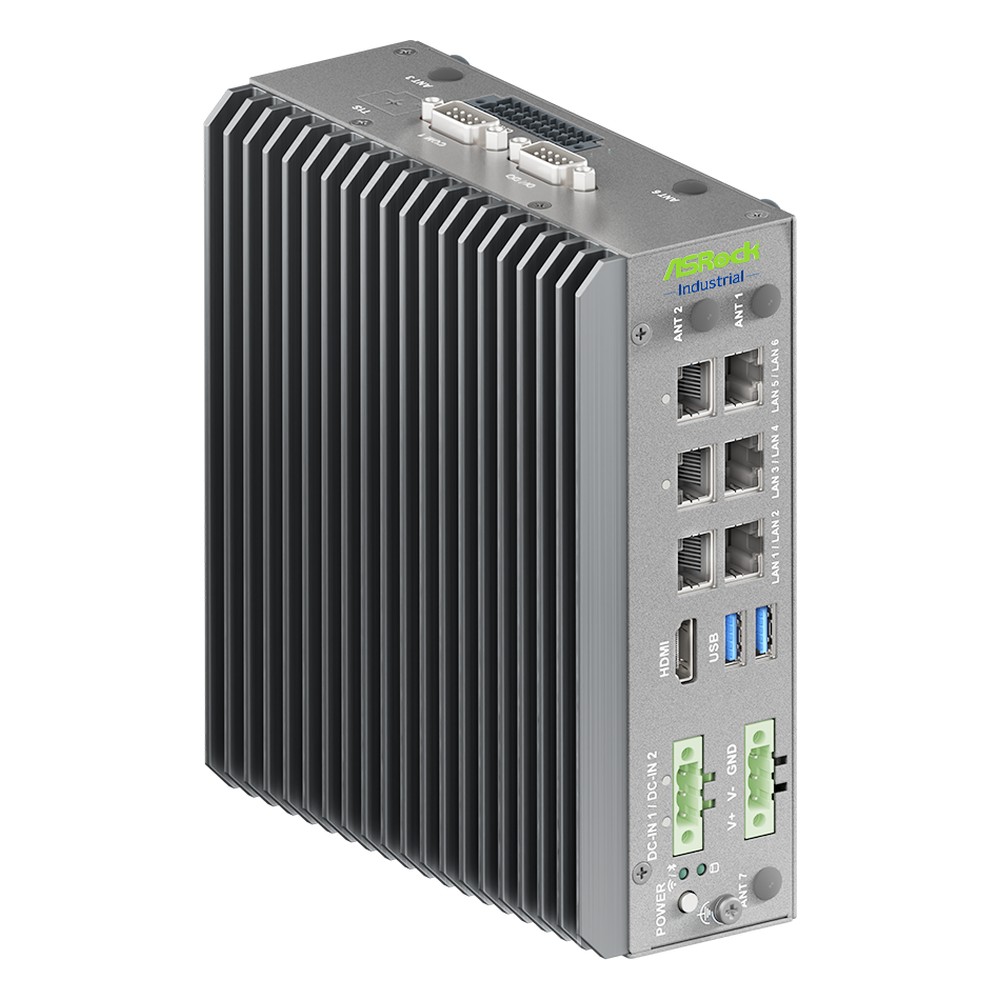

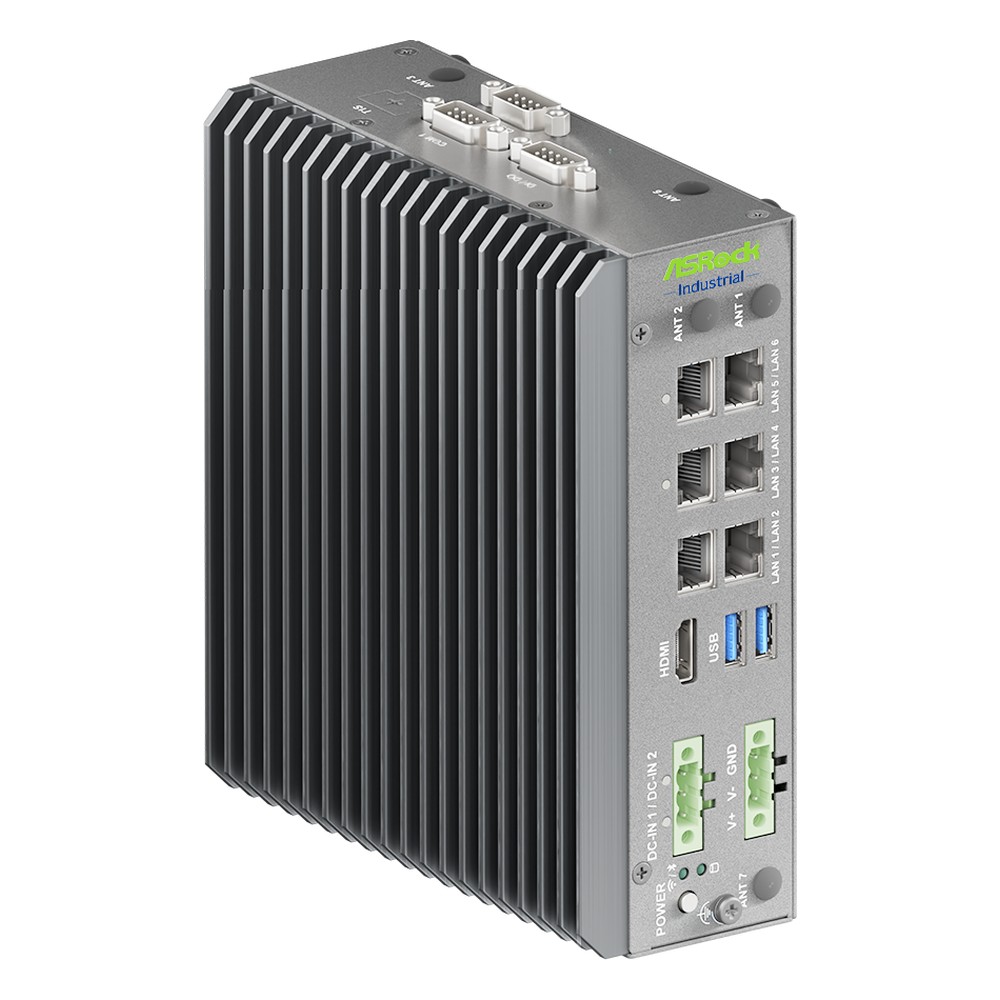

Control cabinets tend to collect boxes: a controller, a gateway, a remote I/O module, a small switch. The ASRock Industrial iEP-7050E series is designed to cut that count by offering one fanless DIN-rail PC with six build options, each adding a specific piece of I/O to the same Core Ultra X7 358H base. It sits as the newer, Panther Lake-H generation alongside the live iEP-7020E-000.

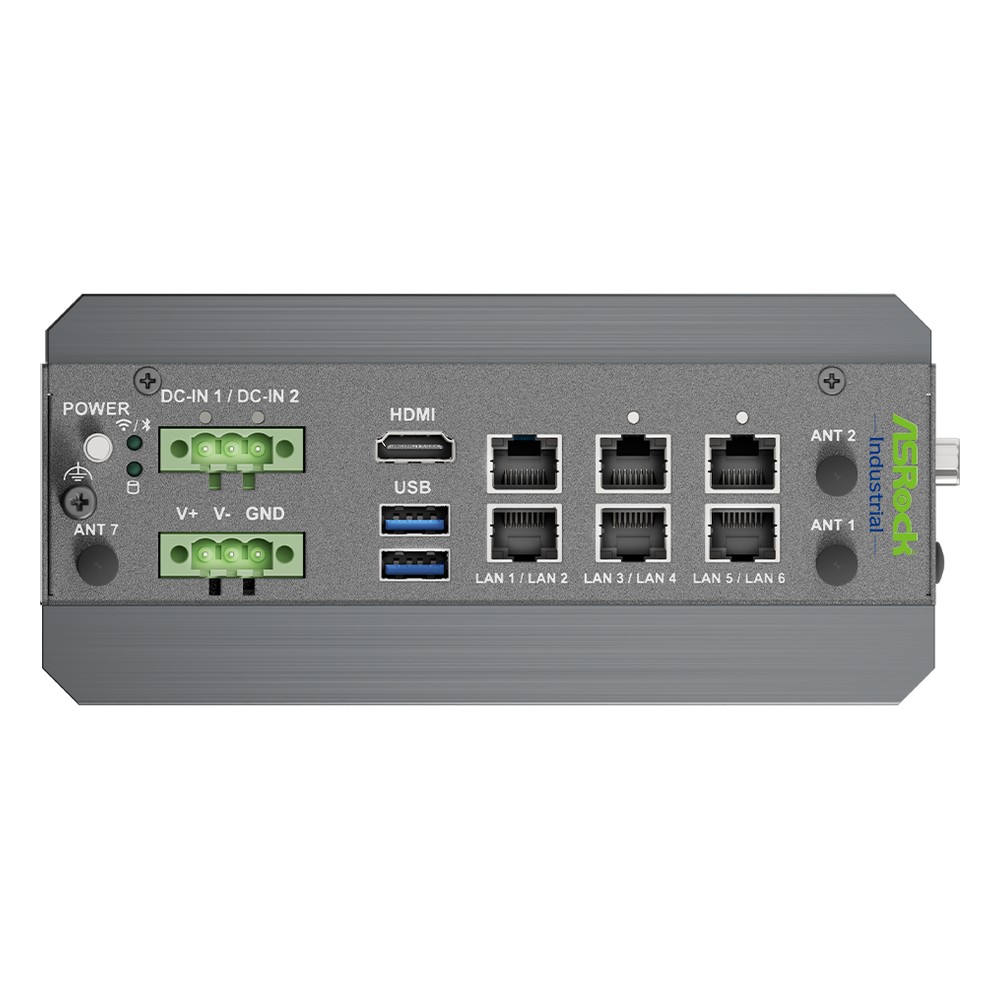

Every iEP-7050E build runs the Intel Core Ultra X7 358H, a 16-core Panther Lake-H processor rated at 25 W with integrated Intel graphics and an NPU for dedicated AI acceleration. Two DDR5 7200 SO-DIMM sockets take up to 128 GB with Intel In-Band ECC, and an M.2 2280 Key M socket on PCIe Gen5 takes NVMe storage, with a Micro SD slot alongside. Shared I/O covers three Intel I226-IT 2.5GbE ports, three Intel I210-IT Gigabit ports, one HDMI 2.1b output, two USB 3.2 Gen 2 ports, one RS-232/422/485 port and 4DI/4DO. Intel TCC and TSN support, a watchdog timer, TPM 2.0 and chassis intrusion detection come with every model.

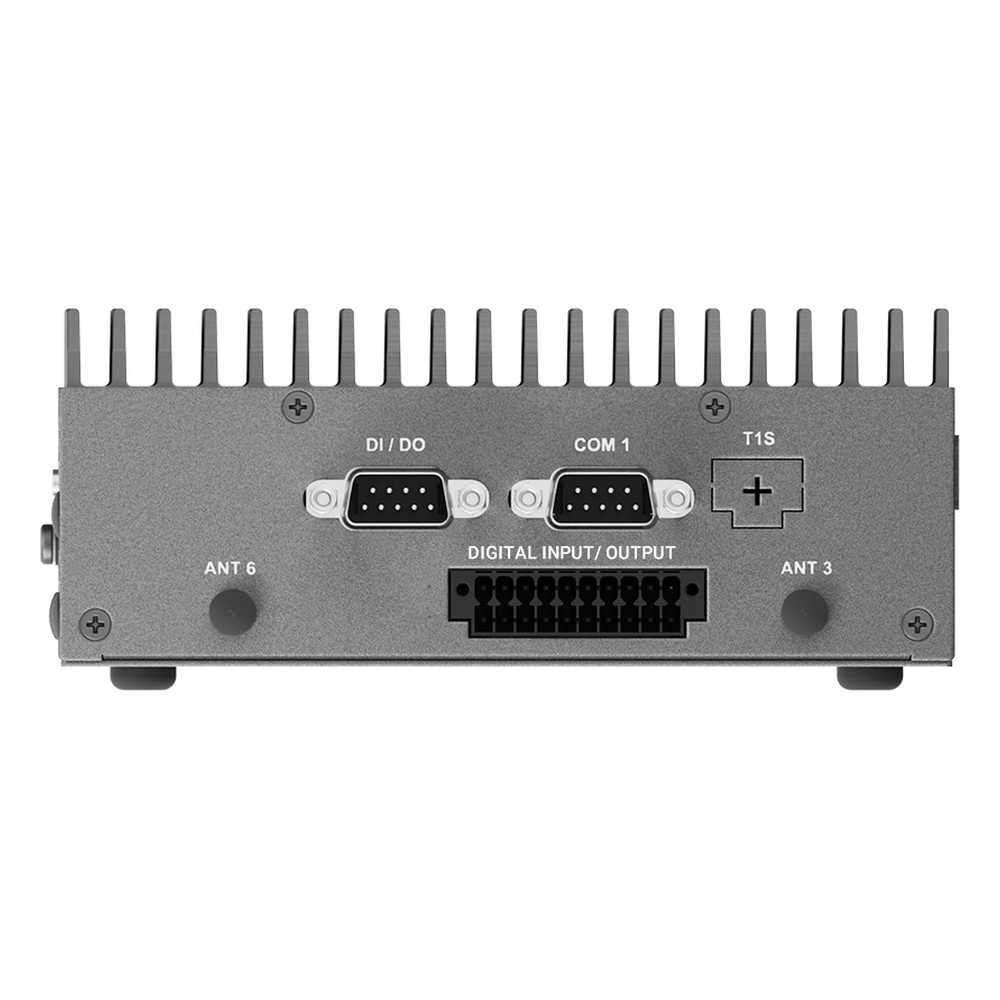

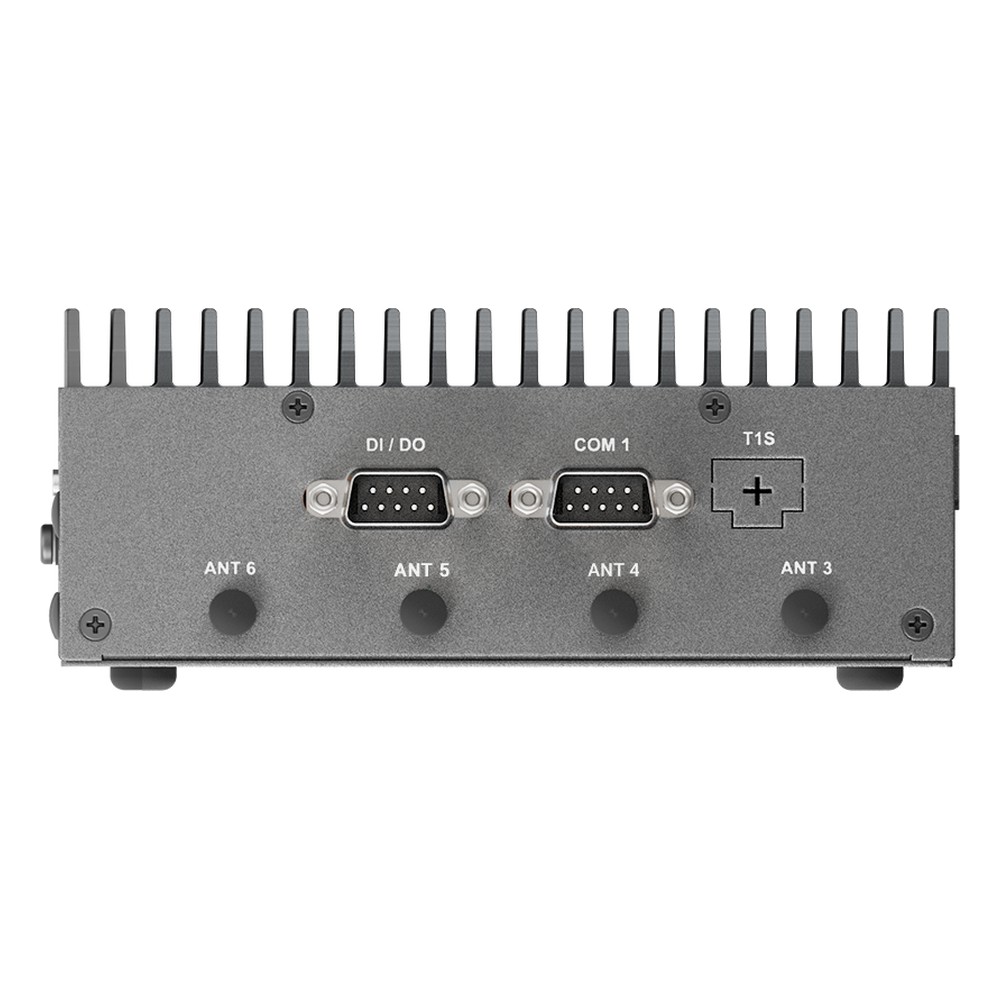

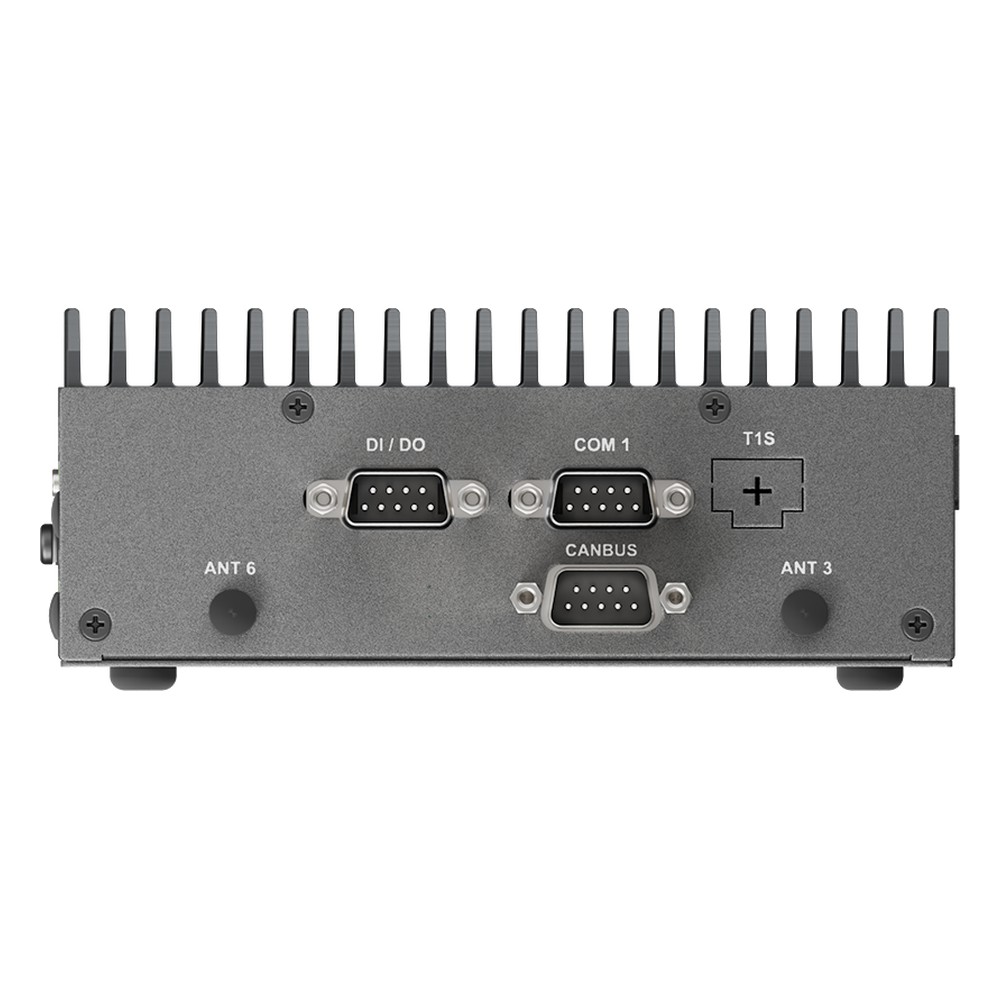

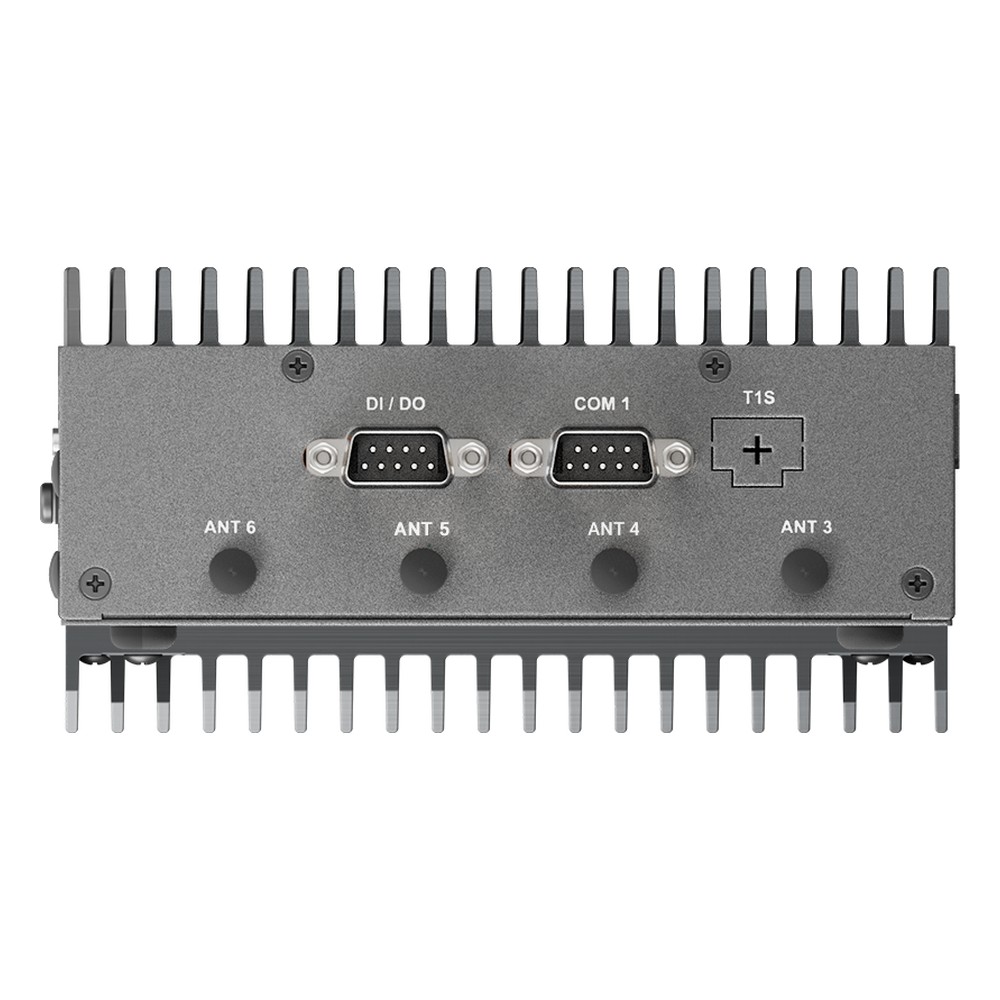

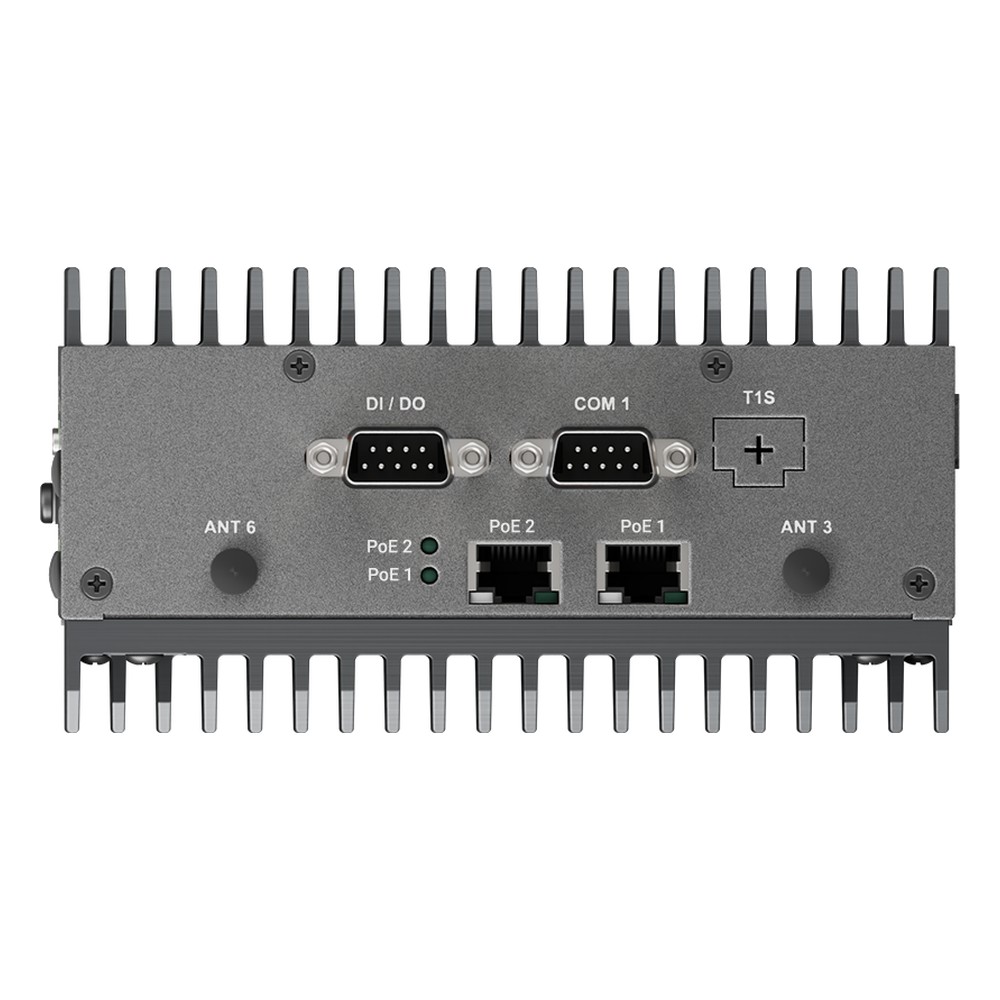

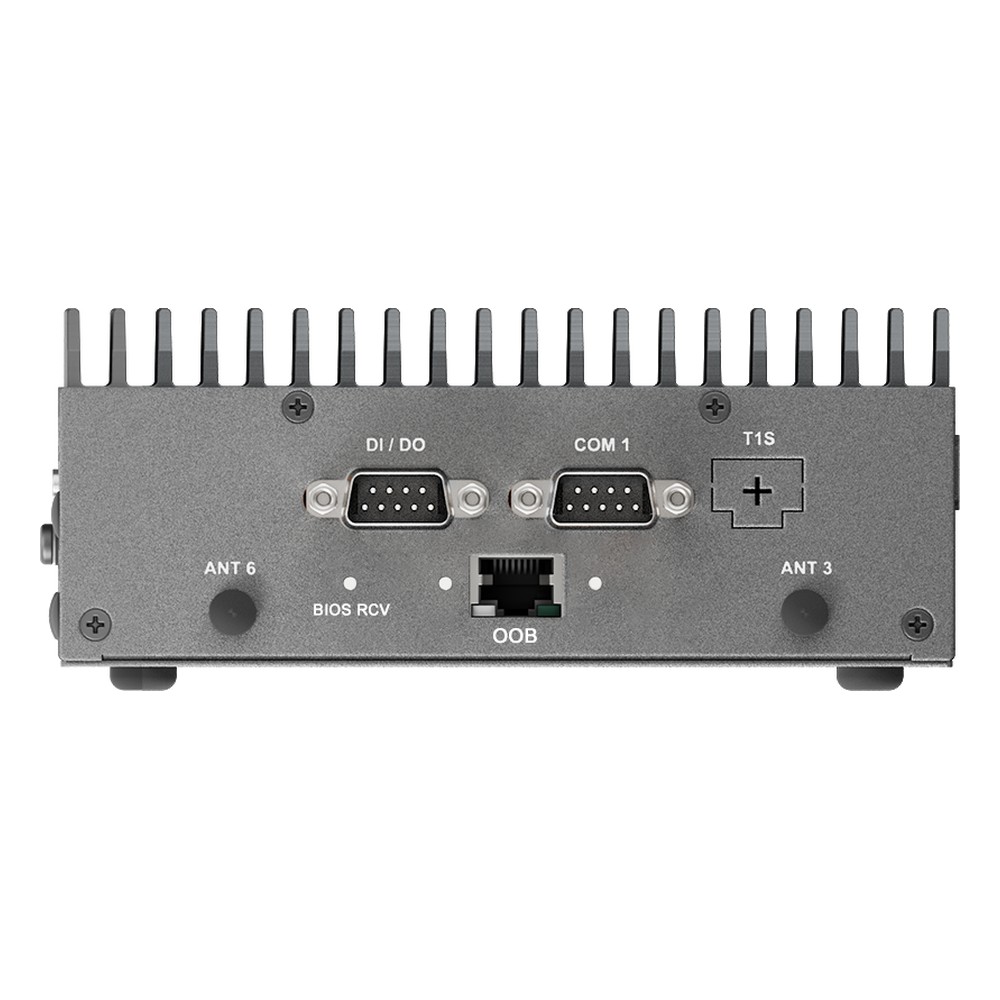

The builds split by I/O. The iEP-7050E-020 is the base build with an optional Wi-Fi module. The iEP-7050E-021 adds two IEEE 802.3af PoE ports at up to 15.4 W each and runs from 19 to 36 V DC. The iEP-7050E-022 adds an M.2 Key B socket and Nano SIM for an optional 4G LTE or 5G module, making it the industrial IoT gateway of the range. The iEP-7050E-023 adds an isolated 8DI/8DO block, the iEP-7050E-024 adds two CAN bus channels, and the iEP-7050E-025 adds a dedicated port for out-of-band remote management.

All iEP-7050E models run fanless from -25 °C to 60 °C with 0.5 to 0.8 m/s airflow, store from -40 °C to 85 °C, and are tested to 5 Grms vibration and 100 G shock with SSD. Power arrives on two three-pin terminal blocks for redundant feeds, with over-voltage, under-voltage, over-current and 80 V surge protection. They carry CE and FCC Class A marks, and ASRock Industrial supports Windows 11 and Ubuntu 26.04 LTS. In practice, the choice comes down to which extra I/O the cabinet needs, and our team can help you pick the build that suits it.
