ASRock Industrial iEP-7050E-023 Intel Panther Lake Core Ultra X7 358H Fanless DIN-Rail PC with Isolated 8DI/8DO
Intel
Linux
Windows
2.5GbE
USB3
3x M.2
Wi-Fi
NVMe SSD
Fanless
Extended Temp
CE
FCCiEP-7050E-023 Overview
Where a controller has to read limit switches and drive relays or indicators, a separate remote I/O module adds wiring and another device to configure. The ASRock Industrial iEP-7050E-023 is the 8DIO build of the iEP-7050E series, adding an isolated 8DI/8DO block to the standard 4DI/4DO, so the fanless DIN-rail PC can handle discrete signals directly.
The Intel Core Ultra X7 358H is a 16-core Panther Lake-H processor rated at 25 W, with integrated Intel graphics and an NPU for dedicated AI acceleration, so the iEP-7050E-023 can run edge AI inference next to control and data-collection software. Two DDR5 7200 SO-DIMM sockets take up to 128 GB with Intel In-Band ECC, and an M.2 2280 Key M socket on PCIe Gen5 takes NVMe storage Intel TCC and TSN support suit time-sensitive workloads, and Windows 11 and Ubuntu 26.04 LTS are supported.

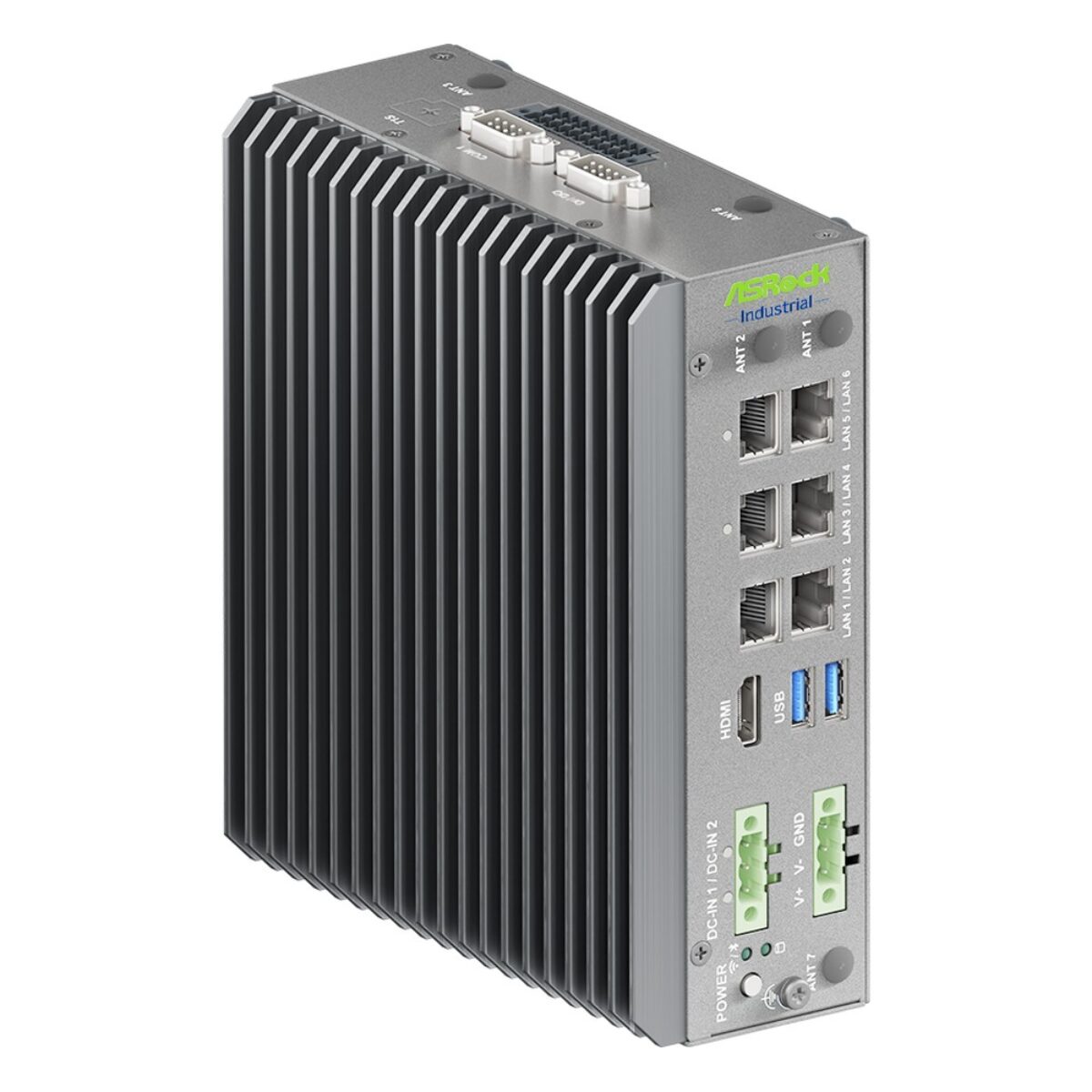

The 8DI/8DO block sits on a 20-pin connector on the top, with sink or source wiring and isolation from the system side, and the standard 4DI/4DO stays on its D-sub connector beside one RS-232/422/485 port. Networking is three Intel I226-IT 2.5GbE ports and three Intel I210-IT Gigabit ports on the front, with one HDMI 2.1b output and two USB 3.2 Gen 2 Type-A ports. An M.2 Key E socket takes an optional Wi-Fi and Bluetooth module, and a watchdog timer, TPM 2.0 and chassis intrusion detection are built in.
Power is 9 to 36 V DC on two three-pin terminal blocks for redundant feeds, with over-voltage, under-voltage and over-current protection plus 80 V surge protection, and an optional 120 W adapter. The iEP-7050E-023 runs fanless from -25 °C to 60 °C with airflow, is tested to 5 Grms vibration and 100 G shock with SSD, and carries CE and FCC Class A marks. Mounting is wall, VESA or DIN rail. We supply it configured and tested, with memory, NVMe storage and the OS image fitted. The iEP-7050E-024 swaps the extra I/O for CAN bus, and the iEP-7040E-025 offers isolated 8DI/8DO on an Arrow Lake-H Core Ultra 7.
iEP-7050E-023 Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial iEP-7050E-023 |
| Features | Compact Embedded Fanless Industrial Isolated I/O |
| Performance | |
| Processor Series | Intel Core Ultra Series 3 Panther Lake |
| Processor Models | Intel Core Ultra X7 358H: 1.9~4.8GHz, 16 Cores, 16 Threads, 18MB Cache, 25W |
| Performance Cores | 16 Cores |
| GPU / AI Accelerator | Intel NPU |
| AI Performance | 50 TOPS |
| Memory | 2x DDR5 7200MHz SO-DIMM Slot, 128GB |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 26.04 Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel Graphics |
| Display Standards | HDMI 2.1 |
| Multi Display Support | Single Display Support |
| Display Outputs | 1x HDMI |
| I/O | |
| Ethernet | 6x Ethernet Ports |
| 3x 2.5 GbE LAN [RJ45] 3x GbE LAN [RJ45] | |
| LAN Controllers | Intel I210IT Intel I226IT |
| USB | 2x USB Ports |
| 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Digital I/O | DIO [4-in, 4-out] Isolated DIO [8-in, 8-out] |
| Remote Management | Intel In-Band |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230/2260] 1x M.2 M-Key [PCIe x4 Gen5] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x Micro SD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| EMC | EN61000-6-2 EN61000-6-4 |
| Certification | CE FCC LVD |
| Mechanical Properties | |
| Dimensions | 60mm x 170mm x 150mm (2.36" x 6.69" x 5.91") |
| Mounting Options | DIN Mount VESA Mount Wall Mount |
- iEP-7050E-023 Datasheet Download
Official ASRock Industrial USA Distributor
Things Embedded is an official ASRock Industrial USA distributor, and we supply the iEP-7050E-023 configured and tested, with the memory, storage, operating system image and any wireless modules fitted before it ships. Within the ASRock Industrial range, the iEP-7040E-025 keeps the isolated 8DI/8DO block on an Arrow Lake-H Core Ultra 7 255H, with three LAN ports, VGA, audio and three serial ports.
Across our range, the iEP-7050E-023 sits with our DIN rail PCs, Intel Core Ultra computers and fanless PCs.
