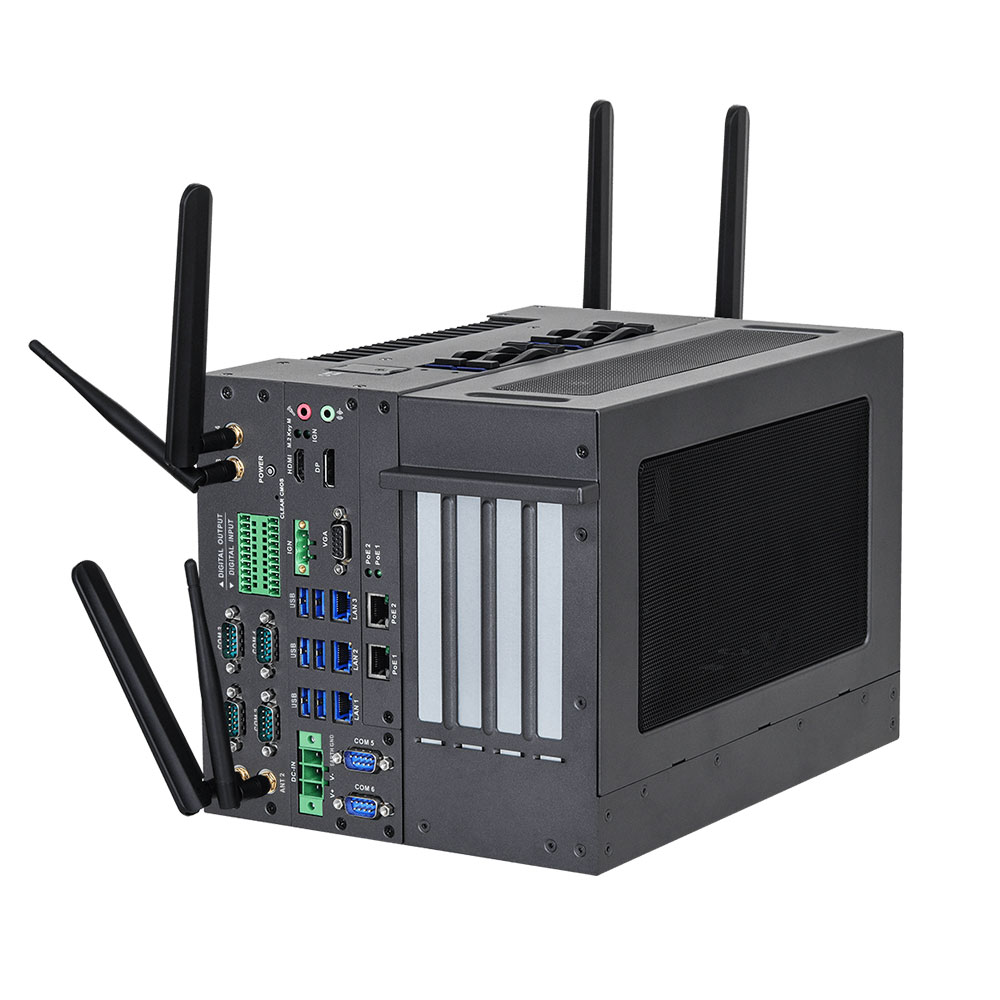

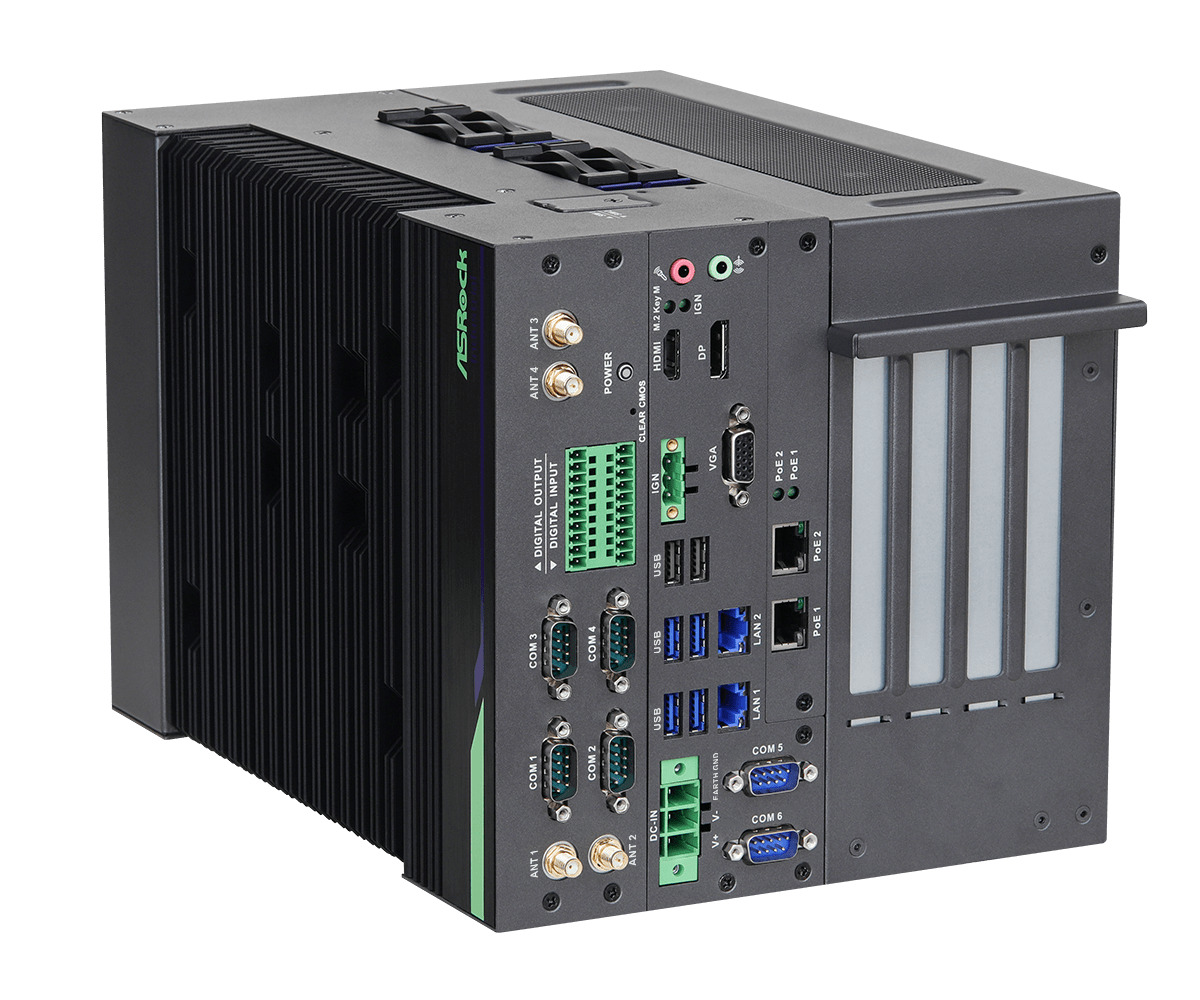

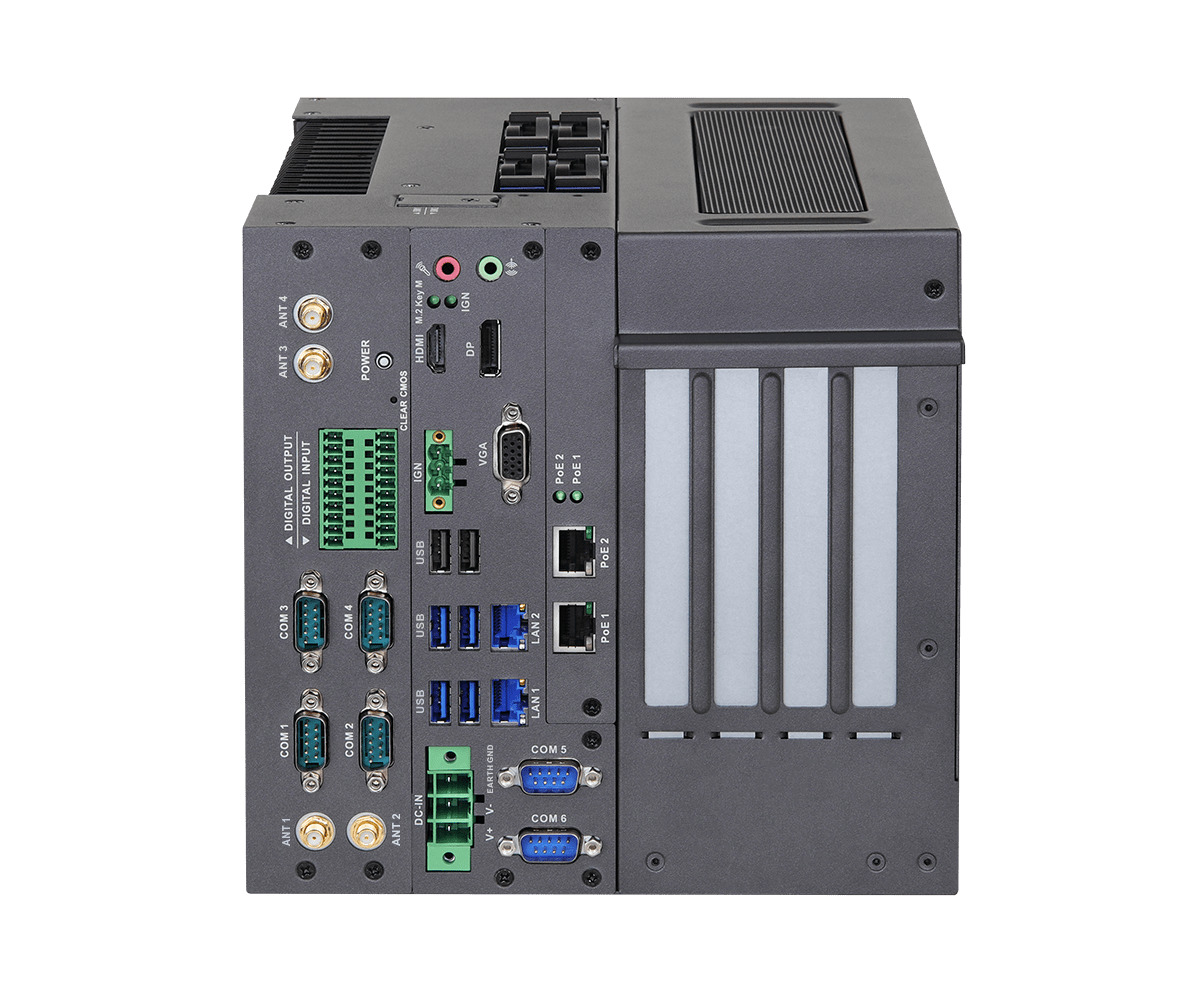

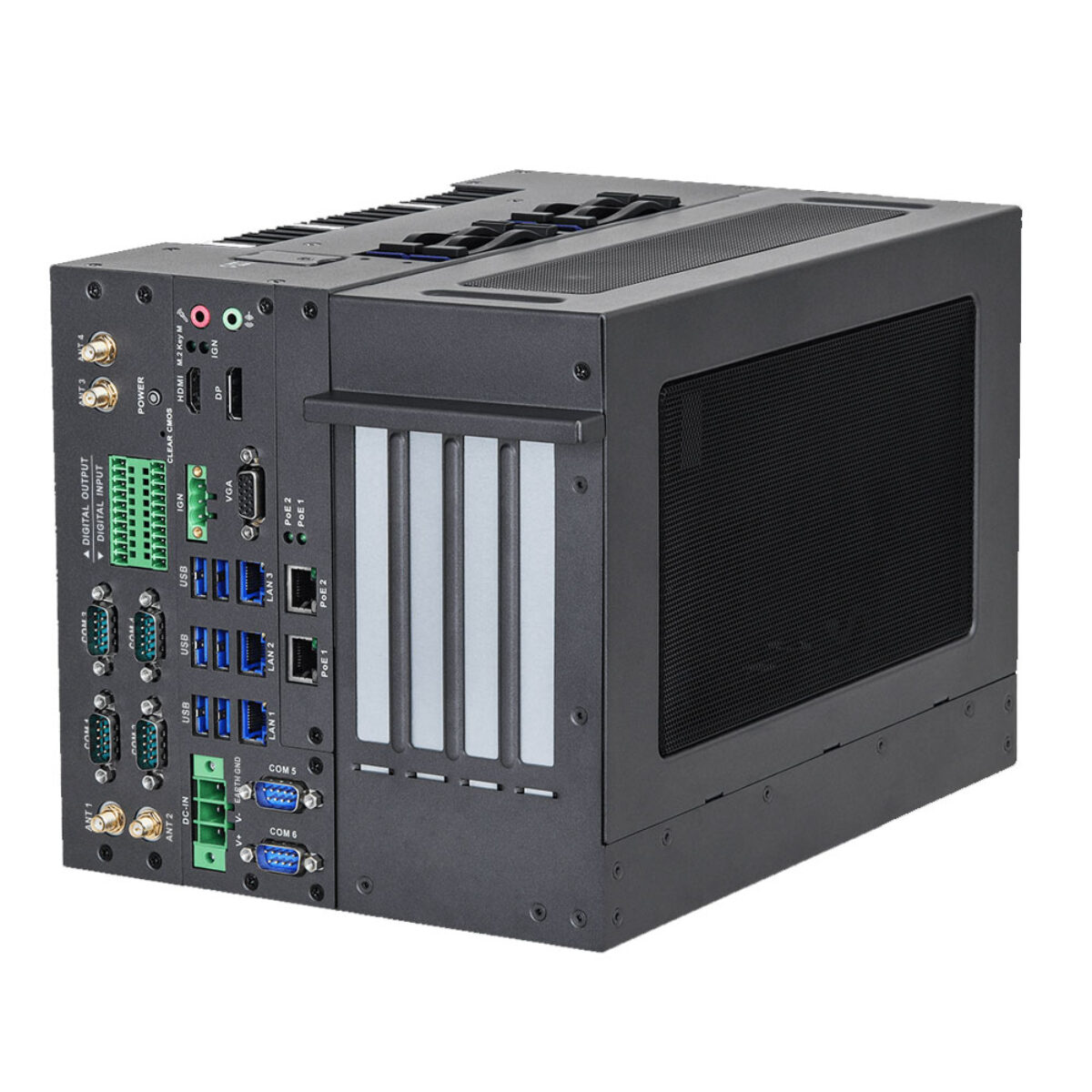

ASRock Industrial iEPF-9010S-EY4 Intel Core i3/i5/i7/i9 12th Gen Fanless Computer with GPU Support and 4x PCIe Gen4 Slots

An industrial GPU build has to do two things at once: feed a discrete graphics card with enough power and airflow, and still bring the serial, digital and camera connections of an industrial PC. The ASRock Industrial iEPF-9010S-EY4 is an industrial GPU computer that does both, with four PCIe Gen4 slots and six COM ports with 8 DI/8 DO.

The iEPF-9010S-EY4 takes 12th Gen Intel Core, Pentium or Celeron processors in an LGA 1700 socket on the Intel R680E chipset, with four DDR4 2933 SO-DIMM sockets for up to 128 GB and ECC support with selected processors. Intel UHD graphics drives DisplayPort 1.4a and HDMI 2.0b at up to 4096 x 2160 at 60 Hz, plus VGA. Windows 10 and Linux are supported, with ACRN, and Intel TCC and TSN under Yocto.

Five Intel 2.5GbE ports include two with IEEE 802.3af PoE and one with vPro. Six USB 3.2 Gen2 ports, four RS-232/422/485 and two RS-232 ports and 8 DI/8 DO handle field devices. Storage is an M.2 Key M socket for an NVMe SSD at Gen4 x4, four SATA3 ports with RAID 0/1/5/10 behind four 2.5-inch trays and an optional CFast socket. The PCIe x16 slot takes a card up to 275 mm long and supplies up to 180 W on its default cable, or 255 W with the optional VGA module, and two mini PCIe slots, M.2 Key B and Key E sockets and two nano SIM slots cover 4G, 5G and Wi-Fi.

Power is 9 to 36 V DC with 13-mode ignition control, a remote power switch and 80 V surge, OVP, UVP, OCP and reverse protection. With a 35 W processor this industrial GPU computer operates from -40 °C to 75 °C, or -40 °C to 55 °C with 46 W to 65 W processors, with its internal fan running. ASRock Industrial rates the iEPF-9010S-EY4 for 50 G shock and 5 Grms vibration, and it meets CE and FCC Class A in a 202 x 290 x 209.3 mm desk-mount case. The iEPF-9020S-EY4 carries the same layout to 13th Gen processors.
