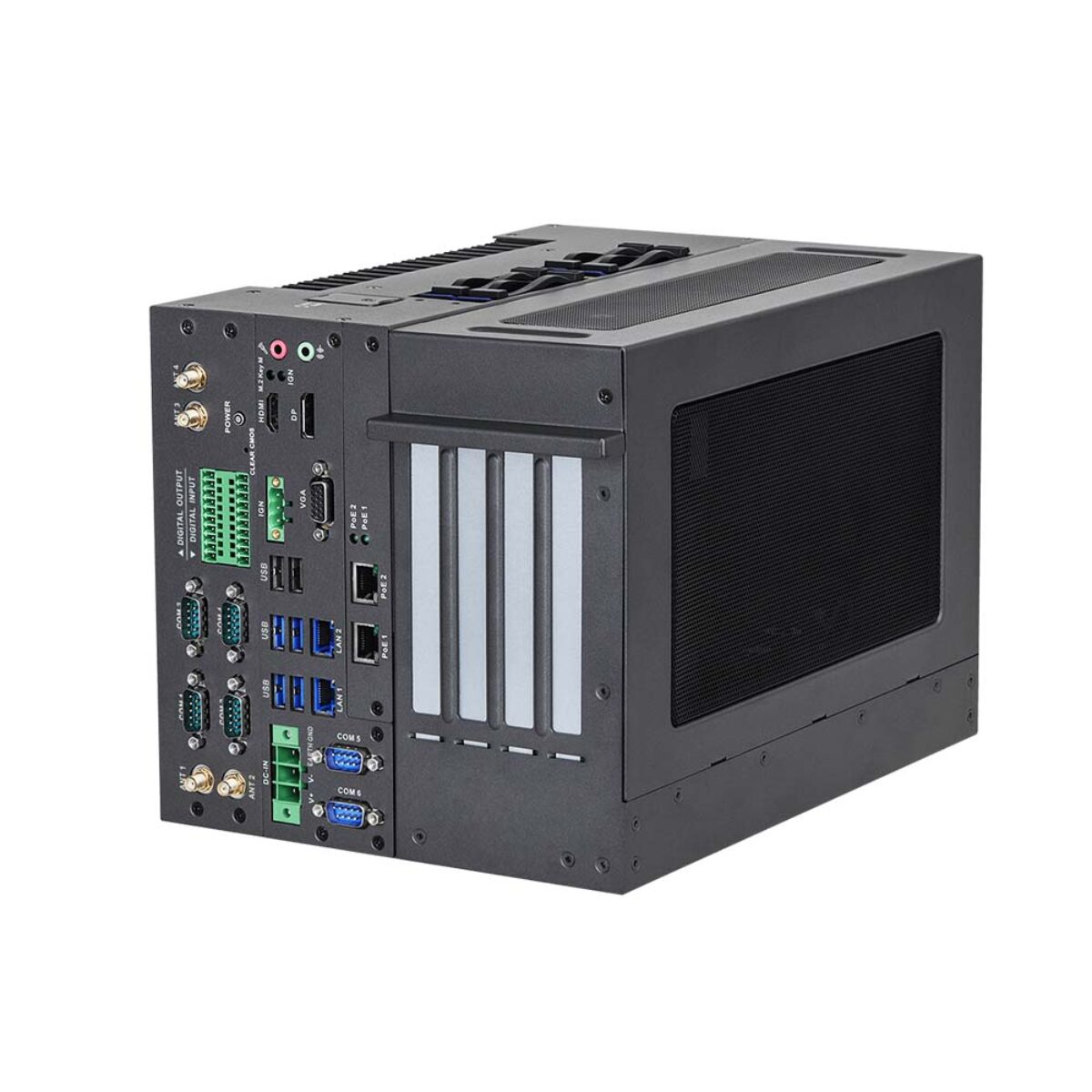

ASRock Industrial iEPF-9022S-EY4 13th Gen Intel Core Extended Temperature Industrial GPU Computer with PCIe x16 and 2x PoE

Many vision and inference systems need one capable graphics card rather than several add-in cards, and a simpler chipset keeps the build straightforward. The ASRock Industrial iEPF-9022S-EY4 is an industrial GPU computer built for that case, with a single PCIe Gen4 x16 slot for a discrete card up to 275 mm long and up to 255 W, in the same industrial-grade case as its four-slot sibling.

It takes 13th Gen Intel Core processors in an LGA 1700 socket on the Intel H610 chipset, with two DDR4 2933 SO-DIMM sockets for up to 64 GB. Intel UHD graphics drives DisplayPort 1.4a and HDMI 2.0b at up to 4096 x 2160 at 60 Hz, plus VGA, so the discrete card can be left to compute. Windows 10 and Linux are supported, with Intel TCC and TSN under Yocto.

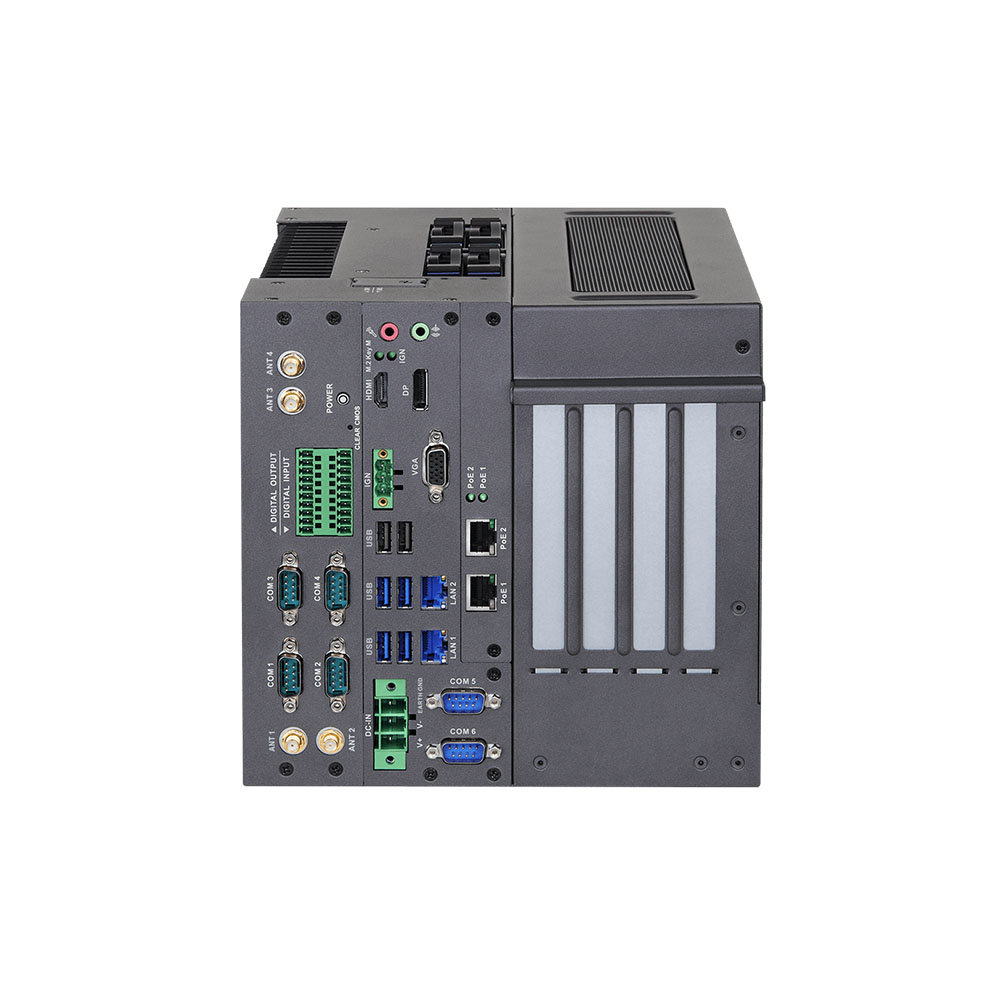

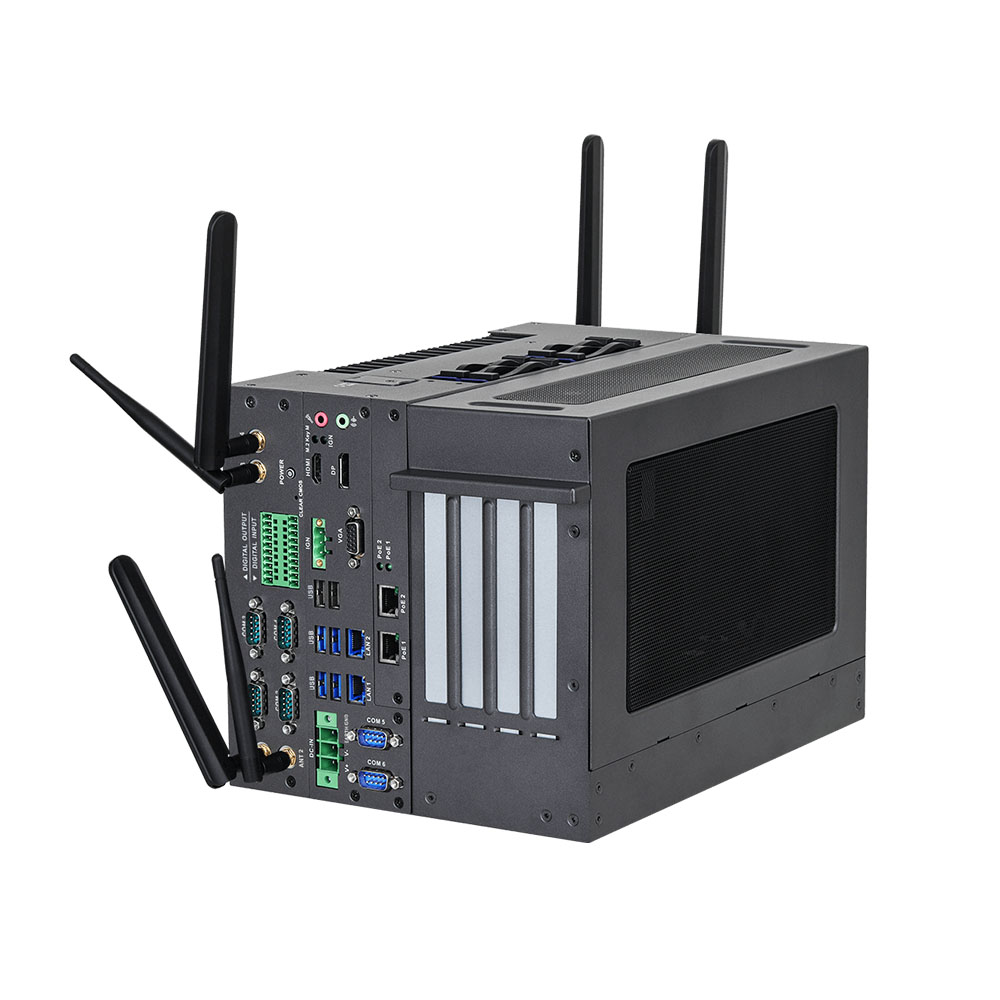

Networking on the iEPF-9022S-EY4 is four Intel 2.5GbE ports, two supplying IEEE 802.3af PoE at up to 15.4 W per port. Two USB 3.2 Gen2, two USB 3.2 Gen1 and two USB 2.0 ports, four RS-232/422/485 and two RS-232 ports and 8 DI/8 DO cover field devices. Storage is four SATA3 ports behind four 2.5-inch trays with an optional CFast socket, as this model has no M.2 Key M socket. Two mini PCIe slots, an M.2 Key B socket for 4G or 5G, an M.2 Key E socket for Wi-Fi, two nano SIM slots and eight SMA holes handle wireless.

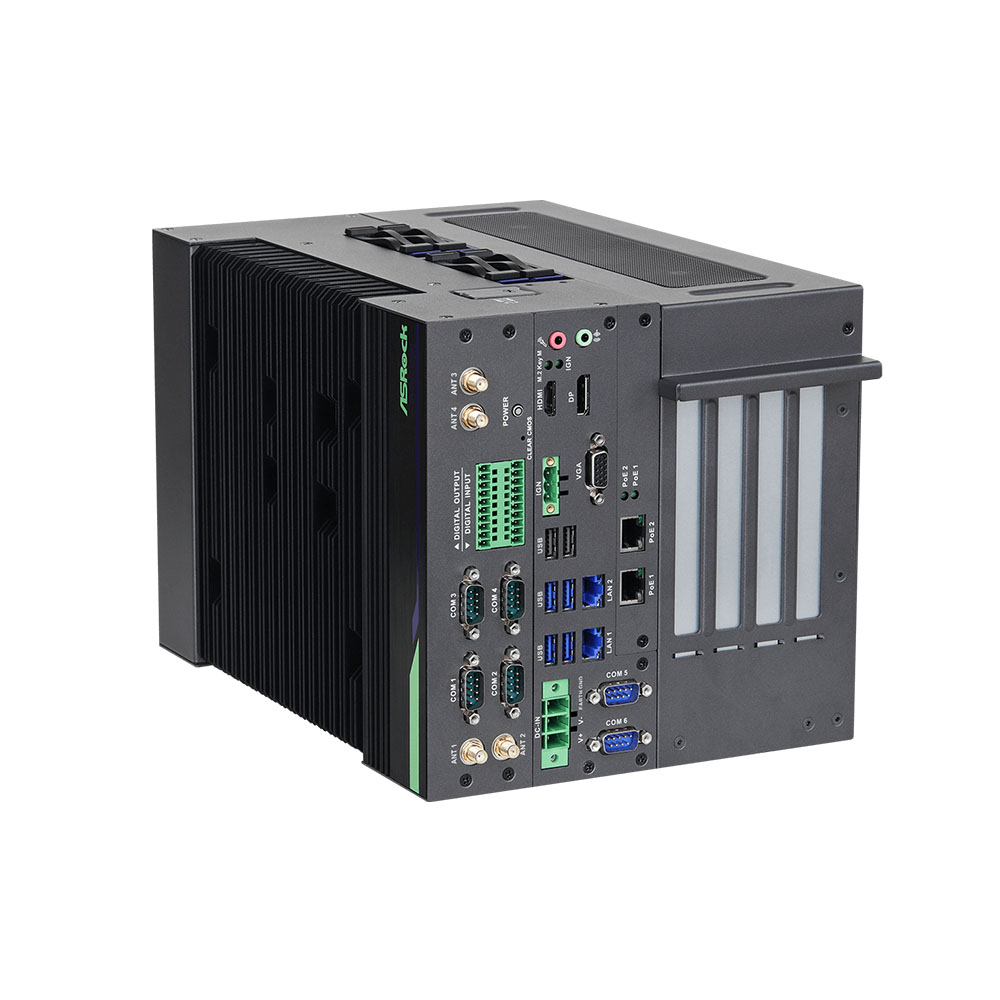

Power is 9 to 36 V DC with 13-mode ignition control, a remote power switch and 80 V surge, OVP, UVP, OCP and reverse protection. With a 35 W processor the iEPF-9022S-EY4 operates from -40 °C to 75 °C, or -40 °C to 55 °C with 46 W to 65 W processors, measured with its internal fan and no add-on card. ASRock Industrial rates this industrial GPU computer for 50 G shock and 5 Grms vibration, and it meets CE and FCC Class A in a 202 x 290 x 209.3 mm desk-mount case. The iEPF-9020S-EY4 adds R680E, four PCIe slots and 5x 2.5GbE.
