ASRock Industrial IMB-1248-WV Intel Core Ultra 200S H810 Mini-ITX Mainboard with 12-28V DC Input, Dual LAN and Thunderbolt 4

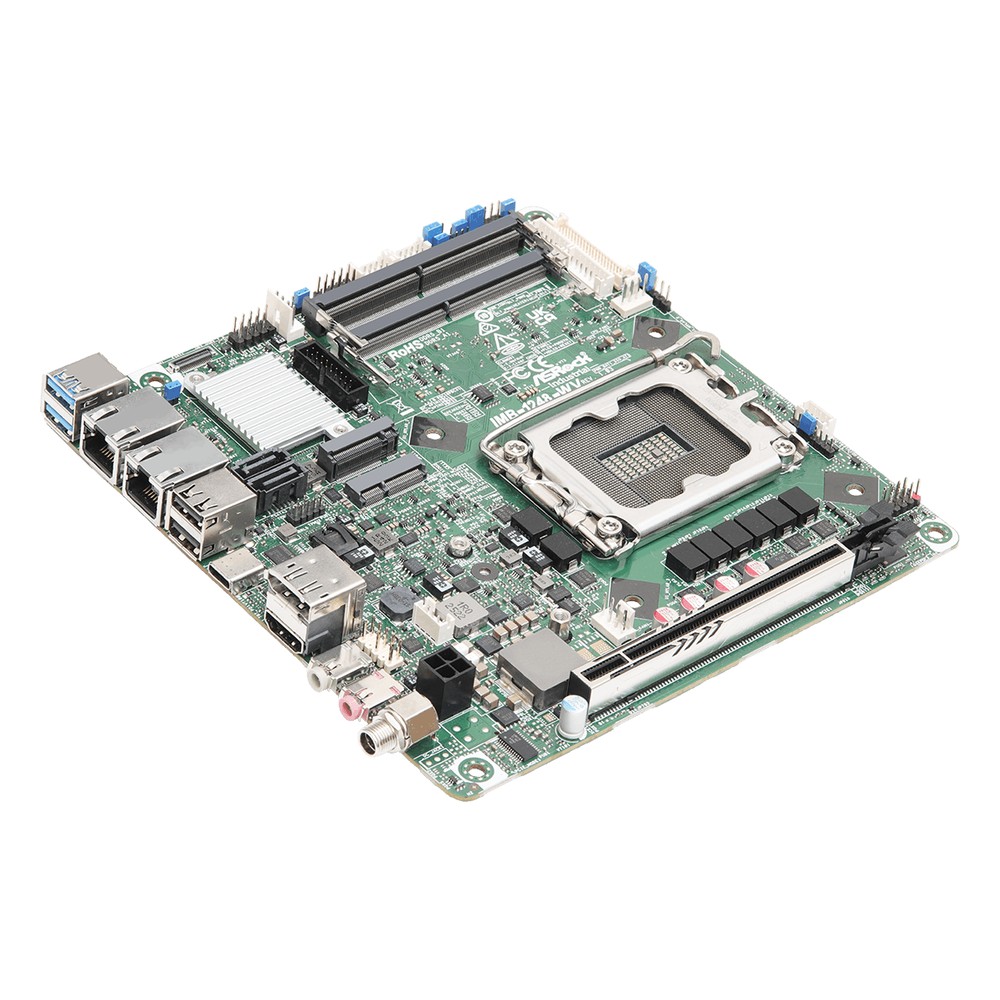

Kiosks, signage and slim equipment enclosures often run from a DC supply with little room above the board. The ASRock Industrial IMB-1248-WV is a low-height H810 Mini-ITX mainboard for Intel Core Ultra 200S processors, with a 12 to 28 V DC input, dual 1GbE and Thunderbolt 4. It can also suit machine control and test equipment builds.

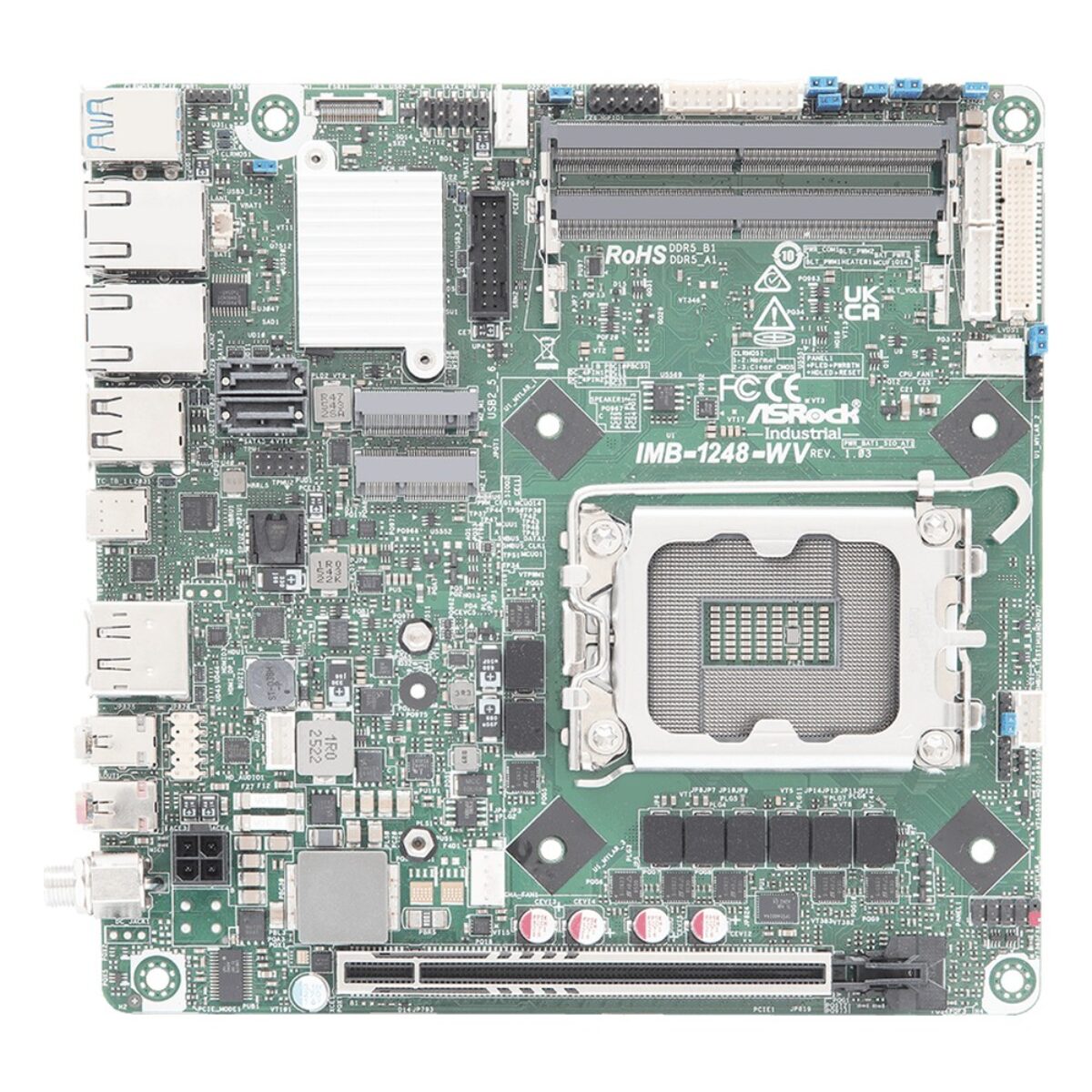

The LGA1851 socket takes Core Ultra 200S (Arrow Lake-S) processors up to 65 W, with Intel Xe LPG graphics. Two DDR5 sockets run at 6400 MHz with CSO-DIMM or 5600 MHz with SO-DIMM and take up to 96 GB, as the datasheet states. Windows 11 and Linux are supported, and the IMB-1248-WV drives up to three displays at once.

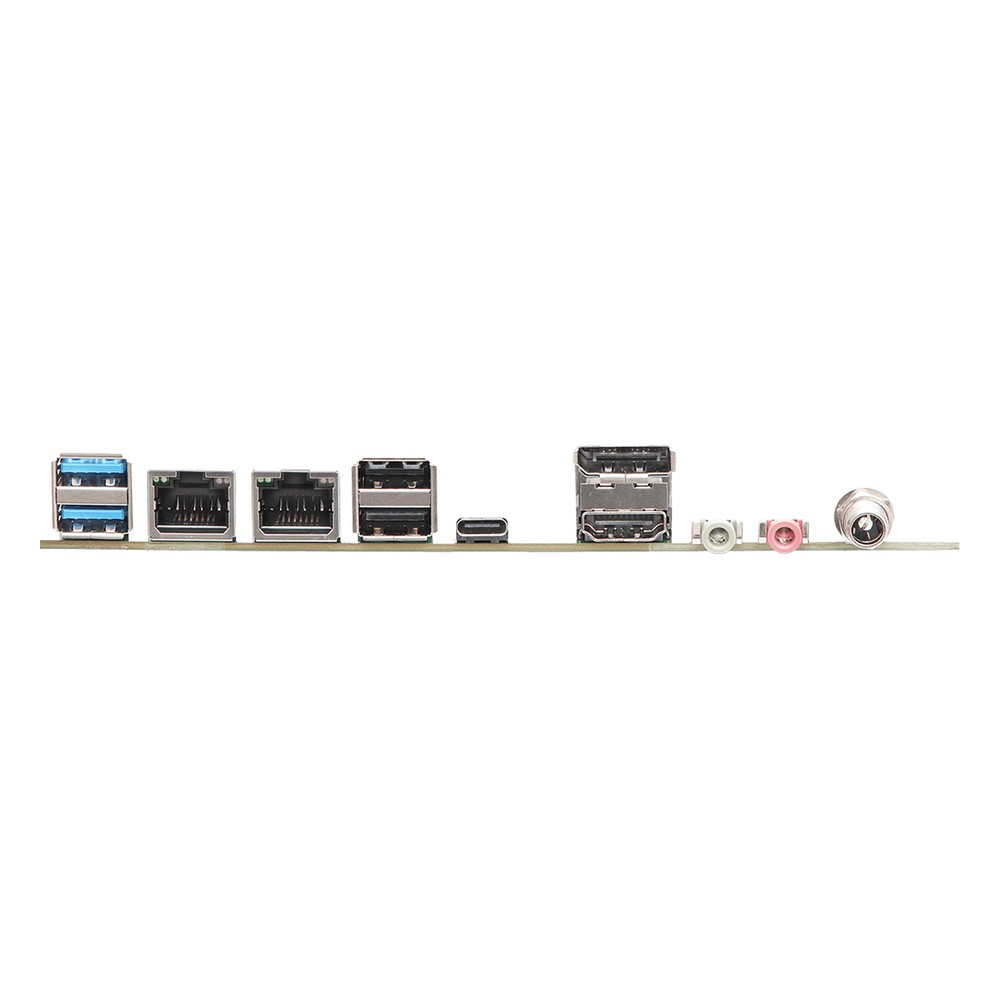

Rear I/O covers one HDMI 2.1 output, one DisplayPort 1.4a, a USB4 and Thunderbolt 4 Type-C port with DisplayPort 2.1, two USB 3.2 Gen2 and two USB 2.0 ports, audio and the DC jack. Networking is two Realtek RTL8111H 1GbE ports. Inside are COM1 for RS-232/422/485 and COM3 for RS-232, 4x GPI and 4x GPO, LVDS or eDP, two USB 3.2 Gen1 and two USB 2.0. A PCIe x16 Gen5 slot takes an add-in card, an M.2 M key socket runs NVMe storage at PCIe Gen4 x4, two SATA3 ports add drives and an M.2 E key socket takes an optional Wi-Fi module.

Power is 12 to 28 V DC on a 4-pin wafer or a screw-type DC jack, in AT or ATX mode, and TPM is by header or Intel PTT. The board is rated from -20 °C to 70 °C and carries CE and FCC marks. We supply the IMB-1248-WV with the processor, memory and storage fitted and tested, on its own or built into a complete system. The IMB-1249-WV adds Q870 with vPro, and the IMB-1246 keeps H810 with ATX power and 2.5GbE.
