ASRock Industrial IMB-1249-WV Intel Core Ultra Series 2 Q870 Industrial Mini-ITX Motherboard with 12-28V DC Input, Thunderbolt 4 and vPro

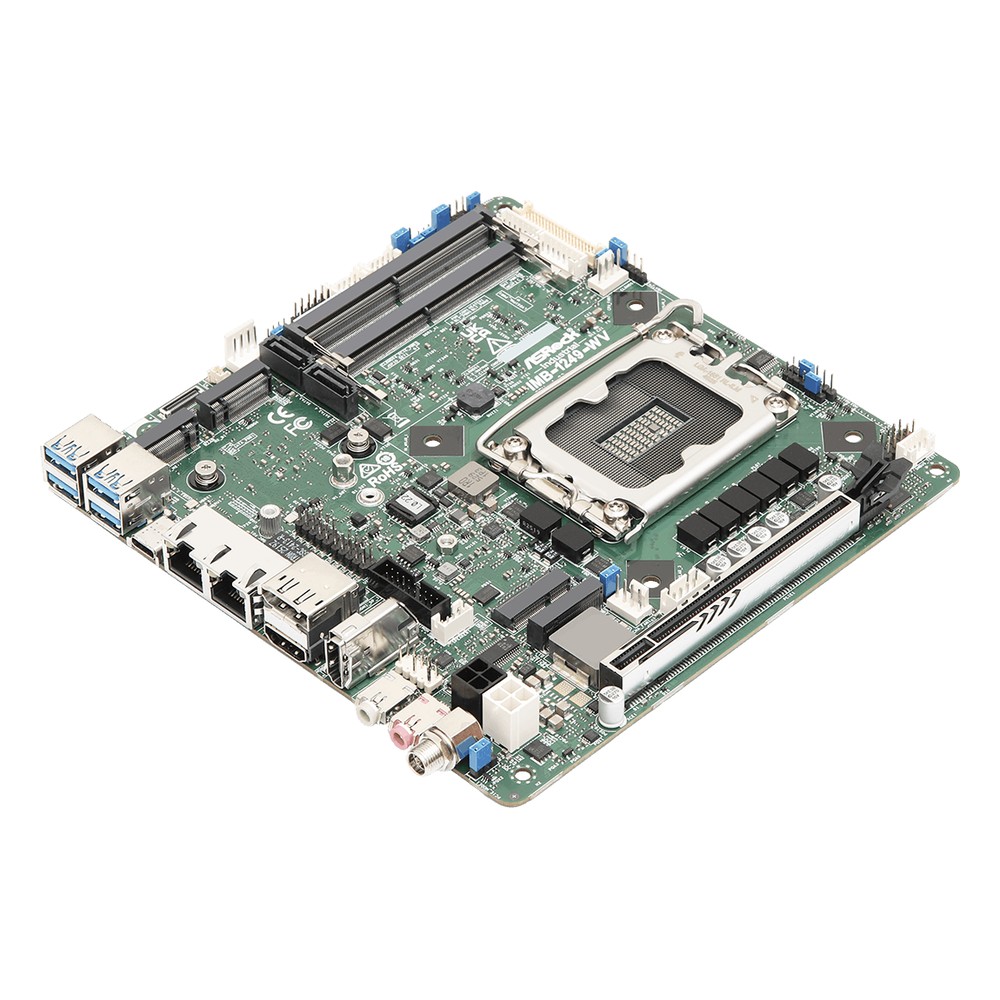

Slim enclosures and equipment fed from a DC bus often cannot take an ATX power supply. The ASRock Industrial IMB-1249-WV is a low-height Q870 Mini-ITX motherboard for Intel Core Ultra Series 2 processors, with a 12 to 28 V DC input, Intel vPro and AMT, and Thunderbolt 4. It can suit machine control, kiosks and medical or test equipment builds.

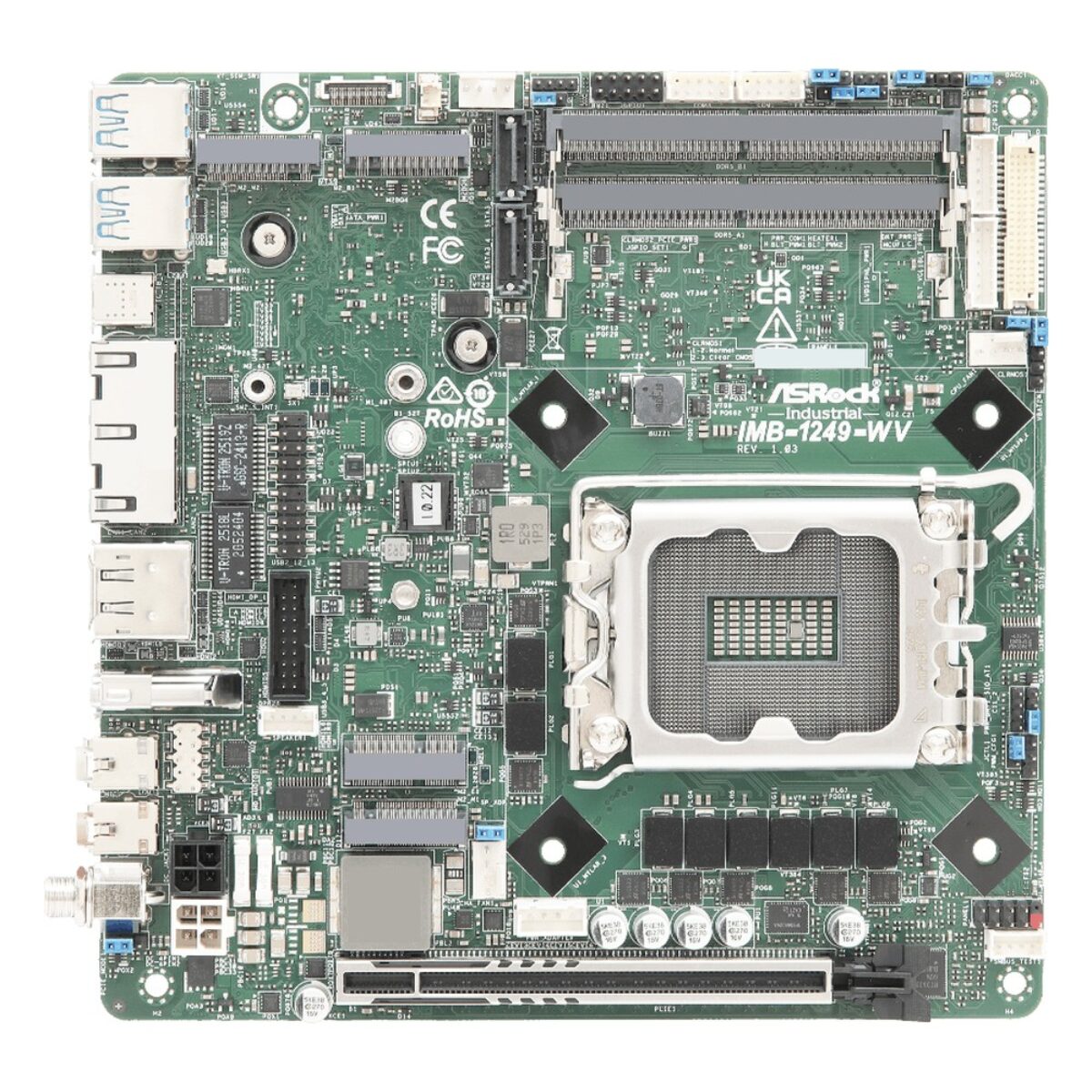

The LGA1851 socket takes Core Ultra 200S (Arrow Lake-S) processors up to 65 W, with Intel Xe LPG graphics. Two DDR5 sockets run at 6400 MHz with CSO-DIMM or 5600 MHz with SO-DIMM and take up to 128 GB. Windows 11 and Linux are supported, and the IMB-1249-WV drives up to four displays at once.

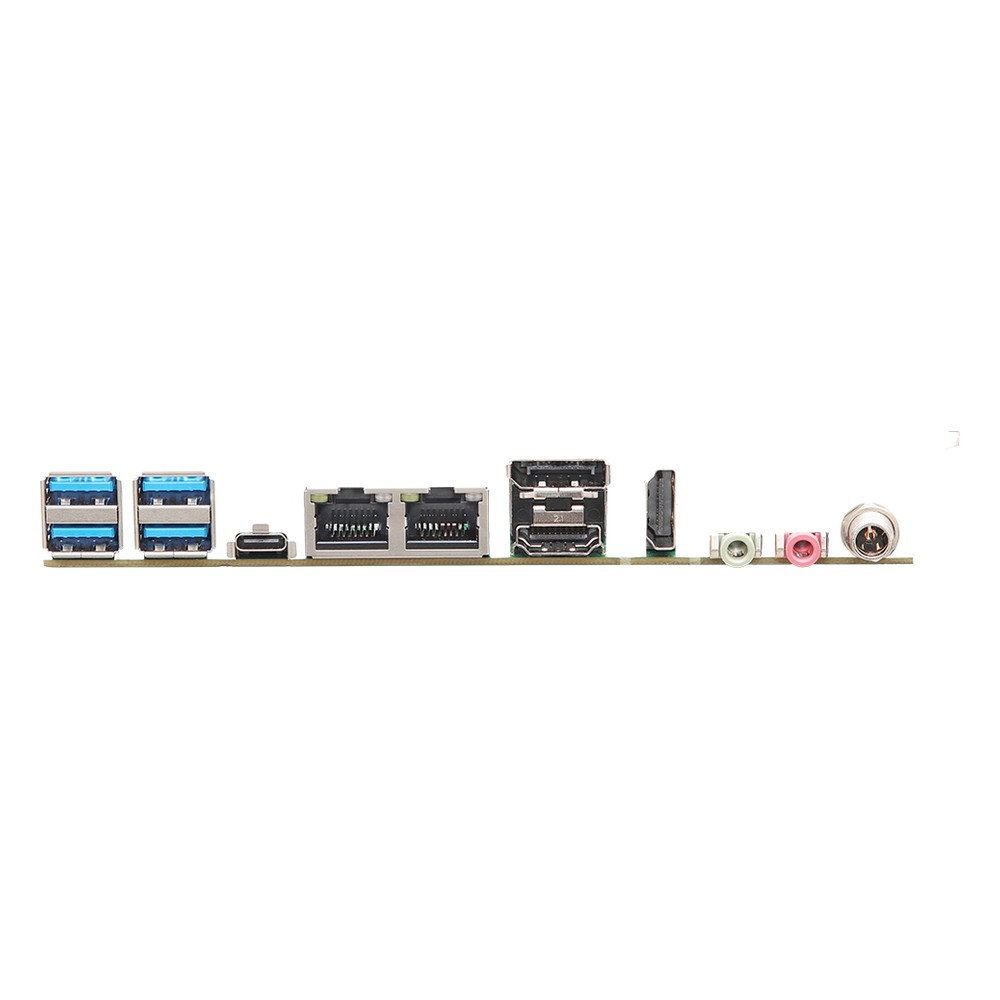

Rear I/O covers two HDMI 2.1 outputs, one DisplayPort 1.4a, a USB4 and Thunderbolt 4 Type-C port with DisplayPort 2.1, four USB 3.2 Gen2 Type-A ports, audio and the DC jack. Networking is an Intel I219LM 1GbE port with vPro and an Intel I226V 2.5GbE port. Inside are two RS-232/422/485 ports, 4x GPI and 4x GPO, LVDS or eDP, two USB 3.2 Gen1 and four USB 2.0. A PCIe x16 Gen5 slot supports riser bifurcation, two M.2 M key sockets run at PCIe Gen4 x4 and two SATA3 ports support VMD RAID 0 and 1. M.2 E key and B key sockets take optional wireless or expansion modules.

Power is 12 to 28 V DC on a 4-pin wafer or a screw-type lockable DC jack, in AT or ATX mode. The board is rated from -20 °C to 70 °C and carries CE and FCC marks. We supply the IMB-1249-WV with the processor, memory and storage fitted and tested, on its own or built into a complete system. The IMB-1248-WV is the H810 version without vPro, and the IMB-1247 keeps Q870 with ATX power and a SIM slot.
