FCCIMB-X1316-10G Overview

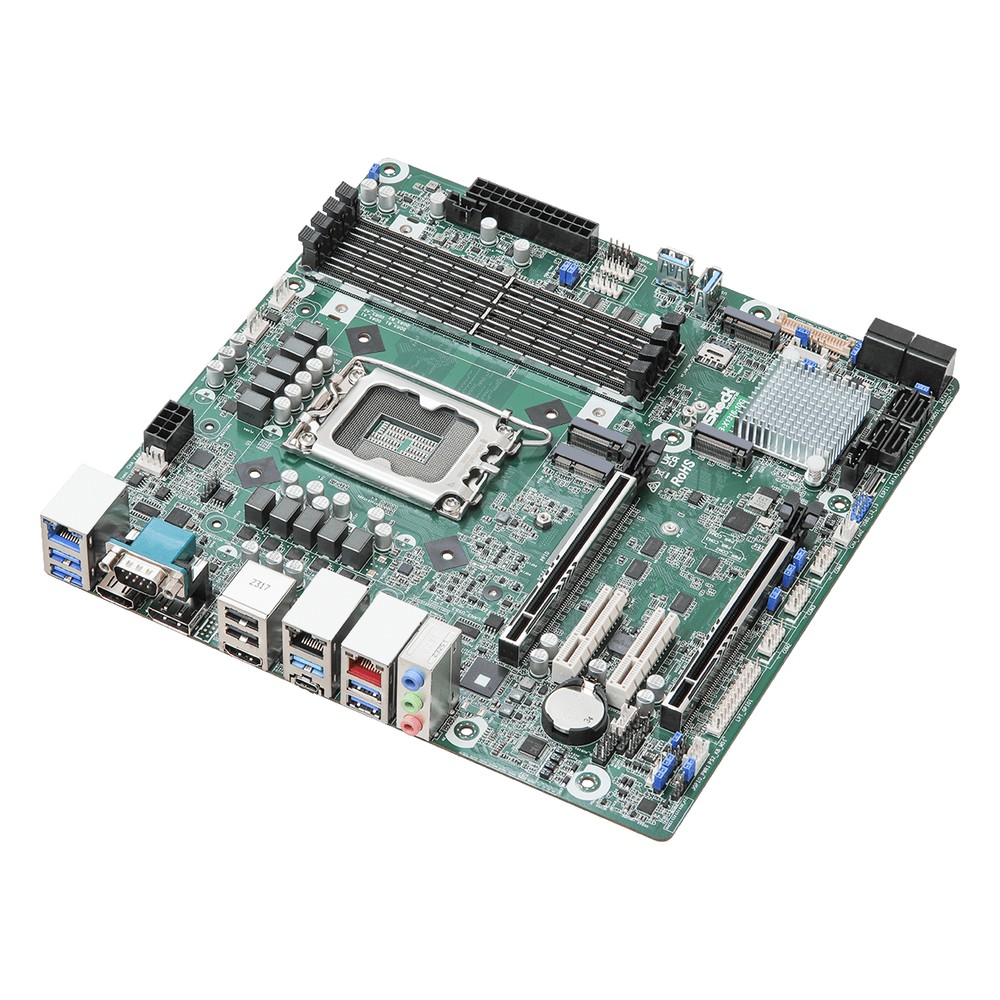

Vision and inspection systems often pull image data from cameras or storage faster than Gigabit links allow. The ASRock Industrial IMB-X1316-10G is a W680 Micro-ATX motherboard for Intel Core Series 2 and 14th Gen processors, adding a 10GbE port to ECC DDR5, PCIe Gen5 slots and six COM ports. It can also suit machine control and test builds.

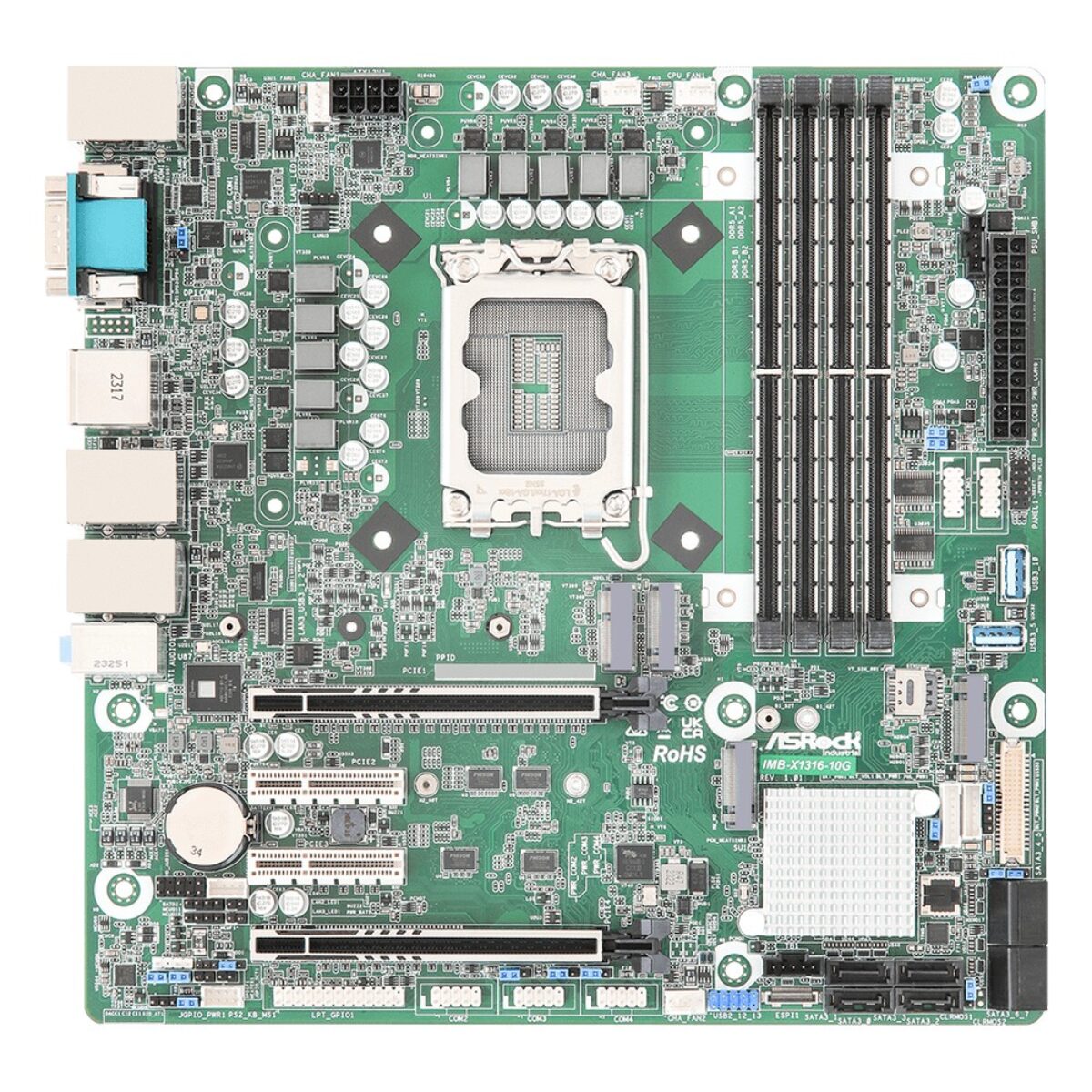

The LGA1700 socket takes Core Processor Series 2 (Bartlett Lake-S) and 14th, 13th and 12th Gen Core processors up to 125 W, with Intel UHD graphics. Four DDR5 Long-DIMM sockets run at 4400 or 5600 MHz and take ECC or non-ECC memory up to 192 GB. Windows 11 and Linux are supported, and the IMB-X1316-10G drives up to four displays.

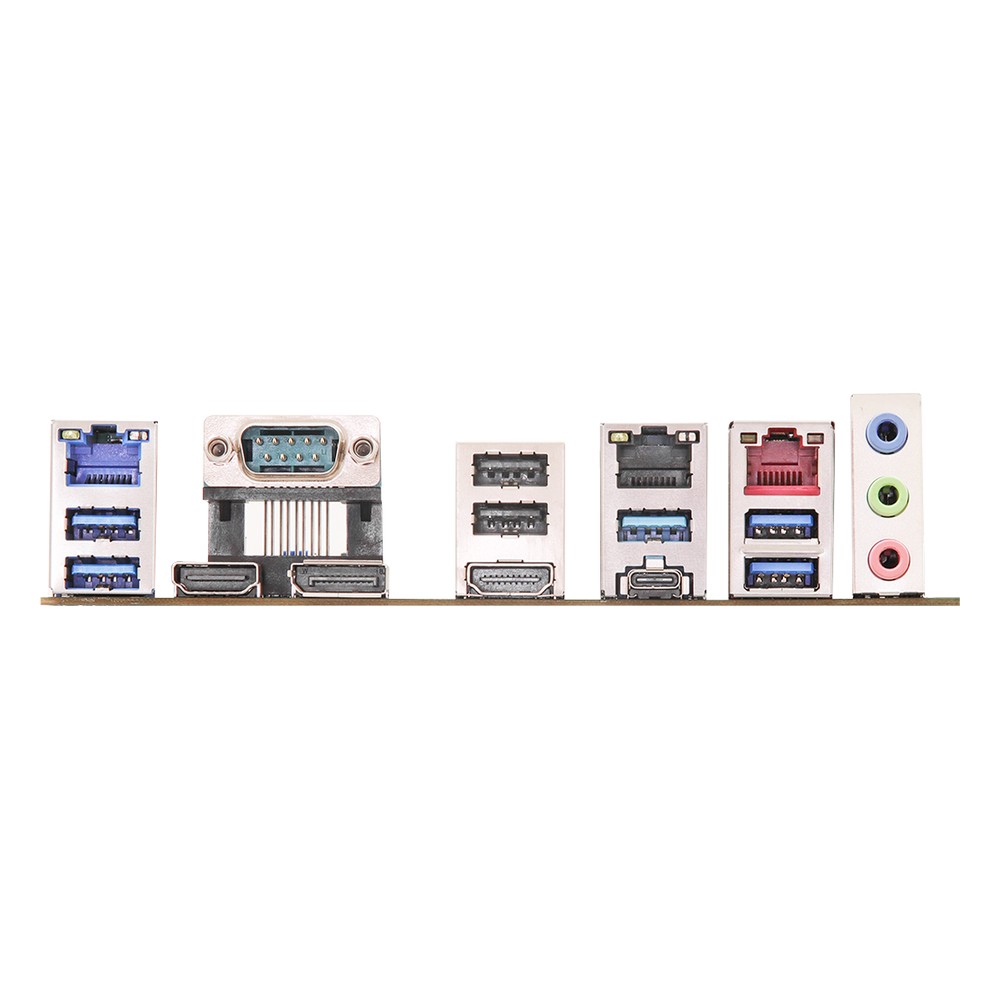

Networking is a Marvell AQC113 10GbE port, an Intel I226LM 2.5GbE port with vPro and an Intel I210AT 1GbE port. Expansion is two PCIe Gen5 slots, one card at x16 or two at x8, plus two PCIe x4 Gen4 slots. Storage covers an M.2 M key socket at PCIe Gen4 x4, a second at PCIe Gen3 x4 and eight SATA3 ports with VMD RAID 0, 1, 5 and 10. M.2 E key and B key sockets take optional Wi-Fi and 4G or 5G modules, with a SIM slot. Rear I/O adds two HDMI 2.0b, one DisplayPort, a USB 3.2 Gen2x2 Type-C, five USB 3.2 Gen2, two USB 2.0, audio and COM1. Inside are five more COM ports, 8x GPI and 8x GPO, parallel, LVDS, PS/2, a Thunderbolt header and two vertical USB 3.2 Gen2 Type-A ports.
Power is ATX 24+8-pin in AT or ATX mode, and TPM 2.0 is onboard. The board is rated from -20 °C to 70 °C and carries CE and FCC marks. We supply the IMB-X1316-10G with the processor, memory and storage fitted and tested, on its own or built into a complete system. The IMB-X1316 is the same board without 10GbE, and the IMB-1316 moves to Q670.
IMB-X1316-10G Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial IMB-X1316-10G |
| Features | Embedded Expandable Industrial |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Core 5 211EF i5-14400F Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700K: 3.6~5.0GHz, 12 Cores, 20 Threads, 25MB Cache, 125W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900K: 3.2~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 125W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 4x DDR5 4400MHz LONG-DIMM Slots, 192GB |
| Chipset | Intel W680 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a DP++ Dual Channel LVDS HDMI 2.0b |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x LVDS 2x HDMI |
| Audio | |
| Codec | Realtek ALC897, HD Audio |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 3x Ethernet Ports |
| 1x 10 GbE LAN [RJ45] 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Marvell AQC113CS Intel i210AT Intel I226LM |
| USB | 12x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 7x USB 3.2 Gen 2 [Type A] 2x USB 2.0 [Board] 2x USB 2.0 [Type A] | |
| Serial | 6x Serial Ports |
| 1x RS232/422/485 [Board] 1x RS232/422/485 [DB9] 4x RS232 [Board] | |
| GPIO | GPIO [8-in, 8-out] |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280/25110] 1x M.2 M-Key [PCIe x4] [2242/2280] | |
| PCIe | 4x PCIe Slots |
| 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] 2x PCIe [x4 Slot] [Gen4] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 2x M.2 SSD 8x SATA Ports |
| NVMe | NVMe SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) RAID 10 (Mirroring & Striping) |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -20°C to 70°C [-4°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 244mm x 244mm x 36mm (9.61" x 9.61" x 1.42") |
Official ASRock Industrial USA Distributor
Things Embedded is an official ASRock Industrial USA distributor, and we supply the IMB-X1316-10G with the processor, memory and storage fitted and tested, on its own or built into a complete system. Within the ASRock Industrial range, the IMB-X1316 is the same W680 board without the 10GbE port, with 2.5GbE and 1GbE networking.
Across our range, the IMB-X1316-10G sits with our industrial Micro-ATX motherboards, Intel Raptor Lake range and ASRock Industrial motherboards.
