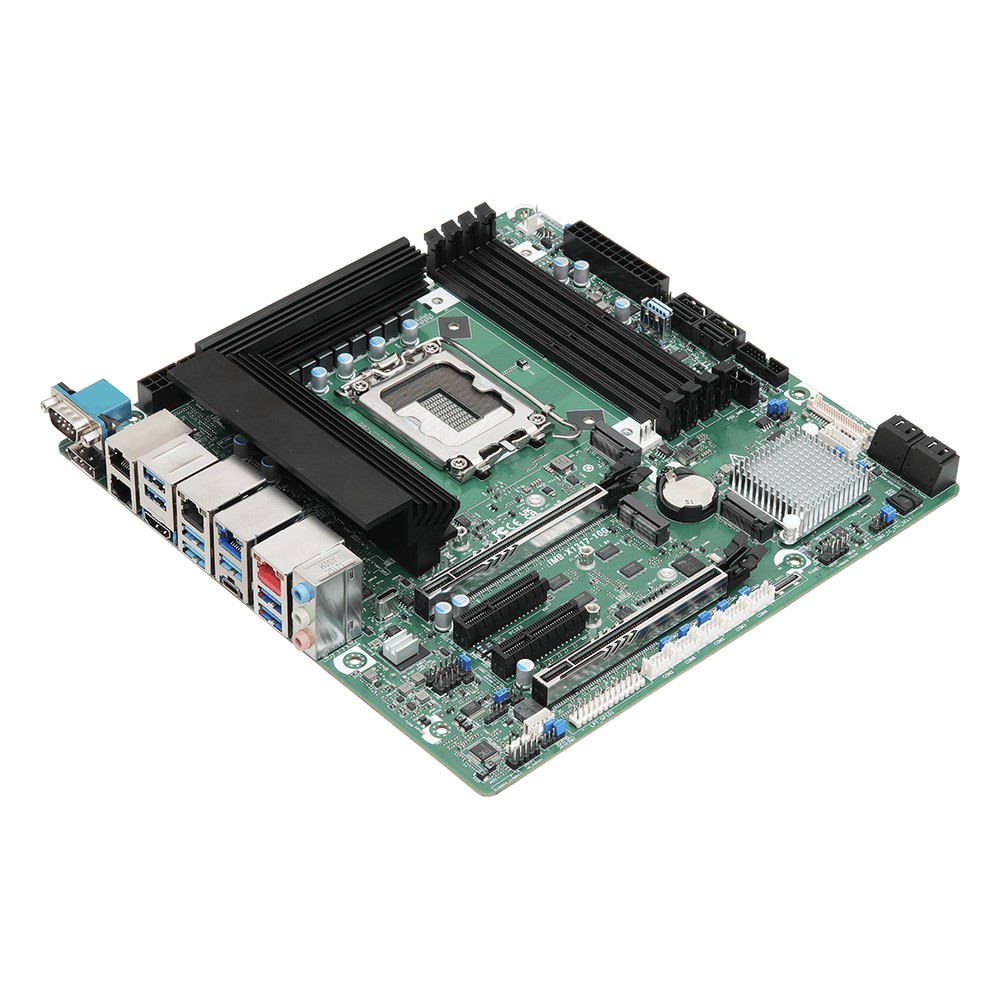

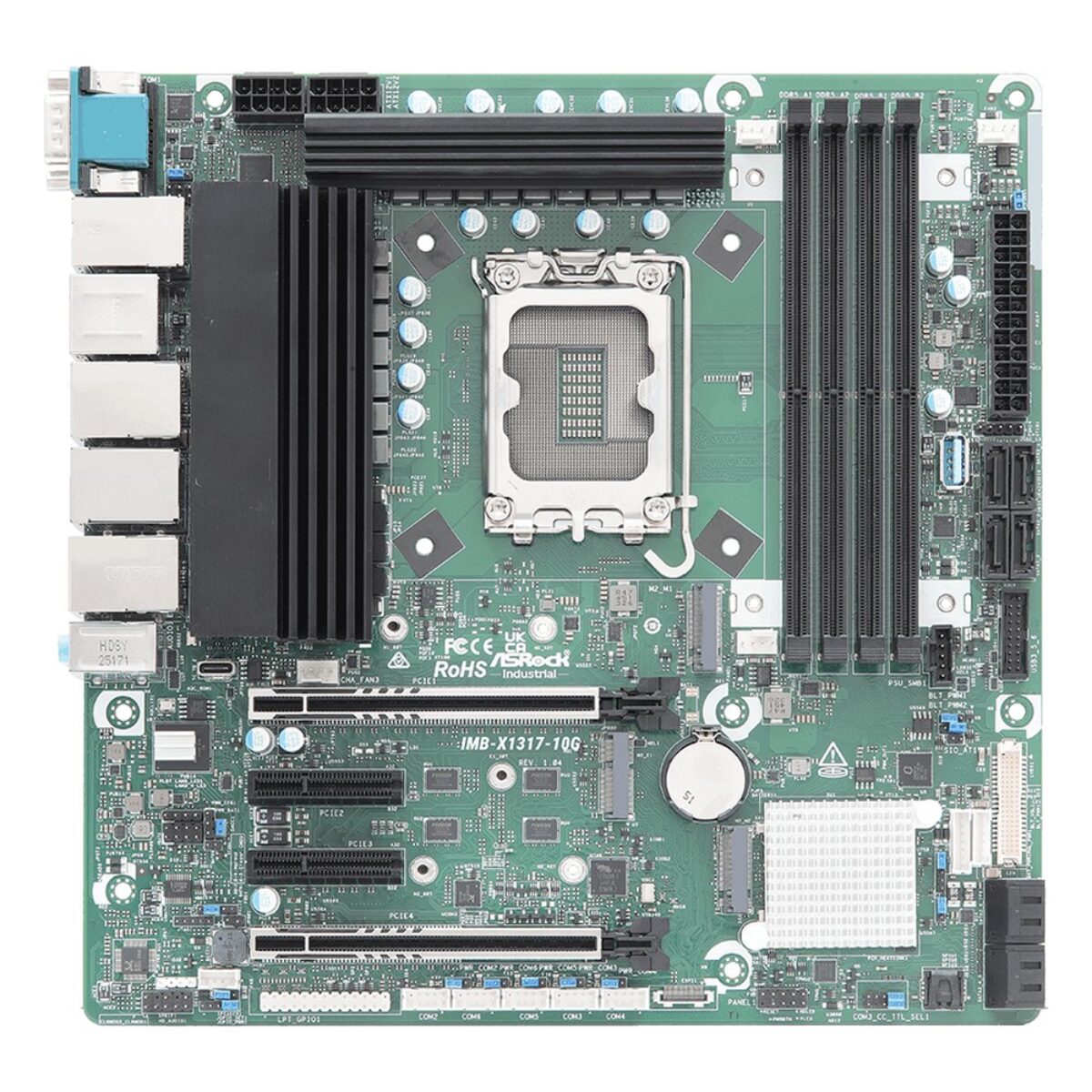

ASRock Industrial IMB-X1317-10G Intel Arrow Lake-S Core Ultra W880 Micro-ATX Motherboard with 10GbE, Quad LAN and ECC

Multi-camera vision and inspection builds often need separate camera networks and a fast link to a server, without moving to a full ATX enclosure. The ASRock Industrial IMB-X1317-10G is a W880 Micro-ATX motherboard for Arrow Lake-S Core Ultra processors with five LAN ports on the board, one of them 10GbE.

The LGA1851 socket takes Core Ultra 200S processors up to 125 W, with power limits up to 252 W supported. Four DDR5 Long-DIMM slots hold up to 256 GB of ECC or non-ECC memory, at 6400 MHz with CU-DIMMs or 5600 MHz with U-DIMMs. Intel Xe graphics drive up to four displays, and the W880 chipset brings Intel vPro with AMT for remote management. Windows 11 and Linux are supported.

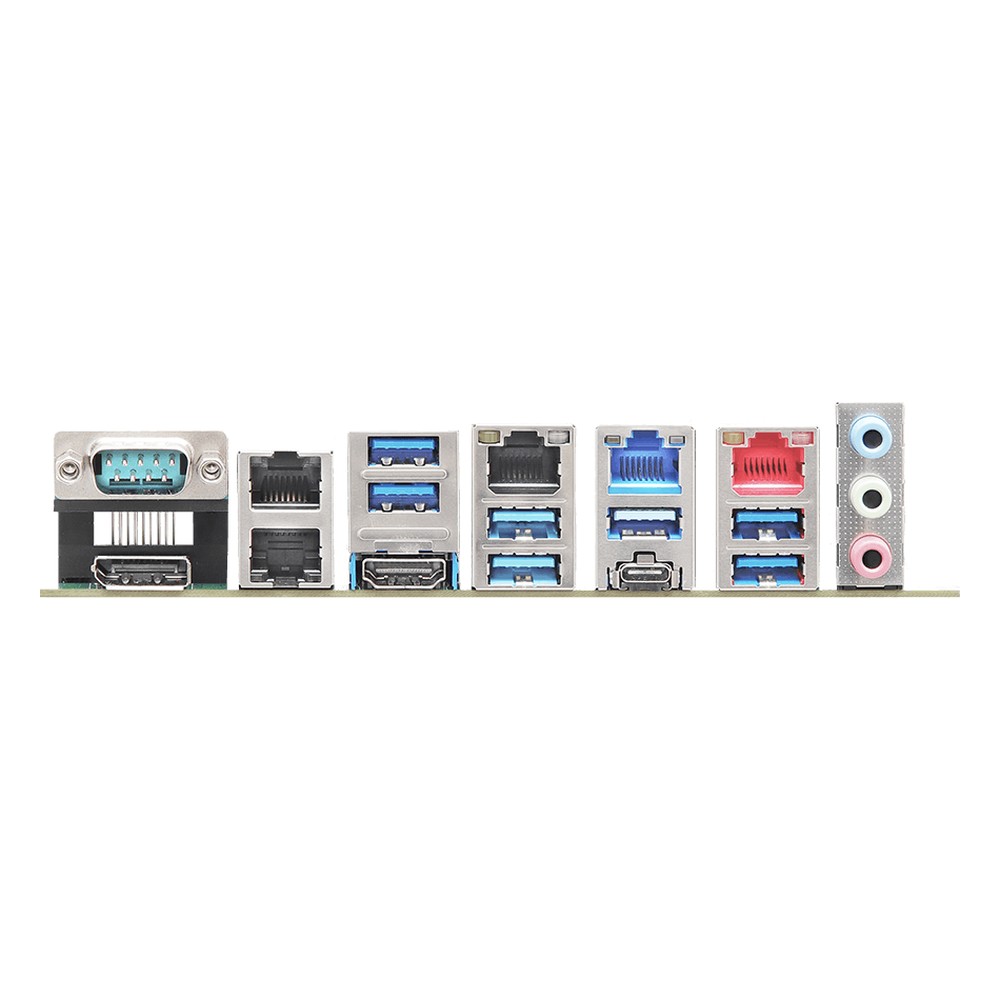

Networking is a Marvell AQC113 at up to 10GbE, an Intel I226V at 2.5GbE, and two Intel I210AT and one Intel I219LM Gigabit ports. Expansion is two PCIe 5.0 x16 slots, as one x16 or two x8, and two PCIe 4.0 x4 slots. Storage runs from two M.2 M key sockets (PCIe 5.0 x4 and PCIe 4.0 x4) and eight SATA 6Gb/s ports, with Intel VMD RAID 0, 1, 5 and 10, and an M.2 E key socket takes an optional wireless module. Displays come from HDMI 2.1, DisplayPort 1.4a, a shared LVDS or eDP connector and two Thunderbolt 4 ports. There are ten USB 3.2 Gen 2 ports in all, seven at the rear, plus six COM ports and GPIO.

The IMB-X1317-10G is rated from -20 °C to 70 °C, runs from an ATX supply in AT or ATX mode, and carries a TPM 2.0 and a watchdog timer. We supply it with the processor, memory and storage fitted and tested, on its own or built into a complete system. The IMB-X1317 is the same board with four LAN ports, and the IMB-X1715-10G pairs 10GbE with the W880 on ATX for more slots.
