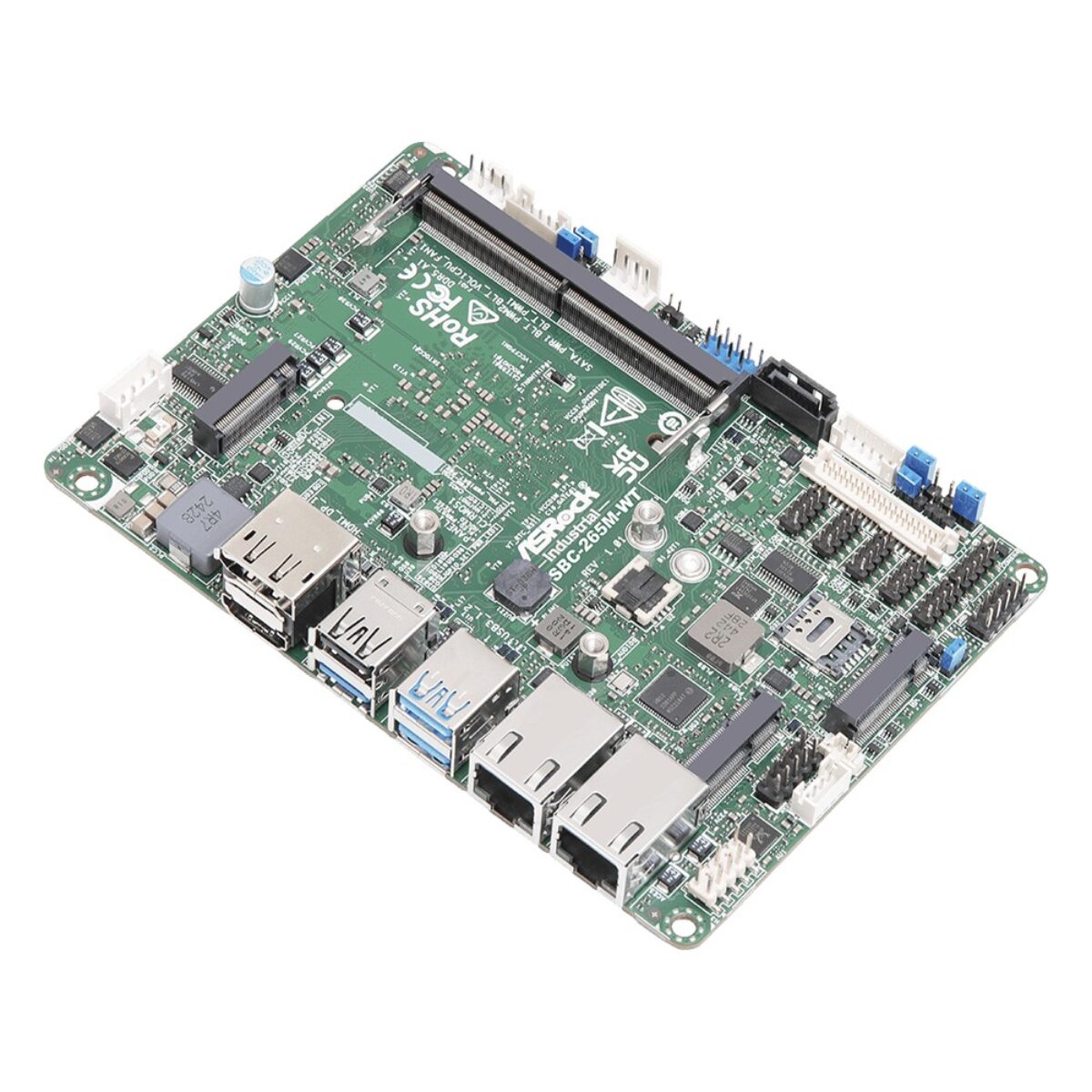

ASRock Industrial SBC-265M-WT Intel Atom x7433RE Wide Temperature 3.5″ SBC with Triple Display and Dual GbE

Outdoor cabinets and heavy industrial sites combine serial field devices with temperatures that swing well outside an office range. The ASRock Industrial SBC-265M-WT is a 3.5″ SBC built for that mix: an Intel Atom x7433RE, six COM ports and a -40 °C to 85 °C operating rating.

The Atom x7433RE is an Amston Lake quad-core processor running up to 3.4 GHz with a 9 W rating and Intel UHD graphics. One DDR5 4800 SO-DIMM socket takes up to 48 GB, and Intel PTT provides firmware TPM. The SBC-265M-WT runs Windows 11 and Linux.

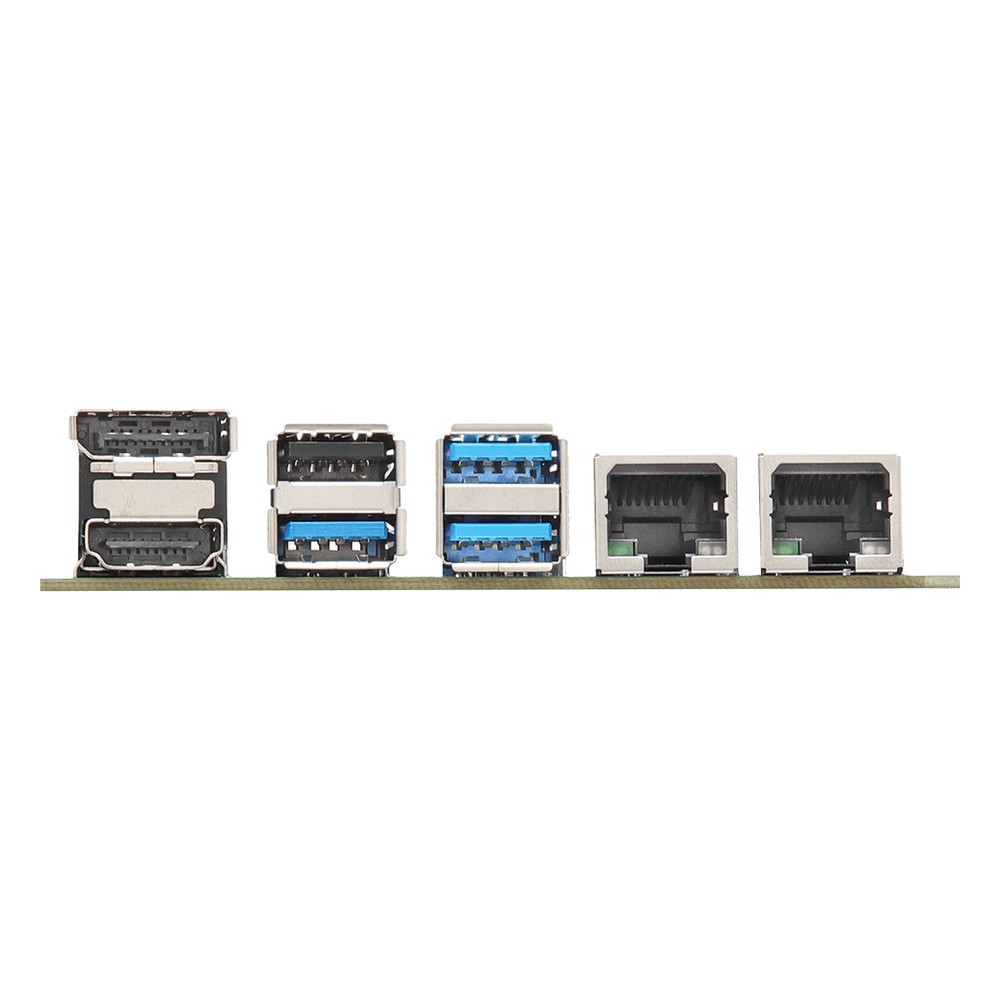

Networking is two Intel I210IT Gigabit ports. Up to three displays run from HDMI 2.0b, DisplayPort 1.4b and LVDS or eDP. The rear carries three USB 3.2 Gen 2 ports and one USB 2.0 port, and internal headers add two USB 2.0, one RS-232/422/485 COM port, five RS-232 COM ports and four GPI and four GPO. An M.2 E key on PCIe and USB takes optional Wi-Fi, an M.2 B key with SIM slot takes an optional 4G or 5G module, and storage is an M.2 M key socket with PCIe x1 Gen3 or SATA3 plus one SATA3 port.

Power is 9 to 36 V DC, with a 12 V-only build option and AT and ATX modes. Operating and storage temperature are both -40 °C to 85 °C, and the board carries CE and FCC marks. We supply the SBC-265M-WT configured and tested, with memory, storage, the OS image and the heatsink fitted. The SBC-262M-WT uses the same processor with 2.5GbE TSN and a terminal block input, and the SBC-266J offers the six-COM layout on an Intel N150.
