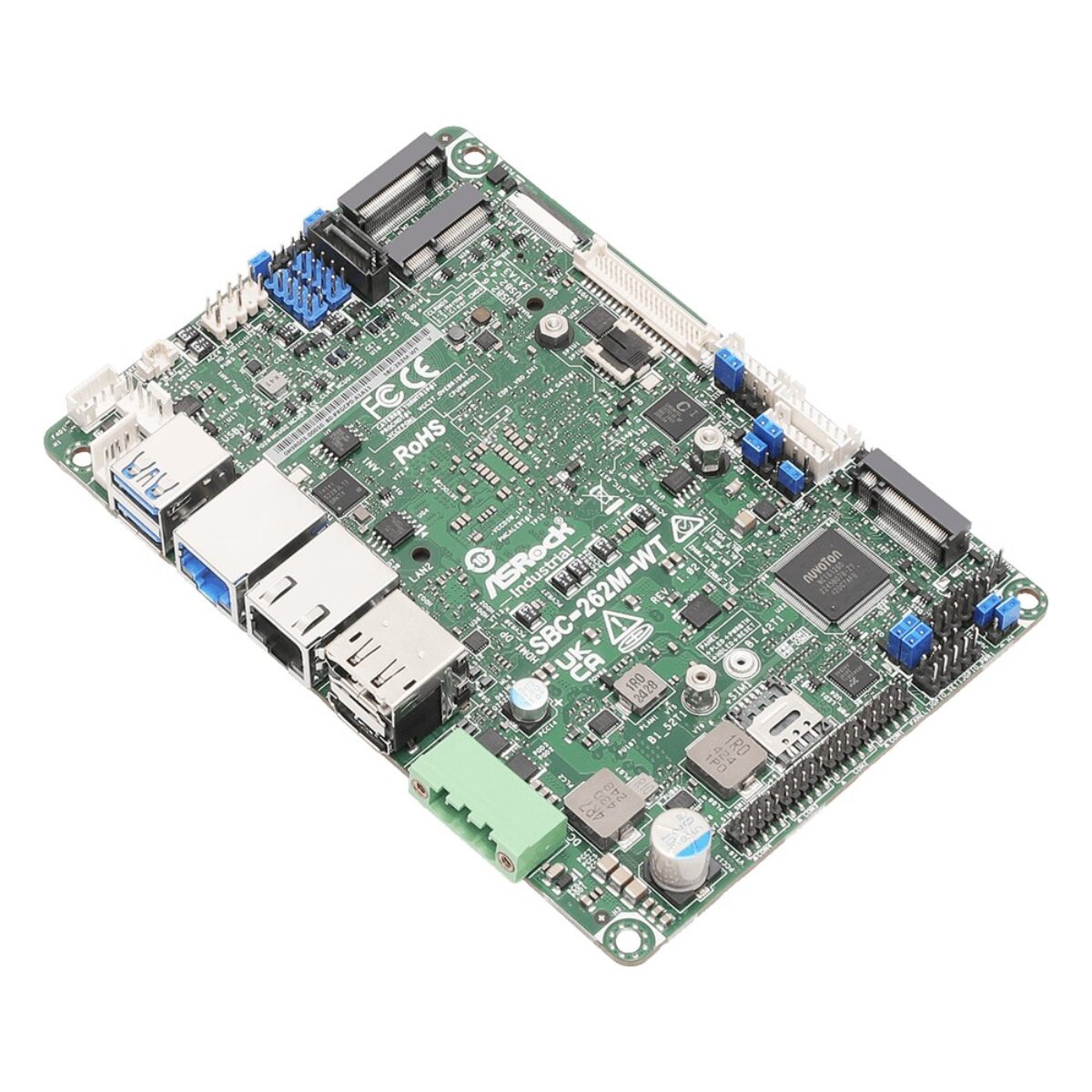

ASRock Industrial SBC-262M-WT Intel Atom x7433RE Wide Temperature 3.5″ SBC with 2.5GbE and Terminal Block DC Input

Motion control, packaging lines and other manufacturing equipment increasingly run control traffic over standard Ethernet, which only works when timing is predictable. The ASRock Industrial SBC-262M-WT is a 3.5″ SBC for that job, with an Intel Atom x7433RE, Intel TCC and a TSN-capable 2.5GbE port, rated from -40 °C to 85 °C.

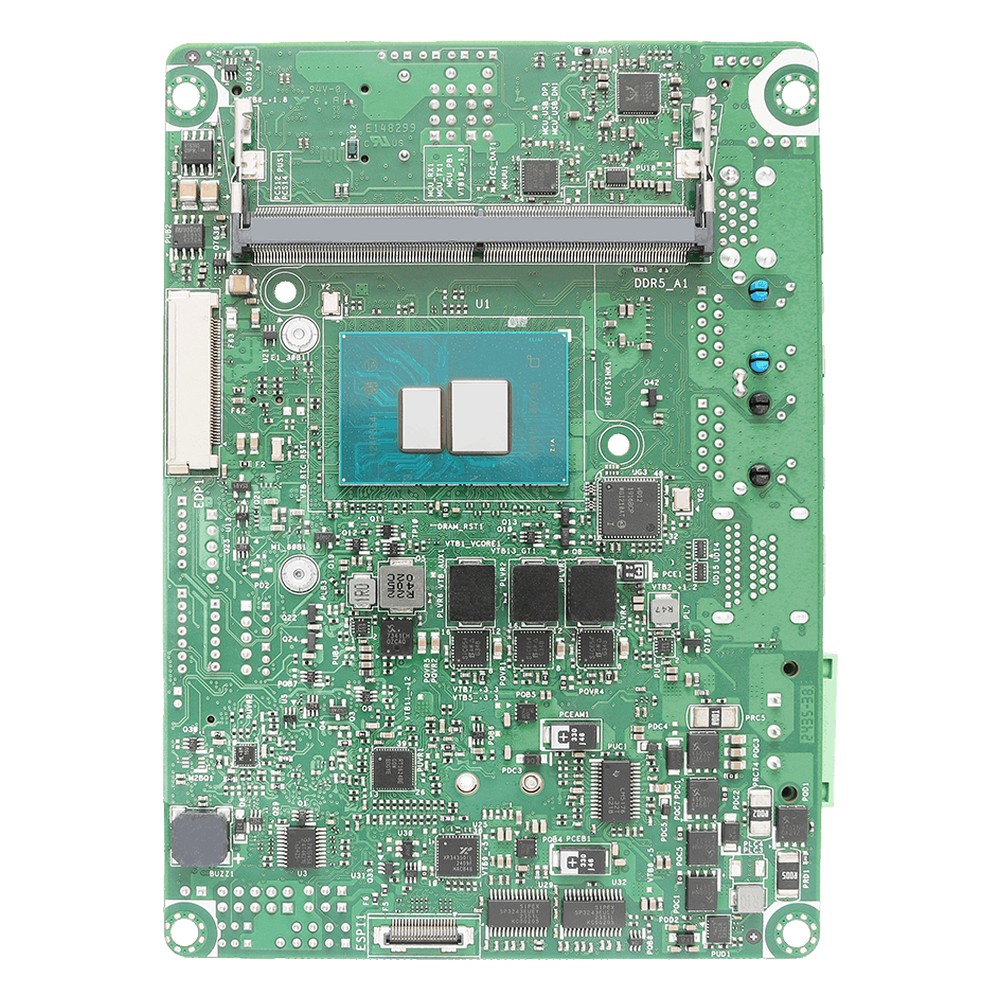

The Atom x7433RE is an Amston Lake quad-core processor running up to 3.4 GHz with a 9 W rating and Intel UHD graphics, and Intel TCC supports real-time workloads. One DDR5 4800 SO-DIMM socket takes up to 48 GB, and a TPM 2.0 chip is on board. The SBC-262M-WT runs Windows 11 and Linux.

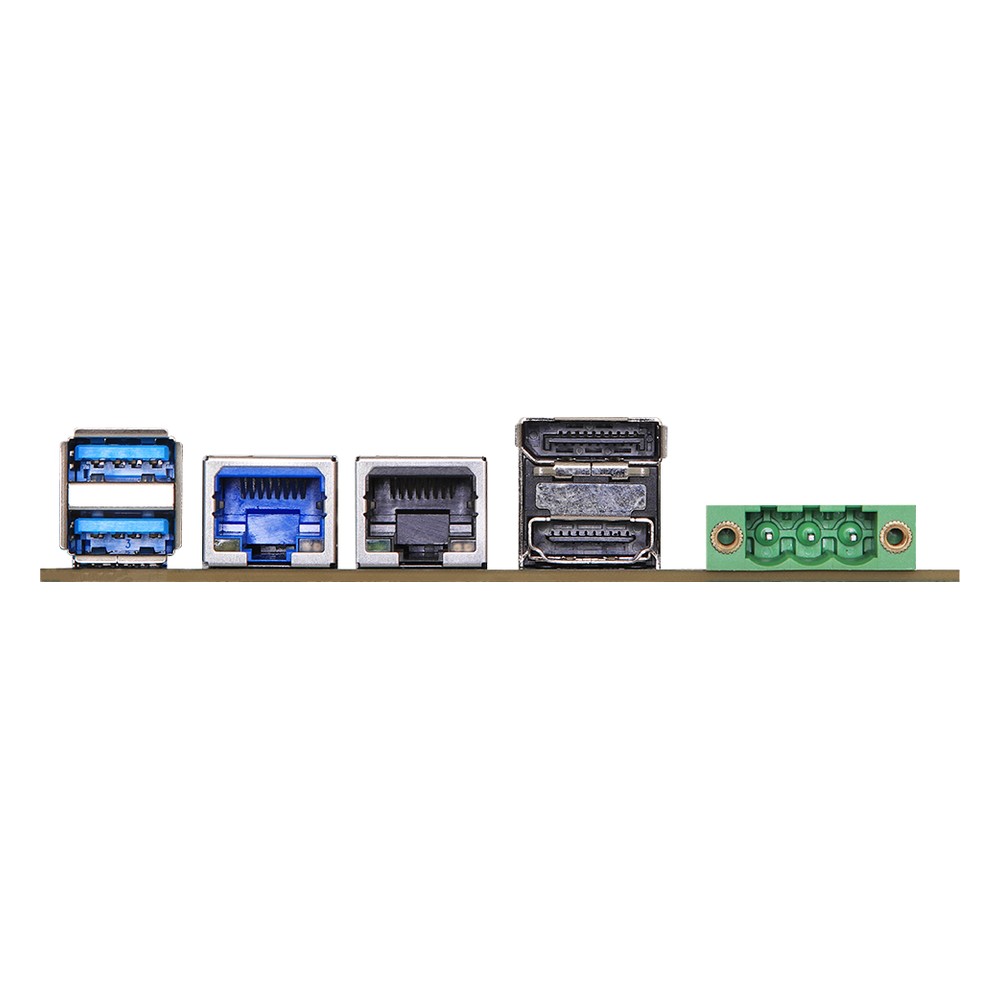

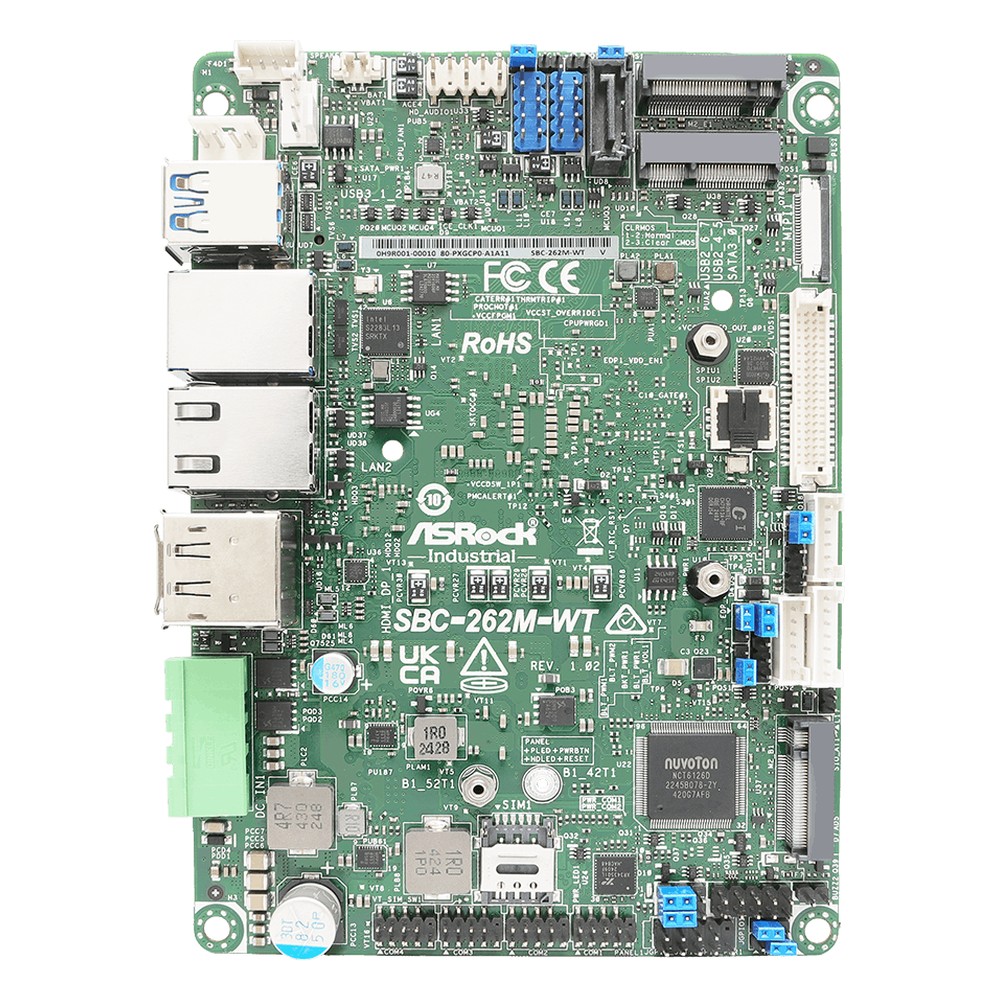

Networking is one Intel I226IT 2.5GbE port with TSN support and one Intel I210IT Gigabit port. Up to three displays run from HDMI 2.0b, DisplayPort 1.4b, dual-channel LVDS and a separate eDP 1.4b connector. Two USB 3.2 Gen 2 ports sit on the rear, and internal headers add four USB 2.0, two RS-232/422/485 COM ports, two RS-232 COM ports, four GPI and four GPO and a four-lane MIPI CSI-2 camera input. An M.2 E key takes optional Wi-Fi, an M.2 B key with SIM slot takes an optional 4G or 5G module, and storage is an M.2 M key socket with PCIe x1 Gen3 or SATA3 plus one SATA3 port.

Power is 9 to 36 V DC on a pluggable terminal block, with AT and ATX modes. Operating and storage temperature are both -40 °C to 85 °C, and the board carries CE and FCC marks. We supply the SBC-262M-WT configured and tested, with memory, storage and the OS image fitted. The SBC-265M-WT uses the same processor with six COM ports and two GbE, and the SBC-373V-WT brings a 13th Gen Core i3 to the same temperature range.
