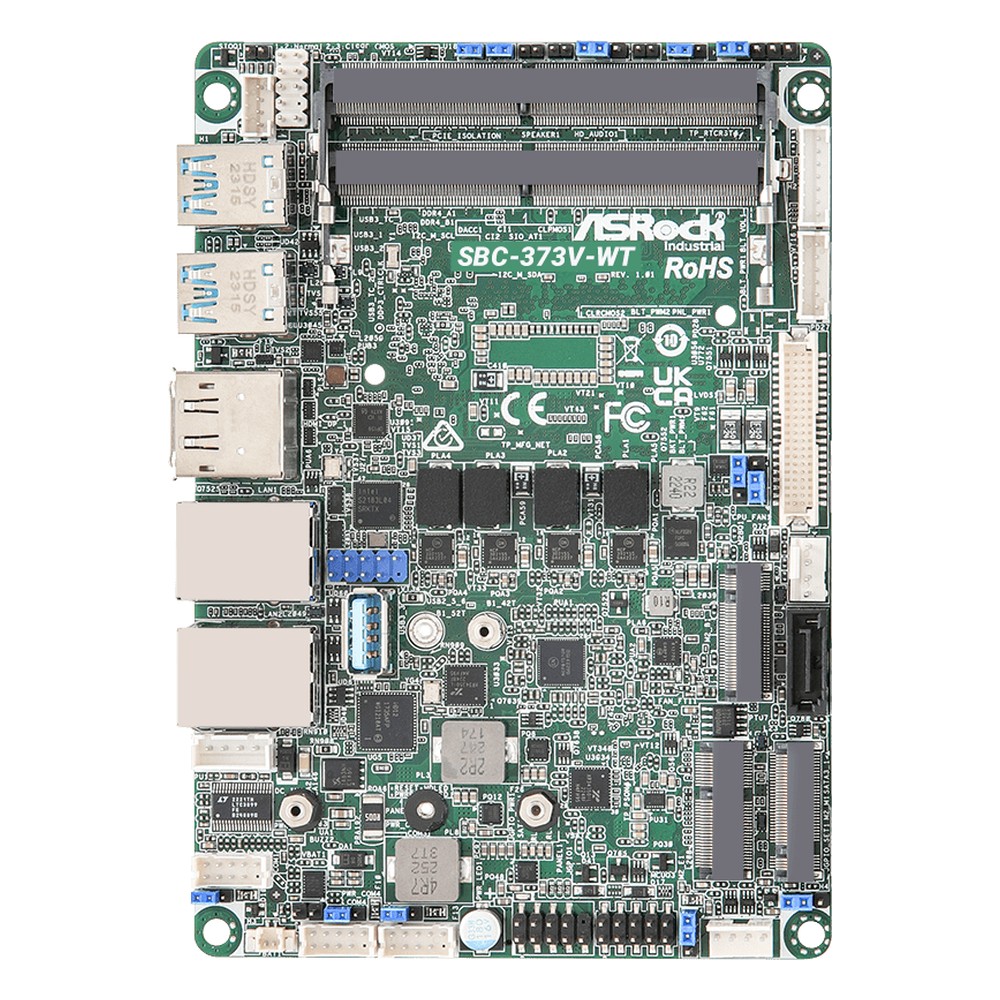

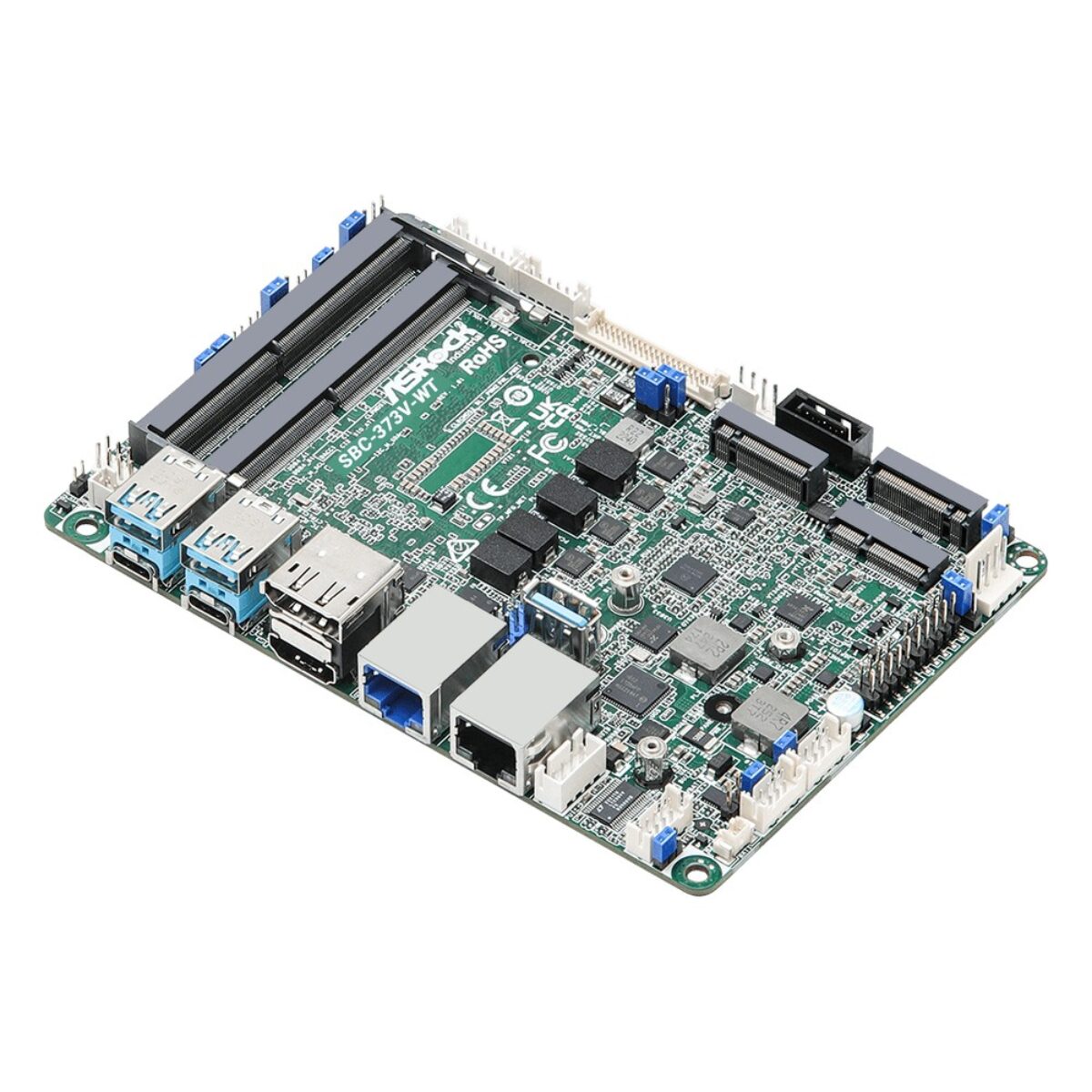

ASRock Industrial SBC-373V-WT Intel Core i3-1315URE Wide Temperature 3.5″ SBC with Quad Display and 2.5GbE

Outdoor signage and simple control panels often run light software but still face cold mornings and hot afternoons. The ASRock Industrial SBC-373V-WT is the Core i3 build of the SBC-373-WT series, giving those projects the same -40 °C to 85 °C 3.5″ SBC as its Core i5 and Core i7 siblings.

The Core i3-1315URE is a 13th Gen Raptor Lake-P processor with two P-cores and four E-cores, and ASRock Industrial lists Intel Iris Xe graphics for every model in the series. Two DDR4 3200 SO-DIMM sockets run in dual channel and take up to 64 GB. Intel vPro is not offered on this build, and a TPM 2.0 chip is on board. The SBC-373V-WT runs Windows 11 and Linux.

Networking is one Intel I226IT 2.5GbE port and one Intel I210IT Gigabit port. Up to four displays run from HDMI 2.0a, DisplayPort 1.4a, two USB 3.2 Gen 2×2 Type-C ports with DisplayPort, and LVDS or eDP. USB adds three USB 3.2 Gen 2 (one on an internal Type-A connector) and two internal USB 2.0, with three RS-232/422/485 COM ports and four GPI and four GPO. Expansion is a PCIe x1 Gen3 slot, an M.2 E key for optional Wi-Fi and Bluetooth, and an M.2 B key with SIM slot for an optional 4G or 5G module. Storage is an M.2 M key socket on PCIe x4 Gen4 and one SATA3 port, with Intel VMD RAID 0 and 1.

Power is 12 to 36 V DC on a four-pin wafer, with AT and ATX modes. Operating and storage temperature are both -40 °C to 85 °C, and the board carries CE and FCC marks. We supply the SBC-373V-WT configured and tested, with DDR4 memory, storage, the OS image and any wireless modules and antennas fitted. The SBC-373M-WT adds vPro with a Core i5-1345URE, and the SBC-265M-WT is an Atom x7433RE board with the same temperature rating.
