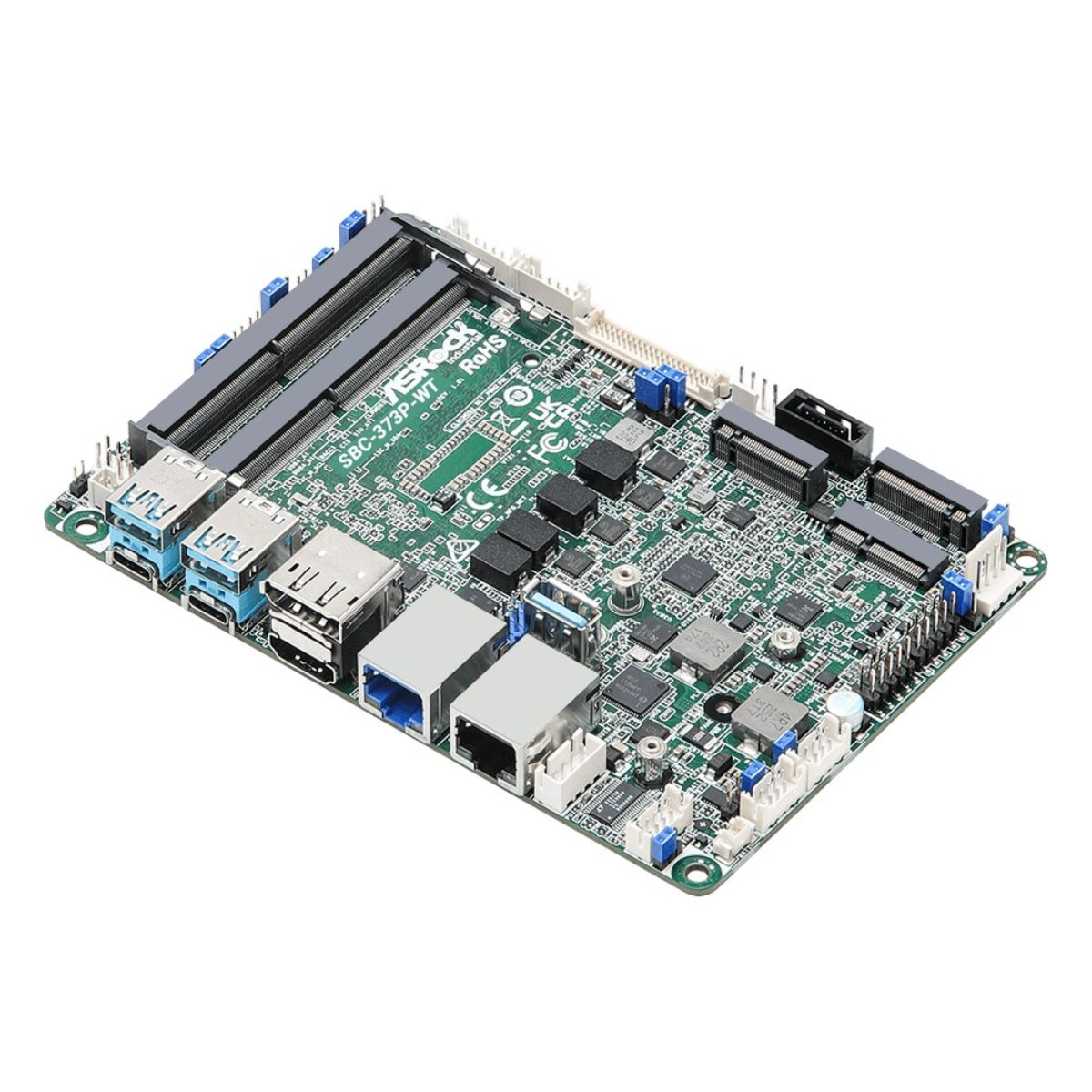

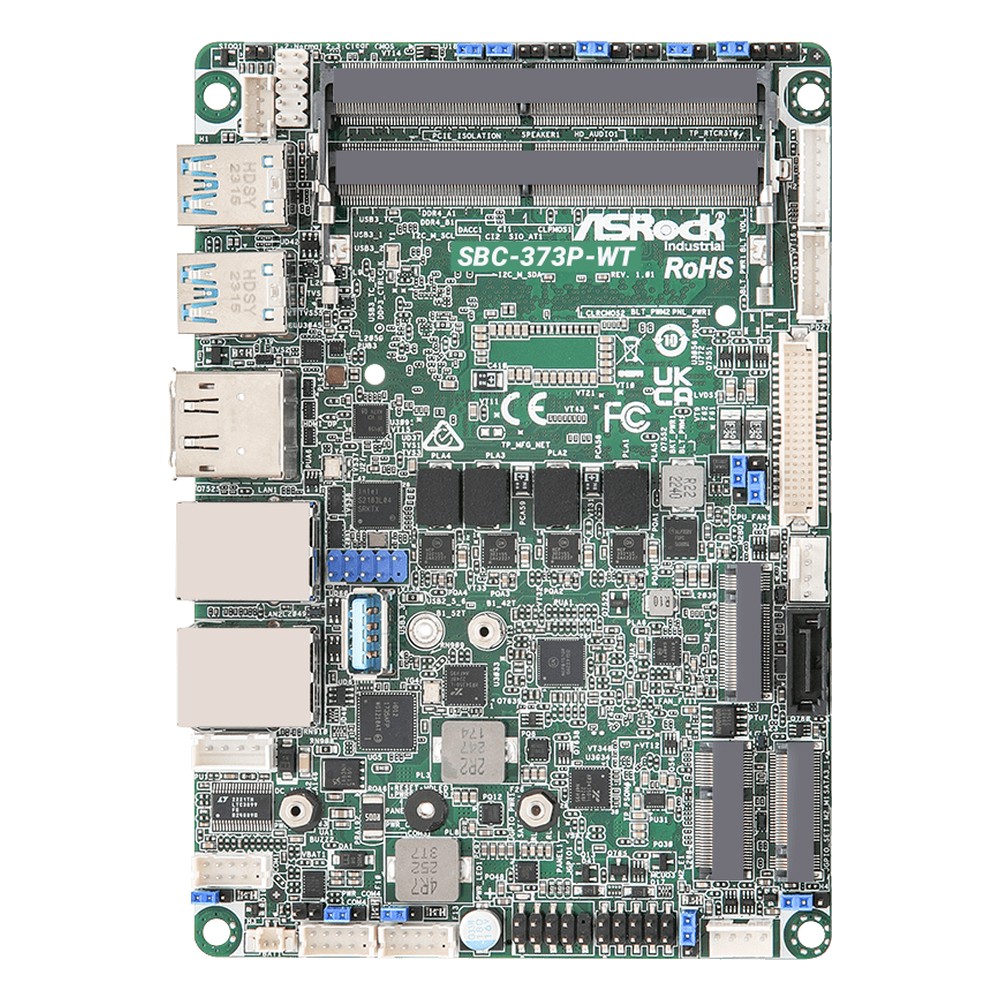

ASRock Industrial SBC-373P-WT Intel Core i7-1365URE Wide Temperature 3.5″ SBC with Quad Display and 2.5GbE

Outdoor cabinets, heavy industrial enclosures and unheated plant rooms ask a board to start cold and keep running hot. The ASRock Industrial SBC-373P-WT is the Core i7 build of the SBC-373-WT series, a wide temperature 3.5″ SBC rated from -40 °C to 85 °C that follows on from the SBC-371P.

The Core i7-1365URE is a 13th Gen Raptor Lake-P processor with two P-cores and eight E-cores and Intel Iris Xe graphics. Two DDR4 3200 SO-DIMM sockets run in dual channel and take up to 64 GB. Intel vPro is supported through the 2.5GbE port, and a TPM 2.0 chip is on board. The SBC-373P-WT runs Windows 11 and Linux.

Networking is one Intel I226IT 2.5GbE port and one Intel I210IT Gigabit port. Up to four displays run from HDMI 2.0a, DisplayPort 1.4a, two USB 3.2 Gen 2×2 Type-C ports with DisplayPort, and LVDS or eDP. USB adds three USB 3.2 Gen 2 (one on an internal Type-A connector) and two internal USB 2.0, with three RS-232/422/485 COM ports and four GPI and four GPO. Expansion is a PCIe x1 Gen3 slot, an M.2 E key for optional Wi-Fi and Bluetooth, and an M.2 B key with SIM slot for an optional 4G or 5G module. Storage is an M.2 M key socket on PCIe x4 Gen4 and one SATA3 port, with Intel VMD RAID 0 and 1.

Power is 12 to 36 V DC on a four-pin wafer, with AT and ATX modes. Operating and storage temperature are both -40 °C to 85 °C, and the board carries CE and FCC marks. We supply the SBC-373P-WT configured and tested, with DDR4 memory, storage, the OS image and any wireless modules and antennas fitted. The SBC-373M-WT keeps vPro with a Core i5-1345URE, and the SBC-373V-WT uses a Core i3-1315URE.
