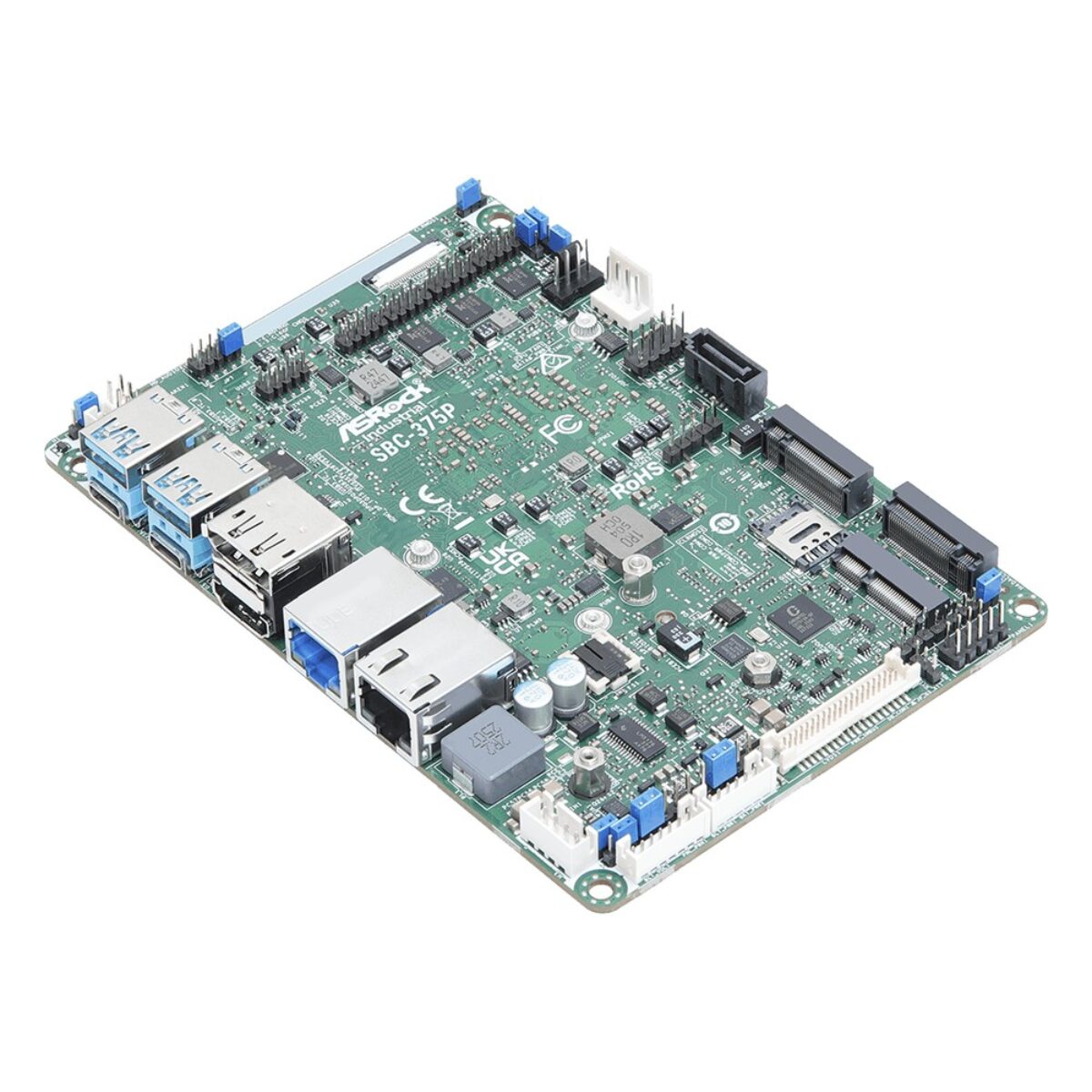

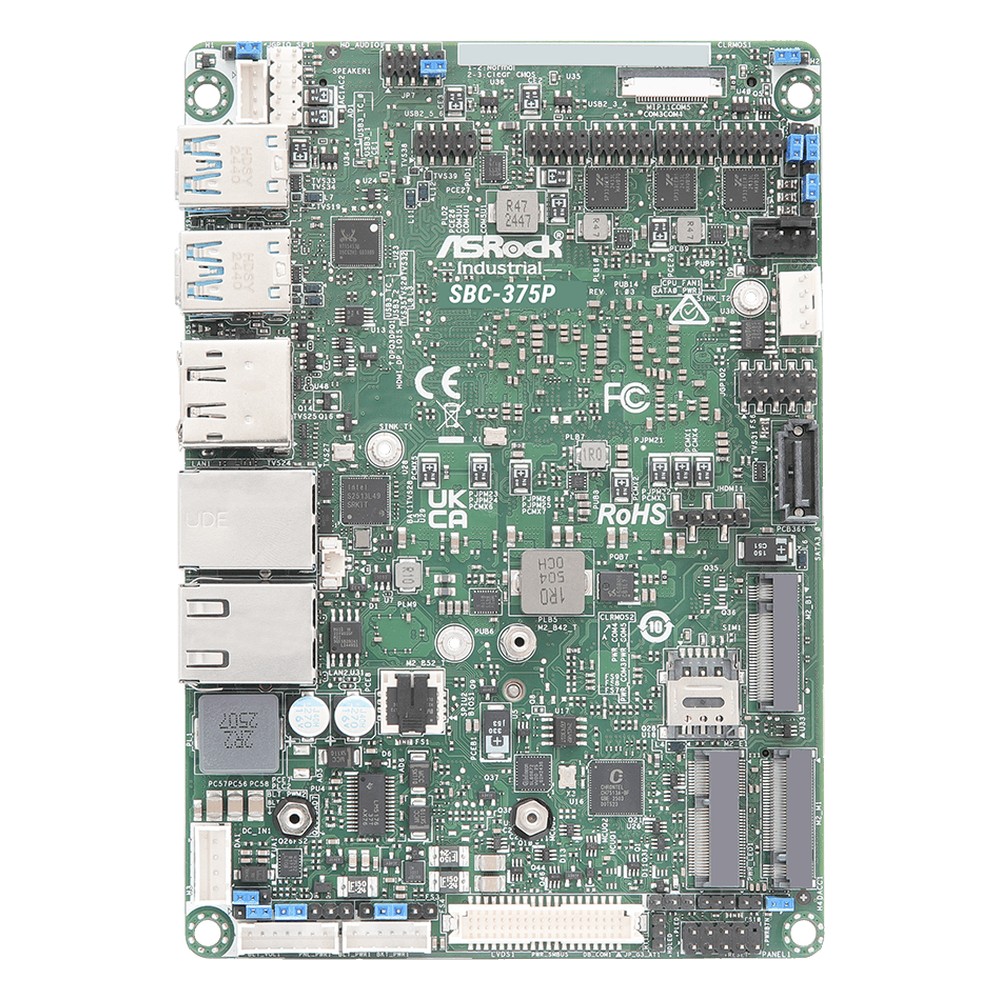

ASRock Industrial SBC-375P Intel Core Ultra 7 155H 3.5″ Single Board Computer with Quad Display and 2.5GbE

Equipment builders following on from the SBC-371P often want more graphics and a camera input in the same 3.5″ form factor. The ASRock Industrial SBC-375P answers that in the SBC-375 series: a 3.5″ single board computer with an Intel Core Ultra 7 155H, a PCIe x1 slot and a MIPI CSI-2 camera header.

The Core Ultra 7 155H is a Meteor Lake-H processor with six P-cores and eight E-cores, Intel Arc graphics and an NPU rated at 11 TOPS for lighter inference alongside the application. One DDR5 SO-DIMM socket runs at 5600 MHz and takes up to 48 GB. Intel vPro is supported through the 2.5GbE port, and a TPM 2.0 chip is on board. The SBC-375P runs Windows 11 and Linux.

Networking is one Intel I226LM 2.5GbE port and one Intel I210AT Gigabit port. Up to four displays run from HDMI 2.1, DisplayPort 1.4a, two USB 3.2 Gen 2×2 Type-C ports with DisplayPort, and LVDS or eDP. Two USB 3.2 Gen 2 ports sit on the rear, with four USB 2.0, three RS-232/422/485 COM ports, four GPI and four GPO and a four-lane MIPI CSI-2 camera header inside. Expansion is a PCIe x1 Gen3 slot, an M.2 E key for optional Wi-Fi and Bluetooth, and an M.2 B key with SIM slot for an optional 4G or 5G module. Storage is two M.2 M key sockets on PCIe x4 Gen4 and one SATA3 port, with Intel VMD RAID 0 and 1.

Power is 12 to 36 V DC on a four-pin wafer, with AT and ATX modes. The board is rated from -20 °C to 70 °C operating and -40 °C to 85 °C storage, and carries CE and FCC marks. We supply the SBC-375P configured and tested, with DDR5 memory, storage, the OS image and any wireless modules and antennas fitted. The SBC-375M keeps the same I/O with a Core Ultra 5 125H, and the SBC-377P moves to Panther Lake with In-Band ECC.
