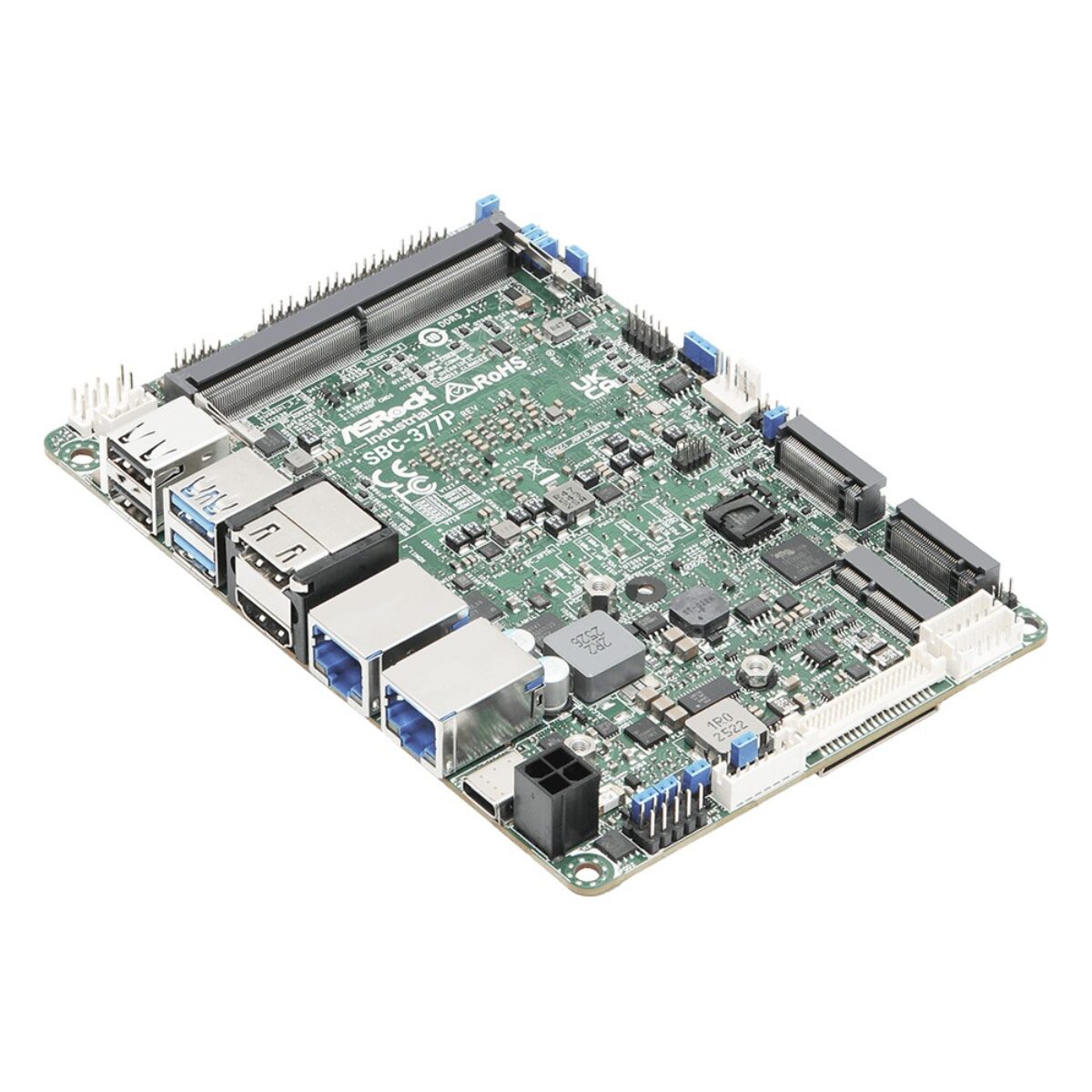

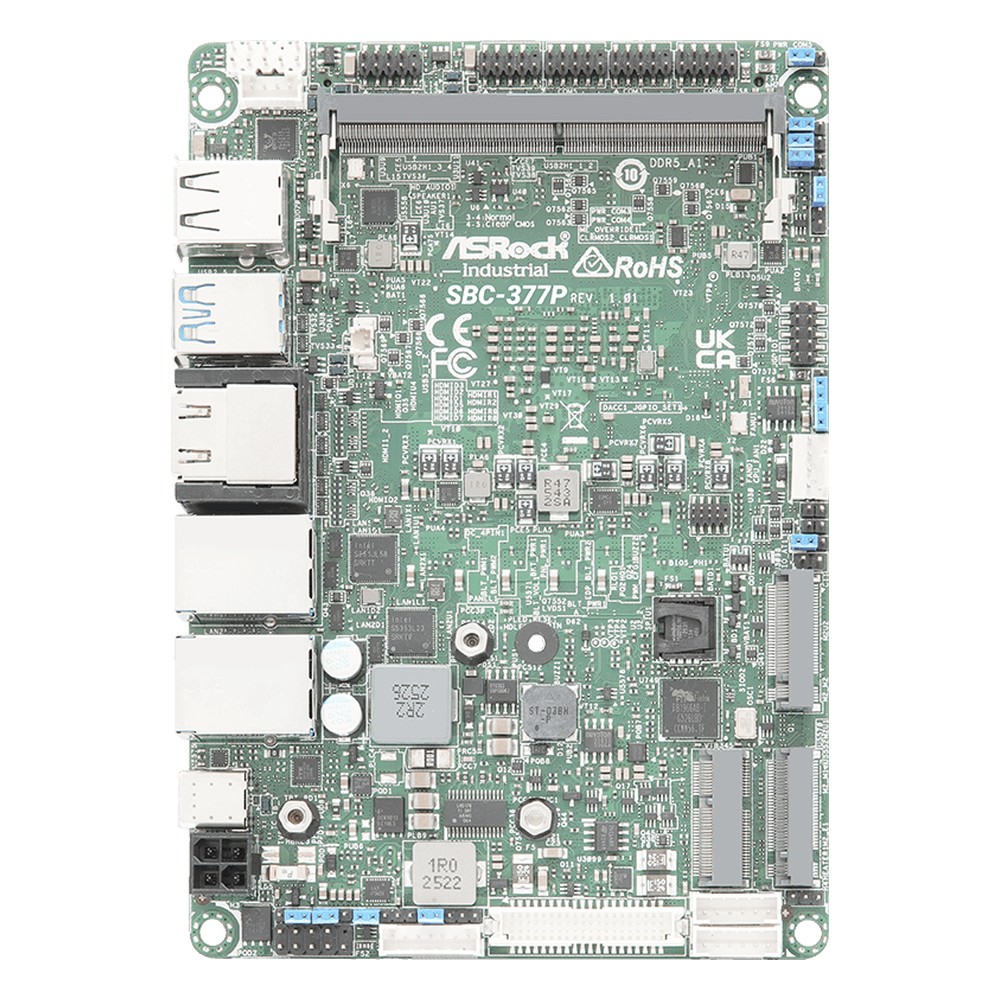

ASRock Industrial SBC-377P Intel Core Ultra X7 358H 3.5″ SBC with Arc B390, ECC and Dual 2.5GbE

Vision cells, multi-screen signage and edge AI equipment increasingly ask a single board for local inference as well as control and display work. The ASRock Industrial SBC-377P is the higher-performance build of the SBC-377 series, pairing an Intel Core Ultra X7 358H with In-Band ECC memory support on a 3.5″ SBC.

The Core Ultra X7 358H is a Panther Lake-H processor with 16 cores (four P-cores, eight E-cores and four LP E-cores) and an NPU rated at 50 TOPS. Two DDR5 SO-DIMM sockets run at 7200 MHz in dual channel and take up to 128 GB, and Intel In-Band ECC is supported, so the SBC-377P can hold vision models and application code in error-checked memory. Windows 11 and Linux are supported.

Networking is two Intel 2.5GbE ports on I226LM and I226V controllers. Up to four displays run at once from two HDMI 2.1 outputs, DisplayPort 1.4a through the USB 3.2 Gen 2×2 Type-C port, LVDS or eDP, and a second eDP 1.5 connector. The rear adds two USB 3.2 Gen 2 and two USB 2.0 ports, with four more USB 2.0, three RS-232/422/485 COM ports and four GPI and four GPO on internal headers. Storage is two M.2 M key sockets, one on PCIe x4 Gen5 and one on PCIe x4 Gen4, with Intel VMD RAID 0 and 1, and an M.2 E key socket takes an optional Wi-Fi and Bluetooth module.

Power is 12 to 36 V DC on a four-pin wafer, or up to 100 W USB Power Delivery through the Type-C port, with AT and ATX modes. The board is rated from -20 °C to 70 °C operating and -40 °C to 85 °C storage, and carries CE and FCC marks. We supply the SBC-377P configured and tested, with DDR5 memory, NVMe storage, the OS image and the heat spreader fitted. The SBC-377E uses the same board with a Core Ultra 5 325, and the SBC-375P adds a PCIe x1 slot and an M.2 B key for 4G or 5G.
