Avalue EPX-ASLP Intel N97 and Atom x7433RE Pico-ITX Single Board Computers with Dual 2.5GbE and Extended Temperature Options

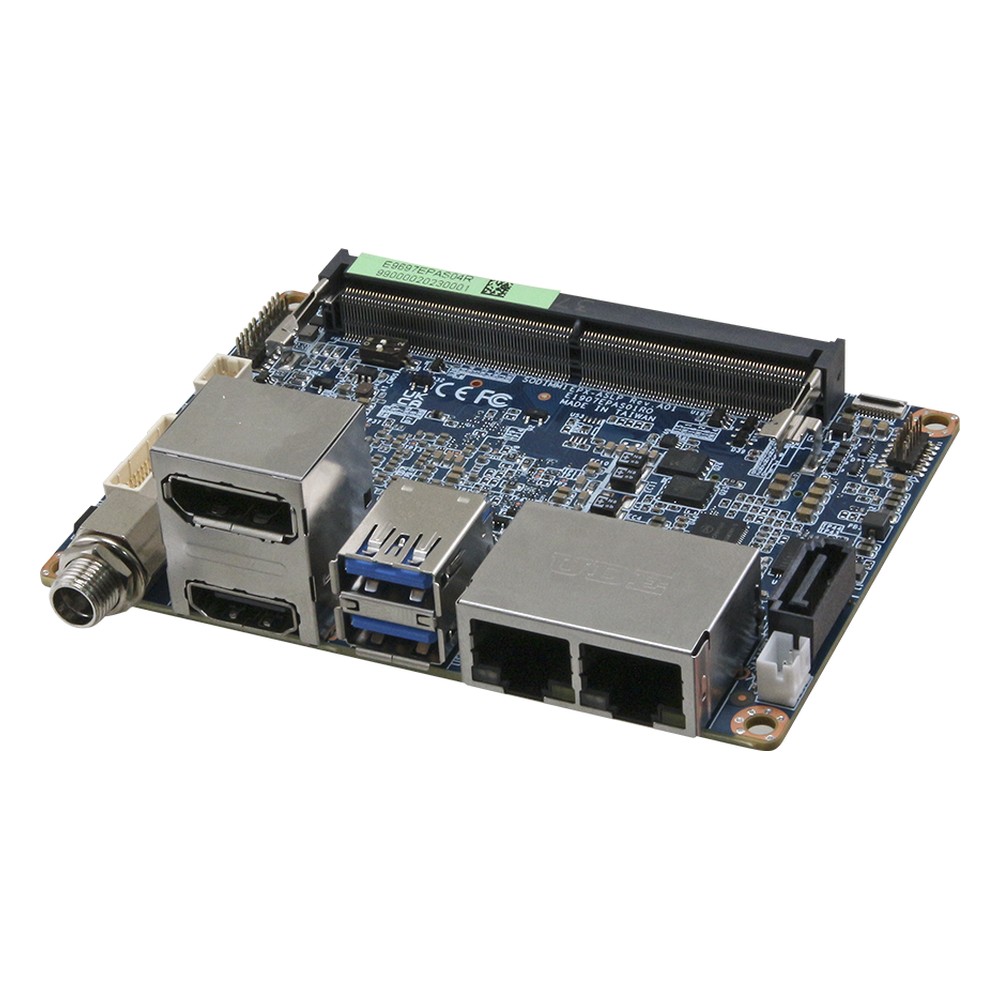

The Avalue EPX-ASLP series is a family of 2.5" Pico-ITX single board computers on two quad-core Intel processors: the Intel N97 (Alder Lake-N) and the extended-temperature Atom x7433RE (Amston Lake). Each 100 x 72 mm board pairs DDR5 memory with dual 2.5GbE, three displays, two COM ports and M.2 sockets for an SSD, 4G and Wi-Fi. The EPX-ASLP series suits signage, kiosks, compact HMIs and outdoor or industrial controllers.
- Quad-Core Intel N97 or Atom x7433RE: Alder Lake-N at 12 W for indoor equipment or Amston Lake at 9 W for extended-temperature builds, both with Intel UHD Graphics.
- DDR5 on a 2.5″ Pico-ITX Board: One DDR5 4800 MHz SO-DIMM slot for up to 16 GB on a 100 x 72 mm board with the processor soldered underneath.
- Dual 2.5GbE: Two RJ45 ports on Intel I226 controllers separate a device or camera network from the site uplink.
- Triple Display at 4K: DisplayPort 1.4a and HDMI 2.0b at up to 4096 x 2160 at 60 Hz, plus internal LVDS for a local panel.
- Two COM Ports and M.2 Expansion: RS-232 and RS-232/422/485 headers, 4-bit GPIO, M.2 B-key with SIM for an SSD or 4G, and M.2 E-key for Wi-Fi.
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 4G
- Wi-Fi
- CE
- FCC
- Extended Temp
EPX-ASLP Description
Small enclosures leave little room for a board, and even less for one that has to work in an unheated cabinet. The Avalue EPX-ASLP series answers both on a 100 x 72 mm footprint: 2.5″ Pico-ITX single board computers with current Intel quad-core processors, DDR5 memory, dual 2.5GbE and three displays, with one build rated for -40 to 80 °C operation.

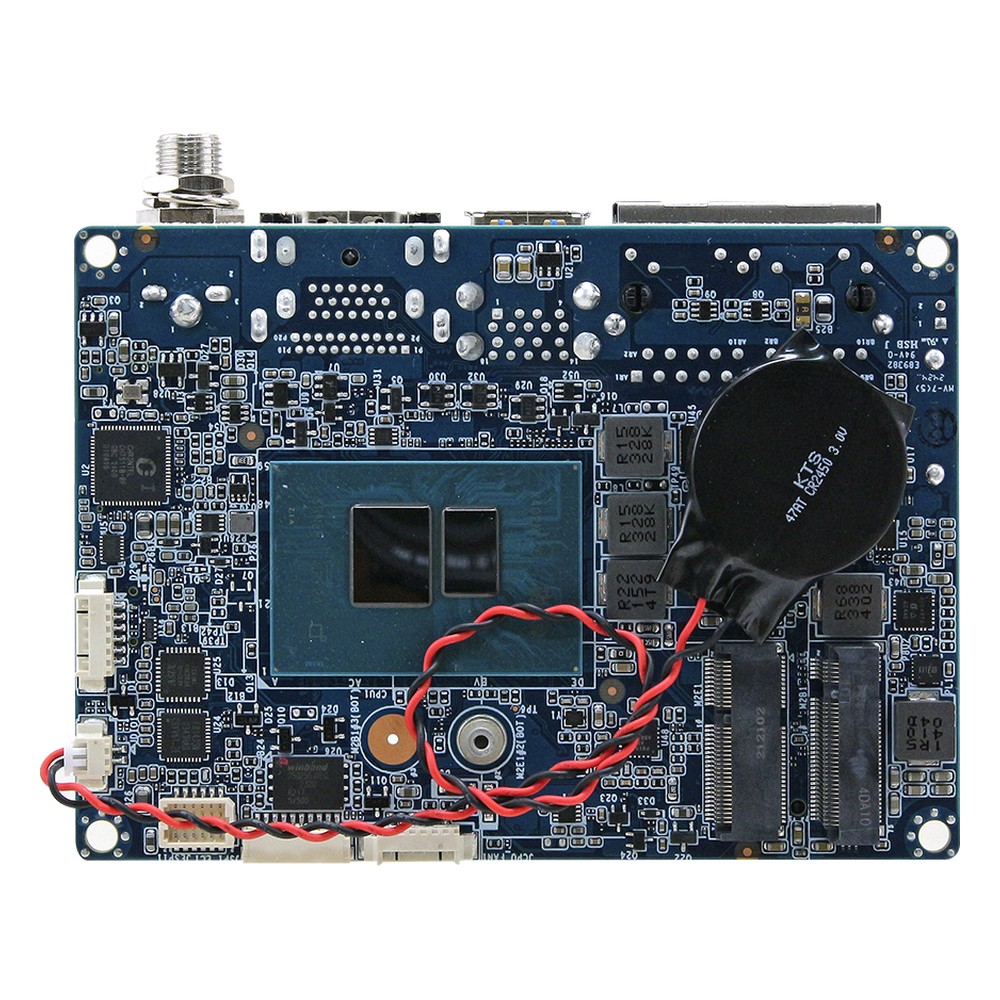

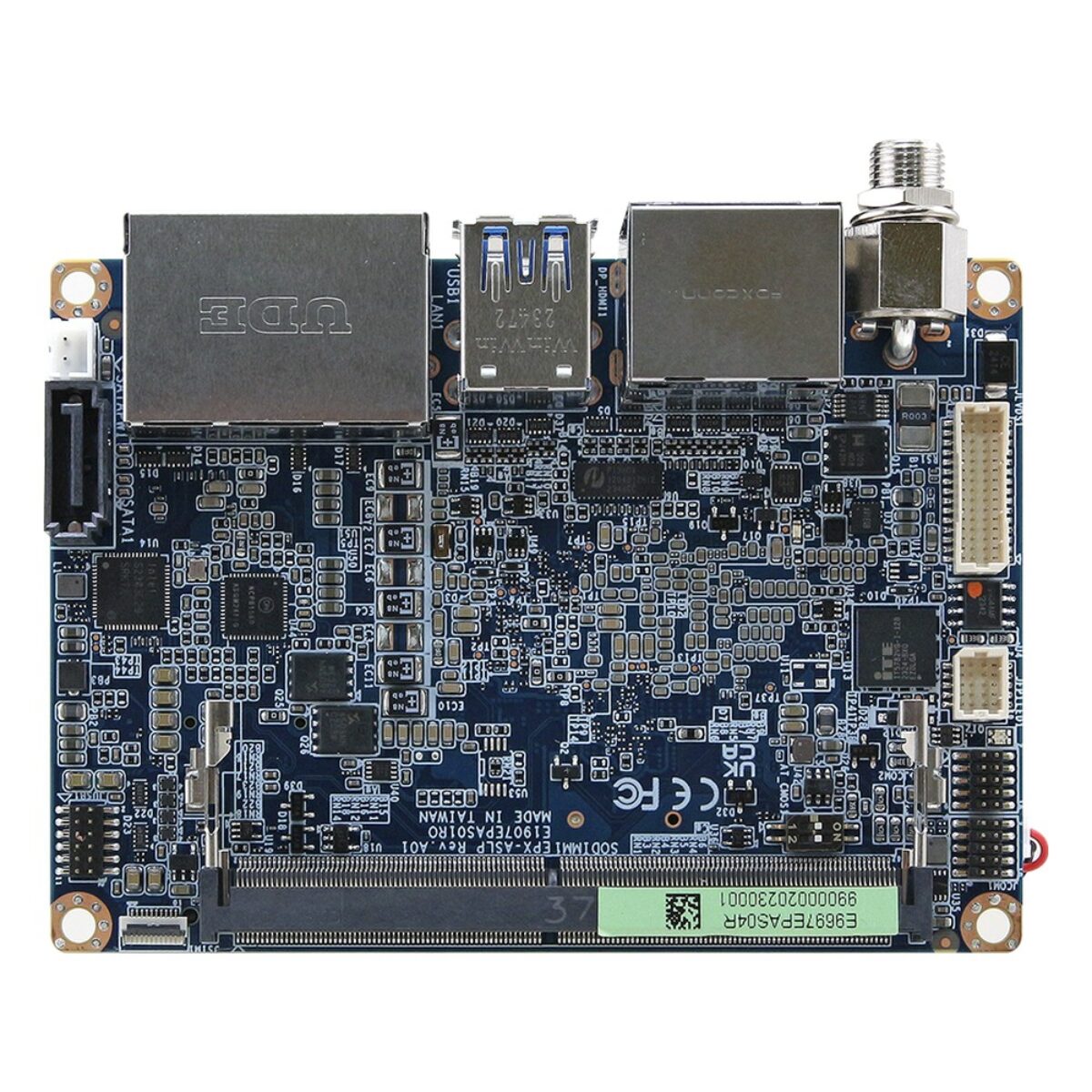

Both boards solder the processor to the underside and pair it with one 262-pin DDR5 4800 MHz SO-DIMM slot for up to 16 GB. Intel UHD Graphics drive DisplayPort 1.4a and HDMI 2.0b, each at up to 4096 x 2160 at 60 Hz, plus an internal single-channel 18/24-bit LVDS connector for panels up to 1366 x 768. Firmware TPM, a hardware watchdog and an AMI BIOS with AT or ATX power modes are common to the series, and Avalue lists Windows 11 and Linux support.
The EPX-ASLP-N97-A1R uses the quad-core Intel N97 from the Alder Lake-N family at 12 W, rated from 0 to 60 °C and able to run fanless with 0.5 m/s airflow, with Intel I226V Ethernet. The EPX-ASLP-7433-A1R moves to the quad-core Intel Atom x7433RE, an Amston Lake processor at 9 W, with Intel I226IT Ethernet and a -40 to 80 °C operating range using a CPU cooler and 0.5 m/s airflow. Choose the N97 for indoor equipment and the x7433RE where the cabinet sees frost or summer heat.

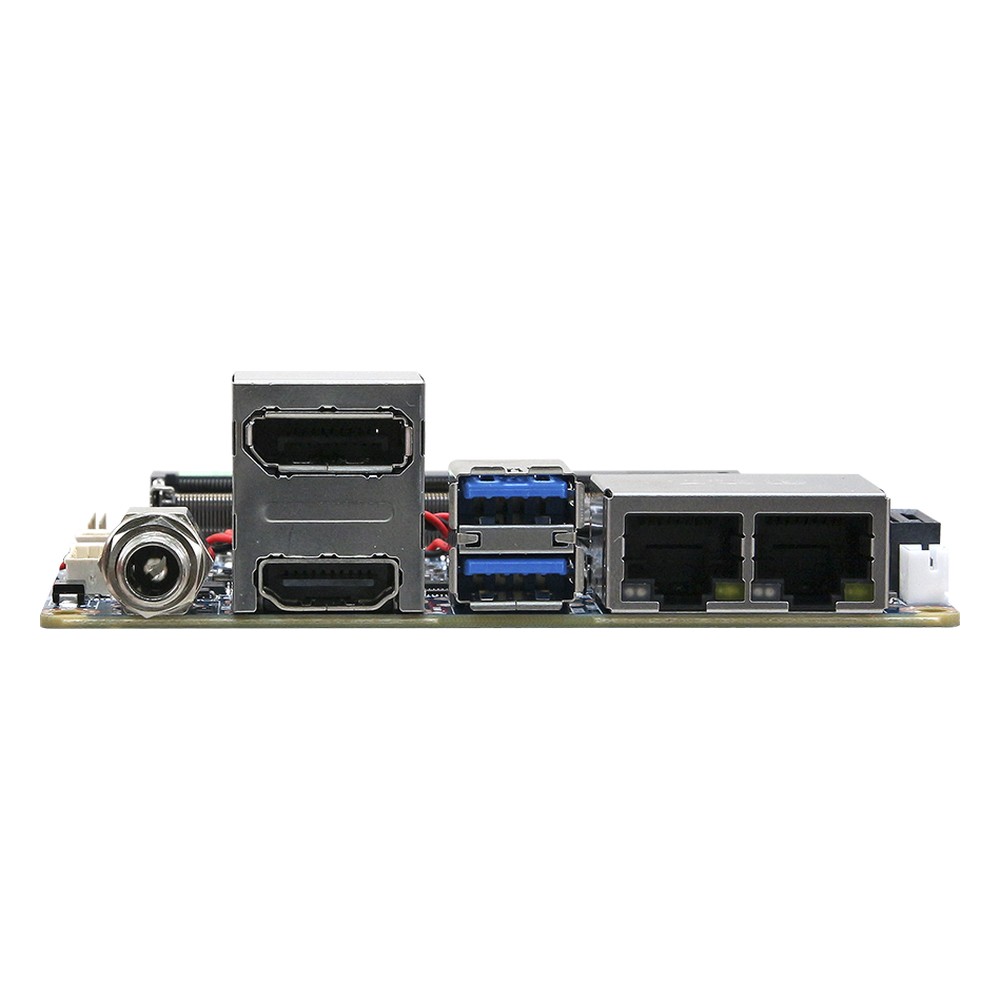

Rear I/O includes two RJ45 ports at 2.5GbE, two USB 3.2 Gen 2 Type-A ports, DisplayPort and HDMI, with a lockable 12 V DC jack. Internal headers add four USB 2.0 ports, one RS-232 port, one RS-232/422/485 port and 4-bit GPIO. The M.2 B-key socket in 2242 or 3042 size carries PCIe x1, USB 3.2 Gen 1 or SATA with a SIM slot, so it takes an SSD or a 4G modem, and an M.2 E-key 2230 socket takes Wi-Fi. One SATA III port adds a 2.5″ drive.
Every EPX-ASLP board carries CE, FCC, UKCA and RoHS compliance, weighs 0.3 kg and handles 10 to 95% non-condensing humidity. The series suits digital signage, kiosks, building controls and light industrial machines, and the extended-temperature build takes the same design into outdoor cabinets and heavier industrial sites.
EPX-ASLP Specifications
| Overview | |
|---|---|
| Brand & Model | Avalue EPX-ASLP |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | See Variant Specifications |
| Processor Models | See Variant Specifications |
| Performance Cores | 4 Cores |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| BIOS | AMI |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.0b |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI 1x LVDS |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | See Variant Specifications |
| USB | 6x USB Ports |
| 2x USB 3.2 Gen 2 [Type A] 4x USB 2.0 [Board] | |
| Serial | 2x Serial Ports |
| 1x RS232 [Board] 1x RS232/422/485 [Board] | |
| GPIO | GPIO [4-lines] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/SATA/SIM] [2242/3042] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| Wireless Connectivity | Optional 4G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| Power | |
| Power Input | 12V DC [Barrel Connector] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | See Variant Specifications |
| Storage Temperature | -40°C to 75°C [-40°F to 167°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Weight | 0.3 Kg (0.7 Lbs) |
| Dimensions | 100mm x 72mm (3.94" x 2.83") |
No specifications match your search.
See product variants.
EPX-ASLP Variants
Avalue EPX-ASLP-N97-A1R Intel N97 Pico-ITX Single Board Computer with Dual 2.5GbE and Triple Display
EPX-ASLP with quad-core Intel N97, dual 2.5GbE and triple display
| Overview | |
|---|---|
| Brand & Model | Avalue EPX-ASLP-N97-A1R |
| Performance | |
| Processor Series | Processor N Series Alder Lake |
| Processor Models | N97 |
| I/O | |
| LAN Controllers | Intel I226V |
| Environmental Conditions | |
| Operating Temperature | 0°C to 60°C [32°F to 140°F] |
Avalue EPX-ASLP-7433-A1R Intel Amston Lake Atom x7433RE 2.5″ Pico-ITX SBC with Dual 2.5GbE and Extended Temperature
EPX-ASLP with Intel Atom x7433RE, dual 2.5GbE and -40 to 80 °C
| Overview | |
|---|---|
| Brand & Model | Avalue EPX-ASLP-7433-A1R |
| Performance | |
| Processor Series | Atom X Series Amston Lake |
| Processor Models | x7433RE |
| I/O | |
| LAN Controllers | Intel I226IT |
| Environmental Conditions | |
| Operating Temperature | -40°C to 80°C [-40°F to 176°F], Extended Temperature |
