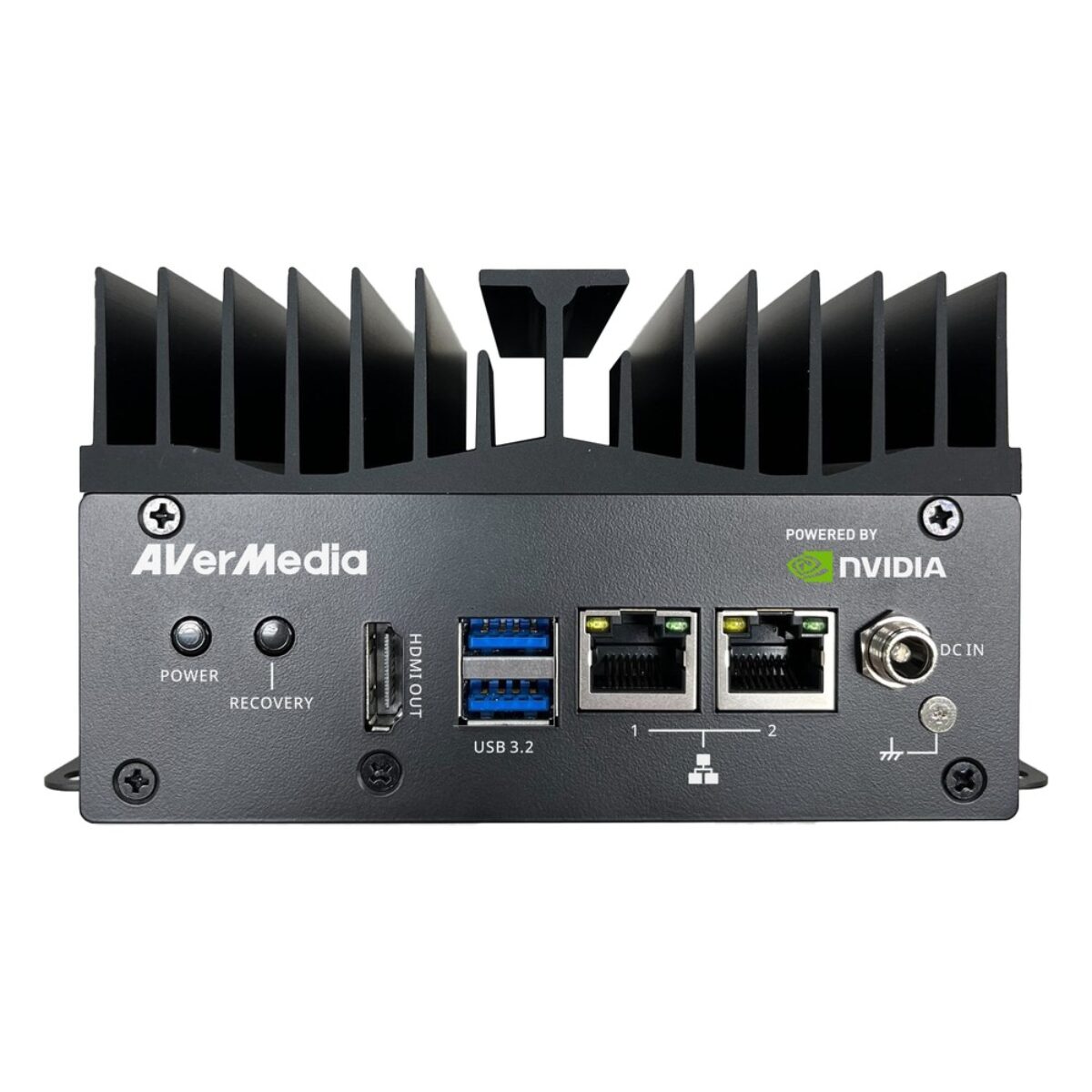

AVerMedia D115WONB NVIDIA Jetson Orin Nano Rugged Fanless PC with Dual GbE, PoE Options and Extended Temperature

A single-camera analytics job in a cold cabinet does not always justify an Orin NX, but it still needs a unit that starts reliably at -25 °C. The AVerMedia D115WONB is a rugged fanless PC with a Jetson Orin Nano 8GB, and it is the Orin Nano box in the D115W series. It is built on the D115W carrier board, and the D115WOXB is the same box with an Orin NX module when more models or streams are planned.

The D115WONB is supplied with a Jetson Orin Nano 8GB module, rated by NVIDIA at up to 40 TOPS. In practice that suits one or two camera streams running detection, counting or plate recognition. Two internal MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. AVerMedia publishes board support packages for JetPack 5 and JetPack 6.2, on Ubuntu 20.04 and 22.04, so the software stack matches the Orin NX builds in the series.

Two GbE RJ45 ports handle cameras and uplink, and Ethernet 1 can take an optional PoE board so a nearby camera runs from the network cable. One HDMI output drives a 4K display at 30 Hz, and three USB 3.2 Gen 2 Type-A ports include one inside the enclosure. A 256GB NVMe SSD fills the M.2 M-key 2280 socket, an M.2 E-key 2230 socket takes an optional Wi-Fi and Bluetooth card, and the 20-pin terminal-block header carries CAN, two UARTs, two I2C buses and four GPIO lines.

The D115WONB runs fanless from -25 °C to 60 °C, with storage from -40 °C to 85 °C and up to 95% humidity at 40 °C, non-condensing. Power is 9-24 V DC through a DC jack or a 4-pin ATX header, and AVerMedia lists CE, FCC and KC marks. We supply it with the Orin Nano module fitted, JetPack flashed and the SSD installed, with any optional PoE board, Wi-Fi card and antennas fitted, then test it before it ships.
