AVerMedia D115W NVIDIA Jetson Orin NX and Orin Nano Rugged Fanless PCs and Carrier Board

Cabinets on a roadside or a car park are rarely heated, and a fanless edge AI unit that only starts above freezing is little use there. The AVerMedia D115W series is the second-generation D115 design, built to run from -25 °C to 60 °C in its boxed form and from -40 °C to 85 °C as a bare board. The D115W series also widens the input to 9-24 V DC and adds optional PoE, so a camera can draw power from the same unit that analyses its video, which saves a separate PoE injector in the cabinet.

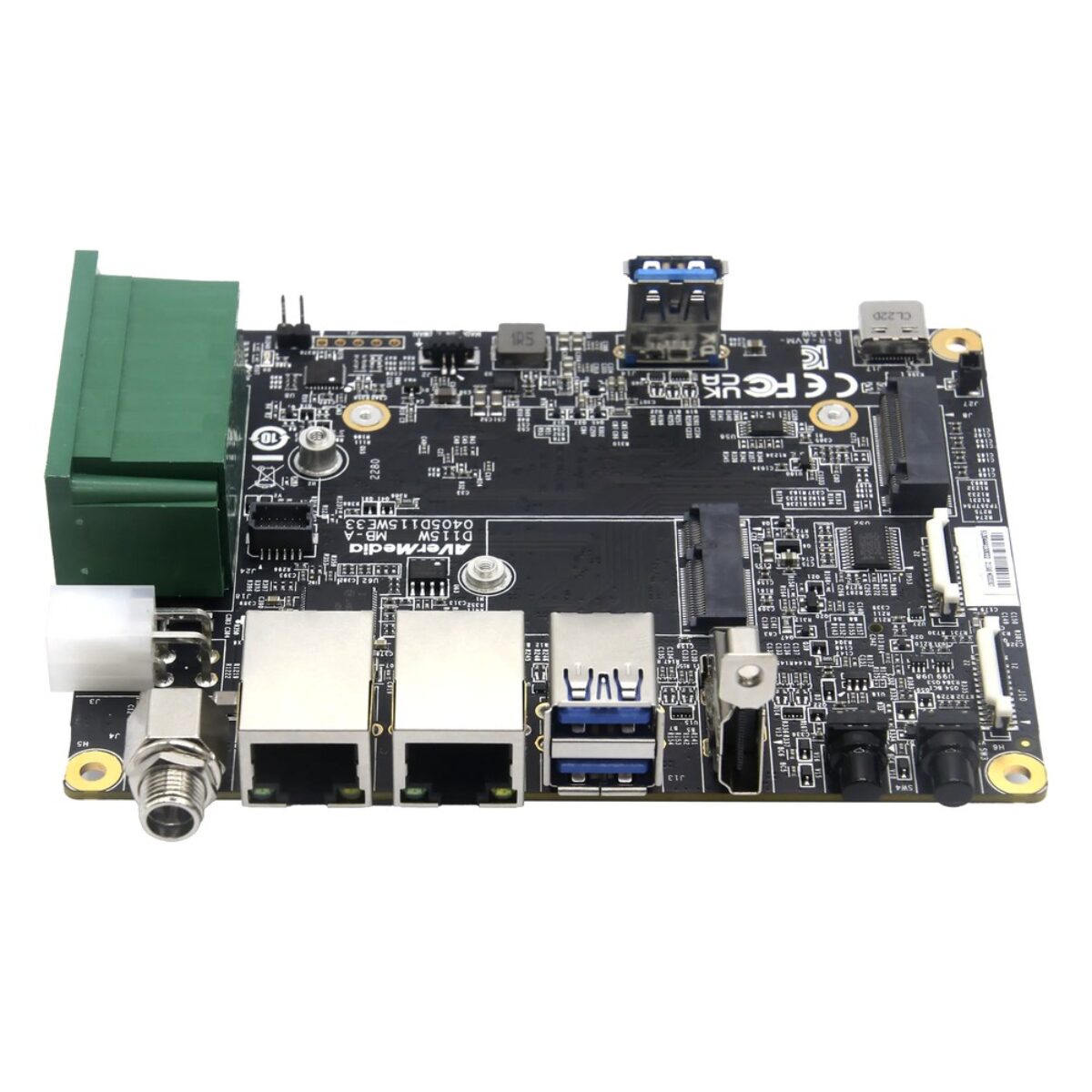

Every D115W product shares one board design. Two MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, give embedded cameras more bandwidth than the original D115. Two GbE RJ45 ports handle cameras and uplink, with optional PoE on Ethernet 1. One HDMI output runs at 4K, three USB 3.2 Gen 2 Type-A ports cover peripherals and USB-C handles recovery. M.2 M-key 2280 and E-key 2230 sockets take NVMe storage and optional Wi-Fi, and a 20-pin terminal-block header carries CAN, two UARTs, two I2C buses and four GPIO lines. AVerMedia publishes board support packages for JetPack 5 and JetPack 6.2, on Ubuntu 20.04 and 22.04.

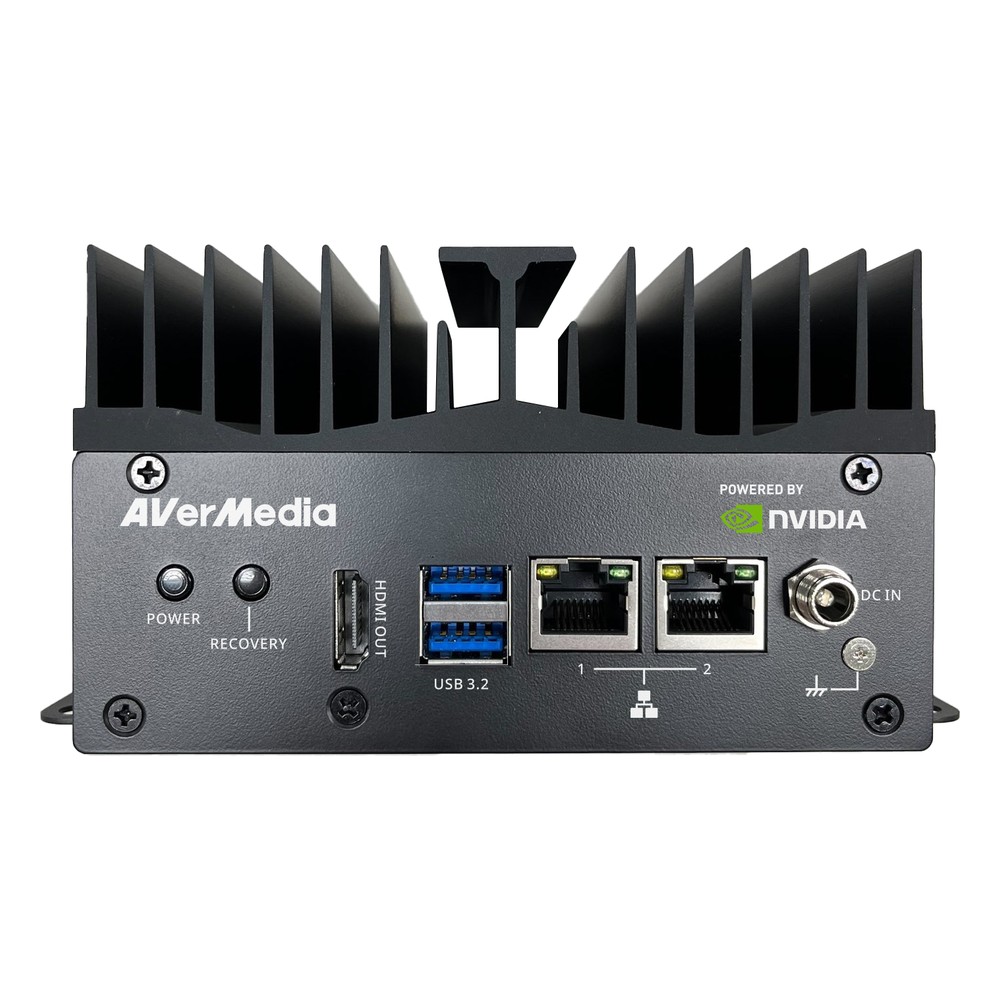

The D115W range covers two finished boxes and the board itself. The D115WOXB is the rugged fanless PC with a Jetson Orin NX 16GB or 8GB, rated at up to 100 TOPS or 70 TOPS, and 4K output at 60 Hz. The D115WONB is the same box with an Orin Nano 8GB at up to 40 TOPS and 4K output at 30 Hz, for single-camera analytics. The D115W is the bare carrier board, rated from -40 °C to 85 °C, for OEM products and custom enclosures, with an optional heatsink and fan.

In practice the D115W series suits roadside and junction cabinets, retail ceilings, security enclosures and OEM vision equipment. The boxes run fanless from -25 °C to 60 °C, with storage from -40 °C to 85 °C, and every product takes 9-24 V DC through a DC jack or 4-pin ATX header. AVerMedia lists CE, FCC and KC marks. Where a site also needs a cellular link or remote recovery, the D115W-1 series adds headers for both as options.
