AVerMedia D115W-1 NVIDIA Jetson Orin NX and Orin Nano Fanless Industrial PCs with 4G/5G Options

An edge AI unit at a remote site is only as useful as your ability to reach it. When there is no wired network, or when the software hangs at three in the morning, a site visit is expensive. The AVerMedia D115W-1 series builds on the D115W design with connectors for an optional 4G or 5G daughter board and headers for an optional Allxon out-of-band module, which gives remote power cycling and a cloud serial console.

Every D115W-1 product shares one board. Two MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. Two GbE RJ45 ports handle cameras and uplink, with optional PoE on Ethernet 1 and out-of-band traffic over NC-SI on Ethernet 2. One HDMI output runs at 4K, two USB 3.2 Gen 2 Type-A ports cover peripherals and USB-C handles recovery. M.2 M-key 2280 and E-key 2230 sockets take NVMe storage and optional Wi-Fi, and the 20-pin header carries CAN, two I2C buses, four GPIO lines and two UARTs, which are not available while the OOB module is fitted. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04.

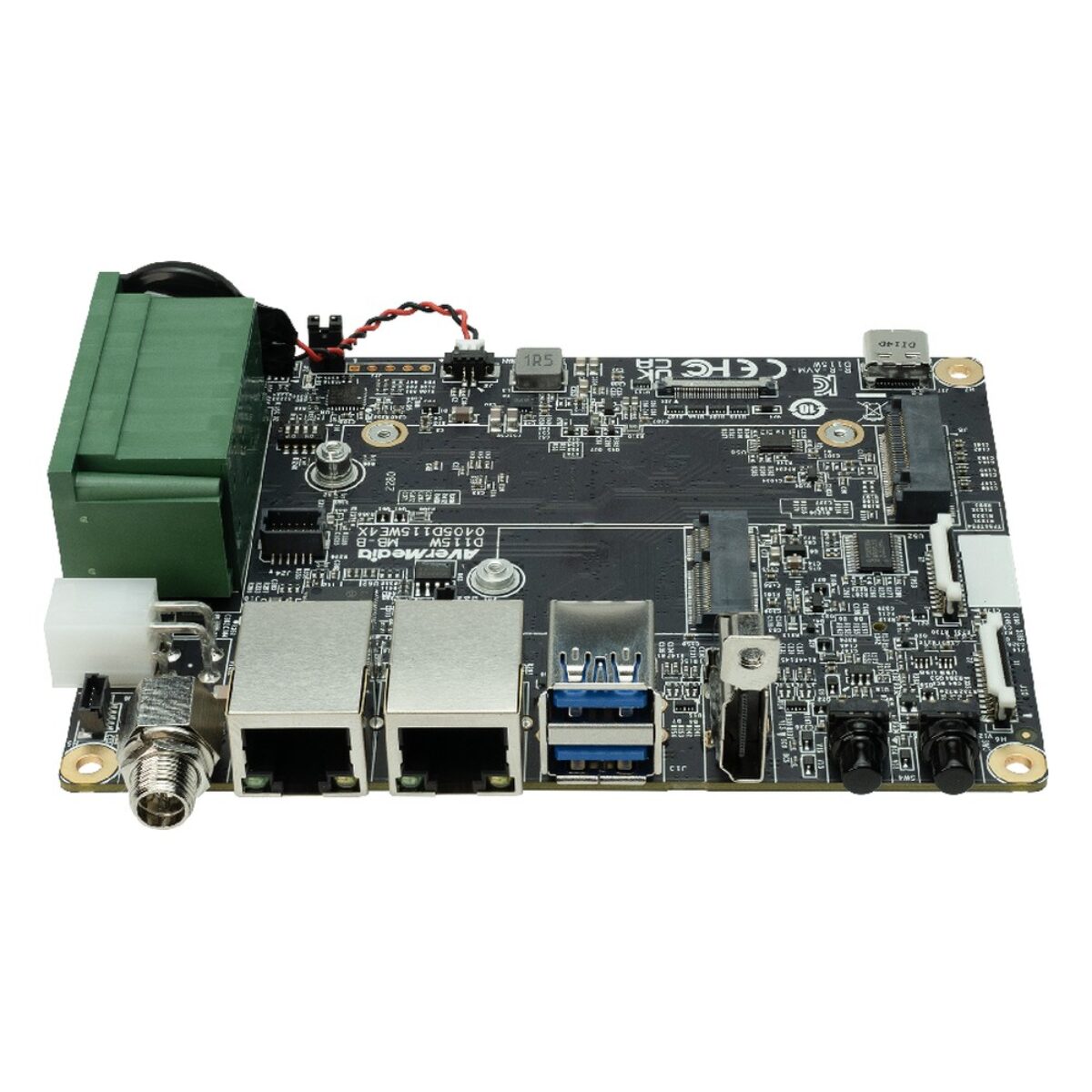

The D115W-1 range covers two finished boxes and the board. The D115WOXB-1 is the fanless industrial PC with a Jetson Orin NX 16GB or 8GB, rated at up to 100 TOPS or 70 TOPS, with 4K output at 60 Hz. The D115WONB-1 takes an Orin Nano 8GB at up to 40 TOPS, with 4K output at 30 Hz, for connected single-camera jobs. The D115W-1 is the bare carrier board, rated from -40 °C to 85 °C, for OEM products that need the same remote options in their own enclosure.

In practice the D115W-1 series suits car parks, junctions, gates, utility sites and mobile installations where a cellular link replaces a cable and remote recovery replaces a van. The boxes run fanless from -25 °C to 60 °C, with storage from -40 °C to 85 °C, and every product takes 9-24 V DC through a DC jack or 4-pin ATX header. AVerMedia lists CE, FCC and KC marks. Where the cellular and out-of-band options are not needed, the D115W series offers the same design with a third USB port.
