AVerMedia D133-1 NVIDIA Jetson Orin Industrial Embedded Computers with 4G/5G and Out-of-Band Management

Small edge AI units often end up in the least accessible places: gantries, lamp posts and remote gates where a restart means a lift or a long drive. The AVerMedia D133-1 series builds on the D133 design with a header for an optional Allxon out-of-band module, for remote power cycling and a cloud serial console, and headers for an optional 4G or 5G daughter board, for sites with no wired network.

Every D133-1 product shares one board. The optional daughter board connects through 5-pin and 30-pin headers and carries an M.2 B-key socket for a 4G or 5G modem plus an M.2 M-key socket for extra storage, and a 15-pin header takes the optional OOB module. Two MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. One GbE RJ45 port, one HDMI output at 4K, two USB 3.2 Type-A ports and USB-C for recovery complete the I/O, with M.2 sockets for NVMe storage and optional Wi-Fi. The 20-pin header carries nine GPIO lines, two I2C buses and one UART. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04.

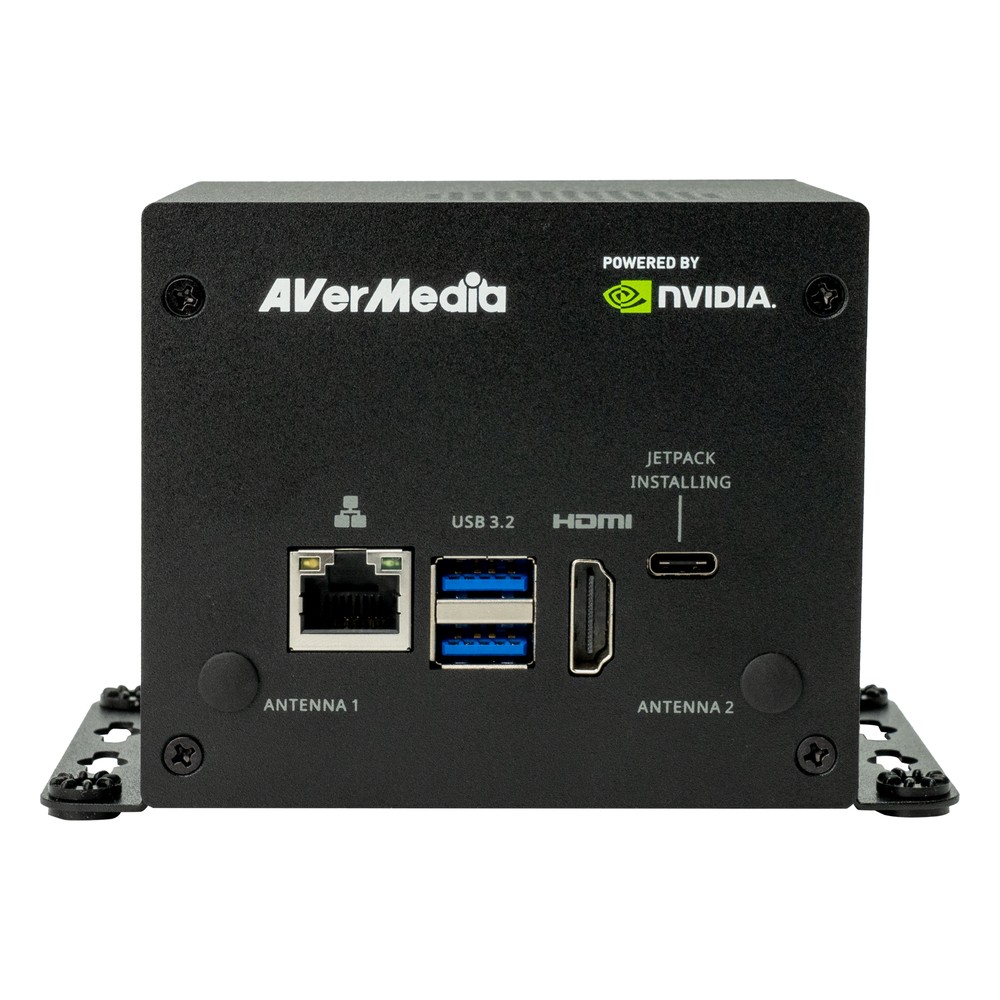

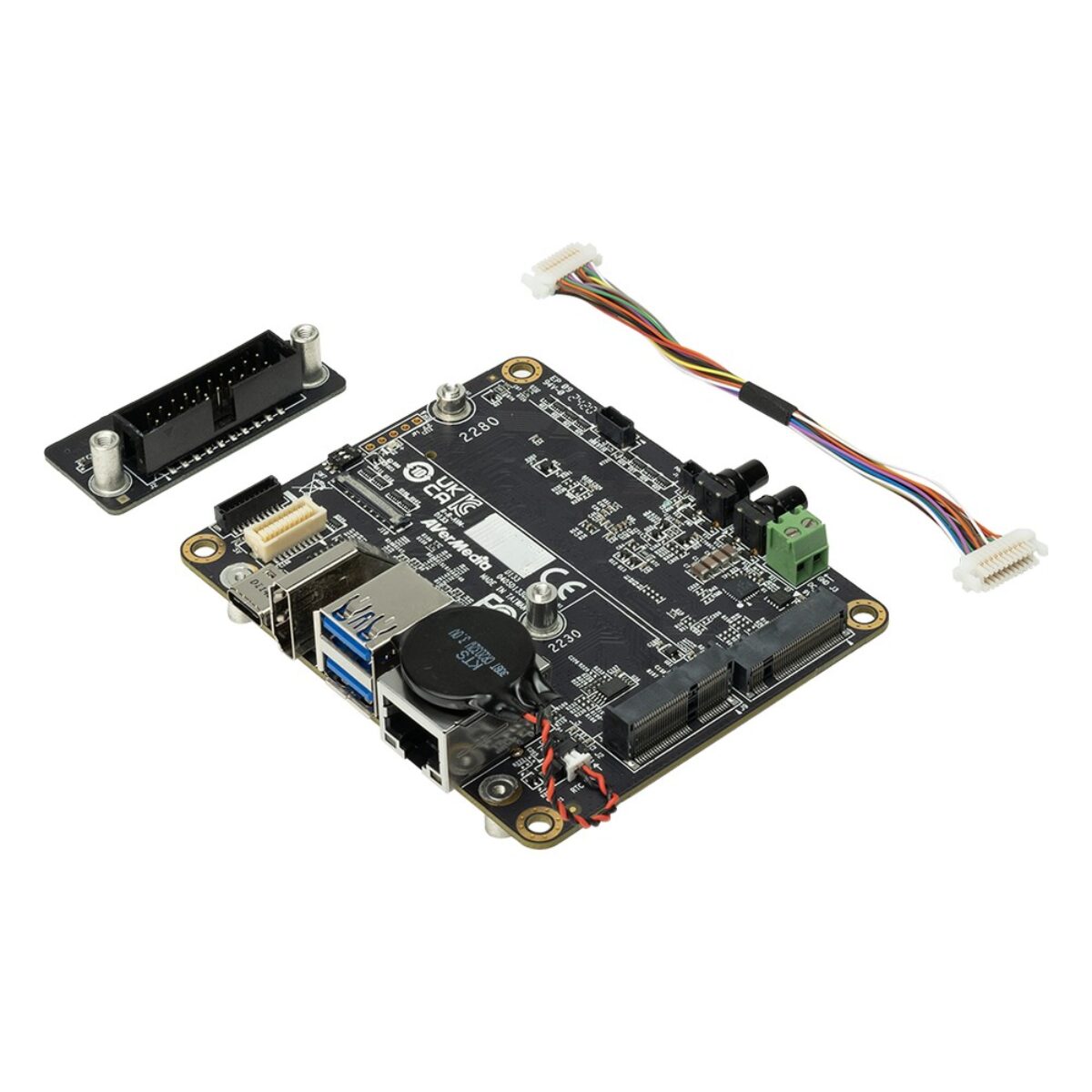

The D133-1 range covers two finished computers and the board. The D133OXB-1 takes a Jetson Orin NX 16GB or 8GB, rated at up to 100 TOPS or 70 TOPS, with 4K output at 60 Hz. The D133ONB-1 takes an Orin Nano 8GB at up to 40 TOPS, with 4K output at 30 Hz, for connected single-camera jobs. The D133-1 is the bare carrier board, rated from -40 °C to 85 °C with an optional fan, and ships with a 20-pin GPIO breakout board and cable for OEM designs.

In practice the D133-1 series suits car park and gate analytics, roadside monitoring, remote security cameras and smart city equipment where cellular backhaul replaces a cable and out-of-band access replaces a site visit. The boxed computers are fan-cooled and rated from -25 °C to 60 °C, with a 256GB NVMe SSD installed. Every product takes 9-24 V DC on a screw terminal, and AVerMedia lists CE, FCC and KC marks with RoHS 2 compliance. Where TPM 2.0 or Super Mode is needed too, the D133S series is the closer fit.
