AVerMedia ON135B NVIDIA Jetson Orin Nano Fanless Embedded Computer with 3x Analog AHD/TVI/CVI Cameras and 9-36V DC Input

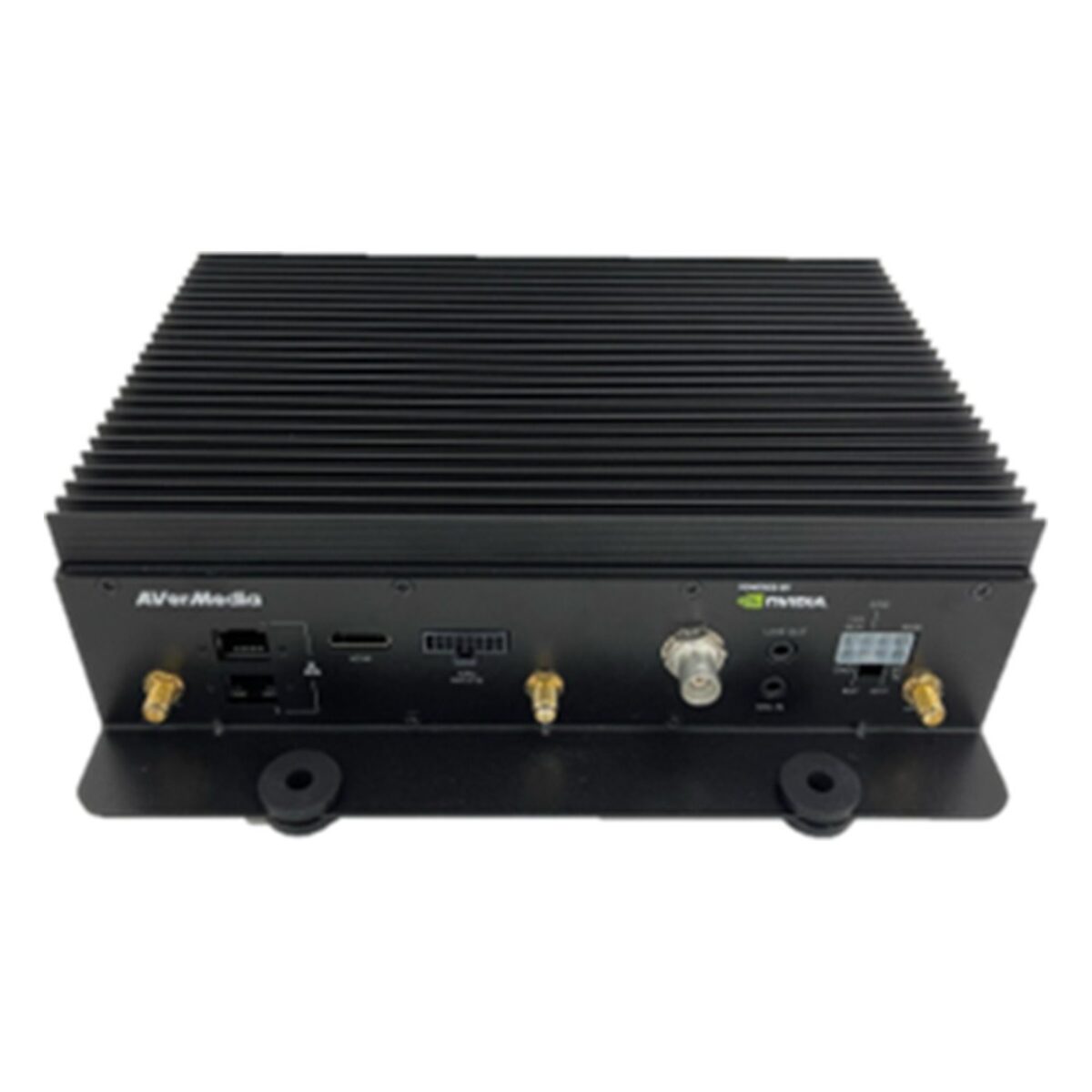

Buses, service vehicles and older CCTV sites often still run analog cameras, and replacing every camera to add analytics is rarely the cheapest route. The AVerMedia ON135B is an NVIDIA Jetson Orin Nano fanless embedded computer that takes those analog feeds directly, and AVerMedia designs it for vehicle and surveillance applications.

The ON135B runs a Jetson Orin Nano module, with a 256 GB SSD installed in the M.2 M-key slot. Three AHD, TVI or CVI inputs at up to 1080p30, 720p or 960H connect through a latched 16-pin wafer, and the AHD cable is in the box. For MIPI cameras and Allxon OOB in a fan-cooled box, see the D131ONB, and for GMSL2 cameras in a sealed IP65 unit, the D135OXB-16G-004.

Two GbE RJ45 ports, HDMI at 3840 x 2160 and 30 Hz and two USB 3.0 Type-A ports cover networking and peripherals. Vehicle and site signals connect through two isolated CAN bus ports and two UARTs on terminal blocks, three RS232 and one RS485 on DB9, four isolated GPI and two isolated GPO, with a microphone input and line output on 3.5 mm jacks. Optional modules include 4G on mPCIe, GPS or a half-size USB mPCIe card, and Wi-Fi on M.2 E-key 2230.

Power comes in at 9 V to 36 V DC on an ATX 8-pin connector with ACC ignition sensing and a DC output, backed by a super capacitor. The ON135B is cooled by a fanless heatsink, with five status LEDs, and is RoHS 2 compliant. We supply the ON135B with its Linux image installed, the SSD fitted and any optional 4G, GPS or Wi-Fi modules and antennas fitted, tested before it ships.
